Windows和Linux系统上的矢量运算:指令级并行计算SIMD(SSE/AVX)应用细节以及相关跨平台的源码解释

注：本文的SIMD，指的是CPU(base intel x86 architecture)指令架构中的相关概念。不涉及GPU端的算力机制。下面的代码在Win10和Linux上均可用。

基本概念

SSE: Streaming SIMD Extensions, x86 architecture
AVX: Advanced Vector Extensions

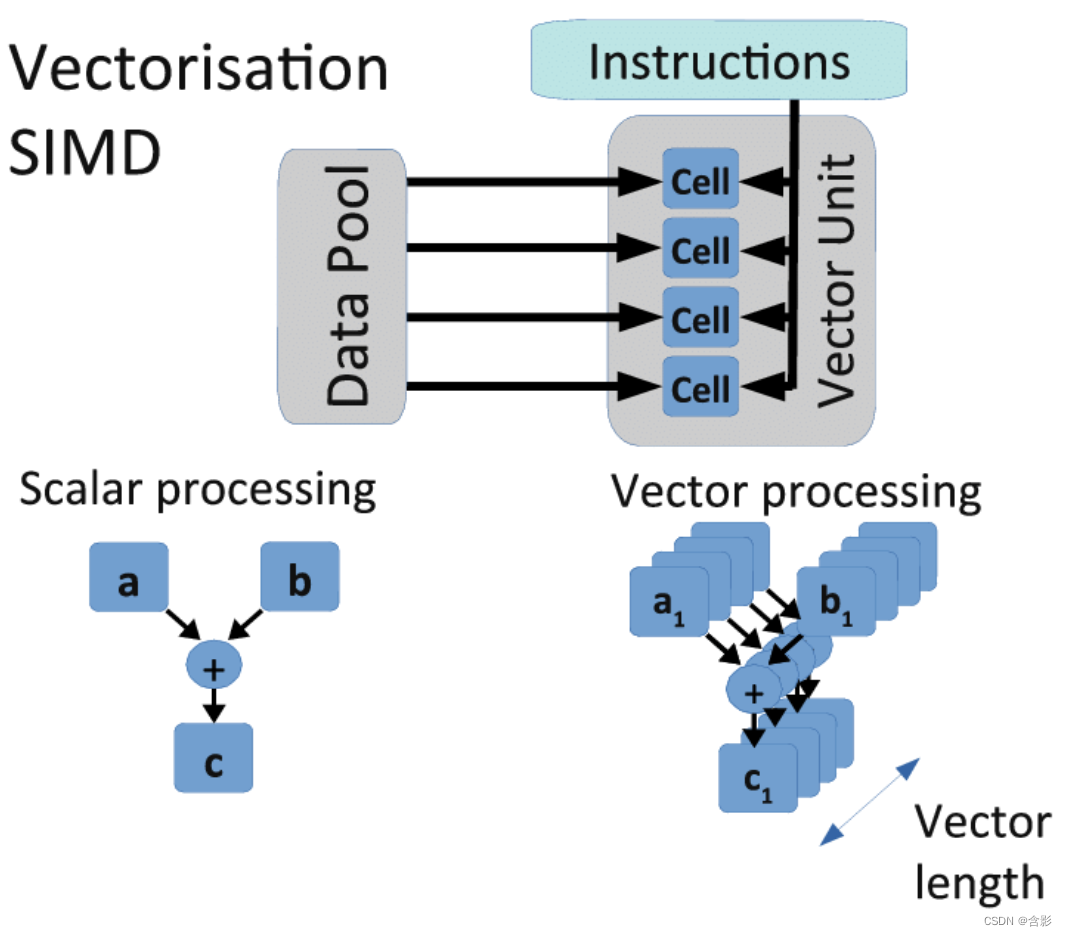

SIMD，Single Instruction/Multiple Data， 即单指流令多数据流，例如一个乘法指令，可以并行的计算8个浮点数的乘法。

SIMD(Single Instruction/Multiple Data， 即)是目前通用的CPU端的指令级并行计算机制，也叫做矢量运算，这些SIMD包括SSE和AVX。

通过代码直观的简介SIMD机制

用下面两份代码做个基本说明

非矢量运算的代码

void mul4_scalar( float* ptr )
{
    for( int i = 0; i < 4; i++ )
    {
        const float f = ptr[ i ];
        ptr[ i ] = f * f;
    }
}

矢量运算的代码

void mul4_vectorized( float* ptr )
{
    __m128 f = _mm_loadu_ps( ptr );
    f = _mm_mul_ps( f, f );
    _mm_storeu_ps( ptr, f );
}
// __m128 就是sse simd 对象
// _mm_mul_ps 和 _mm_storeu_ps 就是对应的乘法和赋值矢量运算指令(函数)

上述两份代码源自于: http://const.me/articles/simd/simd.pdf

不难看出，在密集计算中SIMD程序的效能肯定比常规程序高很多。(这里就不去和异构计算架构下的机制做比较了)

相关指令在源代码中的位置

Linux系统GCC

      gcc-master\gcc\config\i386\immintrin.h头文件中包含了各种simd指令的相关头文件

      SSE, __m128, 这类SSE指令位置: gcc-master\gcc\config\i386\xmmintrin.h

/* The Intel API is flexible enough that we must allow aliasing with other
   vector types, and their scalar components.  */
typedef float __m128 __attribute__ ((__vector_size__ (16), __may_alias__));

      SSE2, __v4si, __128d定义在 gcc-master\gcc\config\i386\emmintrin.h中

typedef int __v4si __attribute__ ((__vector_size__ (16)));

typedef double __m128d __attribute__ ((__vector_size__ (16), __may_alias__));

      MMX指令 __m64定义在 gcc-master\gcc\config\i386\mmintrin.h中

typedef int __m64 __attribute__ ((__vector_size__ (8), __may_alias__));
typedef int __m32 __attribute__ ((__vector_size__ (4), __may_alias__));
typedef short __m16 __attribute__ ((__vector_size__ (2), __may_alias__));

      AVX指令, _v4df, __v8si， __m256定义在gcc-master\gcc\config\i386\avxintrin.h中

typedef double __v4df __attribute__ ((__vector_size__ (32)));

typedef int __v8si __attribute__ ((__vector_size__ (32)));

typedef unsigned char __v32qu __attribute__ ((__vector_size__ (32)));

typedef float __m256 __attribute__ ((__vector_size__ (32),
             __may_alias__));

      linux系统中矢量运算 __attribute__ vector_size 定义的说明：

            typedef int v4si __attribute__ ((vector_size (16)));

            The int type specifies the base type, while the attribute specifies the vector size for the variable, measured in bytes. For example, the declaration above causes the compiler to set the mode for the v4si type to be 16 bytes wide and divided into int sized units. For a 32-bit int this means a vector of 4 units of 4 bytes, and the corresponding mode of foo will be V4SI.

           相关细节请见: Vector Extensions (Using the GNU Compiler Collection (GCC))

Windows系统MSVC

      头文件 Microsoft Visual Studio\2022\Community\VC\Tools\MSVC\14.33.31629\include\intrin.h，也已经包含了相关指令函数的头文件

      __m128d, __m128i定义在 Microsoft Visual Studio\2022\Community\VC\Tools\MSVC\14.33.31629\include\emmintrin.h中

typedef union __declspec(intrin_type) __declspec(align(16)) __m128i {
    __int8              m128i_i8[16];
    __int16             m128i_i16[8];
    __int32             m128i_i32[4];
    __int64             m128i_i64[2];
    unsigned __int8     m128i_u8[16];
    unsigned __int16    m128i_u16[8];
    unsigned __int32    m128i_u32[4];
    unsigned __int64    m128i_u64[2];
} __m128i;

typedef struct __declspec(intrin_type) __declspec(align(16)) __m128d {
    double              m128d_f64[2];
} __m128d;

      __m128d, __m128i定义在 Microsoft Visual Studio\2022\Community\VC\Tools\MSVC\14.33.31629\include\emmintrin.h

typedef union __declspec(intrin_type) __declspec(align(16)) __m128i {
    __int8              m128i_i8[16];
    __int16             m128i_i16[8];
    __int32             m128i_i32[4];
    __int64             m128i_i64[2];
    unsigned __int8     m128i_u8[16];
    unsigned __int16    m128i_u16[8];
    unsigned __int32    m128i_u32[4];
    unsigned __int64    m128i_u64[2];
} __m128i;

typedef struct __declspec(intrin_type) __declspec(align(16)) __m128d {
    double              m128d_f64[2];
} __m128d;

      AVX(AVX2), __m256d, __m256, __m256i定义在 Microsoft Visual Studio\2022\Community\VC\Tools\MSVC\14.33.31629\include\immintrin.h中

/*
 * Intel(R) AVX compiler intrinsic functions.
 */
typedef union __declspec(intrin_type) __declspec(align(32)) __m256 {
    float m256_f32[8];
} __m256;

typedef struct __declspec(intrin_type) __declspec(align(32)) __m256d {
    double m256d_f64[4];
} __m256d;

typedef union  __declspec(intrin_type) __declspec(align(32)) __m256i {
    __int8              m256i_i8[32];
    __int16             m256i_i16[16];
    __int32             m256i_i32[8];
    __int64             m256i_i64[4];
    unsigned __int8     m256i_u8[32];
    unsigned __int16    m256i_u16[16];
    unsigned __int32    m256i_u32[8];
    unsigned __int64    m256i_u64[4];
} __m256i;

两个系统的定义有区别，所以跨平台应用这些SIMD功能需要主要一些细节。

检查Linux系统或者Windows系统对SSE和AVX的支持情况

注：下面的代码本人常用在在Linux Centos7和Windows 10上

检测代码如下：

#include <iostream>
#ifdef _MSC_VER
#    include <intrin.h>
void __cpuidSpec(int p0[4], int p1)
{
    __cpuid(p0, p1);
}
unsigned __int64 __cdecl _xgetbvSpec(unsigned int p)
{
    return _xgetbv(p);
}
#endif

#ifdef __GNUC__
void __cpuidSpec(int* cpuinfo, int info)
{
    __asm__ __volatile__(
        "xchg %%ebx, %%edi;"
        "cpuid;"
        "xchg %%ebx, %%edi;"
        : "=a"(cpuinfo[0]), "=D"(cpuinfo[1]), "=c"(cpuinfo[2]), "=d"(cpuinfo[3])
        : "0"(info));
}
unsigned long long _xgetbvSpec(unsigned int index)
{
    unsigned int eax, edx;
    __asm__ __volatile__(
        "xgetbv;"
        : "=a"(eax), "=d"(edx)
        : "c"(index));
    return ((unsigned long long)edx << 32) | eax;
}
#    include <immintrin.h>
#endif

namespace sseavx::config
{
void sseavxCheck()
{
    bool sseSupportted    = false;
    bool sse2Supportted   = false;
    bool sse3Supportted   = false;
    bool ssse3Supportted  = false;
    bool sse4_1Supportted = false;
    bool sse4_2Supportted = false;
    bool sse4aSupportted  = false;
    bool sse5Supportted   = false;
    bool avxSupportted    = false;

    int cpuinfo[4];
    __cpuidSpec(cpuinfo, 1);

    // Check SSE, SSE2, SSE3, SSSE3, SSE4.1, and SSE4.2 support
    sseSupportted    = cpuinfo[3] & (1 << 25) || false;
    sse2Supportted   = cpuinfo[3] & (1 << 26) || false;
    sse3Supportted   = cpuinfo[2] & (1 << 0) || false;
    ssse3Supportted  = cpuinfo[2] & (1 << 9) || false;
    sse4_1Supportted = cpuinfo[2] & (1 << 19) || false;
    sse4_2Supportted = cpuinfo[2] & (1 << 20) || false;

    avxSupportted         = cpuinfo[2] & (1 << 28) || false;
    bool osxsaveSupported = cpuinfo[2] & (1 << 27) || false;
    if (osxsaveSupported && avxSupportted)
    {
        // _XCR_XFEATURE_ENABLED_MASK = 0
        unsigned long long xcrFeatureMask = _xgetbvSpec(0);
        avxSupportted                     = (xcrFeatureMask & 0x6) == 0x6;
    }

    // ----------------------------------------------------------------------

    // Check SSE4a and SSE5 support

    // Get the number of valid extended IDs
    __cpuidSpec(cpuinfo, 0x80000000);
    int numExtendedIds = cpuinfo[0];
    if (numExtendedIds >= 0x80000001)
    {
        __cpuidSpec(cpuinfo, 0x80000001);
        sse4aSupportted = cpuinfo[2] & (1 << 6) || false;
        sse5Supportted  = cpuinfo[2] & (1 << 11) || false;
    }

    // ----------------------------------------------------------------------
    std::cout << "\n";
    std::boolalpha(std::cout);
    std::cout << "Support SSE:     " << sseSupportted << std::endl;
    std::cout << "Support SSE2:    " << sse2Supportted << std::endl;
    std::cout << "Support SSE3:    " << sse3Supportted << std::endl;
    std::cout << "Support SSE4.1:  " << sse4_1Supportted << std::endl;
    std::cout << "Support SSE4.2:  " << sse4_2Supportted << std::endl;
    std::cout << "Support SSE4a:   " << sse4aSupportted << std::endl;
    std::cout << "Support SSE5:    " << sse5Supportted << std::endl;
    std::cout << "Support AVX:     " << avxSupportted << std::endl;
    std::cout << "\n";
}
}

windows或linux下c++17及以上版本编译即可。

Linux和Windows下SIMD的跨平台用例详情

c++ simd用例代码如下(包含相关说明):

#include <iostream>
#include <vector>
#include <array>
#include <cassert>
#include <random>
#include <chrono>

#ifdef _MSC_VER
#    include <intrin.h>
#endif

#ifdef __GNUC__
#include <cstring>
#include <immintrin.h>
#endif

namespace sseavx::test
{
namespace
{
// function meaning: value = sqrt(a*a + b*b)
void normal_sqrt_calc(float data1[], float data2[], int len, float out[])
{
    int i;
    for (i = 0; i < len; i++)
    {
        out[i] = sqrt(data1[i] * data1[i] + data2[i] * data2[i]);
    }
}
// sse
void simd_sqrt_calc(float* data1, float* data2, int len, float out[])
{
    // g++ -msse3 -O3 -Wall -lrt sseavxBaseTest.cc -o sseavxBaseTest.out -std=c++20
    // g++ sseavxBaseTest.cc -o sseavxBaseTest.out -std=c++20
    assert(len % 4 == 0);
    __m128 *a, *b, *res, t1, t2, t3; // = _mm256_set_ps(1, 1, 1, 1, 1, 1, 1, 1);
    int     i, tlen = len / 4;

    a   = (__m128*)data1;
    b   = (__m128*)data2;
    res = (__m128*)out;
    for (i = 0; i < tlen; i++)
    {

        t1   = _mm_mul_ps(*a, *a);
        t2   = _mm_mul_ps(*b, *b);
        t3   = _mm_add_ps(t1, t2);
        *res = _mm_sqrt_ps(t3);
        a++;
        b++;
        res++;
    }
}
// avx
void simd256_sqrt_calc(float* data1, float* data2, int len, float out[])
{
    assert(len % 8 == 0);
    // AVX g++ cpmpile cmd: g++ -mavx sseavxBaseTest.cc -o sseavxBaseTest.out -std=c++20
    // AVX g++ cpmpile cmd: g++ -march=native sseavxBaseTest.cc -o sseavxBaseTest.out -std=c++20

    __m256 *a, *b, *res, t1, t2, t3; // = _mm256_set_ps(1, 1, 1, 1, 1, 1, 1, 1);
    int     i, tlen = len / 8;
    a   = (__m256*)data1;
    b   = (__m256*)data2;
    res = (__m256*)out;
    for (i = 0; i < tlen; i++)
    {
        t1   = _mm256_mul_ps(*a, *a);
        t2   = _mm256_mul_ps(*b, *b);
        t3   = _mm256_add_ps(t1, t2);
        *res = _mm256_sqrt_ps(t3);
        // _mm256_storeu_ps
        a++;
        b++;
        res++;
    }
}
// sse simd 计算 float类型的vector4和4x4矩阵的乘法
void vec4_mul_mat4(const float vd[4], const std::array<float[4], 4>& md, float out[4])
{
    __m128* v  = (__m128*)vd;
    __m128  i0 = *((__m128*)md[0]);
    __m128  i1 = *((__m128*)md[1]);
    __m128  i2 = *((__m128*)md[2]);
    __m128  i3 = *((__m128*)md[3]);

    __m128 m0 = _mm_mul_ps(*v, i0);
    __m128 m1 = _mm_mul_ps(*v, i1);
    __m128 m2 = _mm_mul_ps(*v, i2);
    __m128 m3 = _mm_mul_ps(*v, i3);

    __m128 u0 = _mm_unpacklo_ps(m0, m1);
    __m128 u1 = _mm_unpackhi_ps(m0, m1);
    __m128 a0 = _mm_add_ps(u0, u1);

    __m128 u2 = _mm_unpacklo_ps(m2, m3);
    __m128 u3 = _mm_unpackhi_ps(m2, m3);
    __m128 a1 = _mm_add_ps(u2, u3);

    __m128 f0 = _mm_movelh_ps(a0, a1);
    __m128 f1 = _mm_movehl_ps(a1, a0);
    __m128 f2 = _mm_add_ps(f0, f1);
#ifdef __GNUC__
    std::memcpy(out, &f2, sizeof(float) * 4);
#else
    std::memcpy(out, f2.m128_f32, sizeof(float) * 4);
#endif
}
} // namespace
void test_sqrt_calc()
{
    std::cout << "\n... test_sqrt_calc() begin ..." << std::endl;
    std::random_device                    rd;
    std::mt19937                          gen(rd());
    std::uniform_real_distribution<float> distribute(100.5f, 20001.5f);
    constexpr int                         data_size = 8192 << 12;
    // 应用__attribute__ ((aligned (32))) 语法解决 avx linux 运行时内存对齐问题，
    // 如果没有强制对齐，则会出现运行时 Segmentation fault 错误
    // 在 MSVC环境 则用: __declspec(align(32))

#ifdef __GNUC__
    // invalid attribute defined syntax in linux heap run time memory env, make runtime avx error: Segmentation fault
    // __attribute__ ((aligned (32))) float           *data1 = new float[data_size]{};
    // __attribute__ ((aligned (32))) float           *data2 = new float[data_size]{};
    // __attribute__ ((aligned (32))) float           *data_out = new float[data_size]{};
    //
    // valid attribute defined syntax in linux heap run time memory env, runtime correct.
    float* data1    = new float __attribute__((aligned(32)))[data_size]{};
    float* data2    = new float __attribute__((aligned(32)))[data_size]{};
    float* data_out = new float __attribute__((aligned(32)))[data_size]{};

    // valid attribute  defined syntax in linux code stack run time memory env, runtime correct.
    // __attribute__ ((aligned (32))) float data1[data_size]{};
    // __attribute__ ((aligned (32))) float data2[data_size]{};
    // __attribute__ ((aligned (32))) float data_out[data_size]{};
#else
    float*                  data1    = new float[data_size]{};
    float*                  data2    = new float[data_size]{};
    float*                  data_out = new float[data_size]{};
#endif
    std::cout << "data_size: " << data_size << std::endl;
    std::cout << "data: ";
    for (int i = 0; i < data_size; ++i)
    {
        auto v   = distribute(gen);
        data1[i] = v;
        if (i < 8)
            std::cout << distribute(gen) << " ";
    }
    std::cout << std::endl;

    for (int i = 0; i < data_size; ++i)
    {
        auto v   = distribute(gen);
        data2[i] = v;
    }

    auto time_start = std::chrono::high_resolution_clock::now();
    // normal_sqrt_calc(data1, data2, data_size, data_out);// DEbug 146ms, data_size = 8192 << 12, in Win10 MSVC;
    // simd_sqrt_calc(data1, data2, data_size, data_out);// Debug 38ms
    simd256_sqrt_calc(data1, data2, data_size, data_out); // Debug 24ms
    // 目前的代码中的buffer数据定义和使用，看起来与cpu cache的空间局部性原则冲突，
    // 可能导致较多的cpu cache miss，但是Release下由于编译器有优化，非SIMD计算具体情况
    // 则另当别论。单有一点是确定的，因为不是soa数据形式，对SIMD机制并不友好。
    auto time_end = std::chrono::high_resolution_clock::now();
    auto lossTime = std::chrono::duration_cast<std::chrono::milliseconds>(time_end - time_start).count();
    std::cout << "loss time: " << lossTime << "ms" << std::endl;

    std::cout << "data_out: ";
    for (int i = 0; i < 8; ++i)
    {
        std::cout << data_out[i] << " ";
    }
    std::cout << std::endl;
    delete[] data1;
    delete[] data2;
    delete[] data_out;

    data1 = nullptr;
    data2 = nullptr;
    data_out = nullptr;
    std::cout << "... test_sqrt_calc() end ..." << std::endl;
}
void test_matrix_calc()
{
    std::cout << "\n... test_matrix_calc() begin ...\n" << std::endl;
#ifdef __GNUC__

    __attribute__((aligned(32))) float                   vec4_out[4]{};
    __attribute__((aligned(32))) float                   vec4_01[4]{1.1f, 2.2f, 3.3f, 1.0f};
    __attribute__((aligned(32))) std::array<float[4], 4> mat4_01{
        {1.0f, 0.0f, 0.0f, 0.0f, 0.0f, 1.0f, 0.0f, 0.0f, 0.0f, 0.0f, 1.0f, 0.0f, 0.0f, 0.0f, 0.0f, 1.0f}};
#else
    float                   vec4_out[4]{};
    float                   vec4_01[4]{1.1f, 2.2f, 3.3f, 1.0f};
    std::array<float[4], 4> mat4_01{
        {1.0f, 0.0f, 0.0f, 0.0f, 0.0f, 1.0f, 0.0f, 0.0f, 0.0f, 0.0f, 1.0f, 0.0f, 0.0f, 0.0f, 0.0f, 1.0f}};
#endif
    vec4_mul_mat4(vec4_01, mat4_01, vec4_out);

    std::cout << "SSE vec4_mul_mat4 :" << vec4_out[0] << "," << vec4_out[1] << "," << vec4_out[2] << "," << vec4_out[3] << std::endl;
    std::cout << "\n... test_matrix_calc() end ..." << std::endl;
}
void testBase()
{
    //g++ -msse3 -O3 -Wall -lrt checkSSEAVX2.cc -o check2.out -std=c++20
    std::cout << "\n... testBase() begin ...\n"
              << std::endl;
    ///*
#ifdef __GNUC__
    const __m128 zero = _mm_setzero_ps();
    const __m128 eq   = _mm_cmpeq_ps(zero, zero);
    const int    mask = _mm_movemask_ps(eq);
    std::cout << "testBase(), mask: " << mask << std::endl;
    union
    {
        __m128               v;
        float                vs[4]{4.0f, 4.1f, 4.2f, 4.3f};
        std::array<float, 4> array;
    } SIMD4Data{};
    __m128 a4   = _mm_set_ps(4.0f, 4.1f, 4.2f, 4.3f);
    __m128 b4   = _mm_set_ps(1.0f, 1.0f, 1.0f, 1.0f);
    __m128 sum4 = _mm_add_ps(a4, b4);
    auto   f_vs = (float*)&sum4;
    std::cout << "SSE sum4 A:" << f_vs[0] << "," << f_vs[1] << "," << f_vs[2] << "," << f_vs[3] << std::endl;
    // 获取值的顺序和你输入的顺序是相反的
    std::cout << "SSE sum4 B:" << f_vs[3] << "," << f_vs[2] << "," << f_vs[1] << "," << f_vs[0] << std::endl;
    SIMD4Data.v = _mm_add_ps(a4, b4);
    std::cout << "SSE Sum SIMD4Data.vs:" << SIMD4Data.vs[0] << "," << SIMD4Data.vs[1] << "," << SIMD4Data.vs[2] << "," << SIMD4Data.vs[3] << std::endl;
    float result_vs[4]{};
    _mm_store_ps(result_vs, sum4);
    std::cout << "SSE Sum result_vs:" << result_vs[0] << "," << result_vs[1] << "," << result_vs[2] << "," << result_vs[3] << std::endl;
#else
    union
    {
        __m128               v;
        float                vs[4]{4.0f, 4.1f, 4.2f, 4.3f};
        std::array<float, 4> array;
    } SIMD4Data{};
    __m128 a4   = _mm_set_ps(4.0f, 4.1f, 4.2f, 4.3f);
    __m128 b4   = _mm_set_ps(1.0f, 1.0f, 1.0f, 1.0f);
    __m128 sum4 = _mm_add_ps(a4, b4);
    std::cout << "SSE sum4.m128_f32 A:" << sum4.m128_f32[0] << "," << sum4.m128_f32[1] << "," << sum4.m128_f32[2] << "," << sum4.m128_f32[2] << std::endl;
    // 获取值的顺序和你输入的顺序是相反的
    std::cout << "SSE sum4.m128_f32 B:" << sum4.m128_f32[3] << "," << sum4.m128_f32[2] << "," << sum4.m128_f32[1] << "," << sum4.m128_f32[0] << std::endl;
    std::cout << "SSE sum4.m128_f32[0]:" << sum4.m128_f32[0] << std::endl;
    SIMD4Data.v = _mm_add_ps(a4, b4);
    std::cout << "SSE Sum SIMD4Data.vs:" << SIMD4Data.vs[0] << "," << SIMD4Data.vs[1] << "," << SIMD4Data.vs[2] << "," << SIMD4Data.vs[3] << std::endl;
    std::cout << "SSE Sum SIMD4Data.array:" << SIMD4Data.array[0] << "," << SIMD4Data.array[1] << "," << SIMD4Data.array[2] << "," << SIMD4Data.array[3] << std::endl;

    std::cout << "\n";
    union
    {
        __m256 v;
        float  vs[8]{};
    } SIMD8Data{};

    __m256 a8   = _mm256_set_ps(4.0f, 4.1f, 4.2f, 4.3f, 4.0f, 4.1f, 4.2f, 4.3f);
    __m256 b8   = _mm256_set_ps(3.0f, 3.3f, 3.2f, 3.3f, 3.0f, 3.1f, 3.2f, 3.3f);
    __m256 sum8 = _mm256_add_ps(a8, b8);
    SIMD8Data.v = _mm256_add_ps(a8, b8);
    std::cout << "SSE sum8.m256_f32:" << sum8.m256_f32[0] << "," << sum8.m256_f32[1] << "," << sum8.m256_f32[2] << std::endl;
    std::memcpy(SIMD8Data.vs, sum8.m256_f32, sizeof(float));
    std::cout << "SSE SIMD8Data.vs:" << SIMD8Data.vs[0] << "," << SIMD8Data.vs[1] << "," << SIMD8Data.vs[2] << std::endl;
#endif
    std::cout << "\n";
    std::cout << "... testBase() end ..." << std::endl;
}

void testBase2()
{
    std::cout << "\n... testBase2() begin ...\n";
#ifdef __GNUC__
    float v0[4] __attribute__((aligned(16))) = {0.0f, 1.0f, 2.0f, 3.0f};
    float v1[4] __attribute__((aligned(16))) = {4.0f, 5.0f, 6.0f, 7.0f};
#else
    float v0[4] = {0.0f, 1.0f, 2.0f, 3.0f};
    float v1[4] = {4.0f, 5.0f, 6.0f, 7.0f};
#endif
    /*
     _MM_SHUFFLE macro is supported in both Linux GCC and Windows MSVC, in linux gcc, defined in gcc\config\i386\xmmintrin.h head file.

     __m128 _mm_shuffle_ps(__m128 lo,__m128 hi,_MM_SHUFFLE(hi3,hi2,lo1,lo0)):
     Interleave inputs into low 2 floats and high 2 floats of output. Basically
     out[0]=lo[lo0];
     out[1]=lo[lo1];
     out[2]=hi[hi2];
     out[3]=hi[hi3];
     For example, _mm_shuffle_ps(a,a,_MM_SHUFFLE(i,i,i,i)) copies the float a[i] into all 4 output floats.
    */
    __m128 r0 = _mm_load_ps(v0);
    __m128 r1 = _mm_load_ps(v1);
    __m128 r1_b = _mm_set_ps(v1[0], v1[1], v1[2], v1[3]);
    _mm_store_ps(v0, r1);
    std::cout << "SSE r1 :" << v0[0] << "," << v0[1] << "," << v0[2] << "," << v0[3] << std::endl;
    _mm_store_ps(v0, r1_b);
    std::cout << "SSE r1_b :" << v0[0] << "," << v0[1] << "," << v0[2] << "," << v0[3] << std::endl;
    auto r1_b_0 = _mm_shuffle_ps(r1_b, r1_b, _MM_SHUFFLE(3, 2, 1, 0));
    _mm_store_ps(v0, r1_b_0);
    std::cout << "SSE r1_b_0 :" << v0[0] << "," << v0[1] << "," << v0[2] << "," << v0[3] << std::endl;
    // output: SSE r1_b_0 : 7, 6, 5, 4
    auto r1_b_1 = _mm_shuffle_ps(r1_b, r1_b, _MM_SHUFFLE(0, 1, 2, 3));
    _mm_store_ps(v0, r1_b_1);
    std::cout << "SSE r1_b_1 :" << v0[0] << "," << v0[1] << "," << v0[2] << "," << v0[3] << std::endl;
    // output: SSE r1_b_1 : 4, 5, 6, 7

    // Identity: r2 = r0.
    std::cout << "Identity:" << std::endl;
    auto r2 = _mm_shuffle_ps(r0, r0, _MM_SHUFFLE(3, 2, 1, 0));
    _mm_store_ps(v0, r2);
    std::cout << "SSE r2 :" << v0[0] << "," << v0[1] << "," << v0[2] << "," << v0[3] << std::endl;
    auto r2_b = _mm_shuffle_ps(r1, r1, _MM_SHUFFLE(3, 2, 1, 0));
    _mm_store_ps(v0, r2);
    std::cout << "SSE r2_b :" << v0[0] << "," << v0[1] << "," << v0[2] << "," << v0[3] << std::endl;
    auto r2_c = _mm_shuffle_ps(r1, r1, _MM_SHUFFLE(3, 2, 1, 0));
    _mm_store_ps(v0, r2);
    std::cout << "SSE r2_c :" << v0[0] << "," << v0[1] << "," << v0[2] << "," << v0[3] << std::endl;

    _mm_store_ps(v0, r2);
    for (auto x : v0) { std::cout << x << ' '; }
    std::cout << std::endl;

    // Reverse r0
    std::cout << "Reverse r0:" << std::endl;
    r2 = _mm_shuffle_ps(r0, r0, _MM_SHUFFLE(0, 1, 2, 3));

    _mm_store_ps(v0, r2);
    for (auto x : v0) { std::cout << x << ' '; }
    std::cout << std::endl;

    // Even: { r0[ 0 ], r0[ 2 ], r1[ 0 ], r1[ 2 ] }
    std::cout << "Even: { r0[ 0 ], r0[ 2 ], r1[ 0 ], r1[ 2 ] }" << std::endl;
    r2 = _mm_shuffle_ps(r0, r1, _MM_SHUFFLE(2, 0, 2, 0));

    _mm_store_ps(v0, r2);
    for (auto x : v0) { std::cout << x << ' '; }
    std::cout << std::endl;

    // Misc: { r0[ 3 ], r0[ 2 ], r1[ 2 ], r1[ 1 ] }
    std::cout << "Misc: { r0[ 3 ], r0[ 2 ], r1[ 2 ], r1[ 1 ] }" << std::endl;
    r2 = _mm_shuffle_ps(r0, r1, _MM_SHUFFLE(1, 2, 2, 3));

    _mm_store_ps(v0, r2);
    for (auto x : v0) { std::cout << x << ' '; }
    std::cout << std::endl;
    std::cout << "\n... testBase2() end ..." << std::endl;
}
}
// linux compile cmd: g++ -mavx sseavxBaseTest.cc -o sseavxBaseTest.out -std=c++20
int main(int argc, char** argv)
{
    std::cout << "main() begin.\n";
    sseavx::test::testBase();
    sseavx::test::testBase2();
    sseavx::test::test_sqrt_calc();
    sseavx::test::test_matrix_calc();
    std::cout << "\nmain() end.\n";
    return EXIT_SUCCESS;
}

如果将此代码保存为 sseavxBaseTest.cc, linux下编译命令为:

g++ -mavx sseavxBaseTest.cc -o sseavxBaseTest.out -std=c++20

c++版本最低为c++17。

查看更多Intel SIMD指令详情

相关链接: https://www.intel.com/content/www/us/en/docs/intrinsics-guide/index.html

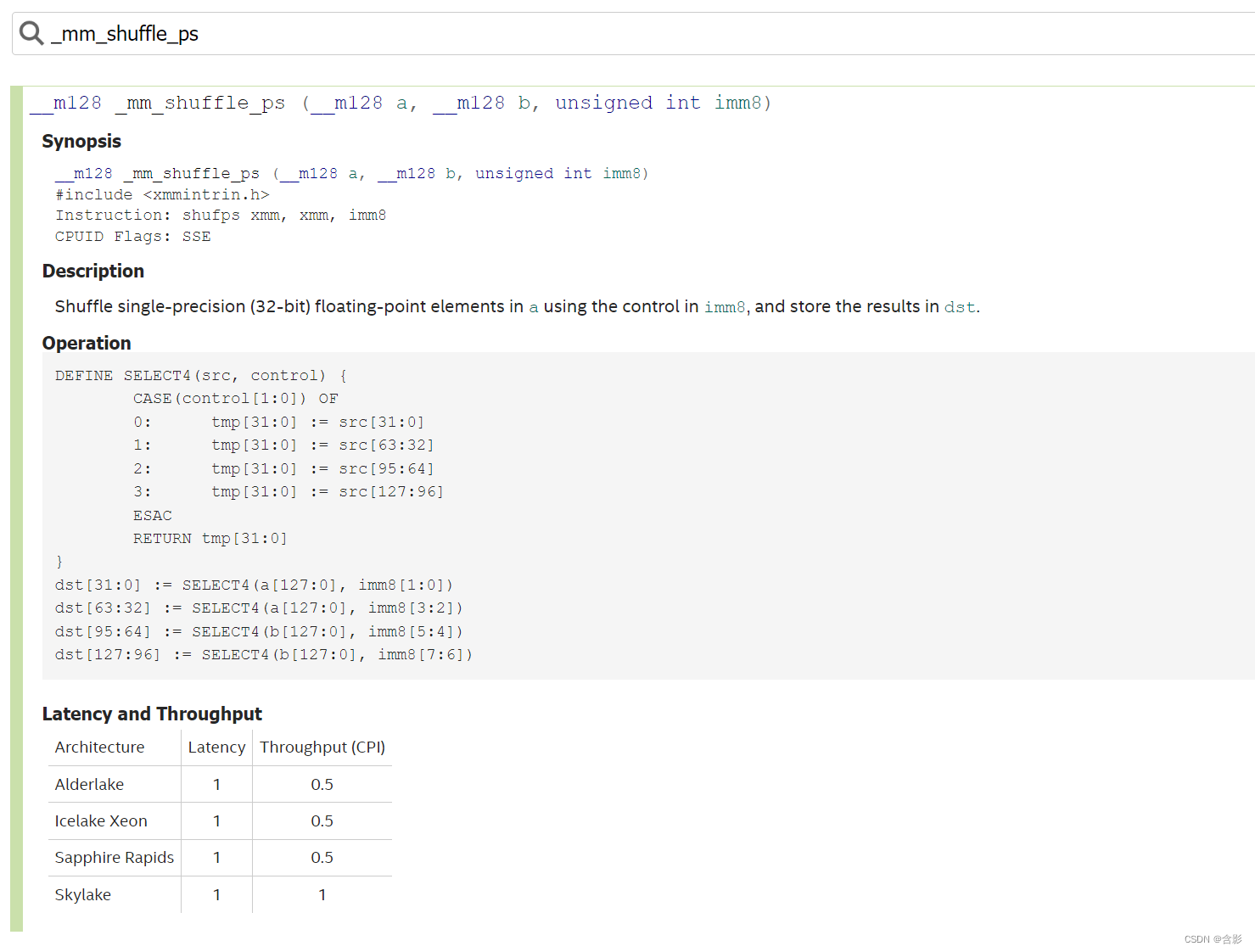

这里面可以搜索对应的指令，查看到的指令细节信息如下图:
