TinyOs例子之TestSerial学习

学习TestSerial

1、建立模块 TestSerialC

2、使用到的接口有：

   uses {

   interface Leds;

interface Boot;

   /*主要是下面几个*/

interfaceSplitControl asControl;

   interface Receive;

   interface AMSend;

   interface Timer<TMilli> asMilliTimer;

   interface Packet;

  }

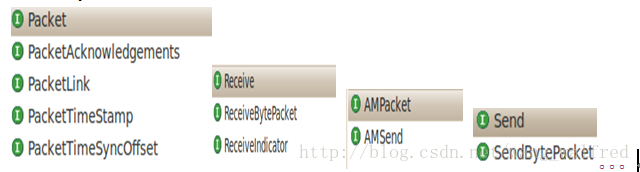

查找tinyos自带的可以知道共有以下接口可以使用

3、实现中常用函数（implementation）

3.1、Packet中的函数有：

command void clear(message_t* msg); //清除packet内容

command uint8_t payloadLength(message_t* msg);//返回msg的数据（payload）长度

command void setPayloadLength(message_t* msg,uint8_t len); //设定packet的长度

command uint8_t maxPayloadLength();Return the maximum payload length that thiscommunication layer

command void* getPayload(message_t* msg, uint8_tlen);Return a pointer to aprotocol's payload region in a packet.例如：test_serial_msg*rcm=( test_serial_msg*)(callPacket.getPayload(&msg, sizeof(test_serial_msg_t))) 即返回test_serial_msg_t类型的结构体指针指向消息包的有效载荷区（数据区）

3.2、Receive中的函数有

event message_t* receive(message_t* msg, void* payload, uint8_tlen);

* Receivea packet buffer, returning a buffer for the signaling component to use for thenext reception. The return value  can bethe same as <tt>msg</tt>, as long as the handling  component copies out the data it needs

3.3 Send中函数有



  command error_t send(message_t* msg, uint8_tlen);

  commanderror_t cancel(message_t* msg);





  event void sendDone(message_t* msg, error_terror);

  command uint8_t maxPayloadLength();

  command void* getPayload(message_t* msg,uint8_t len);

3.4、SplitControl中的函数有

command error_t start();

 Start this component and all of itssubcomponents.  Return values of SUCCESSwill always result in a <code>startDone()</code>  event being signalled.

event void startDone(error_t error);

  /**

   *Notify caller that the component has been started and is ready to

   * receiveother commands.

   *

   *@param <b>error</b> -- SUCCESS if the component was successfully

  *                        turnedon, FAIL otherwise

   */

command error_t stop();

  Startthis component and all of its subcomponents. Return values of SUCCESS will always result in a<code>startDone()</code> event being signalled.

event void stopDone(error_t error);

   *Notify caller that the component has been stopped.

  * @param<b>error</b> -- SUCCESS if the component was successfully

 *                        turned off, FAIL otherwise



3.5、AMSend中的函数有

 command error_tsend(am_addr_t addr, message_t* msg, uint8_t len);

    * Send a packet with a data payload of<tt>len</tt> to address

 command error_tcancel(message_t* msg);

    * Cancel a requested transmission. ReturnsSUCCESS if the

    * transmission was canceled properly (notsent in its entirety).

event void sendDone(message_t* msg, error_t error);

    * Signaled in response to an accepted sendrequest. <tt>msg</tt> is

    * the message buffer sent, and<tt>error</tt> indicates whether the send was successful.

command uint8_t maxPayloadLength();

*Return the maximum payload lengththat this communication layer can provide.

 *This command behaves identically to<tt>Packet.maxPayloadLength</tt> and is included in this

command void* getPayload(message_t* msg, uint8_t len);

    * Return a pointer to a protocol's payloadregion in a packet.

    * This command behaves identically to<tt>Packet.getPayload</tt>

* (minus the length parameter) and isincluded in this interface

下面是基于主动消息的接口

3.5、AMPacket中的函数有

command am_addr_taddress();

  command am_addr_tdestination(message_t* amsg);

  command am_addr_tsource(message_t* amsg);

  command voidsetDestination(message_t* amsg, am_addr_t addr);

  command voidsetSource(message_t* amsg, am_addr_t addr);

  command boolisForMe(message_t* amsg);

  command am_id_ttype(message_t* amsg);

  command voidsetType(message_t* amsg, am_id_t t);

  command am_group_tgroup(message_t* amsg);

  command voidsetGroup(message_t* amsg, am_group_t grp);

  command am_group_tlocalGroup();

4、建立连接线

 components TestSerialC as App, LedsC, MainC;

 components SerialActiveMessageC as AM;

 components new TimerMilliC();

 App.Boot -> MainC.Boot;

 App.Control -> AM;

 App.Receive -> AM.Receive[AM_TEST_SERIAL_MSG];

 App.AMSend -> AM.AMSend[AM_TEST_SERIAL_MSG];

 App.Leds -> LedsC;

 App.MilliTimer -> TimerMilliC;

 App.Packet -> AM;

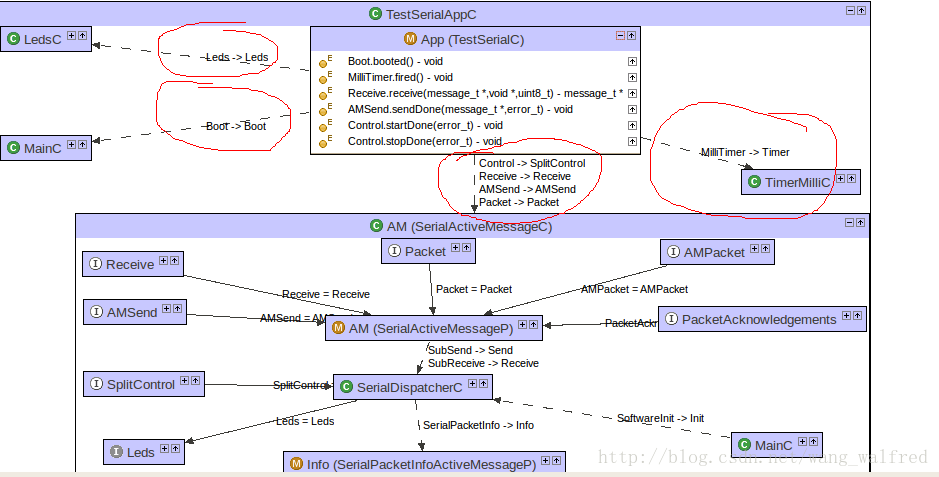

如下图：





学习内容：

         i.             在这个例子中，主要是了解tinyos系统的基于主动消息的通信模型。在主动消息通信中，每个消息都维护一个应用层的处理器（处理子程序）。当目标节点收到这个消息后，会把这个消息中的数据作为参数，传递给应用层的处理器进行处理。

       ii.             主动消息的缓存管理机制

     iii.             主动消息的显示确认机制

      iv.             消息缓存抽象

/*

 * This resource is used toarbitrate access between ActiveMessageC,

 * Ieee154MessageC andpossibly future MessageC components to the

 * underlying radio driver.

 */

typedef nx_struct message_t {

  nx_uint8_theader[sizeof(message_header_t)];   //头部

  nx_uint8_tdata[TOSH_DATA_LENGTH];//有下载何区，数据

  nx_uint8_tfooter[sizeof(message_footer_t)];//尾部

  nx_uint8_tmetadata[sizeof(message_metadata_t)];//元数据

} message_t;

注意：headr/footer/metadata 都是不透明的，不可以直接访问。Data字节的访问必须通通过packet、Ampacket.
