需求
有两台windows服务器,iis承载WebAPI,测试使用Windows平台Nginx做负载均衡验证。
A机IP及Web端口:192.168.7.54:8052。
B机IP及Web端口:192.168.7.161:8051。
Nginx所在机器IP及端口:192.168.7.161:8050。

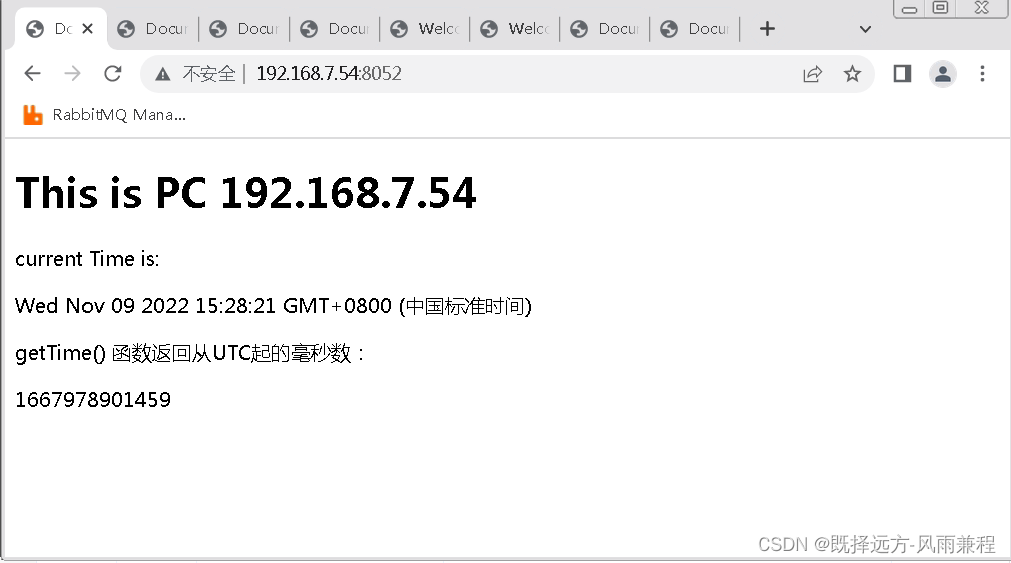

A机Web页面示意,这里显示了A机的IP和当前时间。
B机Web页面示意,这里显示了B机的IP和当前时间。
Nginx安装及启动
Nginx在windows平台安装,已有博友写的很详细了。
参考Nginx Windows详细安装部署教程 - taiyonghai - 博客园
下载地址:nginx: download
启动时如果失败,需要检查是否IIS或其他程序占用了默认的80端口,如是则进入nginx-1.22.1\conf\目录找到nginx.conf修改默认的端口,本例改为8123.
cmd下cd到nginx-1.22.1目录后使用【start nginx】启动nginx后,在浏览器中输入【http://localhost:8123/】即可看到Nginx的欢迎页面。
以下是cmd中启动nginx、查找nginx进程、退出nginx的命令。(start nginx输入两遍是因为第一次端口被占用而启动失败)
Microsoft Windows [版本 6.1.7601]
版权所有 (c) 2009 Microsoft Corporation。保留所有权利。
D:\JavaDevEnv\nginx-1.22.1>start nginx
D:\JavaDevEnv\nginx-1.22.1>start nginx
D:\JavaDevEnv\nginx-1.22.1>tasklist /fi "imagename eq nginx.exe"
映像名称 PID 会话名 会话# 内存使用
========================= ======== ================ =========== ============
nginx.exe 4532 RDP-Tcp#0 1 5,824 K
nginx.exe 5360 RDP-Tcp#0 1 6,064 K
D:\JavaDevEnv\nginx-1.22.1>nginx -s quit

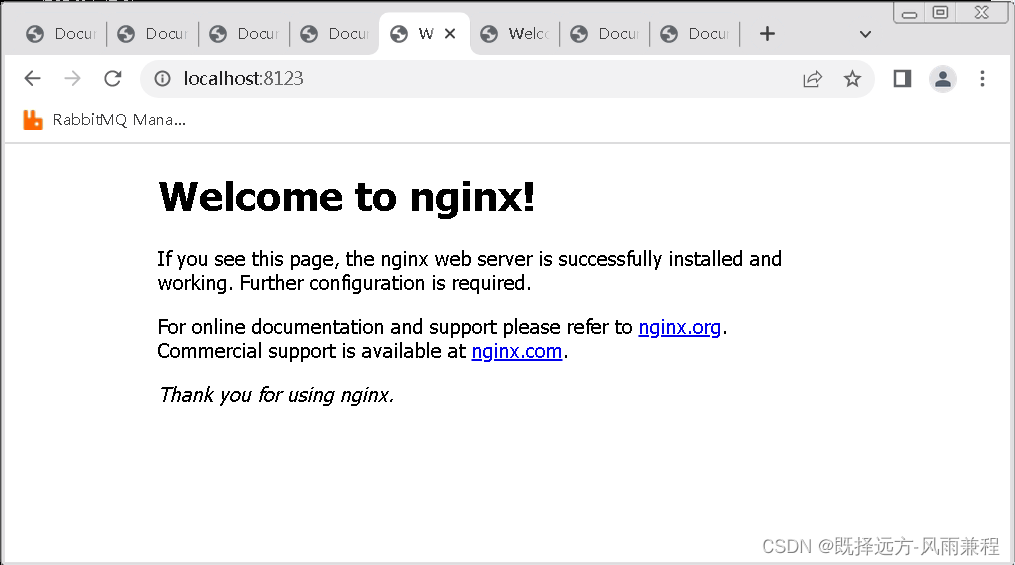

nginx欢迎界面
配置Nginx实现两台Web服务器负载均衡
进入nginx-1.22.1\conf\目录找到nginx.conf用记事本打开。
在http花括号内最后增加一个server节(nginx支持多个server节,即一个nginx支持监听多个端口)
针对本文需求,增加的配置如下
#wdh config the servers
upstream myhttpIISServer{
server 192.168.7.54:8052;
server 192.168.7.161:8051;
}
#wdh config the proxy
server{
listen 8050;
server_name localhost;
location /{
proxy_pass http://myhttpIISServer;
}
}
配置负载均衡的策略有多种,可参考博文nginx配置负载均衡_飞翔绝恋的博客-CSDN博客_nginx配置负载均衡
本文配置的完整的nginx.conf内容如下
#user nobody;
worker_processes 1;
#error_log logs/error.log;
#error_log logs/error.log notice;
#error_log logs/error.log info;
#pid logs/nginx.pid;
events {
worker_connections 1024;
}
http {
include mime.types;
default_type application/octet-stream;
#log_format main '$remote_addr - $remote_user [$time_local] "$request" '
# '$status $body_bytes_sent "$http_referer" '
# '"$http_user_agent" "$http_x_forwarded_for"';
#access_log logs/access.log main;
sendfile on;
#tcp_nopush on;
#keepalive_timeout 0;
keepalive_timeout 65;
#gzip on;
server {
listen 8123;
server_name localhost;
#charset koi8-r;
#access_log logs/host.access.log main;
location / {
root html;
index index.html index.htm;
}
#error_page 404 /404.html;
# redirect server error pages to the static page /50x.html
#
error_page 500 502 503 504 /50x.html;
location = /50x.html {
root html;
}
# proxy the PHP scripts to Apache listening on 127.0.0.1:80
#
#location ~ \.php$ {
# proxy_pass http://127.0.0.1;
#}
# pass the PHP scripts to FastCGI server listening on 127.0.0.1:9000
#
#location ~ \.php$ {
# root html;
# fastcgi_pass 127.0.0.1:9000;
# fastcgi_index index.php;
# fastcgi_param SCRIPT_FILENAME /scripts$fastcgi_script_name;
# include fastcgi_params;
#}
# deny access to .htaccess files, if Apache's document root
# concurs with nginx's one
#
#location ~ /\.ht {
# deny all;
#}
}
# another virtual host using mix of IP-, name-, and port-based configuration
#
#server {
# listen 8000;
# listen somename:8080;
# server_name somename alias another.alias;
# location / {
# root html;
# index index.html index.htm;
# }
#}
# HTTPS server
#
#server {
# listen 443 ssl;
# server_name localhost;
# ssl_certificate cert.pem;
# ssl_certificate_key cert.key;
# ssl_session_cache shared:SSL:1m;
# ssl_session_timeout 5m;
# ssl_ciphers HIGH:!aNULL:!MD5;
# ssl_prefer_server_ciphers on;
# location / {
# root html;
# index index.html index.htm;
# }
#}
#wdh config the servers
upstream myhttpIISServer{
server 192.168.7.54:8052;
server 192.168.7.161:8051;
}
#wdh config the proxy
server{
listen 8050;
server_name localhost;
location /{
proxy_pass http://myhttpIISServer;
}
}
}
配置完之后使用cmd命令重启nginx(有帖子介绍重启命令为nginx -s reload,本文未尝试)
此外还有一个重要事项,分别在A机设置防火墙允许8052端口通过、设置B机防火墙允许8050、8051端口通过。
测试
测试打开浏览器输入【http://192.168.7.161:8050/】,持续刷新页面,可以看到页面在
A机(192.168.7.54:8052)和B机(192.168.7.161:8051)之间不断切换,但客户端浏览器的url未变,印证了nginx已将客户端请求分发到不同Web服务器上。
延伸使用,在项目实战中前后端分离项目,可以将nginx负载均衡用到后端WebAPI上;在读写分离+mysql一主多从项目中,也可以将nginx负载均衡用于多个mysql服务器。
