1.修改IO配置

以GPIO92为例

展讯-GPIO操作_bc

IO配置文件在：

bsp/kernel/kernel4.14/arch/arm64/boot/dts/sprd/uis8581e5h10.dts
bsp/bootloader/u-boot15/board/spreadtrum/uis8581e5h10/pinmap-sp9863a.c
  • 1.
  • 2.

配置

展讯-GPIO操作_#include_02

按上述内容，配置IO口

展讯-GPIO操作_安卓_03

编译之前查看硬件GPIO，没有GPIO92

cat d/gpio

展讯-GPIO操作_linux_04

编译

2.ADB操作GPIO
adb shell
su
echo 284 > /sys/class/gpio/export
echo out > /sys/class/gpio/gpio284/direction
cat d/gpio
  • 1.
  • 2.
  • 3.
  • 4.
  • 5.

查看

展讯-GPIO操作_linux_05

echo 1 > /sys/class/gpio/gpio284/value
  • 1.

输出高电平

实测正常

3.安卓源码下C文件编译

创建文件夹及相关文件

展讯-GPIO操作_安卓_06

test/Android.mk

LOCAL_PATH:= $(call my-dir)
include $(CLEAR_VARS)

LOCAL_STATIC_LIBRARIES := libcutils libc
LOCAL_MODULE :=   gpiotest

LOCAL_FORCE_STATIC_EXECUTABLE := true
LOCAL_SRC_FILES:= \
         gpiotest.c

LOCAL_C_INCLUDES := bionic/libc/bionic

ifeq ($(HAVE_SELINUX),true)
LOCAL_CFLAGS += -DHAVE_SELINUX
LOCAL_SHARED_LIBRARIES += libselinux
LOCAL_C_INCLUDES += external/libselinux/include
endif

include $(BUILD_EXECUTABLE)
  • 1.
  • 2.
  • 3.
  • 4.
  • 5.
  • 6.
  • 7.
  • 8.
  • 9.
  • 10.
  • 11.
  • 12.
  • 13.
  • 14.
  • 15.
  • 16.
  • 17.
  • 18.
  • 19.

test/gpiotest.c

#include<stdio.h>

int main()
{
    printf("Hello World!\n");
}
  • 1.
  • 2.
  • 3.
  • 4.
  • 5.
  • 6.

进入目录angleyes/test，编译

cp -rf vendor/sprd/release/IDH/uis8581e5h10_Natv-userdebug-native/out/ .
cp -rf vendor/sprd/release/IDH/uis8581e5h10_Natv-userdebug-native/bsp/ .
source build/envsetup.sh
lunch uis8581e5h10_Natv-userdebug-native
mm
  • 1.
  • 2.
  • 3.
  • 4.
  • 5.

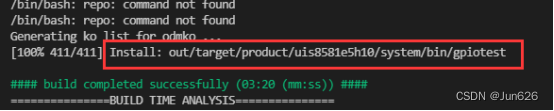

找到输出目录

展讯-GPIO操作_linux_07

上传到设备上

adb root
adb disable-verity
adb reboot
adb root
adb remount
adb shell
mount -o rw,remount /system
exit
adb push gpiotest /system
  • 1.
  • 2.
  • 3.
  • 4.
  • 5.
  • 6.
  • 7.
  • 8.
  • 9.

展讯-GPIO操作_安卓_08

测试代码

chmod a+x gpiotest
./gpiotest
  • 1.
  • 2.

展讯-GPIO操作_linux_09

4.通过源码控制GPIO

将上部分的c文件修改一下

#include <stdio.h>
#include <string.h>
#include <fcntl.h>// for open
#include <unistd.h>// for close

int main()
{
    int ret, fd;
    fd = open("/sys/class/gpio/export", O_WRONLY);
    if (fd < 0)
    return -1;
    ret = write(fd, "284", strlen("284")); if (ret < 0)
    return -1;
    close(fd);
    fd = open("/sys/class/gpio/gpio284/direction", O_RDWR);
    if (fd < 0)
    return -1;
    ret = write(fd, "out", strlen("out"));
    if (ret < 0)
    return -1;
    close(fd);
    fd = open("/sys/class/gpio/gpio284/value", O_RDWR);
    if (fd < 0)
    return -1;
    ret = write(fd, "1", strlen("1"));
    if (ret < 0)
    return -1;
    close(fd);
}
  • 1.
  • 2.
  • 3.
  • 4.
  • 5.
  • 6.
  • 7.
  • 8.
  • 9.
  • 10.
  • 11.
  • 12.
  • 13.
  • 14.
  • 15.
  • 16.
  • 17.
  • 18.
  • 19.
  • 20.
  • 21.
  • 22.
  • 23.
  • 24.
  • 25.
  • 26.
  • 27.
  • 28.
  • 29.

测试

uis8581e5h10:/system # chmod a+x gpiotest
uis8581e5h10:/system # ls /sys/class/gpio/
export  gpio218 gpiochip176 gpiochip448 gpiochip480 unexport
gpio217 gpio268 gpiochip192 gpiochip464 gpiochip496
uis8581e5h10:/system # ./gpiotest
uis8581e5h10:/system # ls /sys/class/gpio/
export  gpio218 gpio284     gpiochip192 gpiochip464 gpiochip496
gpio217 gpio268 gpiochip176 gpiochip448 gpiochip480 unexport
uis8581e5h10:/system #
  • 1.
  • 2.
  • 3.
  • 4.
  • 5.
  • 6.
  • 7.
  • 8.
  • 9.
5.按键功能调试

设备树位置：bsp/kernel/kernel4.14/arch/arm64/boot/dts/sprd/uis8581e5h10.dts

修改节点：gpio-keys

如新增sos按键

key-sos {
			label = "SOS Key";
			linux,code = <KEY_F1>;
			gpios = <&ap_gpio 55 GPIO_ACTIVE_LOW>;
			debounce-interval = <2>;
			wakeup-source;
		};
  • 1.
  • 2.
  • 3.
  • 4.
  • 5.
  • 6.
  • 7.

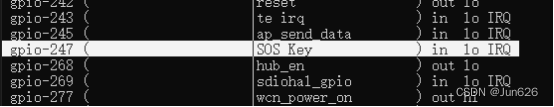

在内核层查看

cat /sys/kernel/debug/gpio

展讯-GPIO操作_bc_10

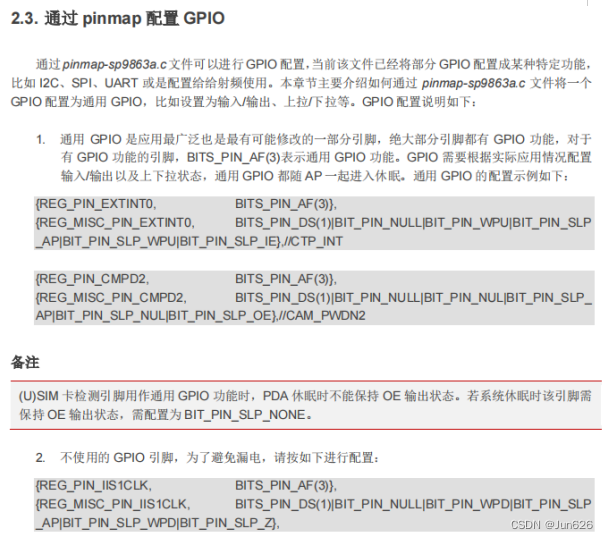

配置pinmap

gpio55:REG_PIN_SPI2_CLK

gpio123:REG_PIN_KEYOUT2

gpio28:REG_PIN_RFCTL9

在pinmap里面，找到对应内容

展讯-GPIO操作_bc_11

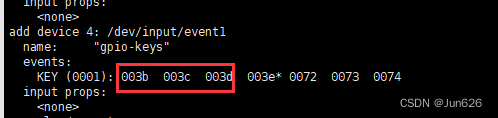

编译，通过命令;getevent -p

查看按键消息

展讯-GPIO操作_linux_12

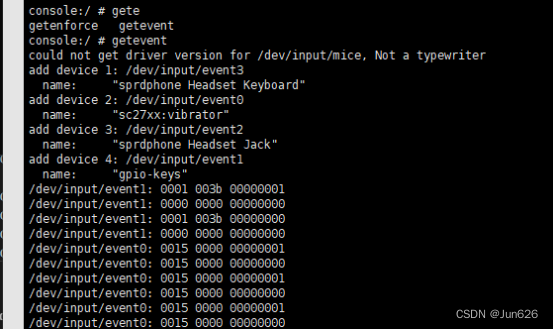

通过命令：getevent

监听按键

展讯-GPIO操作_#include_13
