XTOOL X100 Pad2 Read Peugeot 206 BSI Pin Code Test Report

This post will share you with the process on how XTOOL X100 Pad2 Pro read Peugeot 206 BSI pin code.
Use Tools:
Xtool X100 Pad2
Xtool EEPROM adapter

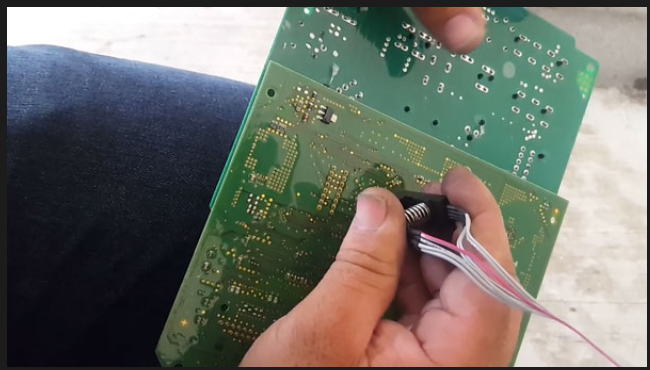

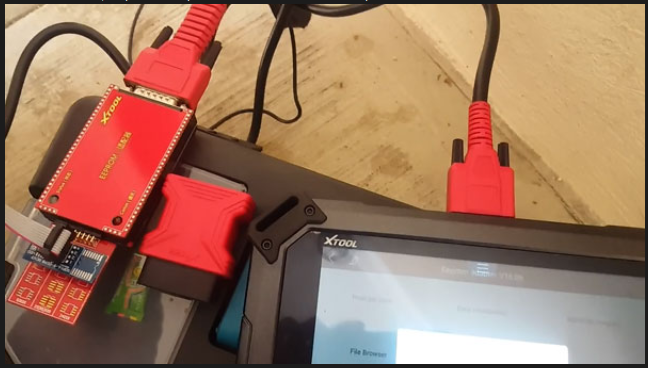

Connect X100 Pad2, eeprom adapter and bsi 95160 CPU chip

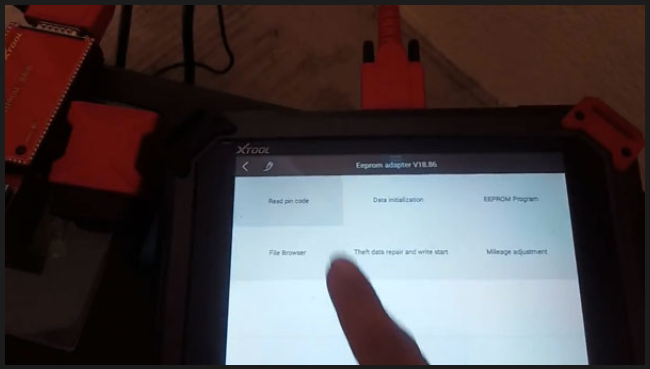

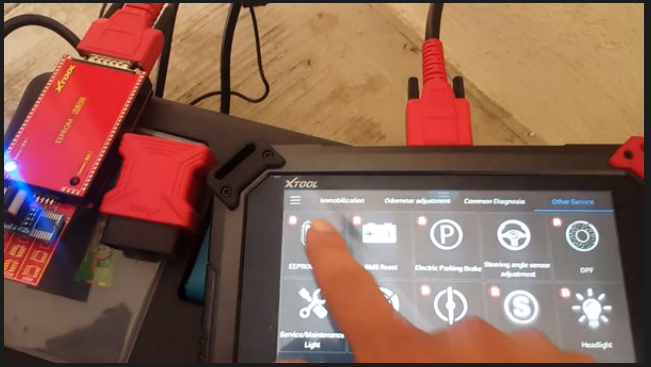

Select Read Pin Code

Select EEPROM adapter

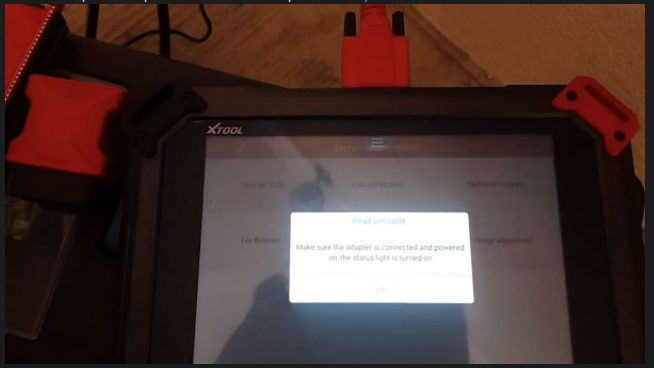

Make sure the eeprom adapter is connected and powered on, the status indicator turns on

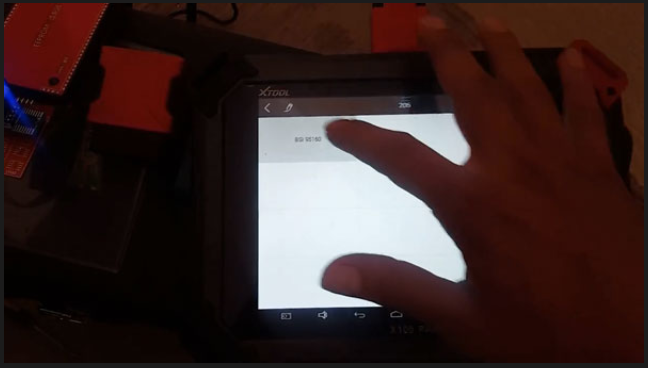

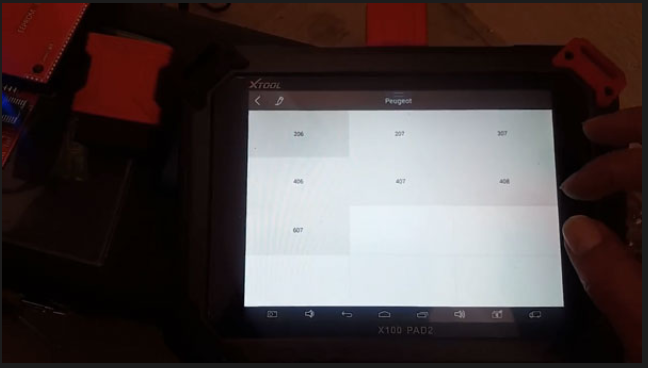

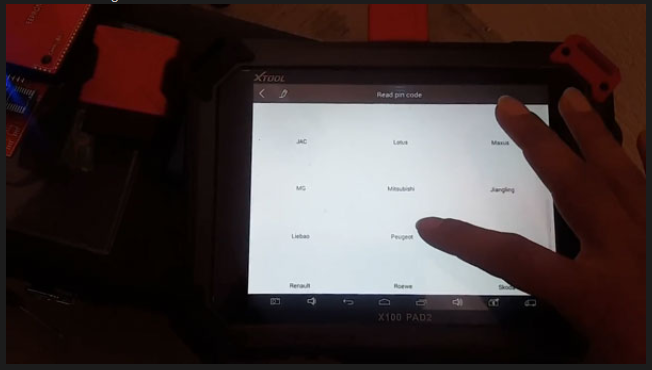

select car brand: Peugeot->206->BSI 95160

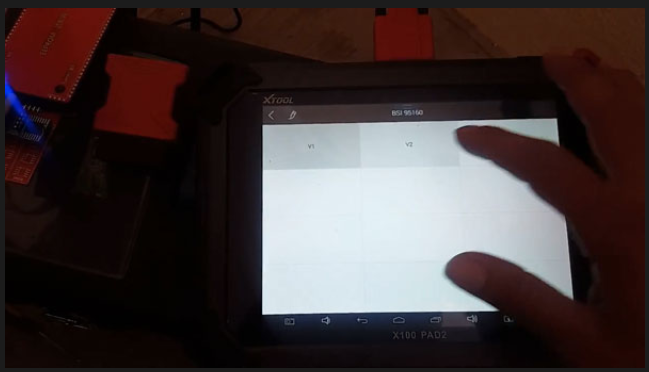

select V1 or V2

If have communication failed error, select another option or try again

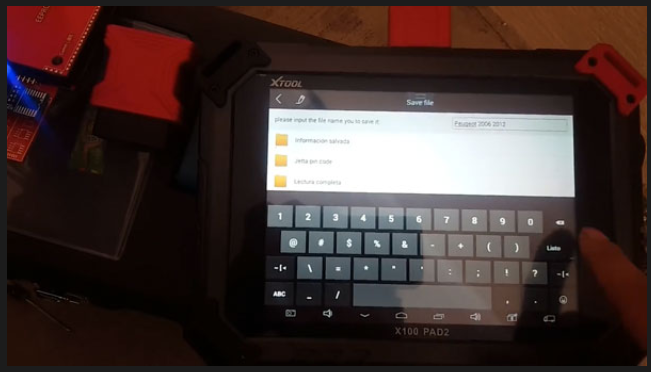

Save data

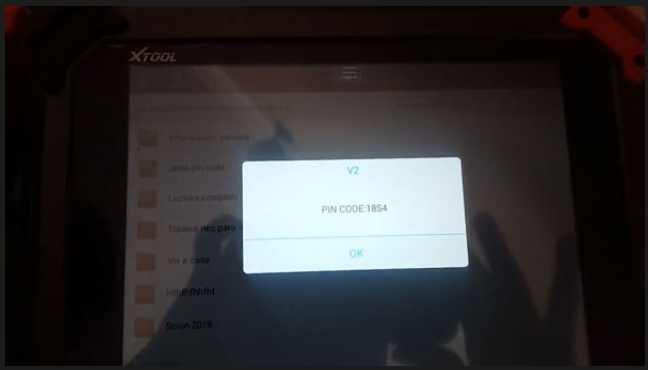

Successfully read Peugeot 206 BSI pin code by XTOOL X100 Pad2!
