CS3342 Lecture 2

Object-Oriented Programming Fundamental - Part 1

Object: can be quantified to mean one specific item - is an entity that has a state and a set of operations on that state

Class: represent all objects of the same kind - serves as a template for creating objects

OO Programming has become the standard programming methodology for software engineers.

OO Programming is a software programming paradigm using “objects”, with instances of a class.

In OO programming, you would design the program with the data parts in mind, contextual information rather than procedures.



Advantages of OO Paradigm

• Easier to maintain. Objects may be understood as stand-alone entities.
• Reuse: Objects are potentially reusable components.
• For some systems, there may be an obvious mapping from real-world entities to system objects.





---

Software development Process

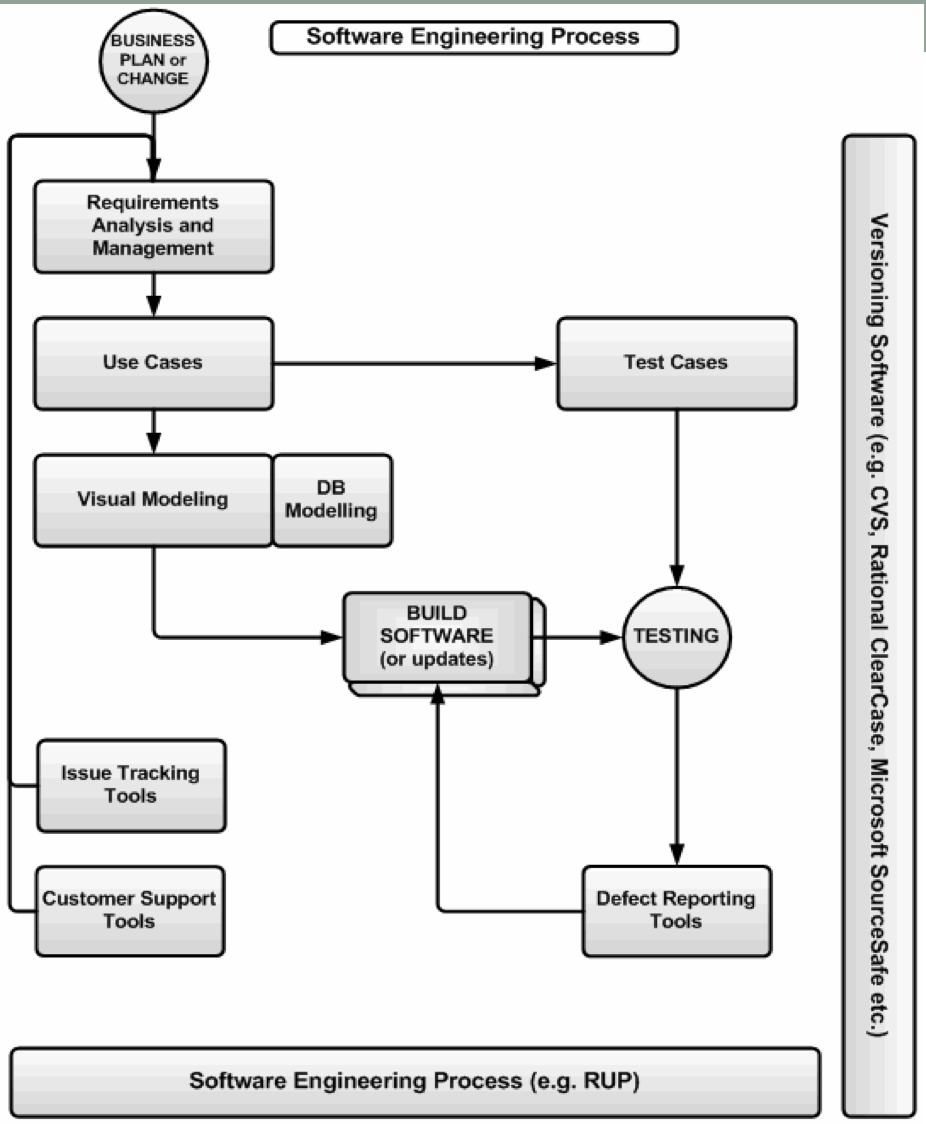

Software Engineering Process



Software process

• A series of predictable steps, road maps, that help us to create a timely, and high-quality result.
• The road map defines tasks or activities that take place during the process.

　　

• A process defines who is responsible for: What? When? How? To reach a goal
• Process defines tasks and activities within a schedule



Software Process Model(Life Circle)

A software process model

• is an abstract representation of a process
• it describes a process
• guides the software development team
• with a set of key activities

All process models have phases  (e.g: design phase, test phase) and each phase has 3 components:

• Set of activities - define, design, implement, test and maintain
• Set of deliverables - What to produce
• Quality control measures - What to use to evaluate/assess deliverables

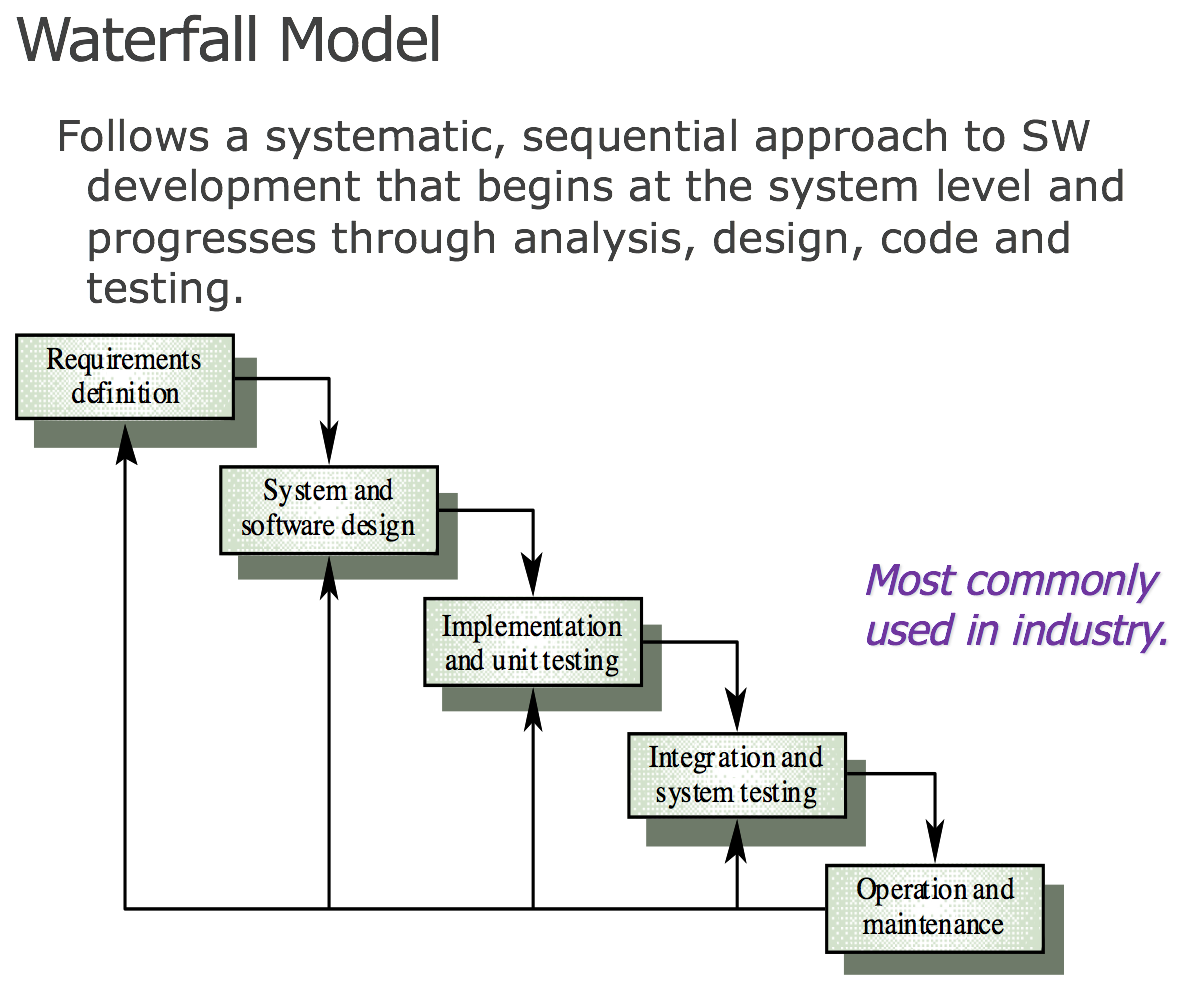

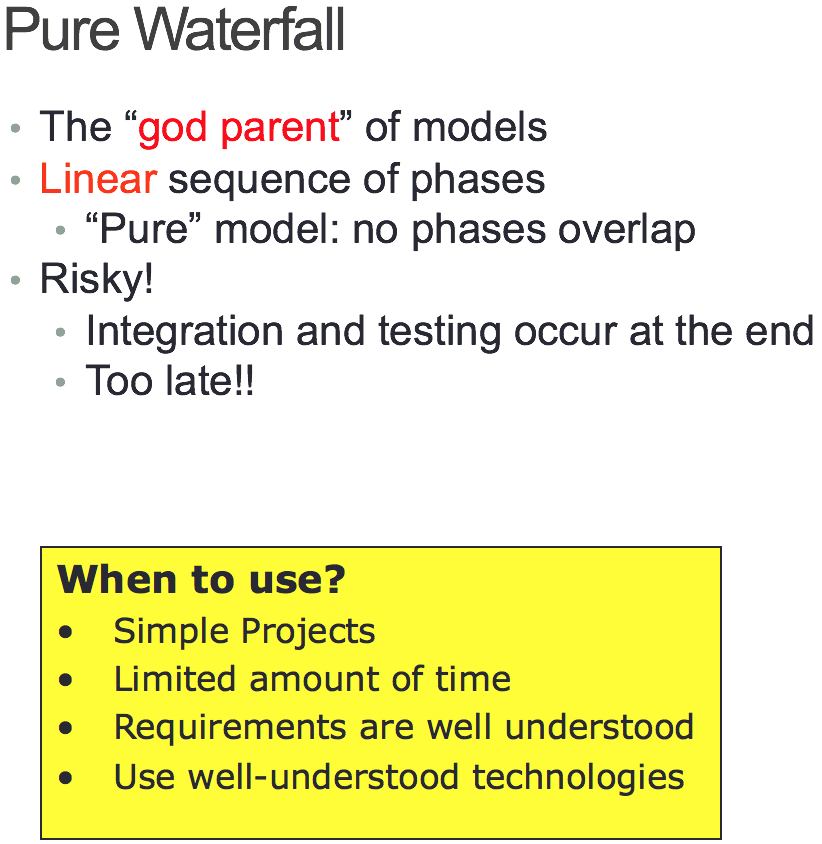

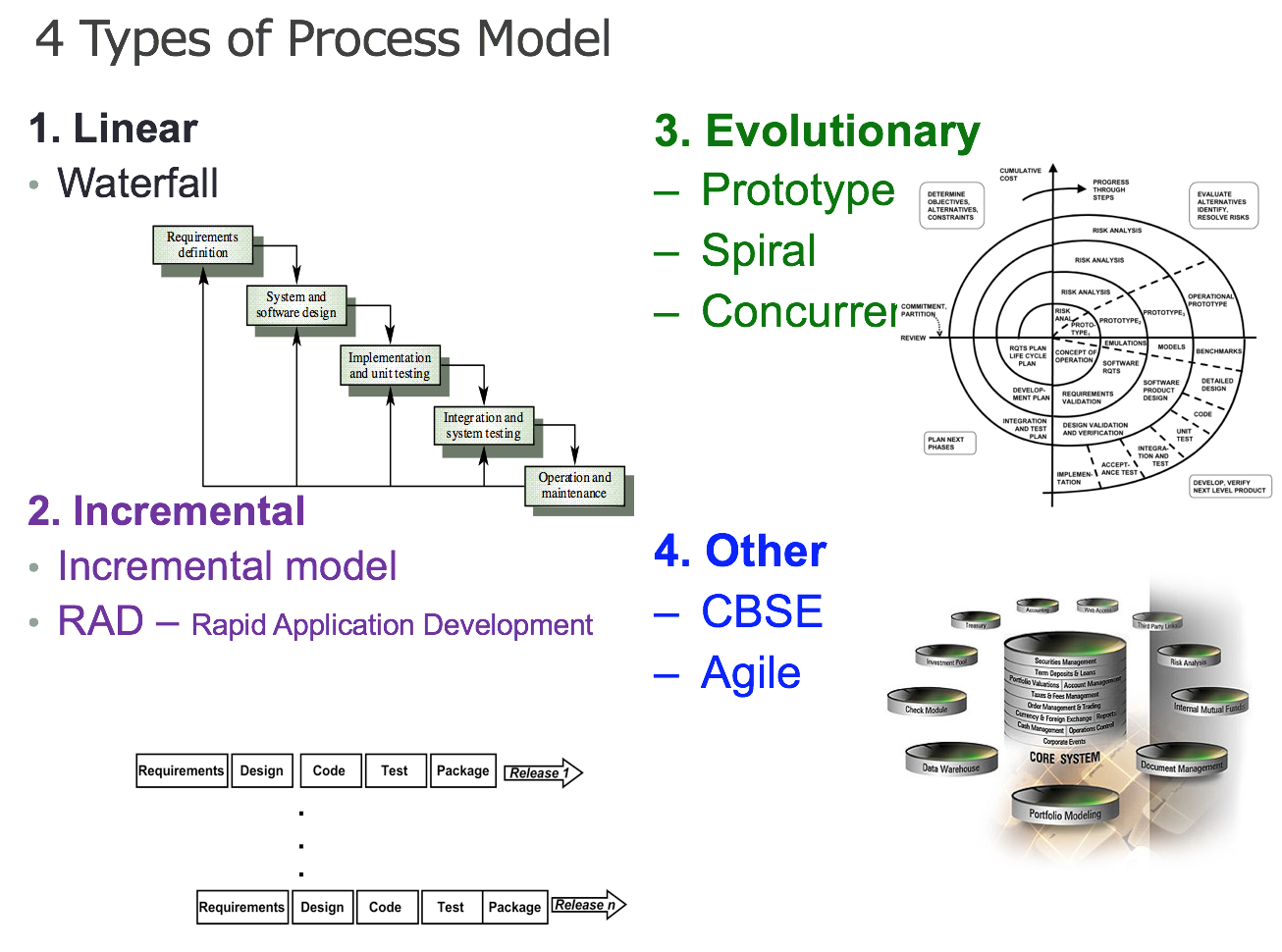

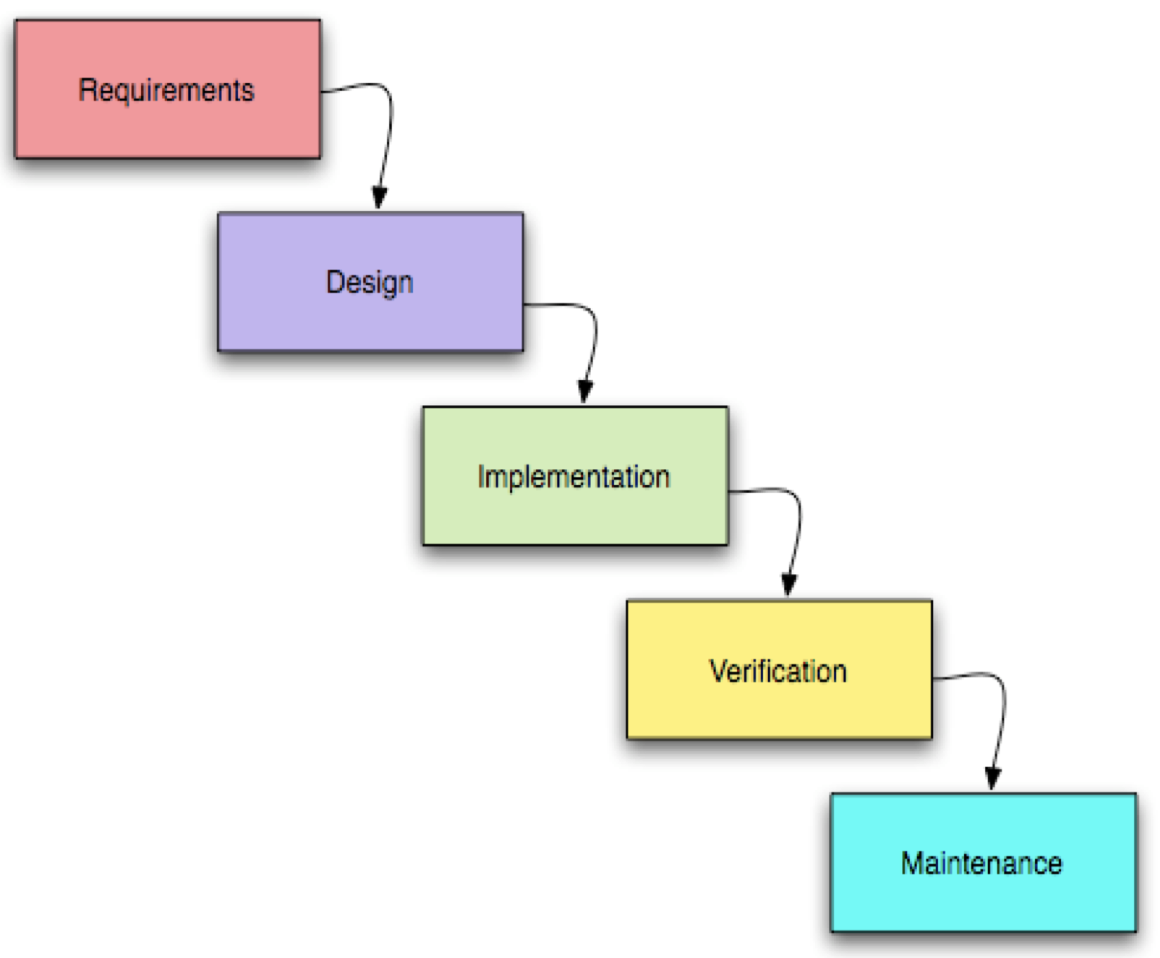

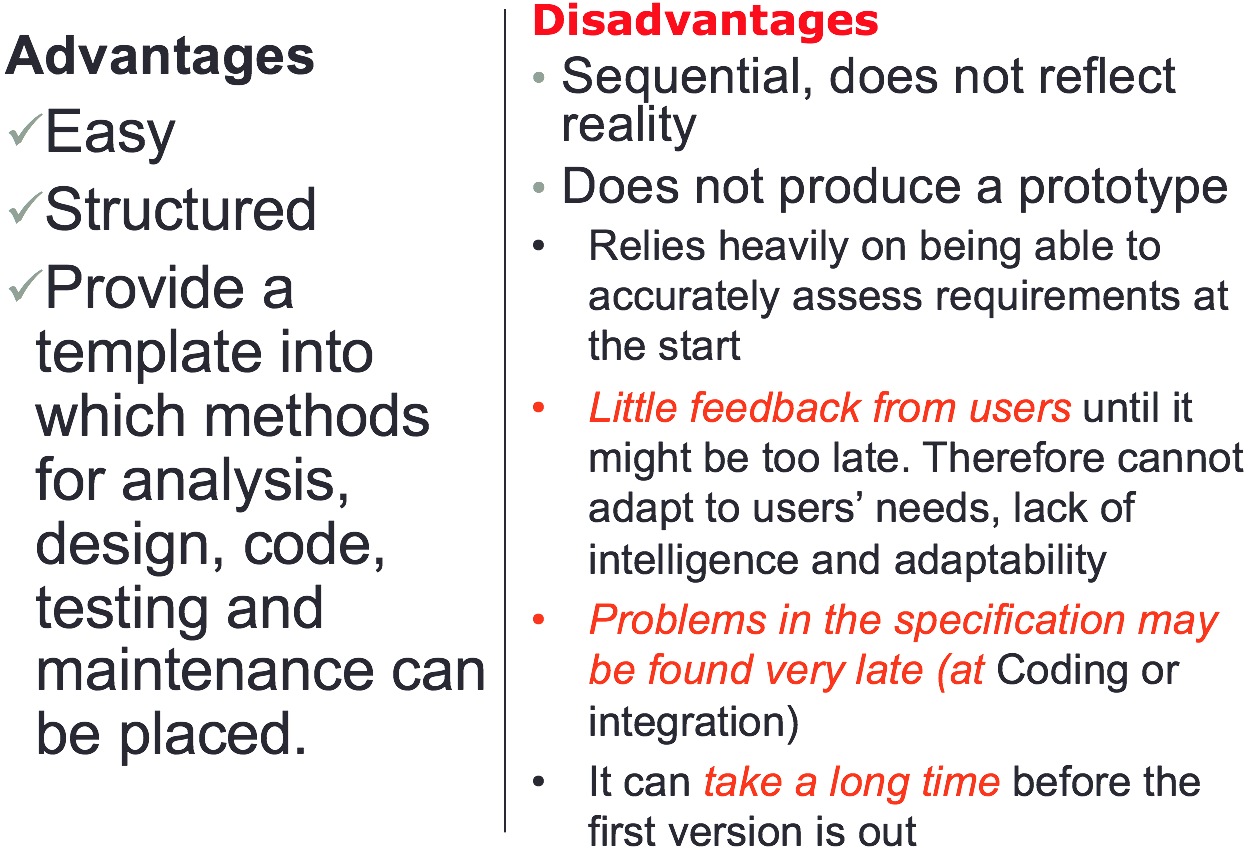

1. Linear - Waterfall Model

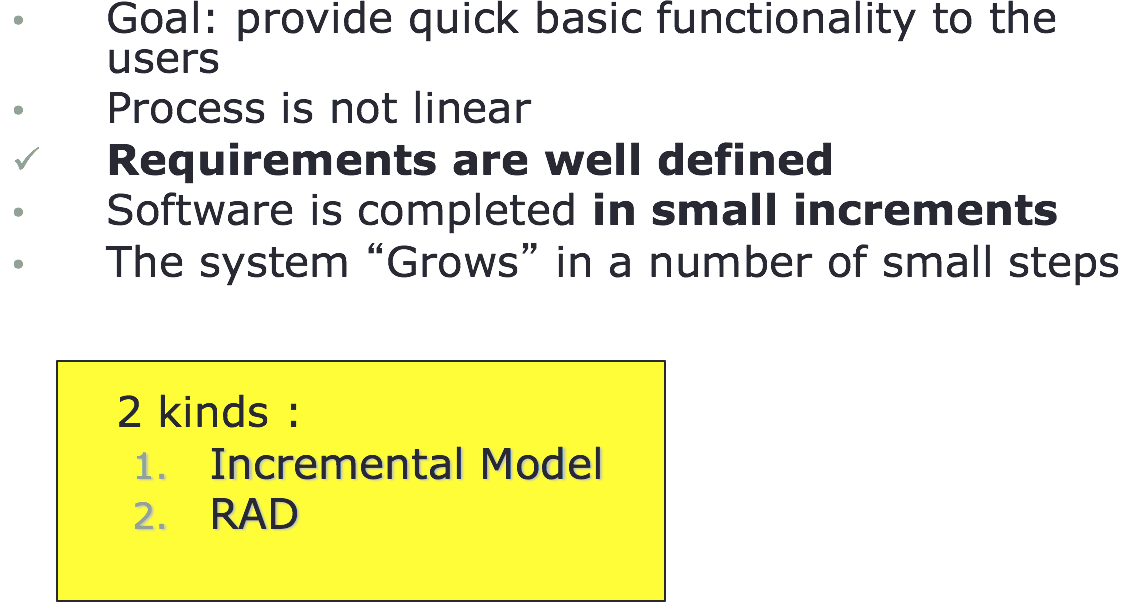

2. Incremental

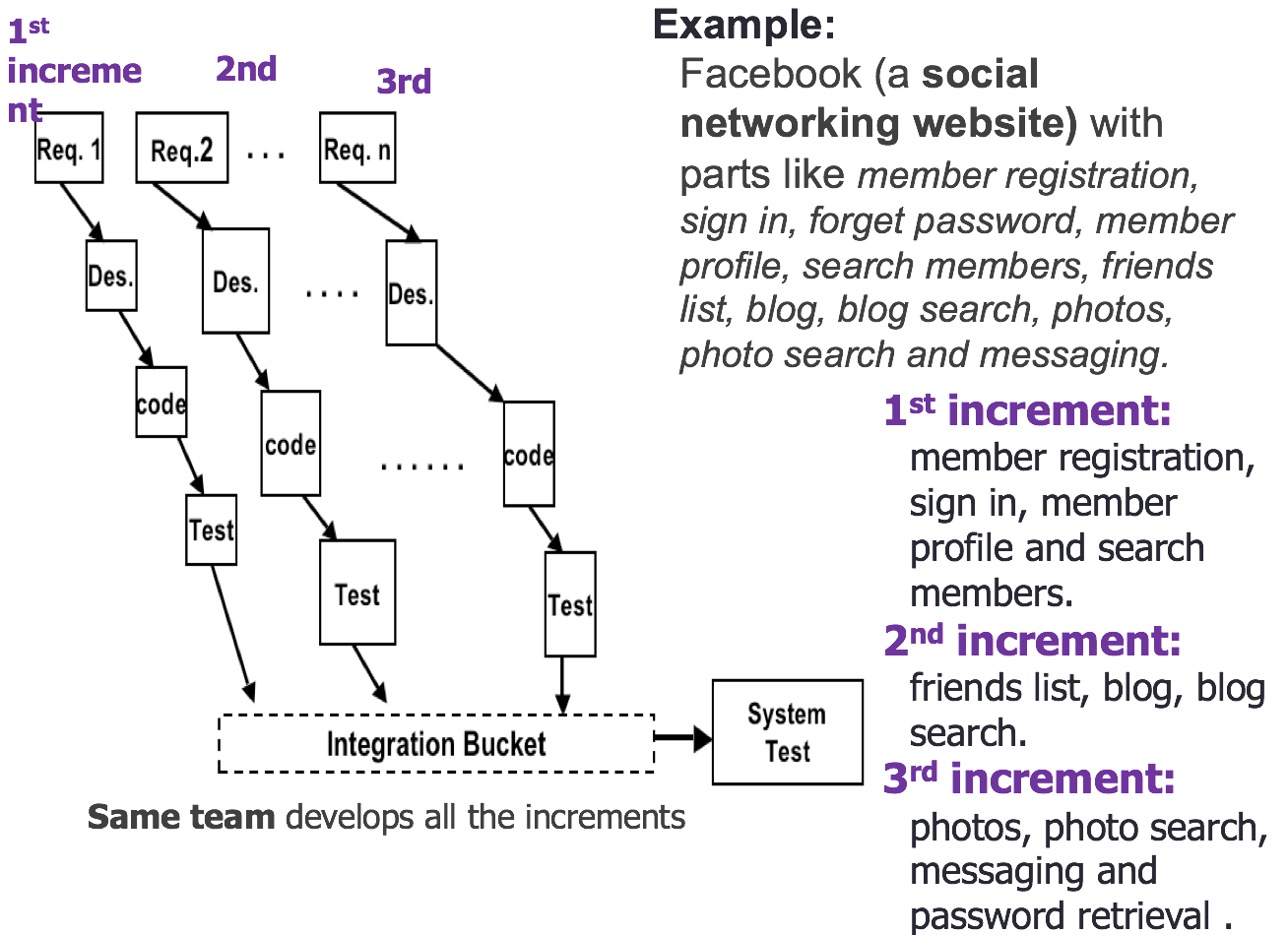

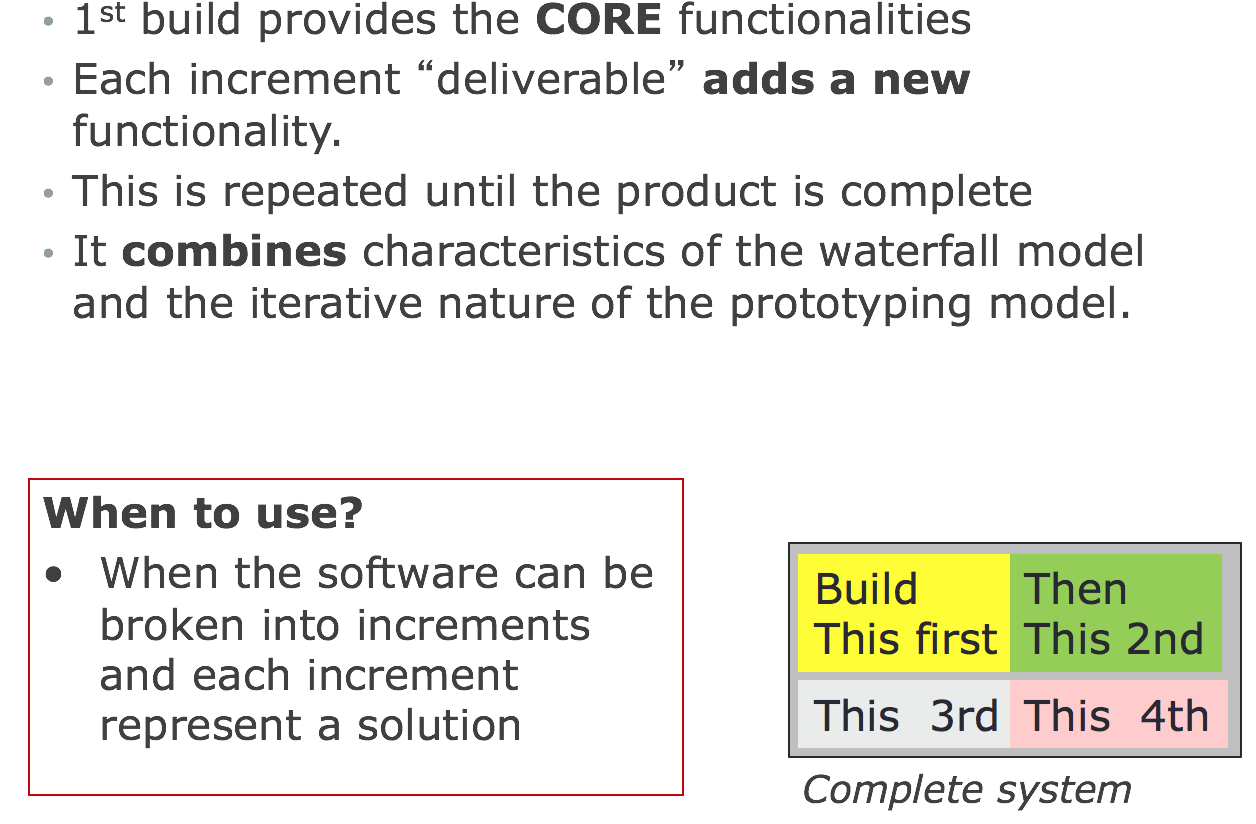

2.1 Incremental Model

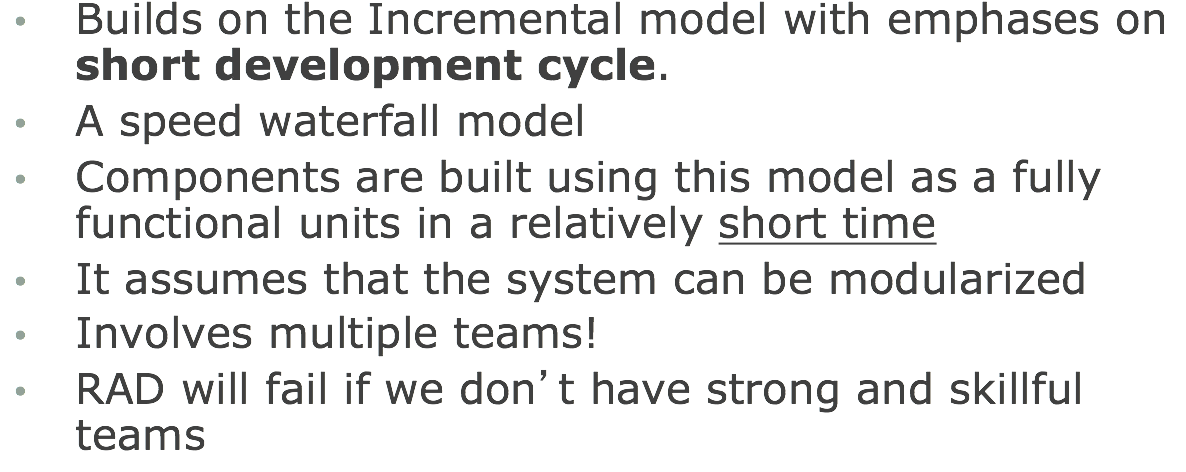

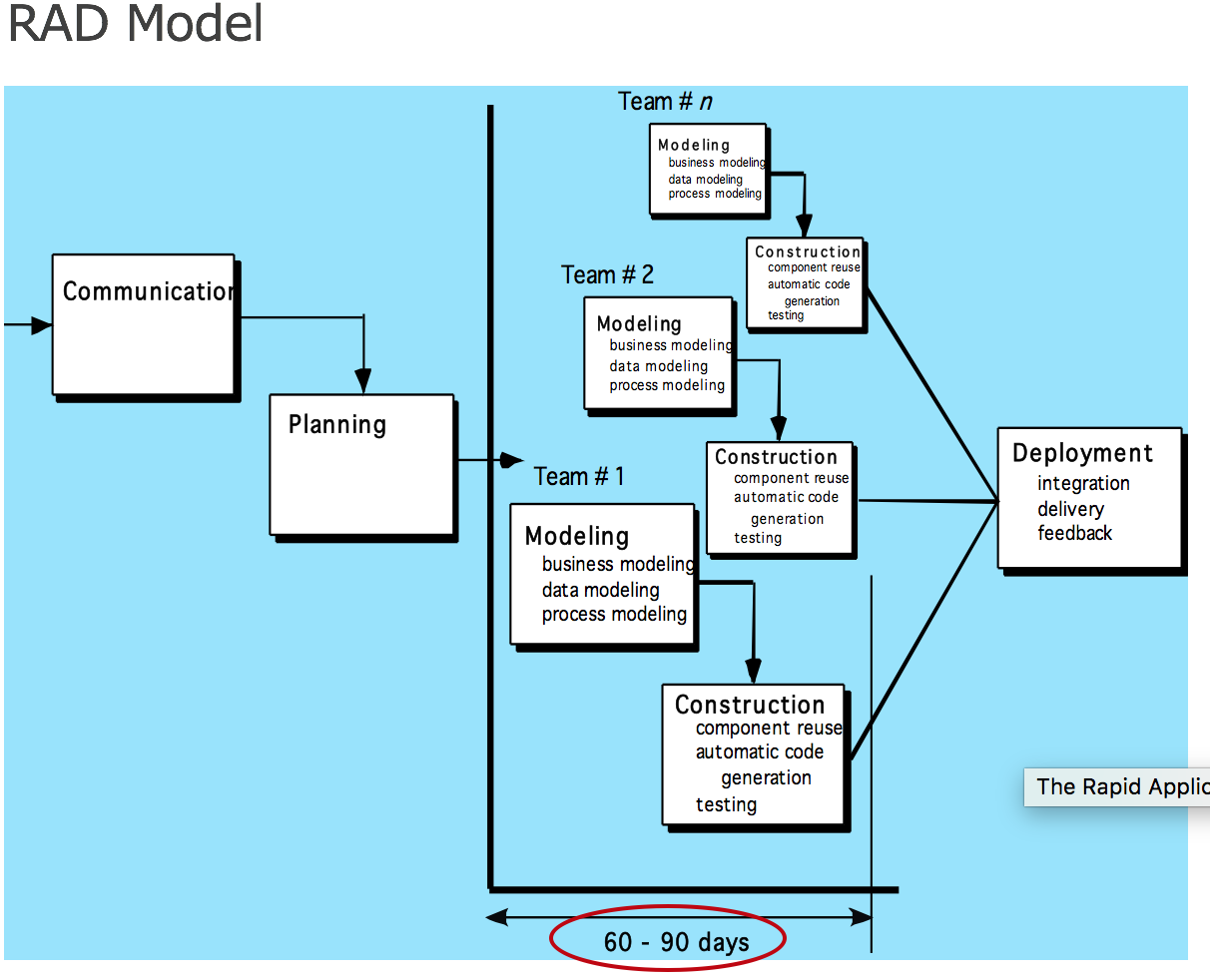

2.2. The Rapid Application Development (RAD) Model

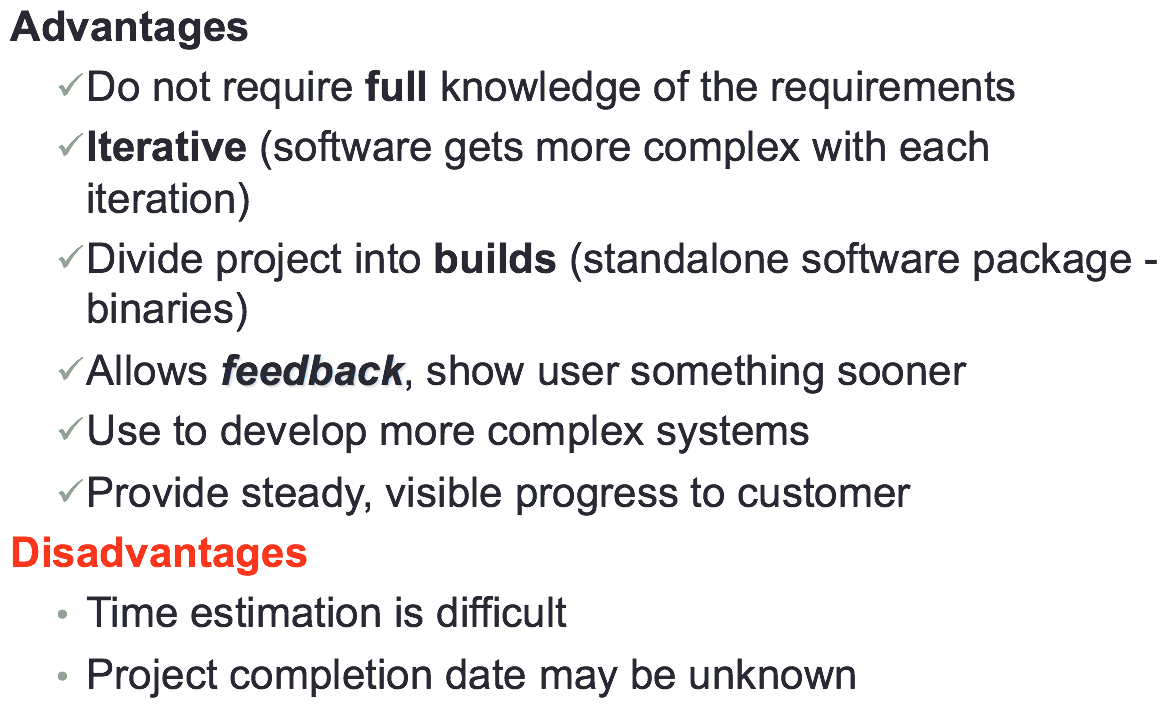

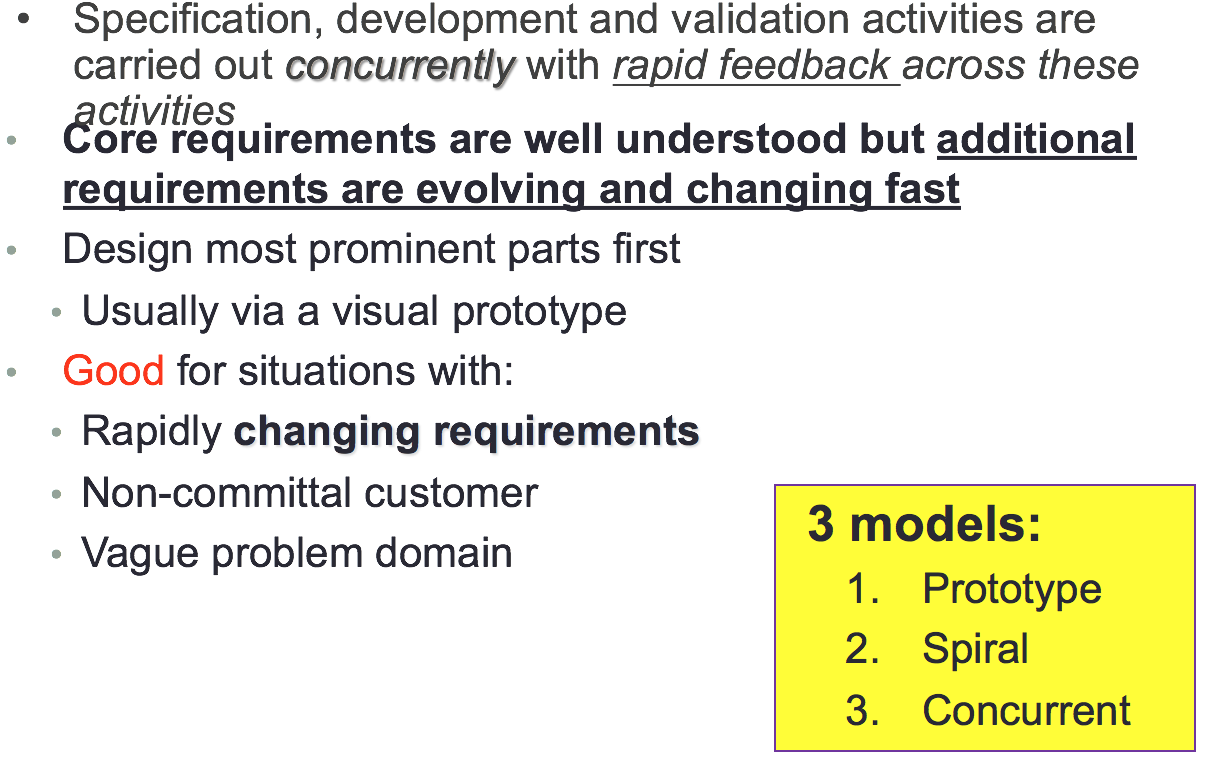

3. Evolutionary

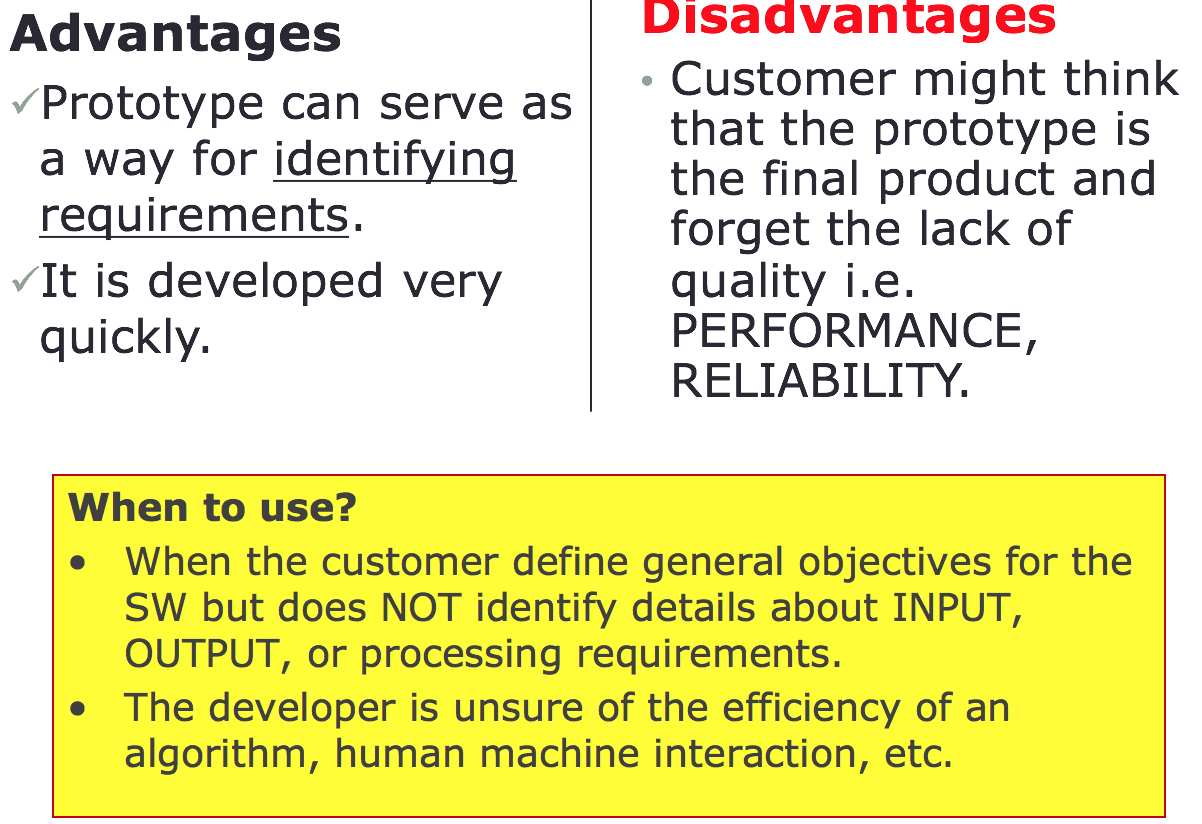

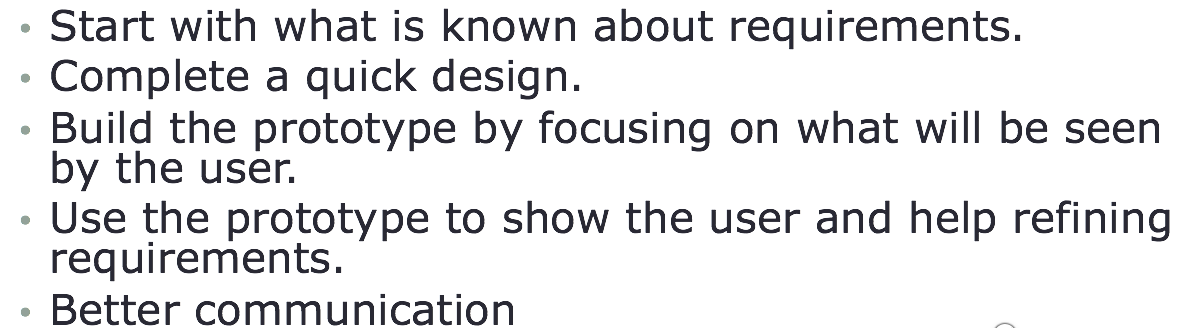

3.1 Protoyping Model

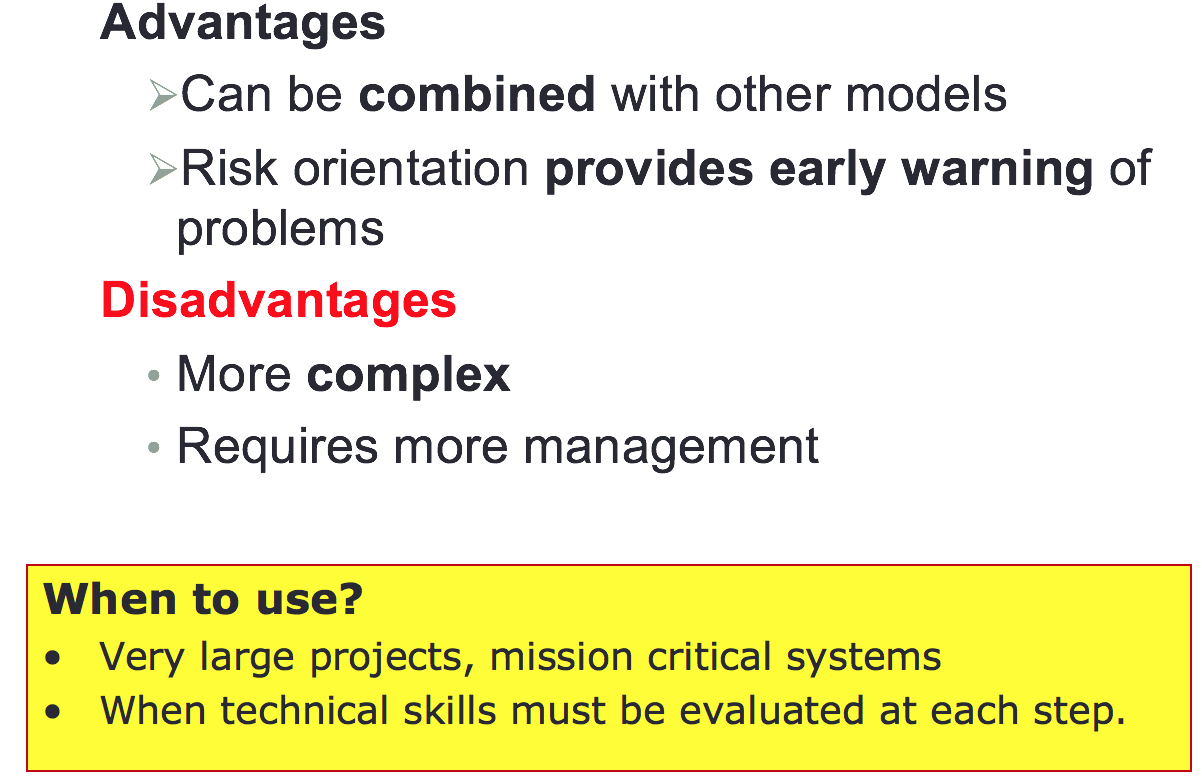

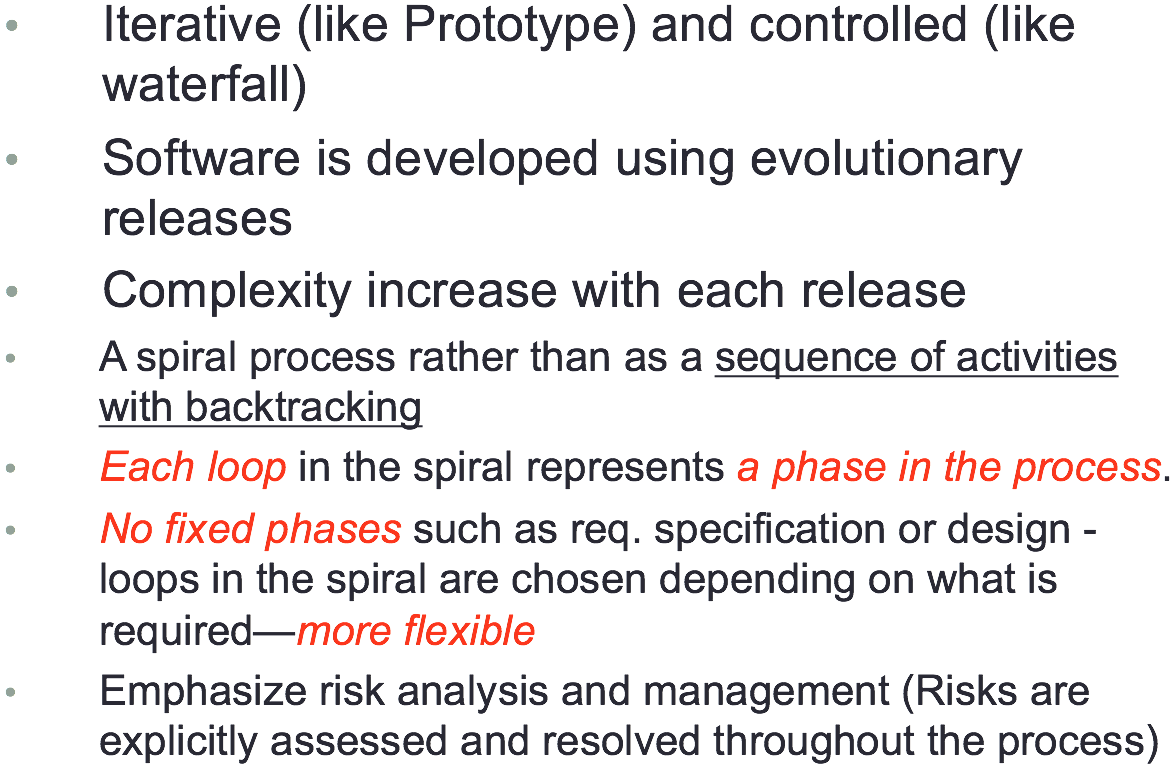

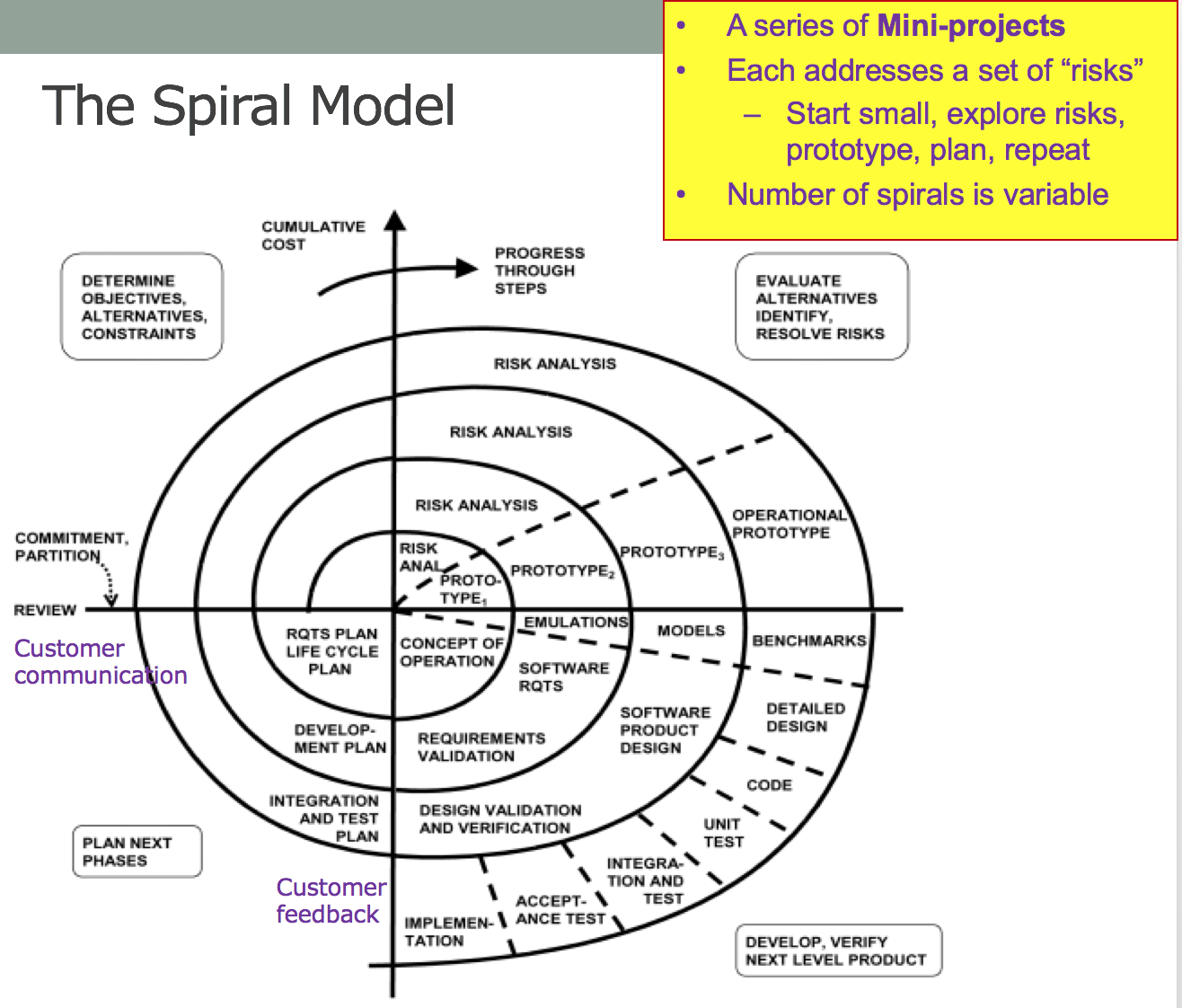

3.2 Spiral Model

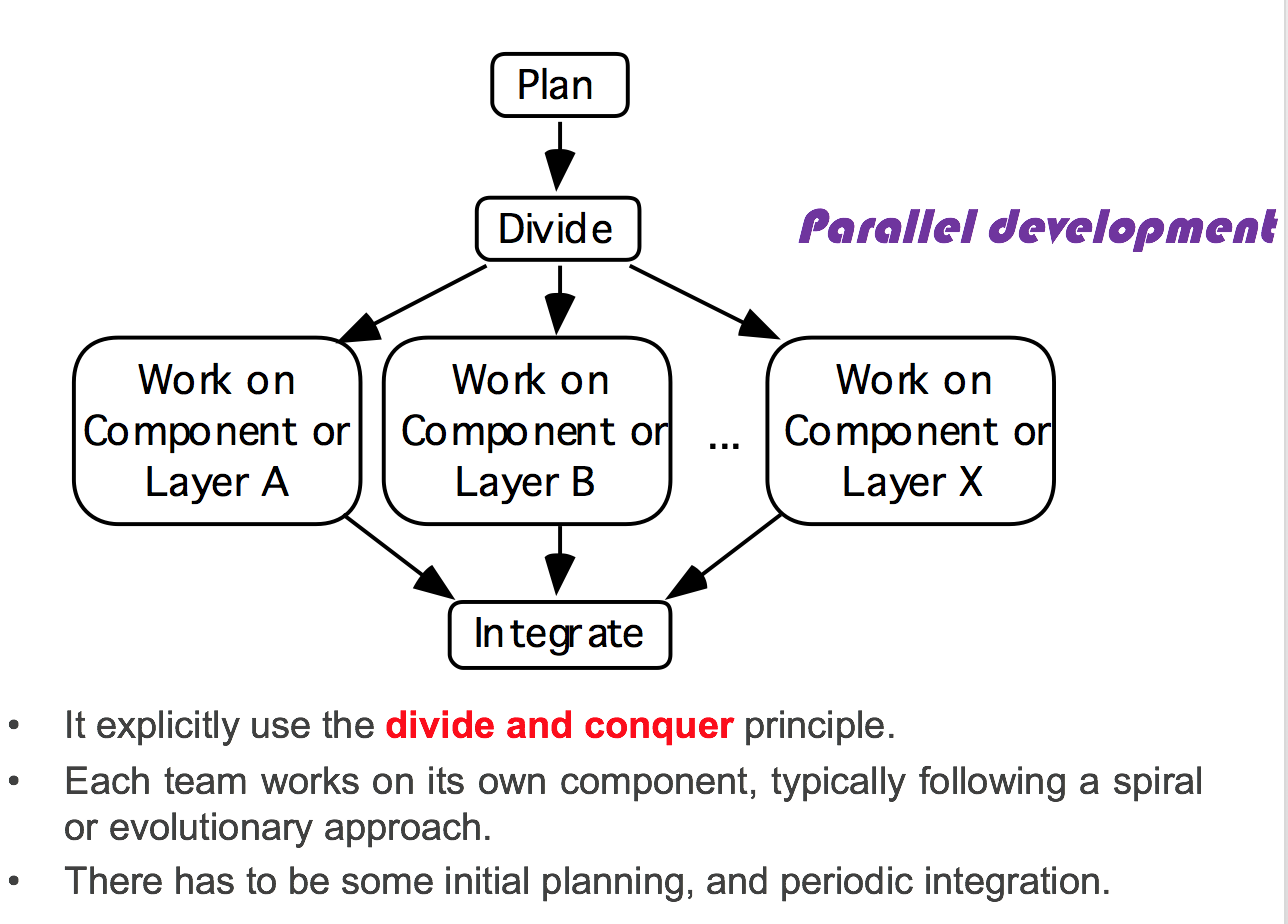

3.3 Concurrent Engineering Model

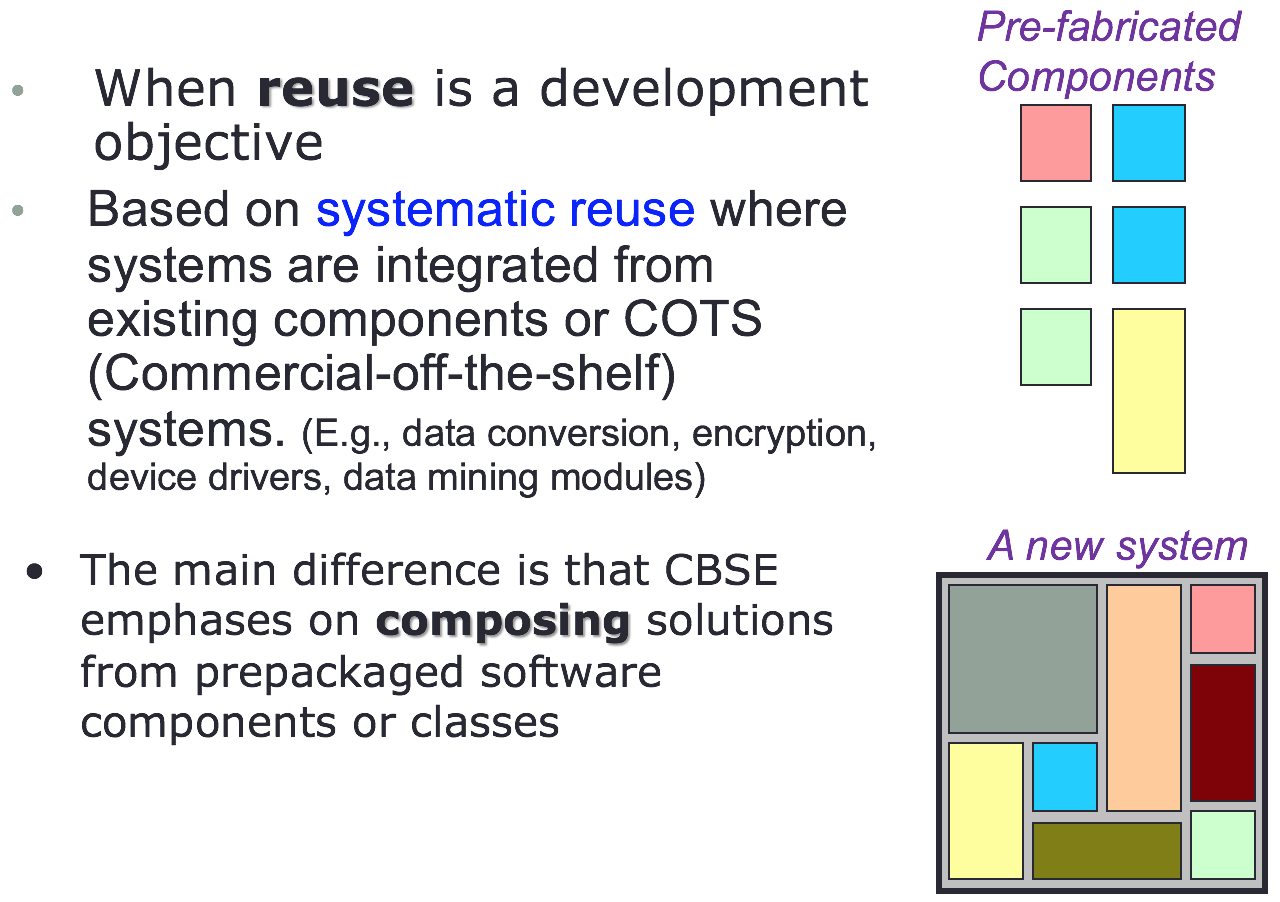

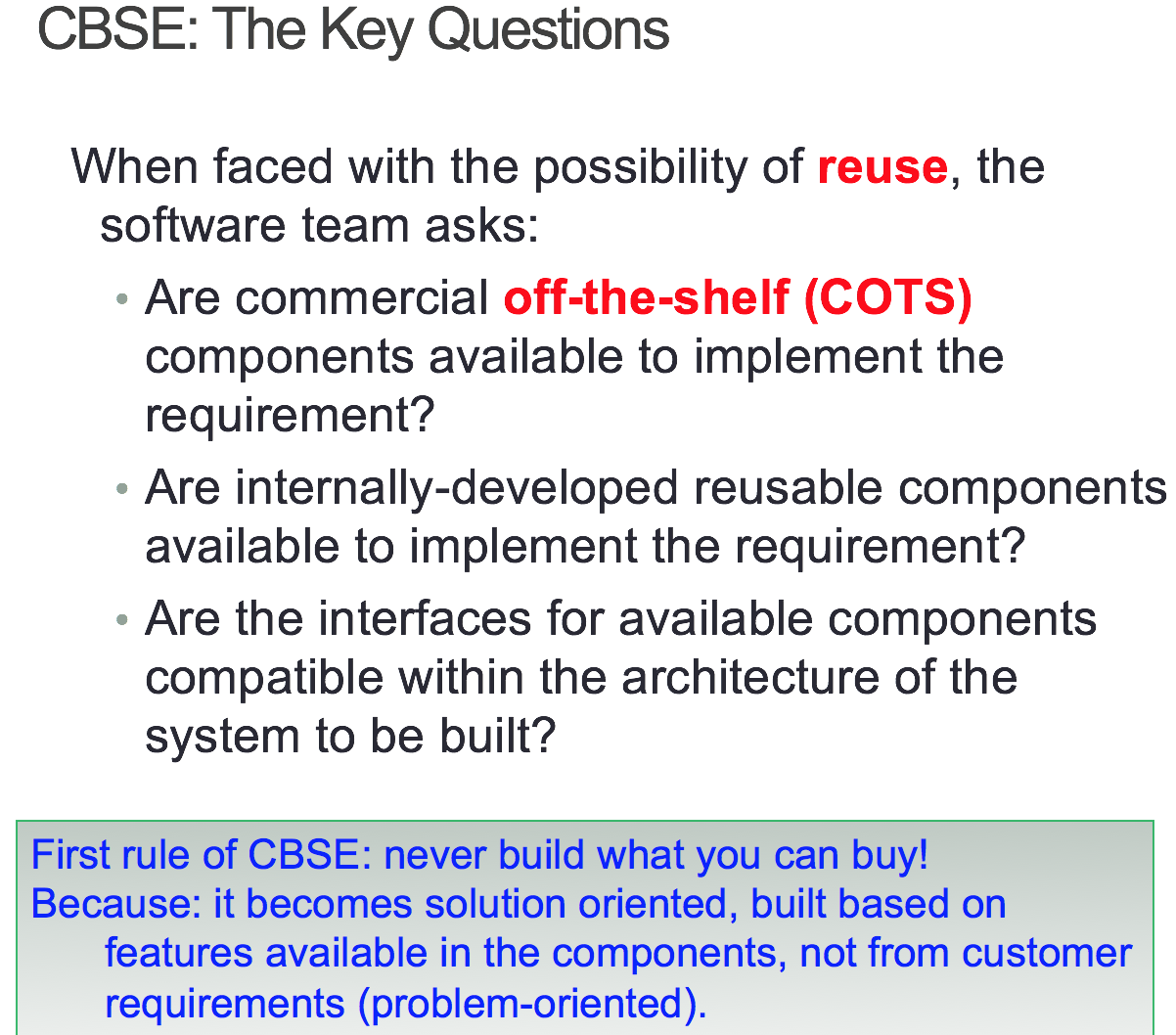

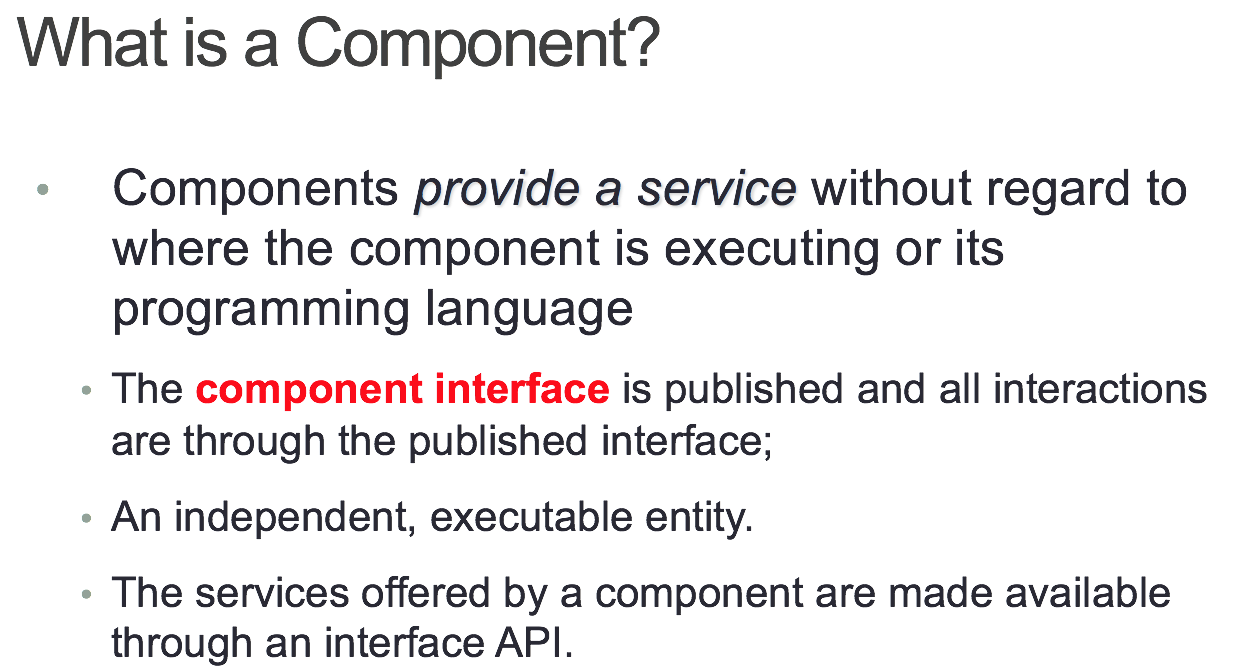

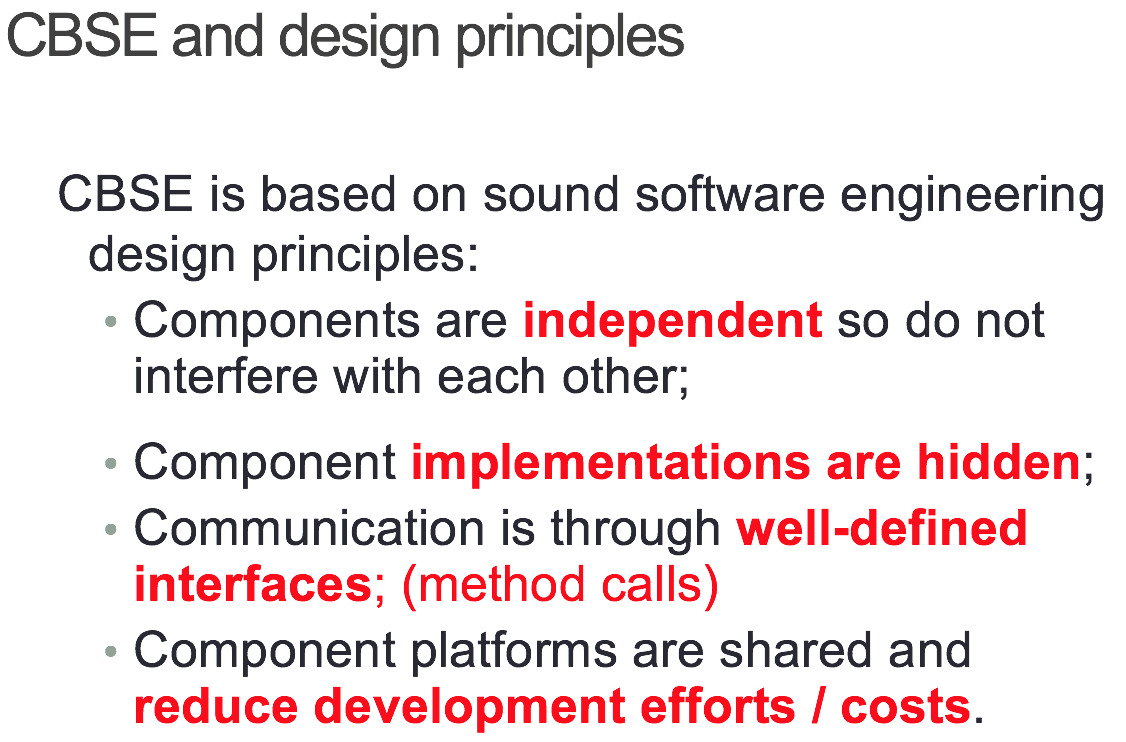

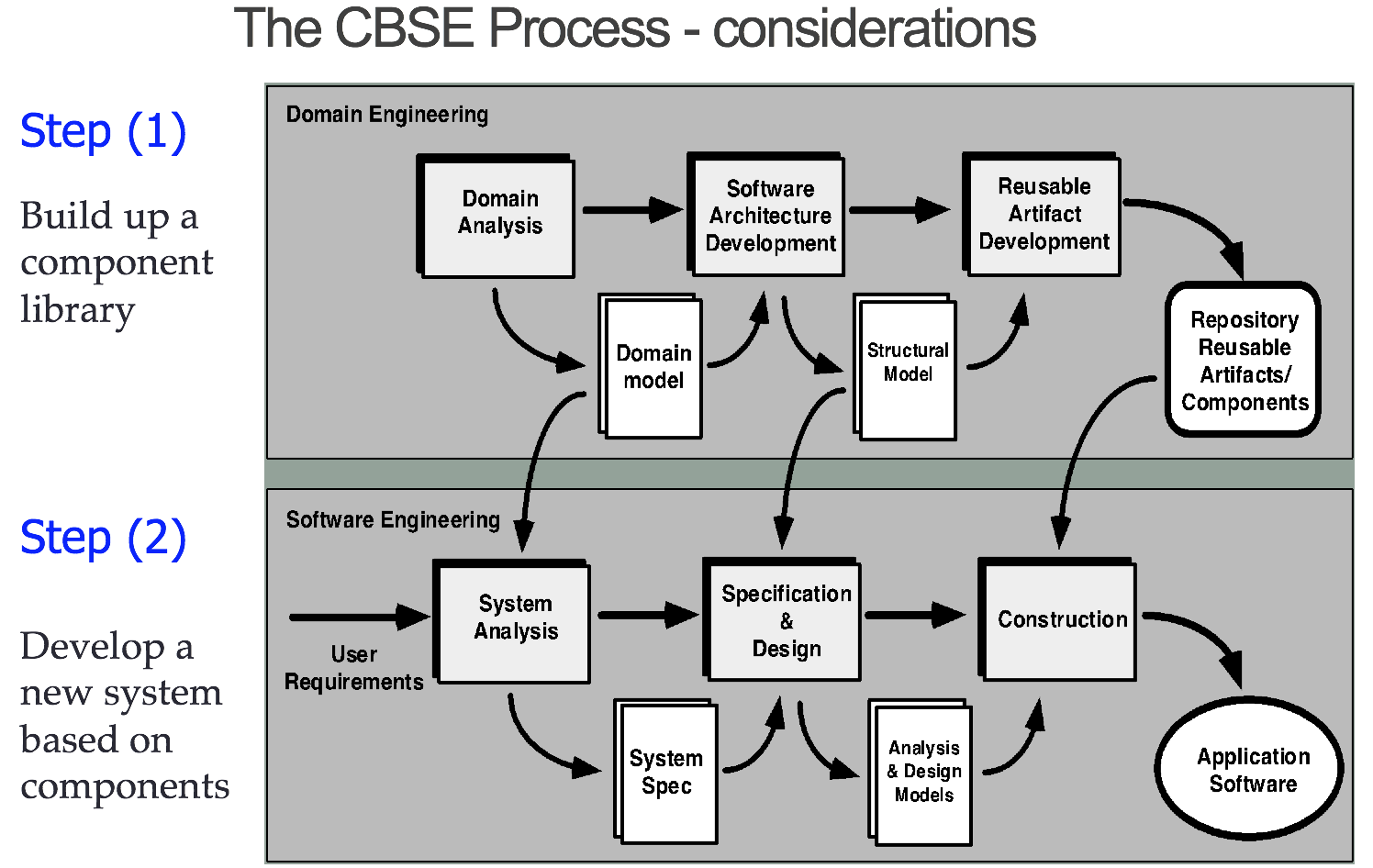

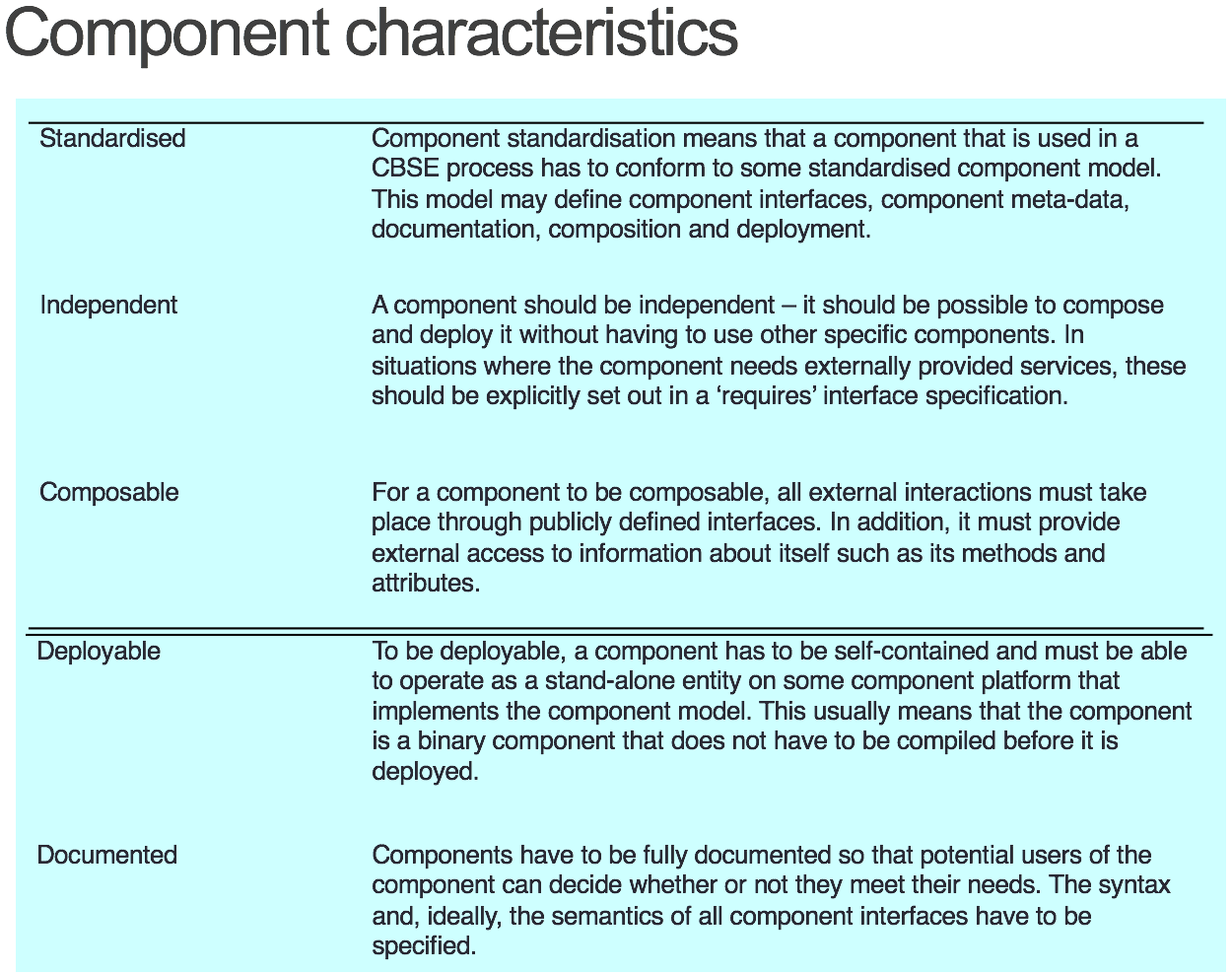

4. Other - Component based software engineering (CBSE)

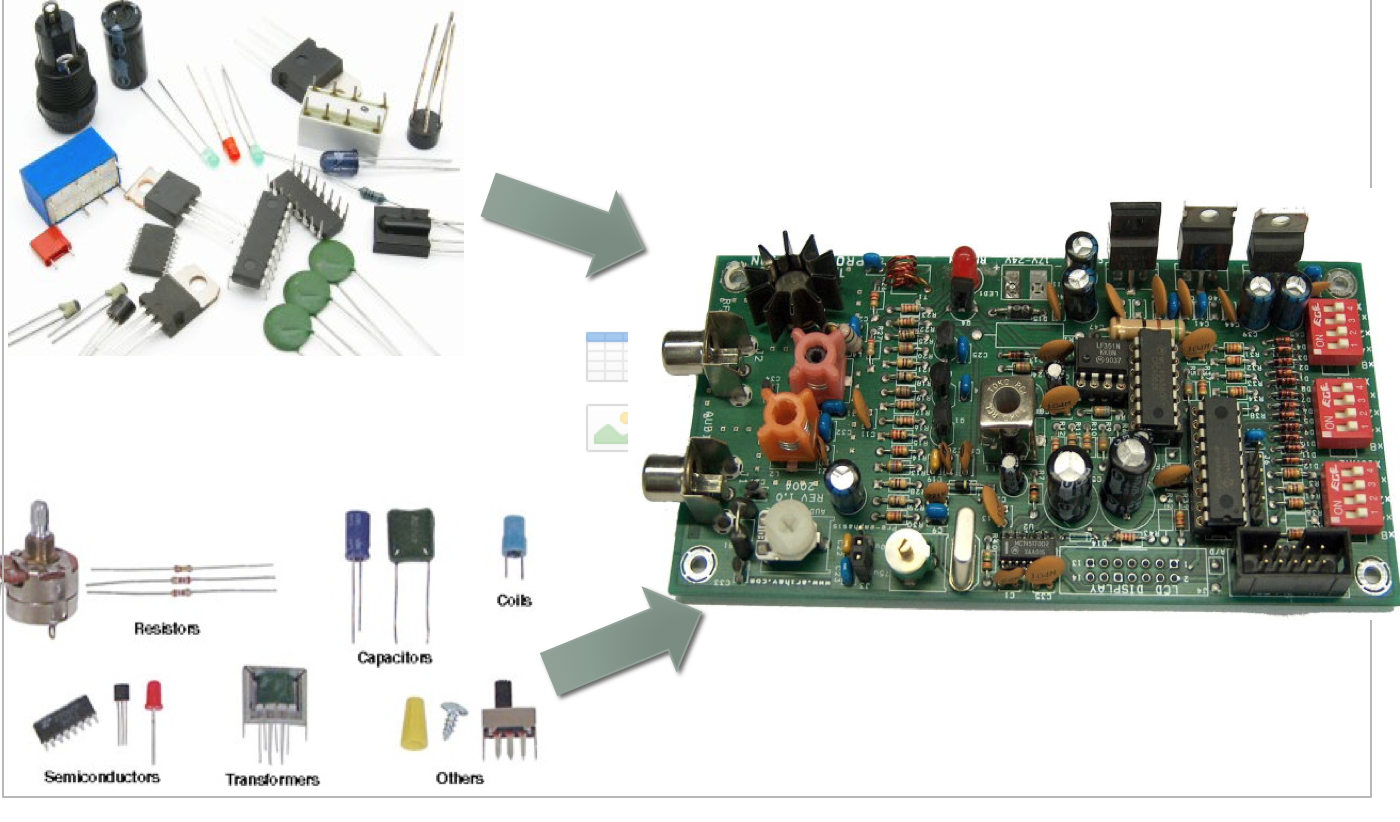

Example1 -

Example2 -  QR code Component - Follow the component's API for method calls
