h3c mstp的举例

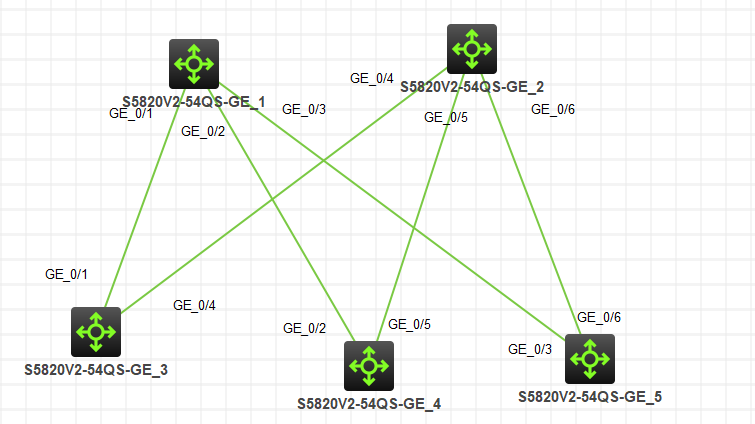

h3c交换机的图如下:

分别对于SWA,SWB,SWC,SWD,SWE

配置如下：

SWA:

vlan 10

vlan 20

vlan 30

region-name h3c

instance 0 vlan 20

instance 1 vlan 10

instance 2 vlan 30

stp instance 0 root secondary

stp instance 1 to 2 root primary

stp global enable



interface GigabitEthernet1/0/1

port link-mode bridge

port link-type trunk

undo port trunk permit vlan 1

port trunk permit vlan 10 20

combo enable fiber

interface GigabitEthernet1/0/2

port link-mode bridge

port link-type trunk

undo port trunk permit vlan 1

port trunk permit vlan 20 30



interface GigabitEthernet1/0/3

port link-mode bridge

port link-type trunk

undo port trunk permit vlan 1

port trunk permit vlan 10 20 30

combo enable fiber



SWB:

vlan 10

vlan 20

vlan 30

region-name h3c

instance 0 vlan 20

instance 1 vlan 10

instance 2 vlan 30

stp instance 0 root primary

stp instance 1 to 2 root secondary

stp global enable

interface GigabitEthernet1/0/4

port link-mode bridge

port link-type trunk

undo port trunk permit vlan 1

port trunk permit vlan 10 20

interface GigabitEthernet1/0/5

port link-mode bridge

port link-type trunk

undo port trunk permit vlan 1

port trunk permit vlan 20 30

interface GigabitEthernet1/0/6

port link-mode bridge

port link-type trunk

undo port trunk permit vlan 1

port trunk permit vlan 10 20 30



swc:

vlan 10

vlan 20

vlan 30

region-name h3c

instance 0 vlan 20

instance 1 vlan 10

instance 2 vlan 30

interface GigabitEthernet1/0/1

port link-mode bridge

port link-type trunk

undo port trunk permit vlan 1

port trunk permit vlan 10 20

combo enable fiber

stp instance 1 cost 15

interface GigabitEthernet1/0/4

port link-mode bridge

port link-type trunk

undo port trunk permit vlan 1

port trunk permit vlan 10 20



swd:

vlan 10

vlan 20

vlan 30

region-name h3c

instance 0 vlan 20

instance 1 vlan 10

instance 2 vlan 30

interface GigabitEthernet1/0/2

port link-mode bridge

port link-type trunk

undo port trunk permit vlan 1

port trunk permit vlan 20 30

combo enable fiber

stp instance 2 cost 15



interface GigabitEthernet1/0/5

port link-mode bridge

port link-type trunk

undo port trunk permit vlan 1

port trunk permit vlan 20 30



swe:

vlan 10

vlan 20

vlan 30

region-name h3c

instance 0 vlan 20

instance 1 vlan 10

instance 2 vlan 30

interface GigabitEthernet1/0/3

port link-mode bridge

port link-type trunk

undo port trunk permit vlan 1

port trunk permit vlan 10 20 30

interface GigabitEthernet1/0/6

port link-mode bridge

port link-type trunk

undo port trunk permit vlan 1

port trunk permit vlan 10 20 30

combo enable fiber

stp instance 0 cost 15

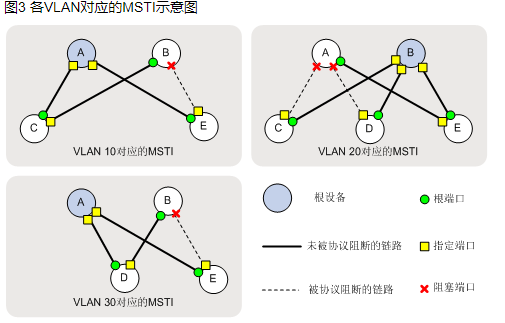

配置完成后，各个vlan的对于关系为：
