用以定义集合控件的容器外观,如ListBox,Combox 等等
使用一个自定义的ListBox用以说明,其默认外观是上下排列,这里修改成横向排列
<Window.Resources>
<DataTemplate x:Key="PersonDataTemplate"> <Grid> <Grid.RowDefinitions> <RowDefinition Height="*"></RowDefinition> <RowDefinition Height="*"></RowDefinition> </Grid.RowDefinitions> <Grid.ColumnDefinitions> <ColumnDefinition Width="*"></ColumnDefinition> <ColumnDefinition Width="*"></ColumnDefinition> </Grid.ColumnDefinitions> <TextBlock Grid.Row="0" Grid.Column="0" Text="{Binding Name}"></TextBlock> <TextBlock Grid.Row="0" Grid.Column="1" Text="{Binding Age}"></TextBlock> <TextBlock Grid.Row="1" Grid.Column="0" Text="{Binding Hometown}"></TextBlock> </Grid> </DataTemplate> <ItemsPanelTemplate x:Key="PersonItemsPanelTemplate"> <StackPanel Orientation="Horizontal" VerticalAlignment="Center" HorizontalAlignment="Center"></StackPanel> </ItemsPanelTemplate> </Window.Resources> <Grid> <ListBox ItemsSource="{Binding}" ItemTemplate="{StaticResource PersonDataTemplate}" ItemsPanel="{StaticResource PersonItemsPanelTemplate}"></ListBox> </Grid>
定义一个ItemsPanelTemplate,设置方向为Horizontal
在ListBox中指定ItemsPanel

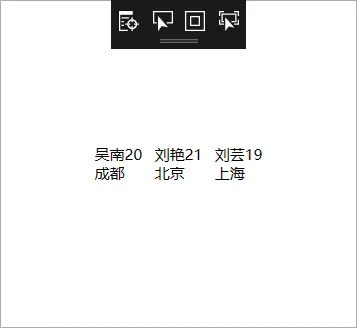

效果
常见的条目控件有:ListBox,Menu,StatusBar等(默认纵向排列)
示例代码
https://github.com/zLulus/NotePractice/tree/dev3/WPF/WpfDemo/Template/ItemsPanelTemplate
