SonicWall 原始IP：192.168.168.168

user: admin

password: password

SonicWall恢复重置？

用针按着reset孔20秒左右，开始重置。reset时，test灯会闪烁红色，将电脑与SonicWall的X0口通过交叉线连接，此时自动获取电脑IP，IP为169.254.x.x，利用抓包软件，获取ARP REQUEST的数据包，得知SonicWall的原始IP是192.168.168.168

1、将连接的电脑IP设为192.168.168.100，PING 192.168.168.168，PING通即

可在IE输入192.168.168.168，进入SonicWall的safemode。

2、出现以下提示信息：

SafeMode will allow you to do any of the following:

Upload and download firmware p_w_picpaths and system settings.

Boot to your choice of firmware and settings.

Manage system backups.

Easily return your SonicWALL to a previous system state.

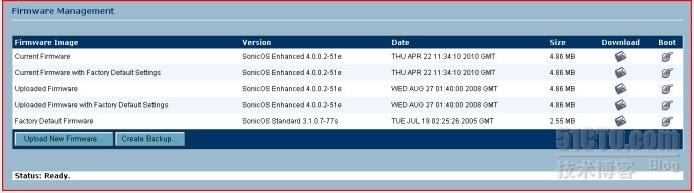

若要恢复原始状态，选择Factory Default Firmware的boot.





3、随后，设备重启，Test红灯熄灭

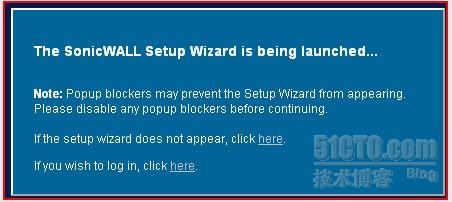

4、设备重启结束，选择log in,click here，进入登录界面

Thermal Yellow & Red Issue：



A Thermal Yellow Log message occurs when the SonicWALL appliance temperature is greater than 75 degrees Celsius but less than 80 degrees Celsius.

 A Thermal Red Log message occurs when the SonicWALL appliance temperature is greater than 80 degrees Celsius. Begin 60 second Thermal Red Timer.

 Resolution:

1. Ensure that the SonicWALL appliance is placed in a cool and dry place.
2. Ensure that enough ventilation is provided around the SonicWALL appliance.
3. Check fans to see if they are still working. Clean fans as necessary.
4. Upgrade the Firmware to 3.1.0.15 or above to eliminate firmware corruption.

解决方案:

1。确保SonicWALL用具是放置在阴凉干燥的地方。

2。确保提供足够的通风在SonicWALL用具。

3。检查球迷是否仍然坚持工作。如有必要,干净的球迷。

4。3.1.0.15升级固件,消除固件或以上腐败。
