推荐系统之AFM代码详解

AFM

重点：在NFM中，特征向量进行两两交叉之后，直接进行sum pooling，将二阶交叉向量进行等权求和处理。但是直觉上来说，不同的交叉特征应该有着不同的重要性。不重要的交叉特征应该降低其权重，而重要性高的交叉特征应该提高其权重。Attention概念与该思想不谋而合，AFM作者顺势将其引入到模型之中，为每个交叉特征引入重要性权重，最终在对特征向量进行sum pooling时，利用重要性权重对二阶交叉特征进行加权求和。

模型

计算公式:

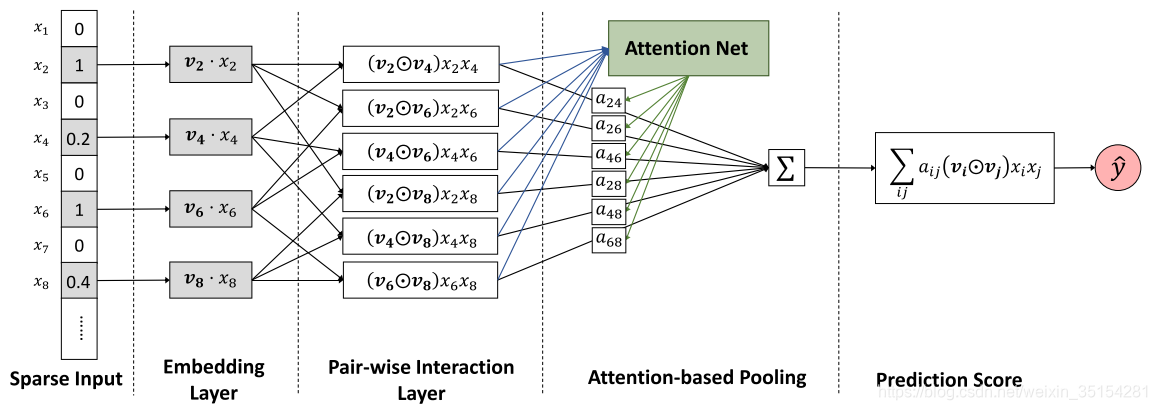

框架:

class BaseModel:
    pass

class AFM(BaseModel):
    """Instantiates the Attentional Factorization Machine architecture.

    :param linear_feature_columns: An iterable containing all the features used by linear part of the model.
    :param dnn_feature_columns: An iterable containing all the features used by deep part of the model.
    :param use_attention: bool,whether use attention or not,if set to ``False``.it is the same as **standard Factorization Machine**
    :param attention_factor: positive integer,units in attention net
    :param l2_reg_linear: float. L2 regularizer strength applied to linear part
    :param l2_reg_embedding: float. L2 regularizer strength applied to embedding vector
    :param l2_reg_att: float. L2 regularizer strength applied to attention net
    :param afm_dropout: float in [0,1), Fraction of the attention net output units to dropout.
    :param init_std: float,to use as the initialize std of embedding vector
    :param seed: integer ,to use as random seed.
    :param task: str, ``"binary"`` for  binary logloss or  ``"regression"`` for regression loss
    :param device: str, ``"cpu"`` or ``"cuda:0"``
    :return: A PyTorch model instance.

    """

    def __init__(self, linear_feature_columns, dnn_feature_columns, use_attention=True, attention_factor=8,
                 l2_reg_linear=1e-5, l2_reg_embedding=1e-5, l2_reg_att=1e-5, afm_dropout=0, init_std=0.0001, seed=1024,
                 task='binary', device='cpu'):
        super(AFM, self).__init__(linear_feature_columns, dnn_feature_columns, l2_reg_linear=l2_reg_linear,
                                  l2_reg_embedding=l2_reg_embedding, init_std=init_std, seed=seed, task=task,
                                  device=device)

        self.use_attention = use_attention

        if use_attention:
            self.fm = AFMLayer(self.embedding_size, attention_factor, l2_reg_att, afm_dropout,
                               seed, device)

            # 防止过拟合
            self.add_regularization_weight(self.fm.attention_W, l2_reg_att)
        else:
            self.fm = FM()

        self.to(device)

    def forward(self, X):

        sparse_embedding_list, _ = self.input_from_feature_columns(X, self.dnn_feature_columns,
                                                                   self.embedding_dict, support_dense=True)
        # 一阶项
        logit = self.linear_model(X)

        # 二阶注意力交叉项
        if len(sparse_embedding_list) > 0:
            if self.use_attention:
                logit += self.fm(sparse_embedding_list)
            else:
                logit += self.fm(torch.cat(sparse_embedding_list, dim=1))
　　　　　
        # 预测
        y_pred = self.out(logit)

        return y_pred

AFMLayer

class AFMLayer(nn.Module):
    """Attentonal Factorization Machine models pairwise (order-2) feature
    interactions without linear term and bias.
      Input shape
        - A list of 3D tensor with shape: ``(batch_size,1,embedding_size)``.
      Output shape
        - 2D tensor with shape: ``(batch_size, 1)``.
      Arguments
        - **in_features** : Positive integer, dimensionality of input features.
        - **attention_factor** : Positive integer, dimensionality of the
         attention network output space.
        - **l2_reg_w** : float between 0 and 1. L2 regularizer strength
         applied to attention network.
        - **dropout_rate** : float between in [0,1). Fraction of the attention net output units to dropout.
        - **seed** : A Python integer to use as random seed.
      References
        - [Attentional Factorization Machines : Learning the Weight of Feature
        Interactions via Attention Networks](https://arxiv.org/pdf/1708.04617.pdf)
    """

    def __init__(self, in_features, attention_factor=4, l2_reg_w=0, dropout_rate=0, seed=1024, device='cpu'):
        super(AFMLayer, self).__init__()
        self.attention_factor = attention_factor
        self.l2_reg_w = l2_reg_w
        self.dropout_rate = dropout_rate
        self.seed = seed
        embedding_size = in_features

        self.attention_W = nn.Parameter(torch.Tensor(
            embedding_size, self.attention_factor))

        self.attention_b = nn.Parameter(torch.Tensor(self.attention_factor))

        self.projection_h = nn.Parameter(
            torch.Tensor(self.attention_factor, 1))

        self.projection_p = nn.Parameter(torch.Tensor(embedding_size, 1))

        for tensor in [self.attention_W, self.projection_h, self.projection_p]:
            nn.init.xavier_normal_(tensor, )

        for tensor in [self.attention_b]:
            nn.init.zeros_(tensor, )

        self.dropout = nn.Dropout(dropout_rate)

        self.to(device)

    def forward(self, inputs):
        embeds_vec_list = inputs
        row = []
        col = []

        # 组合所有可能的二阶特征交叉
        for r, c in itertools.combinations(embeds_vec_list, 2):
            row.append(r)
            col.append(c)

        # 获得交叉项的左半部分 x_i
        # (B, 交差项数目, E)
        p = torch.cat(row, dim=1)

        # 获得交叉项的有半部分 x_j
        q = torch.cat(col, dim=1)

        # 计算交叉项目 x_i * x_j
        inner_product = p * q

        # 输入交叉项目
        # (B, 交叉项目数， E)
        bi_interaction = inner_product

        # 单层全连接
        # (B, 交叉项目数， attention_factor)
        attention_temp = F.relu(torch.tensordot(
            bi_interaction, self.attention_W, dims=([-1], [0])) + self.attention_b)

        # 计算每一个交叉项目的注意力权重
        # (B, 交差项目数， 1)
        self.normalized_att_score = F.softmax(torch.tensordot(
            attention_temp, self.projection_h, dims=([-1], [0])), dim=1)

        # 所有二阶特征加权求和(B, E)
        attention_output = torch.sum(
            self.normalized_att_score * bi_interaction, dim=1)

        # 防止过拟合
        attention_output = self.dropout(attention_output)  # training

        # (B, 1)
        afm_out = torch.tennsordot(
            attention_output, self.projection_p, dims=([-1], [0]))

        return afm_out

参考

论文地址
AFM
