linux鼠标测试程序,Linux USB鼠标驱动注解及测试

五、应用层测试代码编写

在应用层编写测试鼠标的测试程序，在我的系统中，鼠标设备为/dev/input/event3. 测试代码如下：

/*

* usb_mouse_test.c

*by lht

*/

#include

#include

#include

#include

#include

int main (void)

{

int fd,i,count;

struct input_event ev_mouse[2];

fd = open ("/dev/input/event3",O_RDWR);

if (fd < 0) {

printf ("fd open failed\n");

exit(0);

}

printf ("\nmouse opened, fd=%d\n",fd);

while(1)

{

printf("...............................................\n");

count=read(fd, ev_mouse, sizeof(struct input_event));

for(i=0;i

{

printf("type=%d\n",ev_mouse[i].type);

if(EV_REL==ev_mouse[i].type)

{

printf("time:%ld.%d",ev_mouse[i].time.tv_sec,ev_mouse[i].time.tv_usec);

printf(" type:%d code:%d value:%d\n",ev_mouse[i].type,ev_mouse[i].code,ev_mouse[i].value);

}

if(EV_KEY==ev_mouse[i].type)

{

printf("time:%ld.%d",ev_mouse[i].time.tv_sec,ev_mouse[i].time.tv_usec);

printf(" type:%d code:%d value:%d\n",ev_mouse[i].type,ev_mouse[i].code,ev_mouse[i].value);

}

}

}

close (fd);

return 0;

}

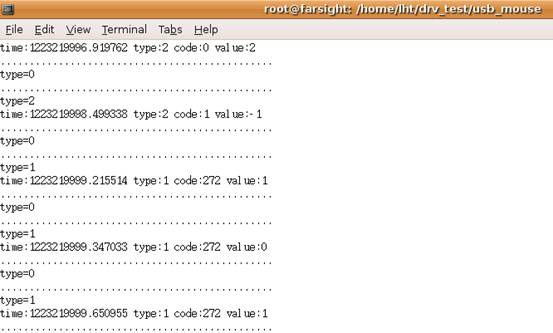

运行结果如下：

根据type、code、value的值，可以判断出鼠标的状态，具体值参考include/linux/input.h
