本文详细介绍如何使用Spring Boot和Apache CXF构建WebService服务端与客户端，包括依赖配置、接口定义及其实现、配置类编写等步骤，并实现了基本的认证拦截。

服务端
1.首先在pom导入依赖包

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web-services</artifactId>
		</dependency>
		<dependency>
			<groupId>org.apache.cxf</groupId>
			<artifactId>cxf-rt-frontend-jaxws</artifactId>
			<version>3.1.6</version>
		</dependency>
		<dependency>
			<groupId>org.apache.cxf</groupId>
			<artifactId>cxf-rt-transports-http</artifactId>
			<version>3.1.6</version>
		</dependency>

2.建立WebService接口

package com.sinqi.webService;

import javax.jws.WebService;

@WebService(name="DemoService" , // 暴露的服务名
		targetNamespace = "http://webService.sinqi.com" //命名空间,设置为接口的包名倒写(默认是本类包名倒写)
		)

public interface DemoService {
	//做两个测试的接口，一个带参数，一个不带参数。
	public String sayHello(String user);

	public String sayBye();
}

3.建立WebService接口的实现类

package com.sinqi.webService;

import java.util.Date;

import javax.jws.WebService;

@WebService(serviceName="DemoService" , //与接口的服务名一致
		targetNamespace="http://webService.sinqi.com", // 与接口空间 命名一致
		endpointInterface="com.sinqi.webService.DemoService" // 接口地址
		)


public class DemoServiceImpl implements DemoService {

	@Override
	public String sayHello(String user) {
		// TODO Auto-generated method stub
		return user+",现在时间："+"("+new Date()+")";
	}

	@Override
	public String sayBye() {
		// TODO Auto-generated method stub
		return "haha---BayBay";
	}

}

4.建立config类

package com.sinqi.config;

import javax.xml.ws.Endpoint;

import org.apache.cxf.Bus;
import org.apache.cxf.bus.spring.SpringBus;
import org.apache.cxf.jaxws.EndpointImpl;
import org.apache.cxf.transport.servlet.CXFServlet;
import org.springframework.boot.web.servlet.ServletRegistrationBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import com.sinqi.Interceptor.AuthInterceptor;
import com.sinqi.webService.DemoServiceImpl;

@Configuration
public class Cxfconfig {

	@Bean
    public ServletRegistrationBean dispatcherServlet1() {
    // 这个方法名报错了，查了一下解决办法就是改个名，随便加个1就行了。
    //接口路径，可根据实际情况自定义
        return new ServletRegistrationBean(new CXFServlet(),"/demo/*");
    }

    @Bean(name = Bus.DEFAULT_BUS_ID)
    public SpringBus springBus() {
        return new SpringBus();
    }

 // 此方法为每一个接口的实现类都创建一个
    @Bean
    public Endpoint endpoint() {
        EndpointImpl endpoint = new EndpointImpl(springBus(), new DemoServiceImpl());
        endpoint.getInInterceptors().add(new AuthInterceptor()) ; //// 添加自己的拦截器，做认证之前可以先注掉。
        endpoint.publish("/api");
        return endpoint;

    }

}

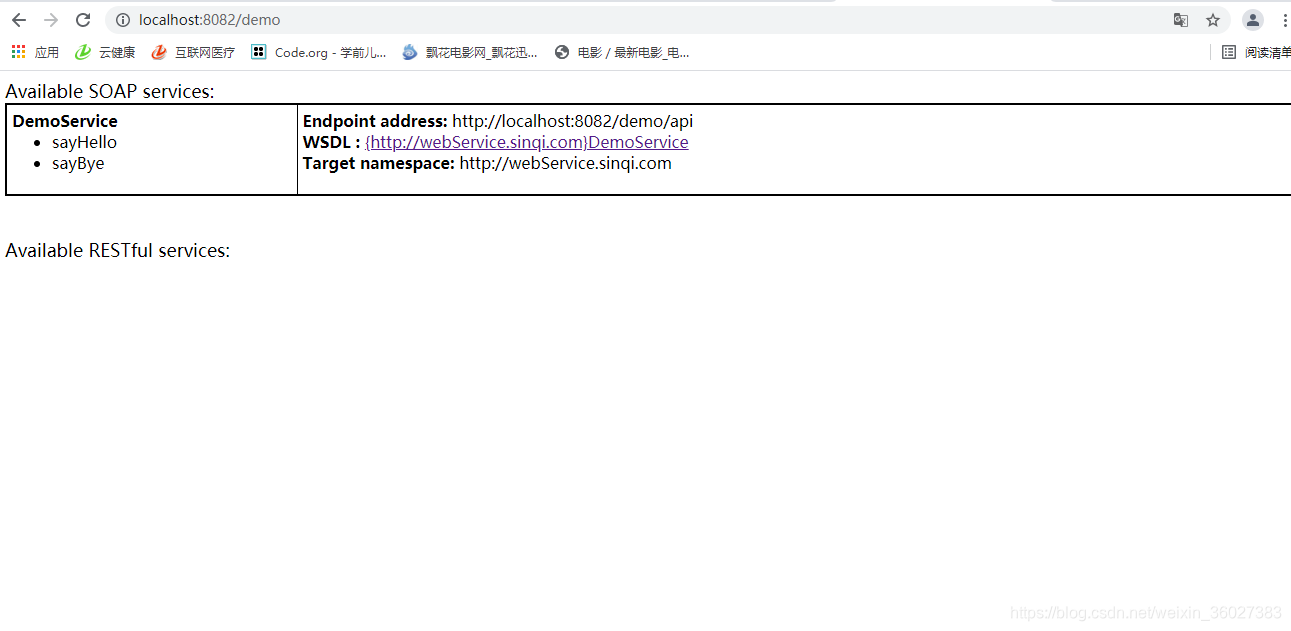

至此接口服务端已经可以运行了
在这里插入图片描述
5.建立一个拦截器

package com.sinqi.Interceptor;

import javax.xml.soap.SOAPException;
import javax.xml.soap.SOAPHeader;
import javax.xml.soap.SOAPMessage;

import org.apache.cxf.binding.soap.SoapMessage;
import org.apache.cxf.binding.soap.saaj.SAAJInInterceptor;
import org.apache.cxf.interceptor.Fault;
import org.apache.cxf.phase.AbstractPhaseInterceptor;
import org.apache.cxf.phase.Phase;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.w3c.dom.NodeList;


public class AuthInterceptor extends AbstractPhaseInterceptor<SoapMessage>{

	Logger logger = LoggerFactory.getLogger(this.getClass());
	private SAAJInInterceptor saa = new SAAJInInterceptor();
	private static final String USERNAME="root";
	private static final String PASSWORD="admin";
	public AuthInterceptor() {
		super(Phase.PRE_PROTOCOL);
		// TODO Auto-generated constructor stub
		getAfter().add(SAAJInInterceptor.class.getName());
	}

	@Override
	public void handleMessage(SoapMessage arg0) throws Fault {
		// TODO Auto-generated method stub
		SOAPMessage soap = arg0.getContent(SOAPMessage.class);

		String userName = null ;
		String passWord = null ;

		if(soap == null ) {
			saa.handleMessage(arg0);
			soap=arg0.getContent(SOAPMessage.class);
		}
		SOAPHeader header = null ;
		try {
			header=soap.getSOAPHeader();
		} catch (SOAPException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}
		if(header==null){
            throw new Fault(new IllegalAccessException("找不到Header,无法验证用户信息"));
        }
		NodeList username = header.getElementsByTagName("username");
        NodeList password = header.getElementsByTagName("password");
        userName = username.item(0).getTextContent().trim();
        passWord = password.item(0).getTextContent().trim();

		if(!(userName.equals(USERNAME)&& passWord.equals(PASSWORD))) {
			SOAPException soapExc = new SOAPException("认证失败");
		      logger.debug("用户认证信息错误");
		      throw new Fault(soapExc);
		}
	}

}

然后不要忘记把config里的拦截器注释取消。

客户端
1.建立客户端的拦截器类通过服务端的拦截器

package com.sinqi.client;

import java.util.List;

import javax.xml.namespace.QName;

import org.apache.cxf.binding.soap.SoapMessage;
import org.apache.cxf.headers.Header;
import org.apache.cxf.helpers.DOMUtils;
import org.apache.cxf.interceptor.Fault;
import org.apache.cxf.phase.AbstractPhaseInterceptor;
import org.apache.cxf.phase.Phase;
import org.w3c.dom.Document;
import org.w3c.dom.Element;

public class LoginInterceptor extends AbstractPhaseInterceptor<SoapMessage> {

	private String USERNAME="root";
	private String PASSWORD = "admin";


	public LoginInterceptor(String username,String password) {
		super(Phase.PREPARE_SEND);
		this.USERNAME=username;
		this.PASSWORD=password ;
		// TODO Auto-generated constructor stub
	}

	@Override
	public void handleMessage(SoapMessage message) throws Fault {
		// TODO Auto-generated method stub
		List<Header> headers = message.getHeaders();
        Document doc = DOMUtils.createDocument();
        Element auth = doc.createElementNS("http://serve.my.com","DemoService"); // DemoService：命名空间
        Element username = doc.createElement("username");
        Element password = doc.createElement("password");
        username.setTextContent(this.USERNAME);
        password.setTextContent(this.PASSWORD);
        auth.appendChild(username);
        auth.appendChild(password);
        headers.add(0, new Header(new QName("identification"), auth));

	}

}

2.客户端测试类

package com.sinqi.client;

import org.apache.cxf.endpoint.Client;
import org.apache.cxf.jaxws.JaxWsProxyFactoryBean;
import org.apache.cxf.jaxws.endpoint.dynamic.JaxWsDynamicClientFactory;

import com.sinqi.webService.DemoService;

public class CxfClient {


	public static void main(String[] args) {
		CxfClient.main2();
	}
	///方式1:使用代理类工厂,需要拿到对方的接口
	public static void main1() {
		try {
			//接口地址
			String address = "http://localhost:8082/demo/api?wsdl" ;
			//代理工厂
			JaxWsProxyFactoryBean jwpfb = new JaxWsProxyFactoryBean();
			//设置代理地址
			jwpfb.setAddress(address);
			//添加拦截器认证
			jwpfb.getOutInterceptors().add(new LoginInterceptor("root", "admin"));

			//设置接口类型
			jwpfb.setServiceClass(DemoService.class);
			//创建一个代理接口实现
			DemoService ds = (DemoService) jwpfb.create();

			String user = "我是世界之王！！！！" ;
			String result = ds.sayHello(user);
			System.out.println(result);
			String res2 = ds.sayBye();
			System.out.println(res2);

		}catch (Exception e) {
			e.printStackTrace();
		}
	}
	////动态调用方式
	public static void main2() {
		// 创建动态用户
		JaxWsDynamicClientFactory dcf = JaxWsDynamicClientFactory.newInstance();
		Client client = dcf.createClient("http://localhost:8082/demo/api?wsdl");

		// 需要密码的情况需要加上用户名密码
		LoginInterceptor loginInt = new LoginInterceptor("root", "admin");
		client.getOutInterceptors().add(loginInt);
		Object[] objects = new Object[0];

		try {
			objects = client.invoke("sayHello", "世界之王");
			System.out.println(objects[0]);
			objects = client.invoke("sayBye", "");
			System.out.println(objects[0]);
		} catch (Exception e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}
	}
}
