CentOS7上安装Elasticsearch-Logstash-Kibana

环境准备

修改主机名

[root@localhost ~]# hostnamectl set-hostname vbcHost01
查看三个主机名：静态、瞬态和灵活主机名
[root@localhost ~]# hostnamectl --pretty
[root@localhost ~]# hostnamectl --static
[root@localhost ~]# hostnamectl --transient

主机名和IP映射

[root@localhost ~]# vi /etc/hosts

yum安装jdk

执行命令yum -y list java*查看可安装java版本
执行命令yum install -y java-11-openjdk-devel.i686
查看已安装: /usr/lib/jvm/

Linux创建用户

 adduser elasticsearch
 passwd elasticsearch
 chown -R elasticsearch:elasticsearch /etc/staller/elasticsearch-7.13.0
 chmod -R 750 /etc/staller/elasticsearch-7.13.0
 su - elasticsearch

下载安装elasticsearch

https://www.elastic.co/cn/downloads/past-releases#elasticsearch

启动ES

• root用户修改elasticsearch-7.13.0/config/elasticsearch.yml文件，
  添加
  bootstrap.system_call_filter: false
  bootstrap.memory_lock: true
  network.bind_host: 0.0.0.0
  network.host: localhost
  cluster.name: elasticsearch_cluster_name
  node.name: vbcHost01
  cluster.initial_master_nodes: [“vbcHost01”]
  注意冒号后面有空格

• root用户设置系统资源
  vi /etc/security/limits.conf
  添加
  elasticsearch soft nproc 65535
  elasticsearch soft nofile 65536
  elasticsearch hard nofile 65536
  elasticsearch soft memlock unlimited
  elasticsearch hard memlock unlimited

• root用户设置虚拟内存
  vi /etc/sysctl.conf
  添加
  vm.max_map_count=262144
  然后执行： sysctl -p

• elasticsearch用户进入elasticsearch-7.13.0/bin ，执行elasticsearch脚本
  9300 端口为 Elasticsearch 集群间组件的通信端口
  9200 端口为浏览器访问的 http协议 RESTful 端口

Logstash

日志采集、过滤、分析工具
安装LogStash

配置

启动

[root@vbchost01 logstash-7.13.3]#
bin/logstash -f config/kibana.conf --config.test_and_exit

Kibana

一个开源的分析和可视化平台，可视化查询日志
下载Kinaban
安装shasum： yum install -y perl-Digest-SHA
安装Kibana

修改配置文件

kibana-7.13.3-linux-x86_64/config/kinaba.yml

修改1.
Kibana is served by a back end server. This setting specifies the port to use.
server.port: 5601

修改2. 本机服务器地址或者集群地址
#Specifies the address to which the Kibana server will bind. IP addresses and host names are both valid values.
#The default is ‘localhost’, which usually means remote machines will not be able to connect.
#To allow connections from remote users, set this parameter to a non-loopback address.
server.host: “192.168.10.133”

修改3. 本机服务器地址或者集群地址
#The URLs of the Elasticsearch instances to use for all your queries.
#elasticsearch.hosts: [“http://192.168.10.133:9200”]

启动

启动脚本: kibana-7.13.3-linux-x86_64/bin/kibana

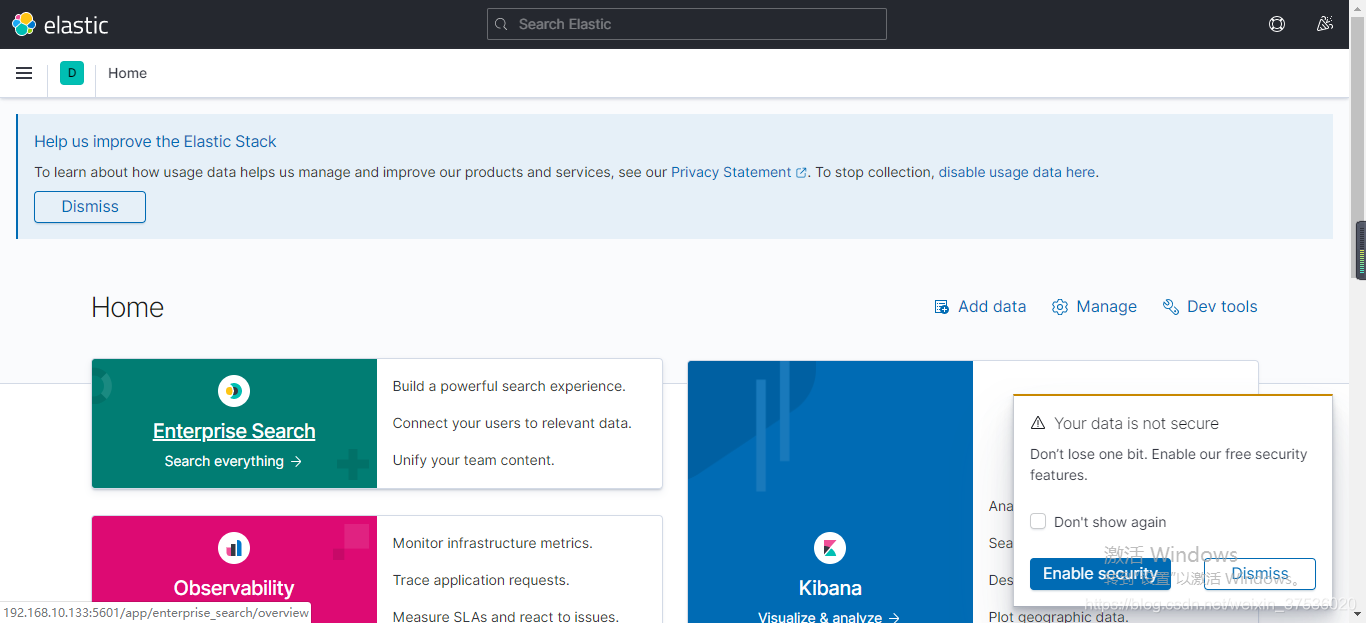

安装成功

http://192.168.10.133:5601

Stack Management > Index patterns > Create index pattern
Analytics > Discover
