14-部署Kafkasource和KafkaChannel

• 部署KafkaSource

  • KafkaSource负责将Kafka中的消息记录转为CloudEvents

  • 仅在需要从Kafka中加载消息并提供给Knative Eventing上的应用程序使用时才需要KafkaSource

  • 命令：

    kubectl apply -f https://github.com/knative-extensions/eventing-kafka-broker/releases/download/knative-v1.12.1/eventing-kafka-controller.yaml

    kubectl apply -f https://mirror.ghproxy.com/https://github.com/knative-extensions/eventing-kafka-broker/releases/download/knative-v1.12.1/eventing-kafka-source.yaml


• 部署KafkaChannel

  • 负责在Knative Eventing上提供基于Kafka集群的Channel实现，后端基于Kafka Topic

  • https://knative.dev/docs/install/yaml-install/eventing/install-eventing-with-yaml/#verify-the-installation

    kubectl apply -f https://github.com/knative-extensions/eventing-kafka-broker/releases/download/knative-v1.12.1/eventing-kafka-controller.yaml

    kubectl apply -f https://github.com/knative-extensions/eventing-kafka-broker/releases/download/knative-v1.12.1/eventing-kafka-channel.yaml

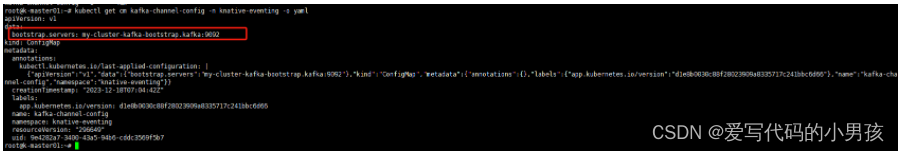

  • 如果所使用的Kafka集群是外置的，那需要修改kafka-channel-config的configmap中boostrap server的地址.

    kubectl get cm kafka-channel-config -n knative-eventing -o yaml




  • 修改Default Channel的default-ch-webhook相关配置: 可以在全局修改，也可以在某个名称空间修改

    apiVersion: v1
    kind: ConfigMap
    metadata:
      name: default-ch-webhook
      namespace: knative-eventing
    data:
      default-ch-config: |
        clusterDefault:
          apiVersion: messaging.knative.dev/v1
          kind: InMemoryChannel
        namespaceDefaults:
          event-demo:
            apiVersion: messaging.knative.dev/v1beta1
            kind: KafkaChannel
            spec:
              numPartitions: 5
              replicationFactor: 1 # Kafka集群的节点数量，决定了其复制因子的可用值上限；但使用的partition数量可按需定义；


• 测试KafkaChannel

  • 创建KafkaChannel

    ~$ kn channel create kc01 --type messaging.knative.dev:v1beta1:KafkaChannel


    ~$ kn channel list
    NAME    TYPE              URL                                                 AGE     READY   REASON
    kc01    KafkaChannel      http://kc01-kn-channel.default.svc.cluster.local    37s     True


    提示：在没有设置KafkaChannel为默认Channel类型的名称空间下创建KafkaChannel时需要显式指定其类型。

  • 测试KafkaChannel

    • 创建订阅至KafkaChannel/kc01的Subscription

      kn subscription create sub-to-kc01 --channel messaging.knative.dev:v1beta1:KafkaChannel:kc01 --sink ksvc:event-display

      说明：此处事先存在一个可用的名为event-display的Knative Service。


    • 创建用于模拟Source的Pod

      kubectl run client-$RANDOM --image=ikubernetes/admin-box:v1.2 --rm --restart=Never -it --command -- /bin/bash


    • 在Pod的交互式接口发送CloudEvents

      root@client-18448 ~# curl -v "http://kc01-kn-channel.default.svc.cluster.local" -X POST -H "Content-Type: application/cloudevents+json" \
          -d '{"id": "100001", "specversion": "1.0", "type": "com.icloud2native.flow.seq", "source": "Curl", "data": {"message":"Hello from Knative Eventing KafkaChannel"}}'


    • 在最后的Sink上查看生成的CloudEvents

      POD=$(kubectl get pods -l serving.knative.dev/configuration=event-display -o jsonpath='{.items[0].metadata.name}')

      ~$ kubectl logs $POD
      Defaulted container "user-container" out of: user-container, queue-proxy
      ☁️  cloudevents.Event
      Context Attributes,
        specversion: 1.0
        type: com.icloud2native.flow.seq
        source: Curl
        id: 100001
      Data,
         {"message":"Hello from Knative Eventing KafkaChannel"}
