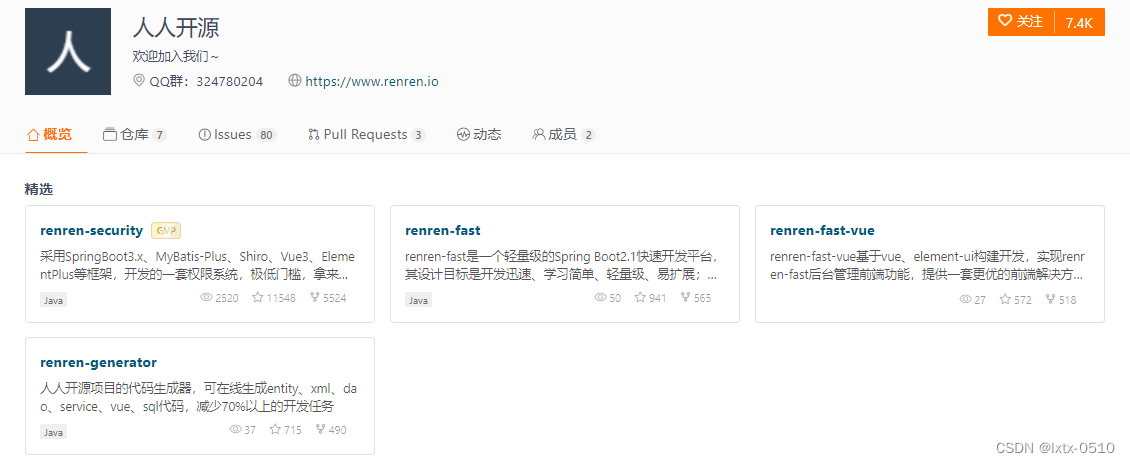

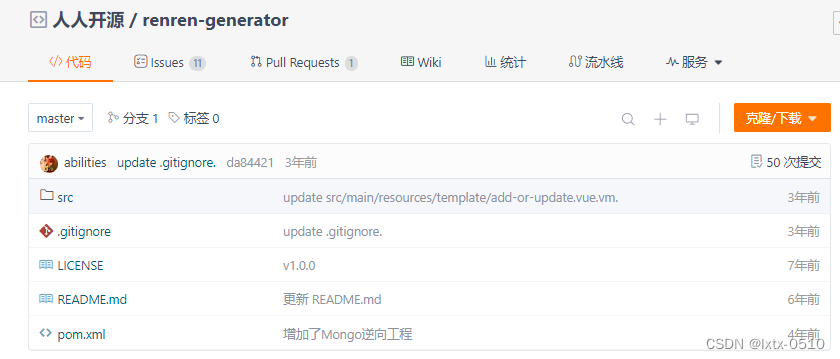

1、renren-faster-generator

1.1官网

人人开源

1.2简介

renren-fast 是人人开源的一套经典的代码框架。

但是生成器的源码却是很久没有更新了

2、mybatis 代码生成器

2.1 官网

MyBatis Generator Core – Introduction to MyBatis Generator

Mapper4 官网： https://github.com/abel533/Mapper

Mapper5官网： GitHub - mybatis-mapper/mapper: MyBatis Mapper

generator ：4.1.mappergenerator · abel533/Mapper Wiki · GitHub

2.2 一键生成步骤

2.2.1 sql

-- 测试案例
DROP TABLE IF EXISTS `t_pay`;

CREATE TABLE `t_pay` (
  `id` INT(10) UNSIGNED NOT NULL AUTO_INCREMENT,
  `pay_no` VARCHAR(50) NOT NULL COMMENT '支付流水号',
  `order_no` VARCHAR(50) NOT NULL COMMENT '订单流水号',
  `user_id` INT(10) DEFAULT '1' COMMENT '用户账号ID',
  `amount` DECIMAL(8,2) NOT NULL DEFAULT '9.9' COMMENT '交易金额',
  `deleted` TINYINT(4) UNSIGNED NOT NULL DEFAULT '0' COMMENT '删除标志，默认0不删除，1删除',
  `create_time` TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `update_time` TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间',
  PRIMARY KEY (`id`)
) ENGINE=INNODB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8mb4 COMMENT='支付交易表';

INSERT INTO t_pay(pay_no,order_no) VALUES('pay17203699','6544bafb424a');

SELECT * FROM t_pay;

2.2.2 module

2.2.3 pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.hc.cloud</groupId>
        <artifactId>cloud2024</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>

    <artifactId>mybatis-generator</artifactId>

    <properties>
        <maven.compiler.source>17</maven.compiler.source>
        <maven.compiler.target>17</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>
    <dependencies>
        <!--Mybatis 通用mapper tk单独使用，自己独有+自带版本号-->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.13</version>
        </dependency>
        <!-- Mybatis Generator 自己独有+自带版本号-->
        <dependency>
            <groupId>org.mybatis.generator</groupId>
            <artifactId>mybatis-generator-core</artifactId>
            <version>1.4.2</version>
        </dependency>
        <!--通用Mapper-->
        <dependency>
            <groupId>tk.mybatis</groupId>
            <artifactId>mapper</artifactId>
        </dependency>
        <!--mysql8.0-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <!--persistence-->
        <dependency>
            <groupId>javax.persistence</groupId>
            <artifactId>persistence-api</artifactId>
        </dependency>
        <!--hutool-->
        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
        </dependency>
        <!--lombok-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
    </dependencies>

    <build>
        <resources>
            <resource>
                <directory>${basedir}/src/main/java</directory>
                <includes>
                    <include>**/*.xml</include>
                </includes>
            </resource>
            <resource>
                <directory>${basedir}/src/main/resources</directory>
            </resource>
        </resources>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <excludes>
                        <exclude>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                        </exclude>
                    </excludes>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.mybatis.generator</groupId>
                <artifactId>mybatis-generator-maven-plugin</artifactId>
                <version>1.4.2</version>
                <configuration>
                    <configurationFile>${basedir}/src/main/resources/generatorConfig.xml</configurationFile>
                    <overwrite>true</overwrite>
                    <verbose>true</verbose>
                </configuration>
                <dependencies>
                    <dependency>
                        <groupId>mysql</groupId>
                        <artifactId>mysql-connector-java</artifactId>
                        <version>8.0.33</version>
                    </dependency>
                    <dependency>
                        <groupId>tk.mybatis</groupId>
                        <artifactId>mapper</artifactId>
                        <version>4.2.3</version>
                    </dependency>
                </dependencies>
            </plugin>
        </plugins>
    </build>

</project>

2.2.4 config

2.2.4.1 config.properties

#包名和项目名
package.name=com.hc.cloud
#  此处将项目名配置进来，生成的实体类将放在项目对应的目录下，需要与本项目工程一致，否则找显示路径不存在    、
#  The specified target project directory XXX/src/main/java does not exist
spring.application.name=mybatis-generator

# mysql5.7
jdbc.driverClass = com.mysql.jdbc.Driver
jdbc.url= jdbc:mysql://localhost:3306/db2024?useUnicode=true&characterEncoding=UTF-8&useSSL=false
jdbc.user = root
jdbc.password =123456

#mysql 8
# mysql8.0---JDBC四件套
jdbc.driverClass = com.mysql.cj.jdbc.Driver
jdbc.url= jdbc:mysql://localhost:3306/db2024?characterEncoding=utf8&useSSL=false&serverTimezone=GMT%2B8&rewriteBatchedStatements=true&allowPublicKeyRetrieval=true
jdbc.user = root
jdbc.password =123456

2.2.4.2 generatorConfig.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">

<generatorConfiguration>
    <properties resource="config.properties"/>

    <context id="Mysql" targetRuntime="MyBatis3Simple" defaultModelType="flat">
        <property name="beginningDelimiter" value="`"/>
        <property name="endingDelimiter" value="`"/>

        <plugin type="tk.mybatis.mapper.generator.MapperPlugin">
            <property name="mappers" value="tk.mybatis.mapper.common.Mapper"/>
            <property name="caseSensitive" value="true"/>
        </plugin>

        <jdbcConnection driverClass="${jdbc.driverClass}"
                        connectionURL="${jdbc.url}"
                        userId="${jdbc.user}"
                        password="${jdbc.password}">
        </jdbcConnection>

        <javaModelGenerator targetPackage="${package.name}.entities" targetProject="${spring.application.name}/src/main/java"/>

        <sqlMapGenerator targetPackage="${package.name}.mapper" targetProject="${spring.application.name}/src/main/java"/>

        <javaClientGenerator targetPackage="${package.name}.mapper" targetProject="${spring.application.name}/src/main/java" type="XMLMAPPER"/>

        <table tableName="t_pay" domainObjectName="Pay">
            <generatedKey column="id" sqlStatement="JDBC"/>
        </table>
    </context>
</generatorConfiguration>

2.2.5 generator

public static void main(String[] args) throws Exception{
    List<String> warnings = new ArrayList<String>();
    boolean overwrite = true;
    ConfigurationParser cp = new ConfigurationParser(warnings);
    Configuration config =
            cp.parseConfiguration(getResourceAsStream("generatorConfig.xml"));
    DefaultShellCallback callback = new DefaultShellCallback(overwrite);
    MyBatisGenerator myBatisGenerator = new MyBatisGenerator(config, callback, warnings);
    myBatisGenerator.generate(null);
    for (String warning : warnings) {
        System.out.println(warning);
    }
}

2.2.6 执行main

3、mybatis-plus-generator

推荐使用，简单易用

3.1 官网

MyBatis-Plus 🚀 为简化开发而生

3.2 依赖引入

<!--适用版本：mybatis-plus-generator 3.5.1 及其以上版本，对历史版本不兼容！3.5.1 以下的请参考 代码生成器旧-->
<dependencies>
    <dependency>
        <groupId>com.baomidou</groupId>
        <artifactId>mybatis-plus-generator</artifactId>
        <version>3.5.6</version>
    </dependency>
    <!--SpringBoot通用依赖模块 SpringBoot整合Web组件+actuator -->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>
    <dependency>
        <groupId>com.baomidou</groupId>
        <artifactId>mybatis-plus-spring-boot3-starter</artifactId>
        <version>3.5.6</version>
    </dependency>
    <!--Mysql数据库驱动8 -->
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
    </dependency>
    <!--SpringBoot集成druid连接池-->
    <dependency>
        <groupId>com.alibaba</groupId>
        <artifactId>druid-spring-boot-starter</artifactId>
    </dependency>
    <!--persistence-->
    <dependency>
        <groupId>javax.persistence</groupId>
        <artifactId>persistence-api</artifactId>
    </dependency>
    <dependency>
        <groupId>org.apache.velocity</groupId>
        <artifactId>velocity-engine-core</artifactId>
        <version>2.3</version>
    </dependency>
</dependencies>

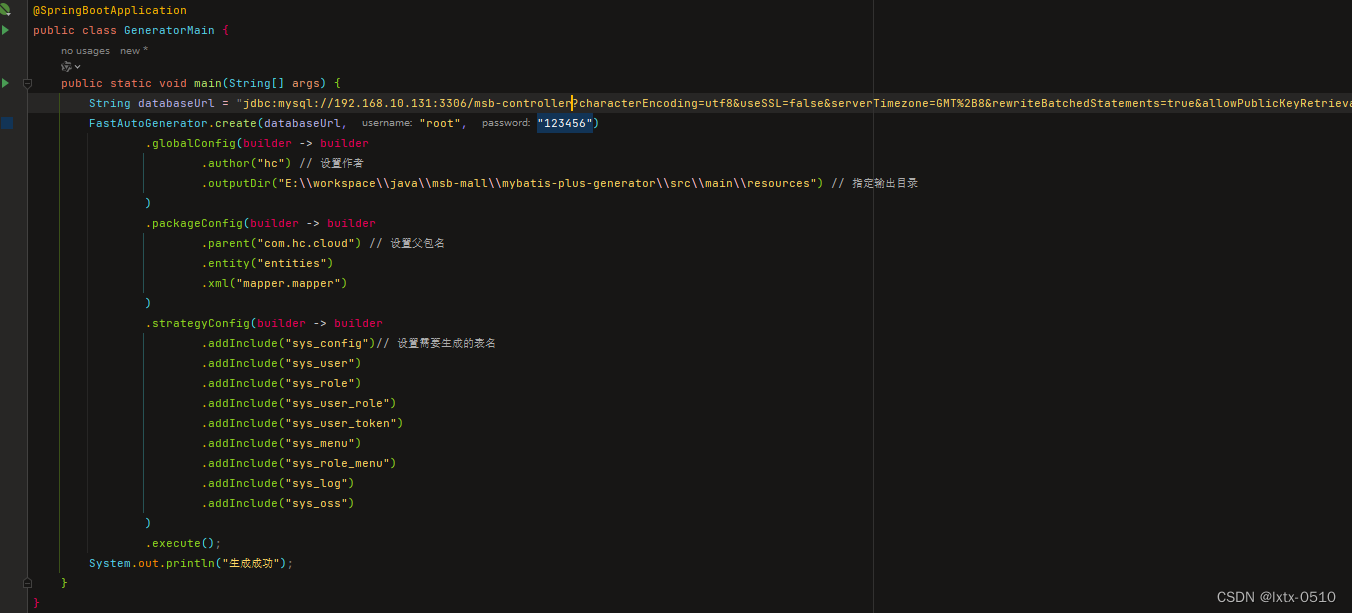

2.3 代码生成

public class CodeGenerator {
    public static void main(String[] args) {
        String databaseUrl = "jdbc:mysql://192.168.10.131:3306/seata_order?characterEncoding=utf8&useSSL=false&serverTimezone=GMT%2B8&rewriteBatchedStatements=true&allowPublicKeyRetrieval=true";
        FastAutoGenerator.create(databaseUrl, "root", "123456")
                .globalConfig(builder -> builder
                        .author("hc") // 设置作者
                        .outputDir("E:\\workspace\\java\\cloud-ali-01\\mybatis-plus-generator\\src\\main\\resources") // 指定输出目录
                )
                .packageConfig(builder -> builder
                        .parent("com.hc.cloud") // 设置父包名
                        .entity("entities")
                        .xml("mapper.mapper")
                )
                .strategyConfig(builder -> builder
                        .addInclude("t_order")// 设置需要生成的表名
                        .addTablePrefix("t_") // 设置过滤表前缀
                )
                .execute();
        System.out.println("生成成功");
    }
}
