简单说一说Gzip。
我们在进行网络传输数据时,经常用到json、xml等格式的数据,这些数据在传输前可以进行压缩,这时候就会涉及到一种压缩格式—Gzip。Gzip的压缩比率非常大,有的甚至能达到70%以上,可以大大减少传输内容,提高用户的传输速度,进而提高用户的体验。
实际上Gzip的压缩原理,就是对相同内容进行合并归纳,进而减少数据占用的空间。

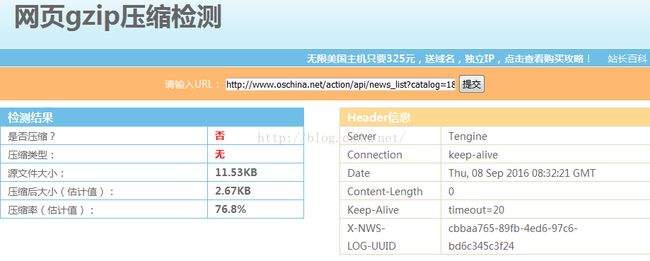

我们通过百度Gzip压缩检测,可以方便的检查一个网页是否应用了Gzip压缩。我们以开源中国的新闻页为例,网址如下:
http://www.oschina.net/action/api/news_list?catalog=1&pageIndex=0&pageSize=20
检测结果如下:
可以看到,这个网页并未经过压缩,源文件大小为11.53KB,而压缩后,文件可减小到2.67KB,可以节省76.8%的传输控件。这是什么概念呢?相当于100MB的数据经过压缩后变为23MB。(示例中使用的是xml数据,属于文本信息,压缩比率非常高。)
那么,Android能否实现数据的gzip压缩呢?也是可以的。下面,我们就简单讲解一下在Android中实现Gzip压缩的过程。

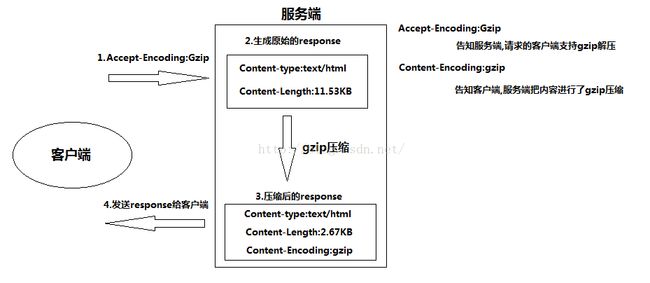

首先,画图说明一下在Android中实现Gzip压缩的原理:
首先,客户端发请求给服务端,会带上请求头:Accept-Encoding:gzip。第二步,服务端接收到请求头后,可以选择压缩或不压缩。第三步,服务端选择压缩后,文件明显变小,同时在响应头加上Content-Encoding:gzip。第四步,客户端接收到响应后,根据响应头中是否带有Content-Encoding:gzip,判断文件是否被压缩,如果压缩就进行解压,如果没有压缩,就按照正常方式读取数据即可。
接下来是示例代码:
首先是布局,我们简单的设置一个控制Gzip压缩的按钮:

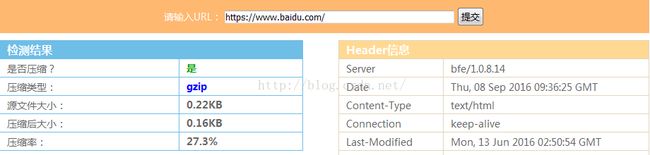

经过检测,百度首页也进行了gzip压缩,所以博主打算以百度首页作为测试网址,检测图如下:
示例的业务逻辑代码如下:
public class MainActivity extends Activity {
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
}
public void gzipRequest(View v) {
new Thread() {
public void run() {
try {
gzipRequest();
} catch (Exception e) {
}
};
}.start();
}
protected void gzipRequest() throws Exception {
HttpGet request = new HttpGet("https://www.baidu.com/");
// Accept-Encoding:"gzip, deflate"
// 添加请求头
request.addHeader("Accept-Encoding", "gzip");
HttpClient client = new DefaultHttpClient();
// 发送请求
HttpResponse response = client.execute(request);
if (response.getStatusLine().getStatusCode() == 200) {
HttpEntity entity = response.getEntity(); // 获取到请求回来的实体
// Content-Encoding:"gzip"
boolean isGzip = false;
Header[] headers = response.getHeaders("Content-Encoding");
for (Header header : headers) {
if ("gzip".equals(header.getValue())) {
isGzip = true;
break;
}
}
System.out.println(isGzip ? "服务器进行了Gzip压缩" : "服务器没有进行Gzip压缩");
String json;
if (isGzip) {
// 解压缩
json = parseGzip(entity);
} else {
// 正常读取
json = EntityUtils.toString(entity, HTTP.UTF_8);
}
System.out.println(json);
}
}
/**
* 解Gzip压缩
*
* @throws IOException
* @throws IllegalStateException
*/
private String parseGzip(HttpEntity entity) throws Exception {
InputStream in = entity.getContent();
GZIPInputStream gzipInputStream = new GZIPInputStream(in);
BufferedReader reader = new BufferedReader(new InputStreamReader(
gzipInputStream, HTTP.UTF_8));
String line = null;
StringBuffer sb = new StringBuffer();
while ((line = reader.readLine()) != null) {
sb.append(line).append("\n");
}
return sb.toString();
}
}
控制台打印结果:
09-08 09:37:03.603: System.out(1655): 服务器进行了Gzip压缩
09-08 09:37:03.603: System.out(1655):
09-08 09:37:03.603: System.out(1655):
百度一下,你就知道
