简单用用吧，为了完成作业，3~5分太香了
具体用法可自行搜索
推荐LaTeX在线编辑器：
https://cn.overleaf.com/标题：\title{标题}作者：\author{作者}学号：\studentid{123}正文：
\begin{document}...内容...\end{document}制作首页：\maketitle；如果没有这个，你的author之类的信息是不会显示的中文支持：
\usepackage{ctex} % 导入中文宏摘要部分中文摘要和关键词：
\begin{abstract} %摘要部分\small\centering这是一篇关于勾股定理的小论文。%\small 是使用缩小字体，\centering是使内容居中\par\textbf{Keywords:} keyword1, keyword2, keyword3\end{abstract}
英文摘要和关键词：
% 由于此时是中文环境，需要定义一个新的英文摘要\newcommand{\enabstractname}{Abstract}\newenvironment{enabstract}{% \par\small \noindent\mbox{}\hfill{\bfseries \enabstractname}\hfill\mbox{}\par \vskip 2.5ex}{\par\vskip 2.5ex}\begin{enabstract} This is the abstract in English. \centering \textbf{Keywords:} Abstract, \LaTeXe, English \end{enabstract}

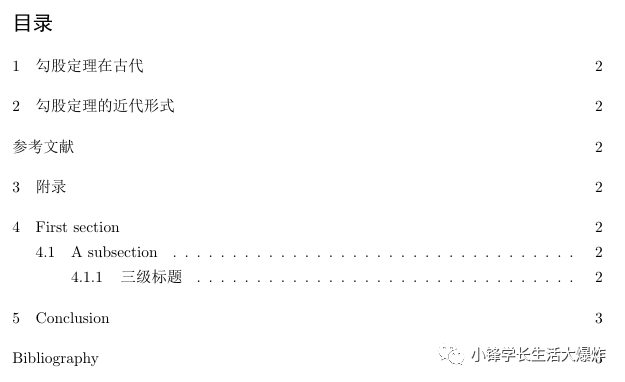

自动目录：
\tableofcontents %表示目录部分开始\section{勾股定理在古代} %目录的前缀页面都会自动排版不需要手动排版\section{勾股定理的近代形式}\addcontentsline{toc}{section}{参考文献} %用来添加文献的标准方式\section{附录} %要写的附录

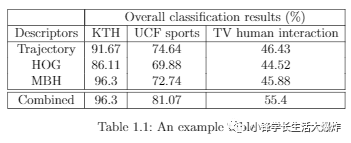

表格：
\begin{table}[htbp] \centering \begin{tabular}{|c|c|c|c|} \hline & \multicolumn{3}{|c|}{Overall classification results (\%)} \\ \hline Descriptors & KTH & UCF sports & TV human interaction \\ \hline Trajectory & 91.67 & 74.64 & 46.43 \\ HOG & 86.11 & 69.88 & 44.52 \\ MBH & 96.3 & 72.74 & 45.88 \\ \hline \hline Combined & 96.3 & 81.07 & 55.4 \\ \hline \end{tabular}% \caption{An example table} \label{t1}%\end{table}%
引用：内容内容\cite{ref1}、内容内容\citep{ref1}

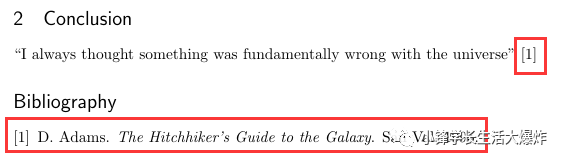

参考文献：
I always thought something was fundamentally wrong with the universe \citep{ref1}\bibliographystyle{plain}\bibliography{ref/references}% 文献具体内容在 ref/references.bib 中，内容格式(BibTeX)如下：@book{ref1, title={The Hitchhiker's Guide to the Galaxy}, author={Adams, D.}, isbn={9781417642595}, url={http://books.google.com/books?id=W-xMPgAACAAJ}, year={1995}, publisher={San Val}}
章：\chapter{名称}小节：\section{名称}亚节：\subsection{名称}三级标题：\subsubsection{三级标题}
另起一页：\newpage插入图片：
\begin{figure}[h!]\centering\includegraphics[scale=1.7]{img/universe} % 图片文件img/universe.jpg\caption{The Universe}\label{fig:universe}\end{figure}
标签：\label{名称a}，常与\ref{名称a}同用伪代码：

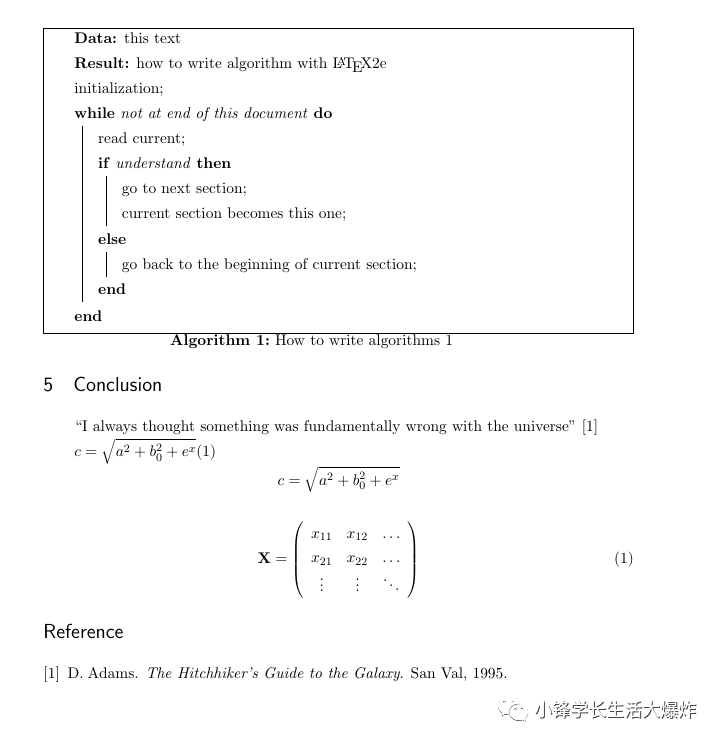

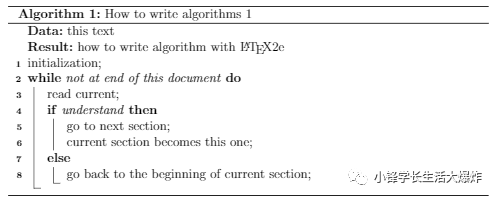

先导入包：\usepackage[lined,boxed,commentsnumbered]{algorithm2e}再添加代码：\begin{algorithm}[H] \KwData{this text} \KwResult{how to write algorithm with \LaTeX2e } initialization\; \While{not at end of this document}{ read current\; \eIf{understand}{ go to next section\; current section becomes this one\; }{ go back to the beginning of current section\; } } \caption{How to write algorithms 1}\end{algorithm}
导入其他tex：\input{a.tex}目录：\makecontents各种列表：\listtables、\listfigures、\listalgorithms设置页码：
\pagenumbering{arabic} % 阿拉伯数字\setcounter{page}{1} % 数字1
简单公式：
行内公式：$ c = \sqrt{a^{2}+b_{0}^{2}+e^{x}} $行间公式：$$ c = \sqrt{a^{2}+b_{0}^{2} +e^{x}} $$常用数学公式代码：xfxuezhang.cn/index.php/archives/121

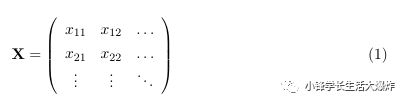

复杂公式并自动编号：
\begin{equation}\mathbf{X} = \left(\begin{array}{ccc}x_{11} & x_{12} & \ldots \\x_{21} & x_{22} & \ldots \\\vdots & \vdots & \ddots \end{array} \right)\end{equation}
换行：\\空格：\

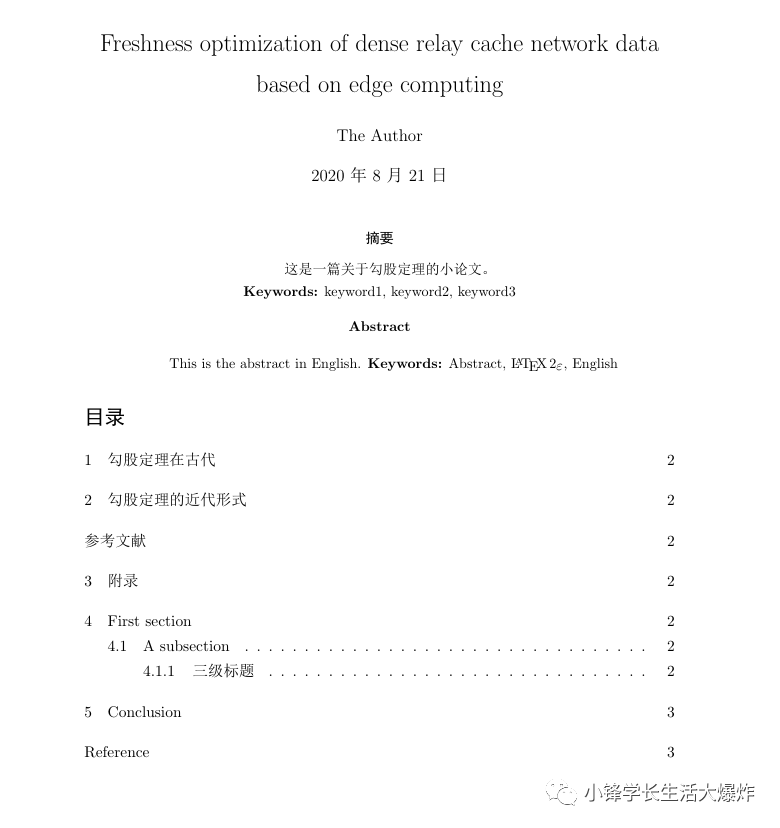

完整测试实例(仅供参考啊，实际有很多配置的)：
% !TEX TS-program = pdflatex% !TEX encoding = UTF-8 Unicode\documentclass[11pt]{article} % use larger type; default would be 10pt%\documentclass[master,twoside]{article}\usepackage[utf8]{inputenc} % set input encoding (not needed with XeLaTeX)%%% PAGE DIMENSIONS\usepackage{geometry} % to change the page dimensions\geometry{a4paper} % or letterpaper (US) or a5paper or....% \geometry{margin=2in} % for example, change the margins to 2 inches all round% \geometry{landscape} % set up the page for landscape% read geometry.pdf for detailed page layout information% 导入中文宏 eabstract\usepackage{ctex}\usepackage{graphicx} % support the \includegraphics command and options \usepackage{natbib}% \usepackage[parfill]{parskip} % Activate to begin paragraphs with an empty line rather than an indent% 算法以及列表环境\RequirePackage{cases,listings}\RequirePackage{fancyvrb}\RequirePackage{algorithmic}%%% PACKAGES\usepackage[lined,boxed,commentsnumbered]{algorithm2e}\usepackage{booktabs} % for much better looking tables\usepackage{array} % for better arrays (eg matrices) in maths\usepackage{paralist} % very flexible & customisable lists (eg. enumerate/itemize, etc.)\usepackage{verbatim} % adds environment for commenting out blocks of text & for better verbatim\usepackage{subfig} % make it possible to include more than one captioned figure/table in a single float% These packages are all incorporated in the memoir class to one degree or another...%%% HEADERS & FOOTERS\usepackage{fancyhdr} % This should be set AFTER setting up the page geometry\pagestyle{fancy} % options: empty , plain , fancy\renewcommand{\headrulewidth}{0pt} % customise the layout...\lhead{}\chead{}\rhead{}\lfoot{}\cfoot{\thepage}\rfoot{}%%% SECTION TITLE APPEARANCE\usepackage{sectsty}\allsectionsfont{\sffamily\mdseries\upshape} % (See the fntguide.pdf for font help)% (This matches ConTeXt defaults)%%% ToC (table of contents) APPEARANCE\usepackage[nottoc,notlof,notlot]{tocbibind} % Put the bibliography in the ToC\usepackage[titles,subfigure]{tocloft} % Alter the style of the Table of Contents\renewcommand{\cftsecfont}{\rmfamily\mdseries\upshape}\renewcommand{\cftsecpagefont}{\rmfamily\mdseries\upshape} % No bold!%%% END Article customizations%%% The "real" document content comes below...\title{Freshness optimization of dense relay cache network data based on edge computing}\author{The Author}\begin{document}\maketitle\begin{abstract} %摘要部分 \small\centering这是一篇关于勾股定理的小论文。%\small 是使用缩小字体，\centering是使内容居中 \par\textbf{Keywords:} keyword1, keyword2, keyword3\end{abstract}% 由于此时是中文环境，需要定义一个新的英文摘要\newcommand{\enabstractname}{Abstract}\newenvironment{enabstract}{% \par\small \noindent\mbox{}\hfill{\bfseries \enabstractname}\hfill\mbox{}\par \vskip 2.5ex}{\par\vskip 2.5ex} \begin{enabstract} This is the abstract in English. \centering \textbf{Keywords:} Abstract, \LaTeXe, English\end{enabstract}\tableofcontents %表示目录部分开始\section{勾股定理在古代} %目录的前缀页面都会自动排版不需要手动排版\section{勾股定理的近代形式}\addcontentsline{toc}{section}{参考文献} %用来添加文献的标准方式\section{附录} %要写的附录\section{First section}Your text goes here.\subsection{A subsection}\subsubsection{三级标题}More text.\begin{figure}[h!]\centering\includegraphics[scale=1.7]{img/universe}\caption{The Universe}\label{fig:universe}\end{figure}\begin{algorithm}[H] \KwData{this text} \KwResult{how to write algorithm with \LaTeX2e } initialization\; \While{not at end of this document}{ read current\; \eIf{understand}{ go to next section\; current section becomes this one\; }{ go back to the beginning of current section\; } } \caption{How to write algorithms 1}\end{algorithm}\section{Conclusion}``I always thought something was fundamentally wrong with the universe'' \citep{ref1}$ c = \sqrt{a^{2}+b_{0}^{2}+e^{x}} (1)$$$ c = \sqrt{a^{2}+b_{0}^{2} +e^{x}} $$\begin{equation} \mathbf{X} = \left(\begin{array}{ccc} x_{11} & x_{12} & \ldots \\ x_{21} & x_{22} & \ldots \\ \vdots & \vdots & \ddots \end{array} \right) \end{equation} \renewcommand\bibname{Reference}\bibliographystyle{plain}\bibliography{ref/references}\end{document}
