7.2 Case Study: Activation Records for the MIPS Architecture

The following describes a function call abstraction for the MIPS

architecture. This may be slightly different from the one you will

use for the project.

MIPS uses the register $sp as the stack pointer and the

register $fp as the frame pointer. In the following MIPS code

we use both a dynamic link and a static link embedded in the

activation records.

Consider the previous program:

procedure P ( c: integer )

x: integer;

procedure Q ( a, b: integer )

i, j: integer;

begin

x := x+a+j;

end;

begin

Q(x,c);

end;

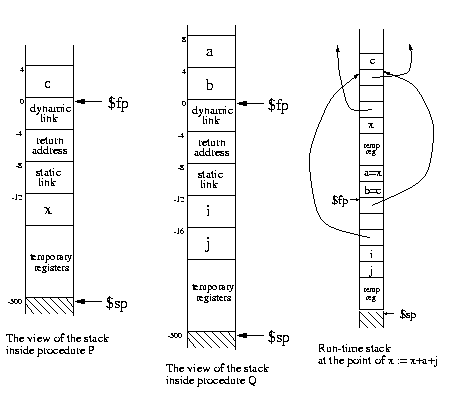

The activation record for P (as P sees it) is shown in the first figure below:

The activation record for Q (as Q sees it) is shown in the second figure above.

The third figure shows the structure of the run-time stack at the point where x := x+a+j is executed. This statement uses x, which is defined

in P. We can't assume that Q called P, so we should not use

the dynamic link to retrieve x; instead, we need to use the static link,

which points to the most recent activation record of P.

Thus, the value of variable x is computed by:

lw $t0, -8($fp) # follow the static link of Q

lw $t1, -12($t0) # x has offset=-12 inside P

Function/procedure arguments are pushed in the stack before the function call.

If this is a function, then an empty placeholder (4 bytes) should be pushed in the stack

before the function call; this will hold the result of the function.

Each procedure/function should begin with the following code (prologue):

sw $fp, ($sp) # push old frame pointer (dynamic link)

move $fp, $sp # frame pointer now points to the top of stack

subu $sp, $sp, 500 # allocate say 500 bytes in the stack

# (for frame size = 500)

sw $ra, -4($fp) # save return address in frame

sw $v0, -8($fp) # save static link in frame

(where $v0 is set by the caller - see below) and should end with the following code (epilogue):

lw $ra, -4($fp) # restore return address

move $sp, $fp # pop frame

lw $fp, ($fp) # restore old frame pointer (follow dynamic link)

jr $ra # return

For each procedure call, you need to push the arguments into the stack

and set $v0 to be the right static link (very often it is equal

to the static link of the current procedure; otherwise,

you need to follow the static link a number of times).

For example, the call Q(x,c) in P is translated into:

lw $t0, -12($fp)

sw $t0, ($sp) # push x

subu $sp, $sp, 4

lw $t0, 4($fp)

sw $t0, ($sp) # push c

subu $sp, $sp, 4

move $v0, $fp # load static link in $v0

jal Q # call procedure Q

addu $sp, $sp, 8 # pop stack

Note that there are two different cases for setting the static link before a procedure call.

Lets say that caller_level and callee_level are the nesting

levels of the caller and the callee procedures (recall that the nesting

level of a top-level procedure is 0, while the nesting level of

a nested procedure embedded inside another procedure with nesting level l, is l + 1).

When the callee is lexically inside the caller's body, that is, when callee_level=caller_level+1, we have:

move $v0, $fp

The call Q(x,c) in P is such a case because the nesting levels of P and Q are 0 and 1, respectively.

Otherwise, we follow the static link of the caller d + 1 times, where d=caller_level-callee_level (the difference

between the nesting level of the caller from that of the callee). For d=0, that is, when both caller

and callee are at the same level, we have

lw $v0, -8($fp)

For d=2 we have

lw $t1, -8($fp)

lw $t1, -8($t1)

lw $v0, -8($t1)

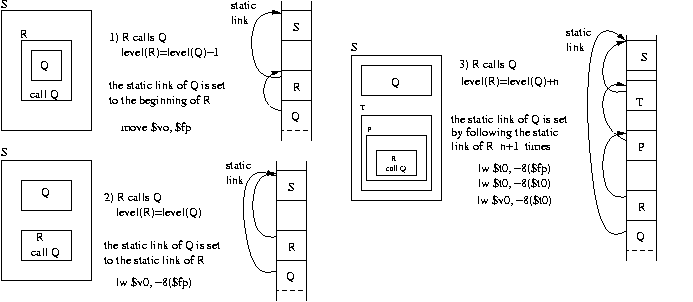

These cases are shown in the following figure:

Note also that, if you have a call to a function, you need to allocate 4 more bytes in the stack

to hold the result.

See for

a concrete example of a function expressed in MIPS code.
