harris角点检测_OpenCV-Harris和Shi-Tomasi角点检测

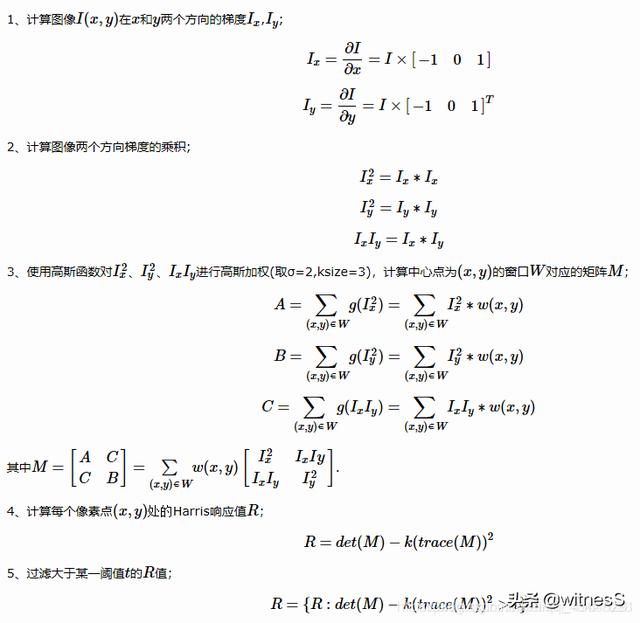

Harris角点检测步骤：

Harris：

import cv2import numpy as npdef harris_detect(img, ksize=3, k0=0.04):    '''    params:        img:灰度图片        ksize：Sobel算子窗口大小        k0：响应函数    return：        corner：与源图像一样大小，角点处像素值设置为255    '''    k = k0  # 响应函数k    threshold = 0.01  # 设定阈值    WITH_NMS = False  # 是否非极大值抑制    # 1、使用Sobel计算像素点x,y方向的梯度    h, w = img.shape[:2]  # 提取图片宽、高    grad = np.zeros((h, w, 2), dtype=np.float32)  # 创建梯度矩阵    grad[:, :, 0] = cv2.Sobel(img, cv2.CV_16S, 1, 0, ksize=3)  # 取x方向的梯度    grad[:, :, 1] = cv2.Sobel(img, cv2.CV_16S, 0, 1, ksize=3)  # 取y方向的梯度    # 2、计算Ix^2,Iy^2,Ix*Iy    m = np.zeros((h, w, 3), dtype=np.float32)    m[:, :, 0] = grad[:, :, 0] ** 2    m[:, :, 1] = grad[:, :, 1] ** 2    m[:, :, 2] = grad[:, :, 0] * grad[:, :, 1]    # 3、利用高斯函数对Ix^2,Iy^2,Ix*Iy进行滤波，得到矩阵m    m[:, :, 0] = cv2.GaussianBlur(m[:, :, 0], ksize=(ksize, ksize), sigmaX=2)    m[:, :, 1] = cv2.GaussianBlur(m[:, :, 1], ksize=(ksize, ksize), sigmaX=2)    m[:, :, 2] = cv2.GaussianBlur(m[:, :, 2], ksize=(ksize, ksize), sigmaX=2)    m = [np.array([[m[i, j, 0], m[i, j, 2]], [m[i, j, 2], m[i, j, 1]]]) for i in range(h) for j in range(w)]    # 4、计算局部特征结果矩阵M的特征值和响应函数R(i,j)=det(M)-k(trace(M))^2  0.04<=k<=0.06    D, T = list(map(np.linalg.det, m)), list(map(np.trace, m))    R = np.array([d - k * t ** 2 for d, t in zip(D, T)])    # 5、将计算出响应函数的值R进行非极大值抑制，滤除一些不是角点的点，同时要满足大于设定的阈值    # 获取最大的R值    R_max = np.max(R)    # print(R_max)    # print(np.min(R))    R = R.reshape(h, w)    corner = np.zeros_like(R, dtype=np.uint8)    for i in range(h):        for j in range(w):            if WITH_NMS:                # 除了进行进行阈值检测 还对3x3邻域内非极大值进行抑制(导致角点很小，会看不清)                if R[i, j] > R_max * threshold and R[i, j] == np.max(                        R[max(0, i - 1):min(i + 2, h - 1), max(0, j - 1):min(j + 2, w - 1)]):                    corner[i, j] = 255            else:                # 只进行阈值检测                if R[i, j] > R_max * threshold:                    corner[i, j] = 255    return cornerif __name__ == '__main__':    img = cv2.imread('D:/testimage/word.jpg')    # 转换为灰度图像    gray = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)    dst = harris_detect(gray)    img[dst > 0.01 * dst.max()] = [0, 0, 255]    cv2.imwrite('D:/testimage/FindCorner.jpg', img)    cv2.imshow('FindCorner', img)    cv2.waitKey(0)    cv2.destroyAllWindows()

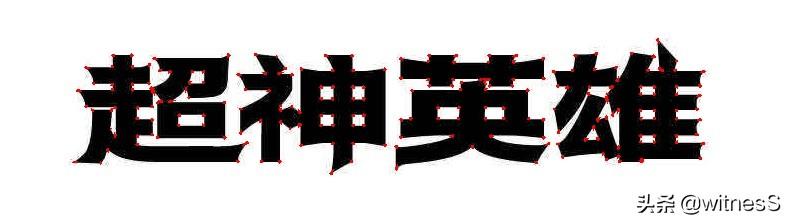

结果:

harris

Shi-Tomasi：

import cv2 as cvimport numpy as npif __name__=='__main__':    img=cv.imread("D:/testimage/animal.jpg")    gray_img=cv.cvtColor(img,cv.COLOR_BGR2GRAY)    result_img=img.copy()    corners=cv.goodFeaturesToTrack(gray_img,100,0.01,10,blockSize=3,useHarrisDetector=False,k=0.04)    #从float型转化为int型    Corners=np.int0(corners)    #print(Corners)    for i in Corners:        #将数组降维        x,y=i.ravel()        cv.circle(result_img,(x,y),2,(0,0,255),2)    cv.imshow("original image", img)    cv.imshow("result image",result_img)    cv.imwrite("D:/testimage/result numbers.jpg",result_img)    cv.waitKey(0)    cv.destroyAllWindows()

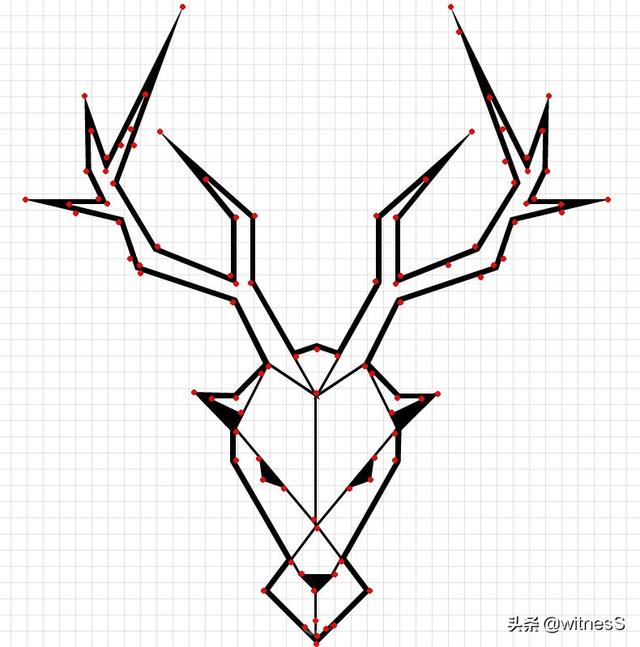

结果：

Shi-Tomasi
