java+web+股票图表_基于Echarts的股票K线图展示

一、概述

这是一个简单的股票K线图展示，利用echarts第三方进行配置，用户可以进行放大缩小查看K线图，还可进行拖拽。

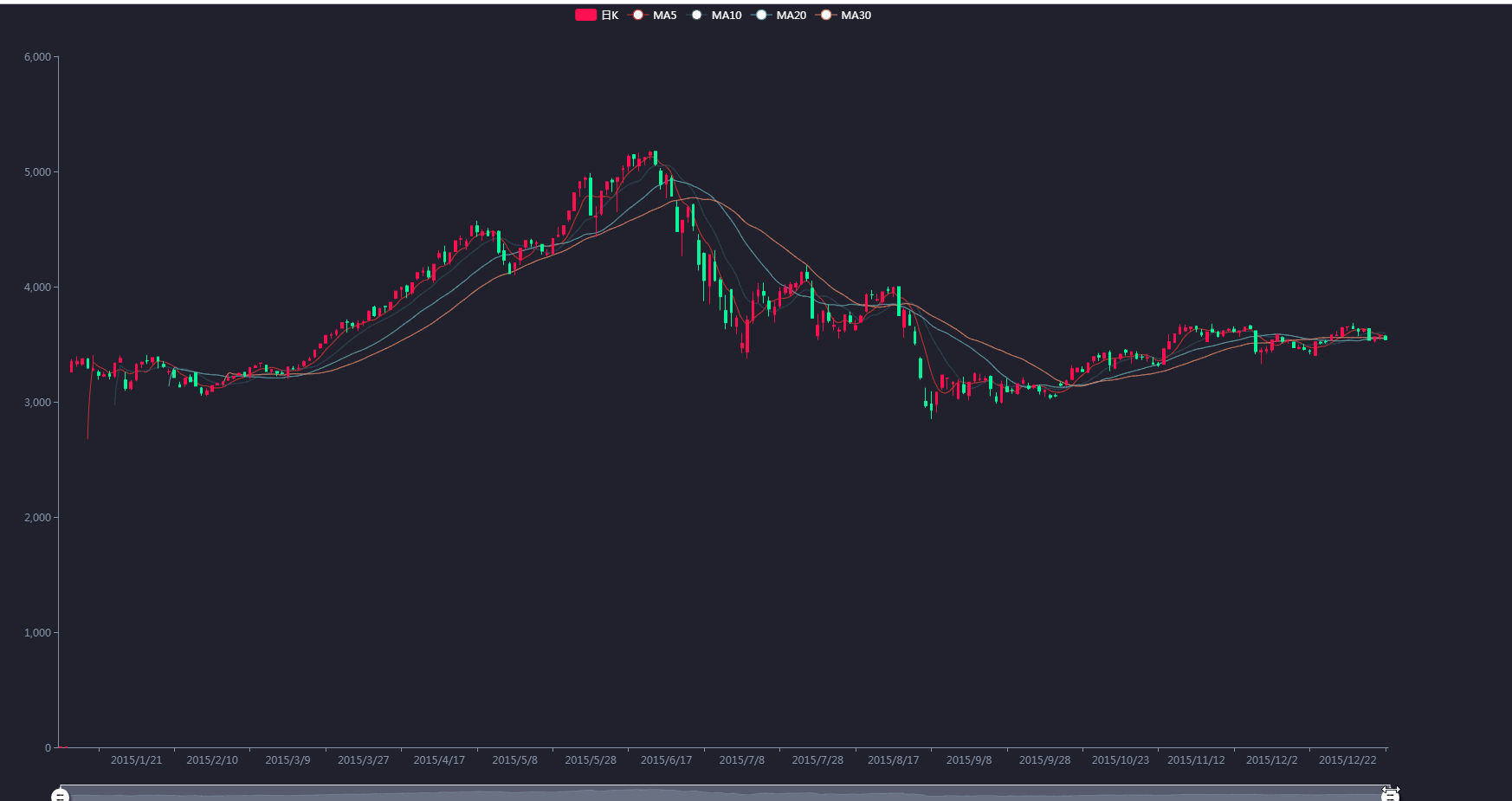

二、演示效果

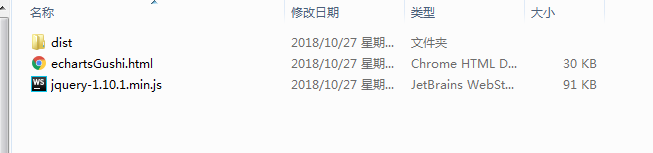

三、目录结构

其中dist文件夹是echart插件，jquery的引用是为了打开网页后F11自适应全屏

四、详细步骤

1、meta标签配置

2、文件引用

3、添加全局样式，图表容器

*{margin:0;padding:0}

html,body{

width:100%;

height:100%;

}

#main{

width:100%;

height:100%;

}

//获取容器，建立实例

var myChart = echarts.init(document.getElementById('main'))

myChart.setOption(option);

4、数据格式解释

var rawData = [

['2015/12/31','3570.47','3539.18','-33.69','-0.94%','3538.35','3580.6','176963664','25403106','-'],

['2015/12/30','3566.73','3572.88','9.14','0.26%','3538.11','3573.68','187889600','26778766','-'],

['2015/12/29','3528.4','3563.74','29.96','0.85%','3515.52','3564.17','182551920','25093890','-'],

['2015/12/28','3635.77','3533.78','-94.13','-2.59%','3533.78','3641.59','269983264','36904280','-'],

['2015/12/25','3614.05','3627.91','15.43','0.43%','3601.74','3635.26','198451120','27466004','-']

]

其中数据格式为数组形式的数组，

各个位置的含义：时间 开盘 关盘 最低点 最高点 MA5 MA10 MA20 MA30，后续的几个MA*的意思的最近*天的日均值

5.配置详解

var option = {

backgroundColor: '#21202D',

legend: {

data: ['日K', 'MA5', 'MA10', 'MA20', 'MA30'],

inactiveColor: '#777',

textStyle: {

color: '#fff'

}

},

tooltip: {

trigger: 'axis',

axisPointer: {

animation: false,

type: 'cross',

lineStyle: {

color: '#376df4',

width: 2,

opacity: 1

}

}

},

xAxis: {

type: 'category',

data: dates,

axisLine: { lineStyle: { color: '#8392A5' } }

},

yAxis: {

scale: true,

axisLine: { lineStyle: { color: '#8392A5' } },

splitLine: { show: false }

},

grid: {

bottom: 80

},

dataZoom: [{

textStyle: {

color: '#8392A5'

},

handleIcon: 'M10.7,11.9v-1.3H9.3v1.3c-4.9,0.3-8.8,4.4-8.8,9.4c0,5,3.9,9.1,8.8,9.4v1.3h1.3v-1.3c4.9-0.3,8.8-4.4,8.8-9.4C19.5,16.3,15.6,12.2,10.7,11.9z M13.3,24.4H6.7V23h6.6V24.4z M13.3,19.6H6.7v-1.4h6.6V19.6z',

handleSize: '80%',

dataBackground: {

areaStyle: {

color: '#8392A5'

},

lineStyle: {

opacity: 0.8,

color: '#8392A5'

}

},

handleStyle: {

color: '#fff',

shadowBlur: 3,

shadowColor: 'rgba(0, 0, 0, 0.6)',

shadowOffsetX: 2,

shadowOffsetY: 2

}

}, {

type: 'inside'

}],

animation: false,

series: [

{

type: 'candlestick',

name: '日K',

data: data,

itemStyle: {

normal: {

color: '#FD1050',

color0: '#0CF49B',

borderColor: '#FD1050',

borderColor0: '#0CF49B'

}

}

},

{

name: 'MA5',

type: 'line',

data: calculateMA(5, data),

smooth: true,

showSymbol: false,

lineStyle: {

normal: {

width: 1

}

}

},

{

name: 'MA10',

type: 'line',

data: calculateMA(10, data),

smooth: true,

showSymbol: false,

lineStyle: {

normal: {

width: 1

}

}

},

{

name: 'MA20',

type: 'line',

data: calculateMA(20, data),

smooth: true,

showSymbol: false,

lineStyle: {

normal: {

width: 1

}

}

},

{

name: 'MA30',

type: 'line',

data: calculateMA(30, data),

smooth: true,

showSymbol: false,

lineStyle: {

normal: {

width: 1

}

}

}

]

};

tooltip、legend：定制信息提示框的内容样式

xAxis和yAxis表示横坐标和纵坐标的数据设置以及样式，这里是调用了两个map循环进行设置，ES6语法，不懂的同学可以先学习一下，毕竟现在ES6还是一个大趋势。

series：整体配置 其中type很关键 表示该图的类型，

data:图表所用数据，实际项目中大家可以通过http获取数据，再赋值给data。

其中lineStyle表示线条样式设置 areaStyle表示块的样式设置。

最后给大家讲一下运用jquery的全屏配置

setInterval(function () {

var maxHeight= $(document.body).outerHeight(true);

$("#main").height(maxHeight);

},1)

这个要看实际项目中的需要了，有时候需要将屏幕投影的时候全屏肯定是比一个网页要舒服。大家赶紧下载玩玩吧！

整体代码如下：

echarts

*{margin:0;padding:0}

html,body{

width:100%;

height:100%;

}

#main{

width:100%;

height:100%;

}

setInterval(function () {

var maxHeight= $(document.body).outerHeight(true);

$("#main").height(maxHeight);

},1)

var myChart = echarts.init(document.getElementById('main'));

var rawData = [['2015/12/31','3570.47','3539.18','-33.69','-0.94%','3538.35','3580.6','176963664','25403106','-'],['2015/12/30','3566.73','3572.88','9.14','0.26%','3538.11','3573.68','187889600','26778766','-'],['2015/12/29','3528.4','3563.74','29.96','0.85%','3515.52','3564.17','182551920','25093890','-'],['2015/12/28','3635.77','3533.78','-94.13','-2.59%','3533.78','3641.59','269983264','36904280','-'],['2015/12/25','3614.05','3627.91','15.43','0.43%','3601.74','3635.26','198451120','27466004','-'],['2015/12/24','3631.31','3612.49','-23.6','-0.65%','3572.28','3640.22','227785216','31542126','-'],['2015/12/23','3653.28','3636.09','-15.68','-0.43%','3633.03','3684.57','298201792','41990292','-'],['2015/12/22','3645.99','3651.77','9.3','0.26%','3616.87','3652.63','261178752','36084604','-'],['2015/12/21','3568.58','3642.47','63.51','1.77%','3565.75','3651.06','299849280','39831696','-'],['2015/12/18','3574.94','3578.96','-1.03','-0.03%','3568.16','3614.7','273707904','36538580','-'],['2015/12/17','3533.63','3580','63.81','1.81%','3533.63','3583.41','283856480','38143960','-'],['2015/12/16','3522.09','3516.19','5.83','0.17%','3506.29','3538.69','193482304','26528864','-'],['2015/12/15','3518.13','3510.35','-10.31','-0.29%','3496.85','3529.96','200471344','27627494','-'],['2015/12/14','3403.51','3520.67','86.09','2.51%','3399.28','3521.78','215374624','27921354','-'],['2015/12/11','3441.6','3434.58','-20.91','-0.61%','3410.92','3455.55','182908880','24507642','-'],['2015/12/10','3469.81','3455.5','-16.94','-0.49%','3446.27','3503.65','200427520','27949970','-'],['2015/12/9','3462.58','3472.44','2.37','0.07%','3454.88','3495.7','195698848','26785488','-'],['2015/12/8','3518.65','3470.07','-66.86','-1.89%','3466.79','3518.65','224367312','29782174','-'],['2015/12/7','3529.81','3536.93','11.94','0.34%','3506.62','3543.95','208302576','28056158','-'],['2015/12/4','3558.15','3524.99','-59.83','-1.67%','3510.41','3568.97','251736416','31976682','-'],['2015/12/3','3525.73','3584.82','47.92','1.35%','3517.23','3591.73','281111232','33885908','-'],['2015/12/2','3450.28','3536.91','80.6','2.33%','3427.66','3538.85','301491488','36918304','-'],['2015/12/1','3442.44','3456.31','10.9','0.32%','3417.54','3483.41','252390752','33025674','-'],['2015/11/30','3433.85','3445.4','9.1','0.26%','3327.81','3470.37','304197888','38750364','-'],['2015/11/27','
