mpu6050 重力加速度_Node MCU开发板使用I2C协议获取MPU6050原始数据

【硬件】NodeMCU 1.0(ESP-12E Module)、MPU6050六轴陀螺仪

【软件】ArduinoIDE(开发板库ESP8266 Boards 2.5.2)

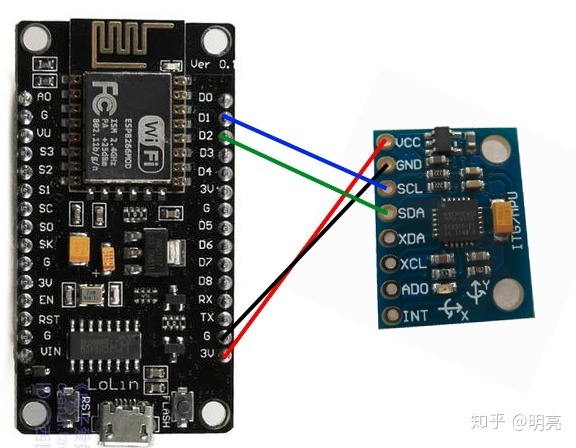

【接线图】NodeMCU默认情况下I2C接口为D1(SCL)、D2(SDA)

还可以在开启 I2C 总线(主设备)时指定端口,如Wire.begin(D6,D7);


【I2C】有两条线,SCL(Serial CLock)为时钟信号,SDA为双向数据通道。I2C是半双工,通讯之间的设备有主从之分。

【串口】中TX为发送,RX为接收,所以串口通讯两个单片机之间TX接RX,RX接TX。需要clk时钟配合

【UART】三条线, TX,RX,GND,如果单向的话可能只两条

【SPI】的话四条线,不要CS片选的话剩三条MISO,MOSI,CLK。SPI中CLK是时钟,MISO就是主设备读,从设备写。MOSI就是主设备写,从设备读。

/*MPU-60X0对陀螺仪和加速计分别用了三个16位的ADC,将其测量的模拟量转化为可输出的数字量。为了精确跟踪快速和慢速运动,
传感器的测量范围是可控的,陀螺仪可测范围为±250,±500,±1000,±2000°/秒(dps),加速计可测范围为±2,±4,±8,±16g(重力加速度)。*/
#include <Wire.h>

// MPU6050 Slave Device Address
const uint8_t MPU6050SlaveAddress = 0x68;

// sensitivity scale factor respective to full scale setting provided in datasheet
const uint16_t AccelScaleFactor = 16384;
const uint16_t GyroScaleFactor = 131;

// MPU6050 few configuration register addresses 配置寄存器地址
const uint8_t MPU6050_REGISTER_SMPLRT_DIV   =  0x19;
const uint8_t MPU6050_REGISTER_USER_CTRL    =  0x6A;
const uint8_t MPU6050_REGISTER_PWR_MGMT_1   =  0x6B;
const uint8_t MPU6050_REGISTER_PWR_MGMT_2   =  0x6C;
const uint8_t MPU6050_REGISTER_CONFIG       =  0x1A;
const uint8_t MPU6050_REGISTER_GYRO_CONFIG  =  0x1B;
const uint8_t MPU6050_REGISTER_ACCEL_CONFIG =  0x1C;
const uint8_t MPU6050_REGISTER_FIFO_EN      =  0x23;
const uint8_t MPU6050_REGISTER_INT_ENABLE   =  0x38;
const uint8_t MPU6050_REGISTER_ACCEL_XOUT_H =  0x3B;
const uint8_t MPU6050_REGISTER_SIGNAL_PATH_RESET  = 0x68;

int16_t AccelX, AccelY, AccelZ, Temperature, GyroX, GyroY, GyroZ;

void setup() {
  Serial.begin(9600);
  Wire.begin();
  //Wire.begin(D6, D7); //启动Wire库,并以主机或从机身份加入I2C总线
  MPU6050_Init(); //配置MPU6050
}

void loop() {
  double Ax, Ay, Az, T, Gx, Gy, Gz;

  Read_RawValue(MPU6050SlaveAddress, MPU6050_REGISTER_ACCEL_XOUT_H);//读取寄存器函数(0x68,0x3B);

  //divide each with their sensitivity scale factor
  Ax = (double)AccelX/AccelScaleFactor;
  Ay = (double)AccelY/AccelScaleFactor;
  Az = (double)AccelZ/AccelScaleFactor;
  T = (double)Temperature/340+36.53; //temperature formula
  Gx = (double)GyroX/GyroScaleFactor;
  Gy = (double)GyroY/GyroScaleFactor;
  Gz = (double)GyroZ/GyroScaleFactor;

  Serial.print("Ax: "); Serial.print(Ax);
  Serial.print(" Ay: "); Serial.print(Ay);
  Serial.print(" Az: "); Serial.print(Az);
  Serial.print(" T: "); Serial.print(T);
  Serial.print(" Gx: "); Serial.print(Gx);
  Serial.print(" Gy: "); Serial.print(Gy);
  Serial.print(" Gz: "); Serial.println(Gz);

  delay(100);
}

void I2C_Write(uint8_t deviceAddress, uint8_t regAddress, uint8_t data){
  Wire.beginTransmission(deviceAddress);//例0x68
  Wire.write(regAddress);               //例0x19
  Wire.write(data);                     //例0x07
  Wire.endTransmission();
}

// read all 14 register 读取全部14寄存器
void Read_RawValue(uint8_t deviceAddress, uint8_t regAddress){
  Wire.beginTransmission(deviceAddress);        //1.此函数使用给定地址开始向I2C从设备的传输;
  Wire.write(regAddress);                       //2.此函数对要传输的字节进行排队;
  Wire.endTransmission();                       //3.此函数进行传输;
  Wire.requestFrom(deviceAddress, (uint8_t)14); //主机用于从从设备请求字节。然后可以使用available()和read()函数检索字节
  AccelX = (((int16_t)Wire.read()<<8) | Wire.read());
  AccelY = (((int16_t)Wire.read()<<8) | Wire.read());
  AccelZ = (((int16_t)Wire.read()<<8) | Wire.read());
  Temperature = (((int16_t)Wire.read()<<8) | Wire.read());
  GyroX = (((int16_t)Wire.read()<<8) | Wire.read());
  GyroY = (((int16_t)Wire.read()<<8) | Wire.read());
  GyroZ = (((int16_t)Wire.read()<<8) | Wire.read());
}

//configure MPU6050 配置MPU6050
void MPU6050_Init(){
  delay(150);
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_SMPLRT_DIV, 0x07);
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_PWR_MGMT_1, 0x01);
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_PWR_MGMT_2, 0x00);
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_CONFIG, 0x00);
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_GYRO_CONFIG, 0x00);//set +/-250 degree/second full scale
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_ACCEL_CONFIG, 0x00);// set +/- 2g full scale
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_FIFO_EN, 0x00);
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_INT_ENABLE, 0x01);
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_SIGNAL_PATH_RESET, 0x00);
  I2C_Write(MPU6050SlaveAddress, MPU6050_REGISTER_USER_CTRL, 0x00);
}

======================分割线===========================

以上是正规写法,还有简化版的写法:

#include<Wire.h>
const int MPU6050_addr=0x68;
int16_t AccX,AccY,AccZ,Temp,GyroX,GyroY,GyroZ;
void setup(){
  Wire.begin();
  Wire.beginTransmission(MPU6050_addr);
  Wire.write(0x6B);
  Wire.write(0);
  Wire.endTransmission(true);
  Serial.begin(9600);
}
void loop(){
  Wire.beginTransmission(MPU6050_addr);
  Wire.write(0x3B);
  Wire.endTransmission(false);
  Wire.requestFrom(MPU6050_addr,14,true);
  AccX=Wire.read()<<8|Wire.read();
  AccY=Wire.read()<<8|Wire.read();
  AccZ=Wire.read()<<8|Wire.read();
  Temp=Wire.read()<<8|Wire.read();
  GyroX=Wire.read()<<8|Wire.read();
  GyroY=Wire.read()<<8|Wire.read();
  GyroZ=Wire.read()<<8|Wire.read();
  Serial.print("AccX = "); Serial.print(AccX);
  Serial.print(" || AccY = "); Serial.print(AccY);
  Serial.print(" || AccZ = "); Serial.print(AccZ);
  Serial.print(" || Temp = "); Serial.print(Temp/340.00+36.53);
  Serial.print(" || GyroX = "); Serial.print(GyroX);
  Serial.print(" || GyroY = "); Serial.print(GyroY);
  Serial.print(" || GyroZ = "); Serial.println(GyroZ);
  delay(100);
}
