最近国内某知名三维可视化厂商向作者咨询了诸多大屏拼接中工作站配置与优化的问题,为了不让更多用户在遇到同样问题时不知所措,小编现已将其主要问题进行归纳总结,并做了相应解答。在此,希望下面的回答能对大屏幕拼接工作者真心有所帮助。如有疑问,随时欢迎留言或者加我联系方式哈。
1、P6000显卡做Mosaic时提示不支持不同连接器混合使用,如下图
请问Mosaic对线材的要求或者其他的具体要求或限制有哪些?
答:NVIDIA显卡做Mosaic,要求满足如下要求才行:
⑴ Mosaic不能在ECC模式下工作,确保ECC关闭。

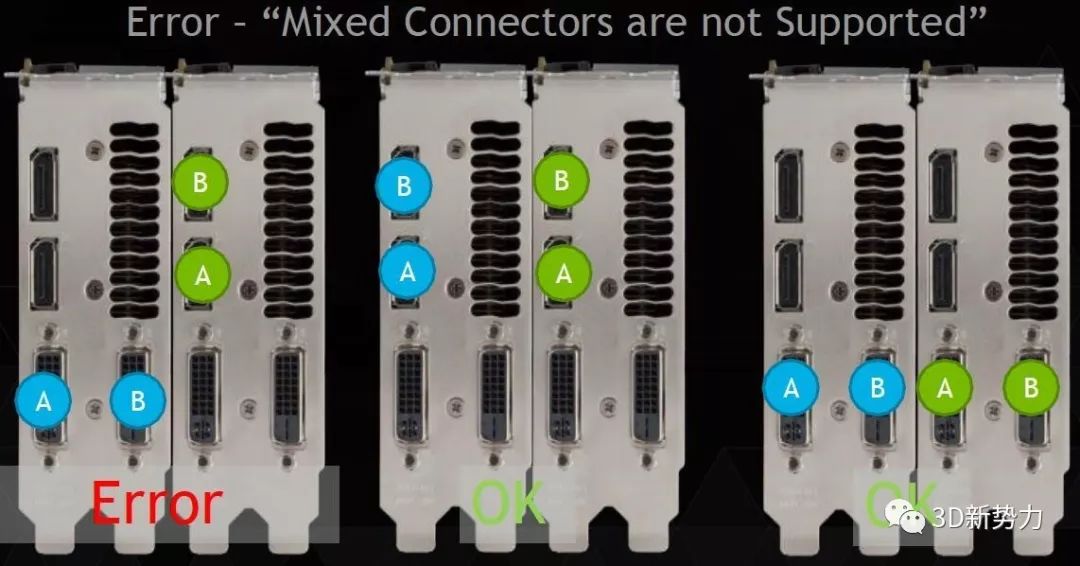

⑵ 混合连接不支持,混合规则如下:
●Basicallyneed to use connectors of all one type first before using opposite
●Trueeven if you use dongles
⑶ 不能远程安装驱动
⑷ MOSAIC DISPLAY RESOLUTION NOT LISTED
●Expected Resolution is not commonacross all displays
●The requested topology exceedsthe 16Kmax width or height in pixels.
●Bug related to rotateddisplays where max resolution is OK but NVIDIACPL calculates based on landscape display
⑸MOSAIC RESOLUTION NOT LISTED—NO Commontimings
●Displays have different EDIDs
●Mixing EDID and Custom resolutions–custom resolutionmay not match EDID.
●Wrong cabling
•DP to HDMI dongleblocks resolutions
•Singlelink DVI cables versus dual link
⑹MOSAIC RESOLUTIONNOT LISTED
