Kubernetes集群部署heapster+influxdb+grafana

给镜像打tag，或者修改下面yaml文件的镜像名字

docker tag docker.io/ist0ne/heapster-influxdb-amd64  k8s.gcr.io/heapster-influxdb-amd64:v1.3.3
docker tag docker.io/ist0ne/heapster-grafana-amd64  k8s.gcr.io/heapster-grafana-amd64:v4.4.3
docker tag docker.io/ist0ne/heapster-amd64  k8s.gcr.io/heapster-amd64:v1.4.2

grafana.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: monitoring-grafana
  namespace: kube-system
spec:
  replicas: 1
  selector:
    matchLabels:
      task: monitoring
      k8s-app: grafana
  template:
    metadata:
      labels:
        task: monitoring
        k8s-app: grafana
    spec:
      containers:
      - name: grafana
        image: k8s.gcr.io/heapster-grafana-amd64:v4.4.3
        ports:
        - containerPort: 3000
          protocol: TCP
        volumeMounts:
        - mountPath: /etc/ssl/certs
          name: ca-certificates
          readOnly: true
        - mountPath: /var
          name: grafana-storage
        env:
        - name: INFLUXDB_HOST
          value: monitoring-influxdb
        - name: GF_SERVER_HTTP_PORT
          value: "3000"
        - name: GF_AUTH_BASIC_ENABLED
          value: "false"
        - name: GF_AUTH_ANONYMOUS_ENABLED
          value: "true"
        - name: GF_AUTH_ANONYMOUS_ORG_ROLE
          value: Admin
        - name: GF_SERVER_ROOT_URL
          value: /
      volumes:
      - name: ca-certificates
        hostPath:
          path: /etc/ssl/certs
      - name: grafana-storage
        emptyDir: {}
---
apiVersion: v1
kind: Service
metadata:
  labels:
    kubernetes.io/cluster-service: 'true'
    kubernetes.io/name: monitoring-grafana
  name: monitoring-grafana
  namespace: kube-system
spec:
  type: NodePort
  ports:
  - nodePort: 30108
    port: 80
    targetPort: 3000
  selector:
    k8s-app: grafana

influxdb.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: monitoring-influxdb
  namespace: kube-system
spec:
  replicas: 1
  selector:
    matchLabels:
      task: monitoring
      k8s-app: influxdb
  template:
    metadata:
      labels:
        task: monitoring
        k8s-app: influxdb
    spec:
      containers:
      - name: influxdb
        image: k8s.gcr.io/heapster-influxdb-amd64:v1.3.3
        volumeMounts:
        - mountPath: /data
          name: influxdb-storage
      volumes:
      - name: influxdb-storage
        emptyDir: {}
---
apiVersion: v1
kind: Service
metadata:
  labels:
    task: monitoring
    kubernetes.io/cluster-service: 'true'
    kubernetes.io/name: monitoring-influxdb
  name: monitoring-influxdb
  namespace: kube-system
spec:
  type: NodePort
  ports:
  - nodePort: 30109
    port: 8086
    targetPort: 8086
  selector:
    k8s-app: influxdb

heapster.yaml

apiVersion: v1
kind: ServiceAccount
metadata:
  name: heapster
  namespace: kube-system
---
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  name: heapster
  namespace: kube-system
spec:
  replicas: 1
  selector:
    matchLabels:
      task: monitoring
      k8s-app: heapster
  template:
    metadata:
      labels:
        task: monitoring
        k8s-app: heapster
    spec:
      serviceAccountName: heapster
      containers:
      - name: heapster
        image: k8s.gcr.io/heapster-amd64:v1.4.2
        imagePullPolicy: IfNotPresent
        command:
        - /heapster
        - --source=kubernetes:https://kubernetes.default
        - --sink=influxdb:http://192.168.80.133:30109  # !!!!这里改成InfluxDB地址。
---
apiVersion: v1
kind: Service
metadata:
  labels:
    task: monitoring
    kubernetes.io/cluster-service: 'true'
    kubernetes.io/name: Heapster
  name: heapster
  namespace: kube-system
spec:
  ports:
  - port: 80
    targetPort: 8082
  selector:
    k8s-app: heapster
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: heapster
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: heapster
  namespace: kube-system

步骤：

1.创建influxdb

kubectl create -f influxdb.yaml

如果有错误可以删除重新创建

kubectl delete -f influxdb.yaml

2.创建grafana

kubectl create -f grafana.yaml

如果有错误可以删除重新创建

kubectl delete -f grafana.yaml

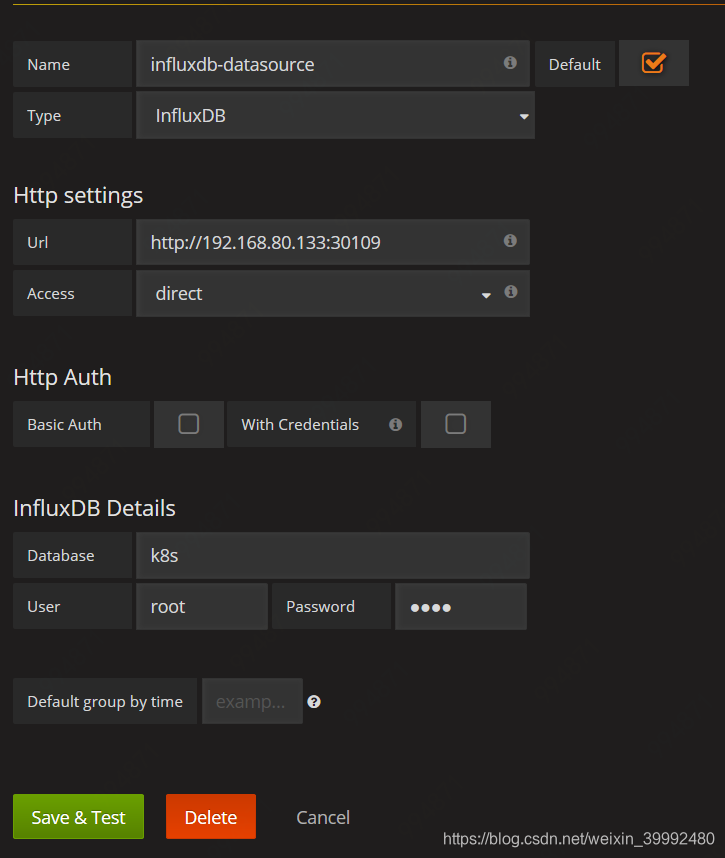

3.修改grafana数据源配置

4.创建heapster

kubectl create -f heapster.yaml

如果有错误可以删除重新创建

kubectl delete -f heapster.yaml

查看监控：

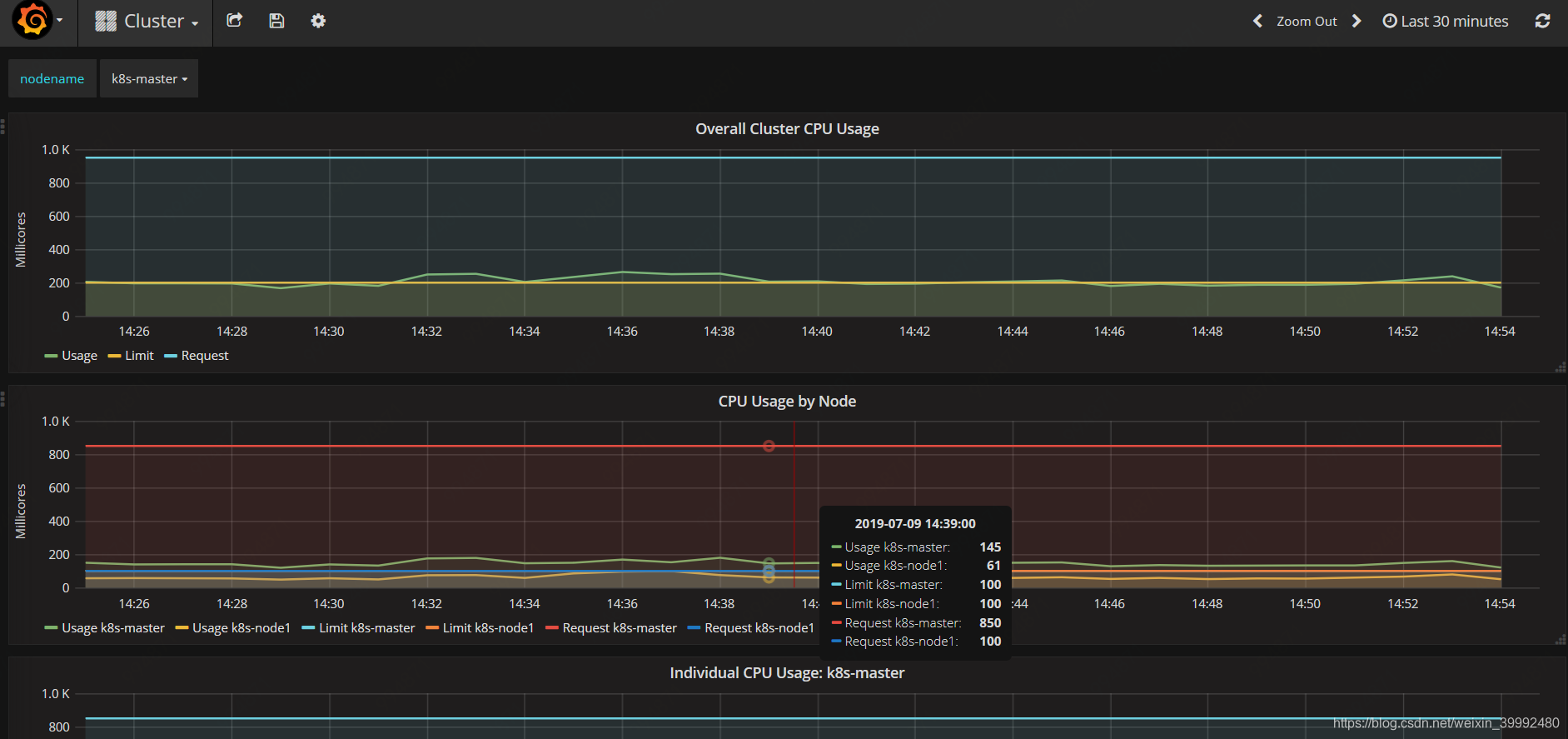

http://192.168.80.133:30108

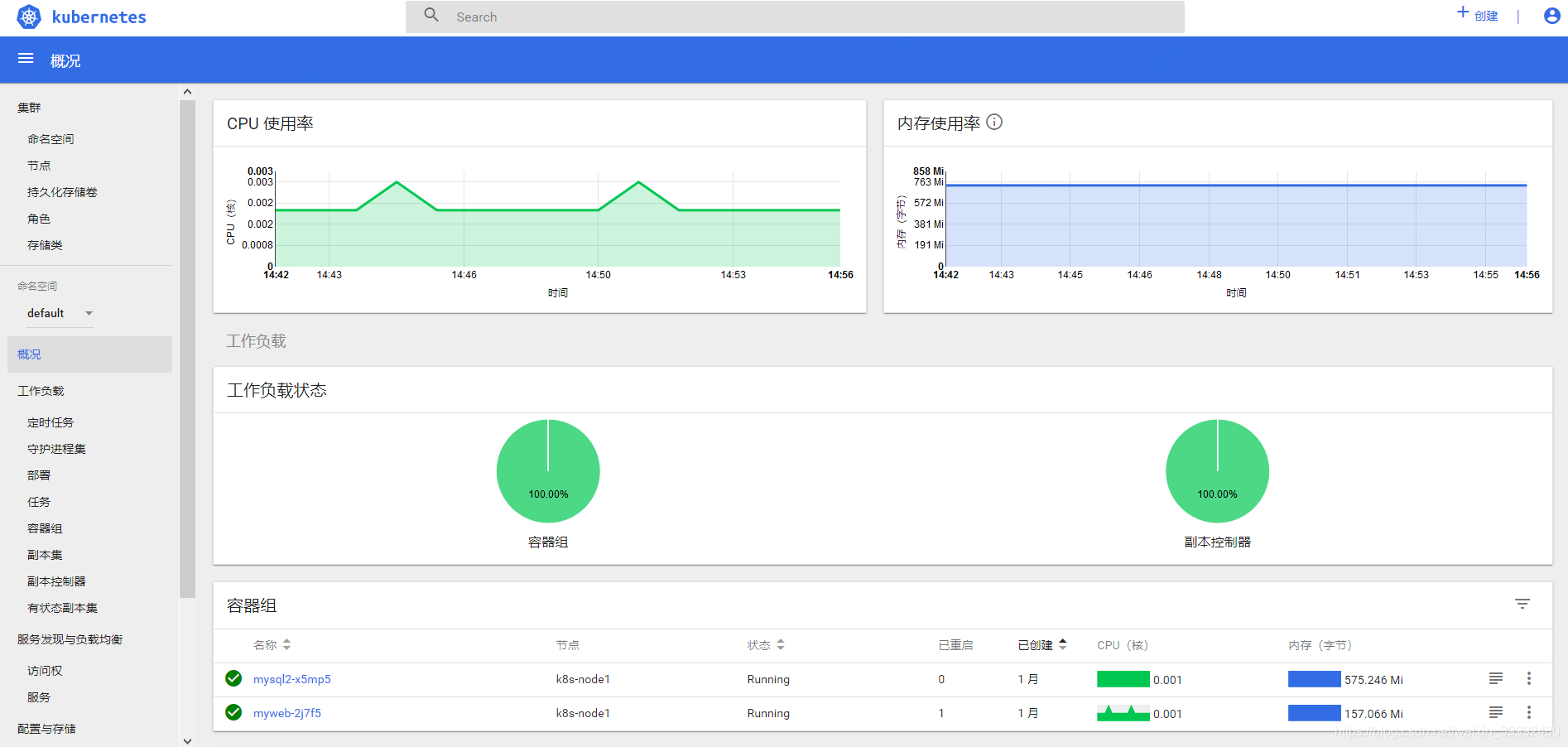

https://192.168.80.133:30443
