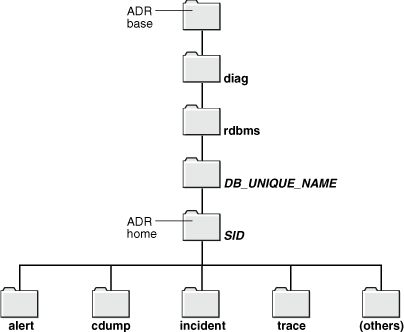

ADR(Automatic Diagnostic Repository) Directory structure for a Database Instance
通过V$DIAG_INFO视图查看ADR分布位置信息:SELECT * FROM V$DIAG_INFO;
INST_ID NAME VALUE
------- --------------------- -------------------------------------------------------------
1 Diag Enabled TRUE
1 ADR Base /u01/oracle
1 ADR Home /u01/oracle/diag/rdbms/orclbi/orclbi
1 Diag Trace /u01/oracle/diag/rdbms/orclbi/orclbi/trace
1 Diag Alert /u01/oracle/diag/rdbms/orclbi/orclbi/alert
1 Diag Incident /u01/oracle/diag/rdbms/orclbi/orclbi/incident
1 Diag Cdump /u01/oracle/diag/rdbms/orclbi/orclbi/cdump
1 Health Monitor /u01/oracle/diag/rdbms/orclbi/orclbi/hm
1 Default Trace File /u01/oracle/diag/rdbms/orclbi/orclbi/trace/orcl_ora_22769.trc
1 Active Problem Count 8
1 Active Incident Count 20
Table 9-3 Data in the V$DIAG_INFO ViewNameDescriptionADR BasePath of ADR base
ADR HomePath of ADR home for the current database instance
Diag TraceLocation of background process trace files, server process trace files, SQL trace files, and the text-formatted version of the alert log
Diag AlertLocation of the XML-formatted version of the alert log
Default Trace FilePath to the trace file for the current session
ColumnDatatypeNULLDescriptionINST_IDDNUMBERNOT NULL当前实例ID
NAMEVARCHAR2(64)NOT NULL跟踪记录名称
VALUEVARCHAR2(512)
NUMBERNOT NULL跟踪文件路径
Table 9-4 Data in the V$DIAG_CRITICAL_ERROR ViewColumnDescriptionFACILITYThe facility that can report the error, such as Oracle Database (ORA) or Oracle Call Interface (OCI)
ERRORThe error number
