【Flink源码分析】Flink 命令启动全流程

一、启动脚本分析

1、 WordCount启动命令

bin/flink run examples/streaming/SocketWindowWordCount.jar   --hostname localhost  --port 9000

2、bin/flink 脚本分析

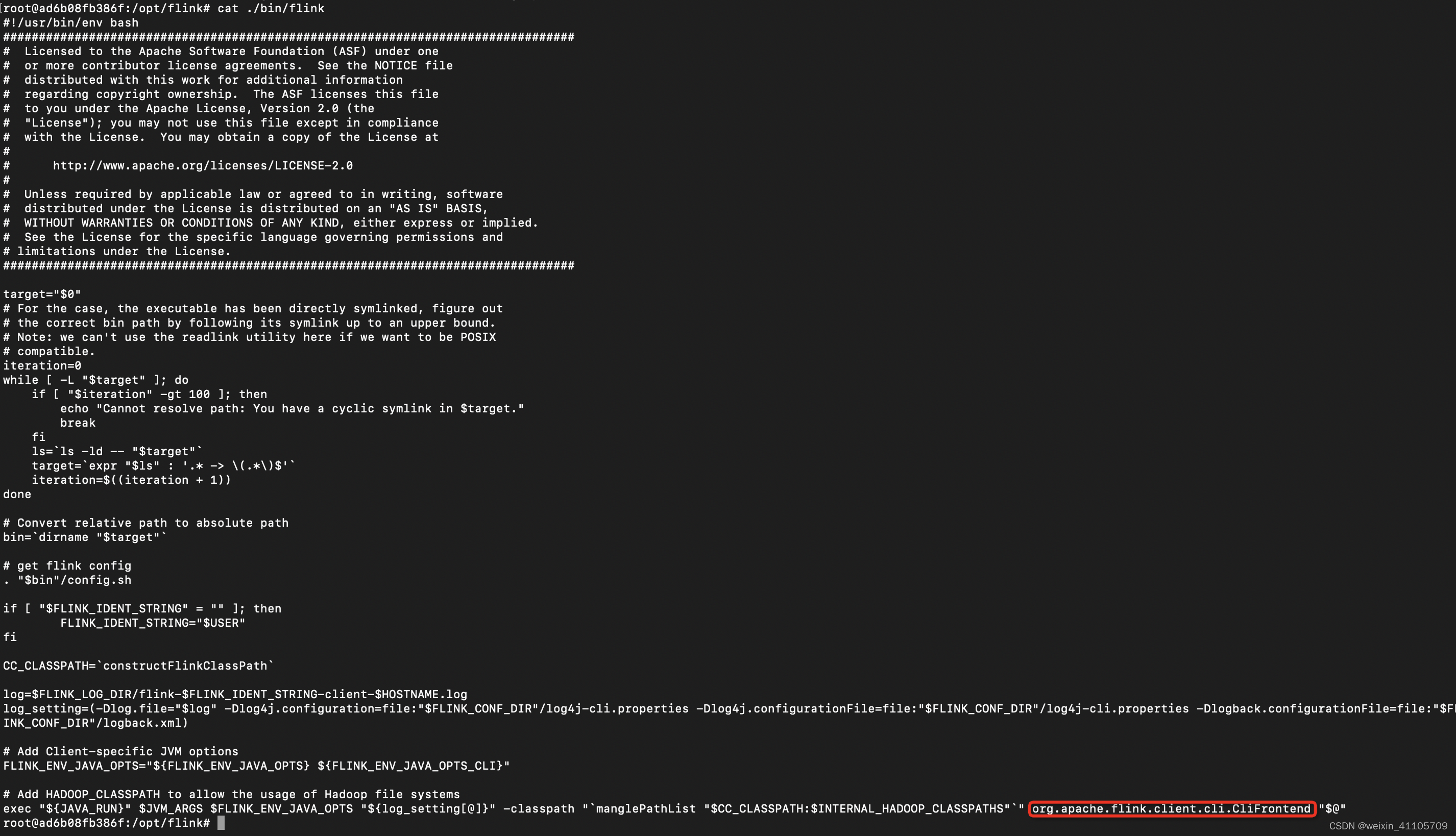

从上图中我圈的红色部分可以看出，最终调用的是“org.apache.flink.client.cli.CliFrontend”这个类。

二、CliFrontend启动类分析

1、main方法

从下面的代码可以看出，main方法中首先是寻找配置文件路径，然后加载配置文件等等，最后重要的代码就是new 了一个CliFrontend对象出来，然后调用cli.parseAndRun(args)方法；

public static void main(final String[] args) {
        EnvironmentInformation.logEnvironmentInfo(LOG, "Command Line Client", args);

        // 1. find the configuration directory
        final String configurationDirectory = getConfigurationDirectoryFromEnv();

        // 2. load the global configuration
        final Configuration configuration =
                GlobalConfiguration.loadConfiguration(configurationDirectory);

        // 3. load the custom command lines
        final List<CustomCommandLine> customCommandLines =
                loadCustomCommandLines(configuration, configurationDirectory);

        int retCode = 31;
        try {
            final CliFrontend cli = new CliFrontend(configuration, customCommandLines);

            SecurityUtils.install(new SecurityConfiguration(cli.configuration));
            retCode = SecurityUtils.getInstalledContext().runSecured(() -> cli.parseAndRun(args));
        } catch (Throwable t) {
            final Throwable strippedThrowable =
                    ExceptionUtils.stripException(t, UndeclaredThrowableException.class);
            LOG.error("Fatal error while running command line interface.", strippedThrowable);
            strippedThrowable.printStackTrace();
        } finally {
            System.exit(retCode);
        }
    }

2、cli.parseAndRun(args)方法

这个方法并没有做什么实质性的动作，只是去解析了我们命令行的参数，通过参数选择调用适当方法，比如我们上面的命令输入的是run，后面就会调用run(params)方法；

public int parseAndRun(String[] args) {

        // check for action
        if (args.length < 1) {
            CliFrontendParser.printHelp(customCommandLines);
            System.out.println("Please specify an action.");
            return 1;
        }

        // get action
        String action = args[0];

        // remove action from parameters
        final String[] params = Arrays.copyOfRange(args, 1, args.length);

        try {
            // do action
            switch (action) {
                case ACTION_RUN:
                    run(params);
                    return 0;
                case ACTION_RUN_APPLICATION:
                    runApplication(params);
                    return 0;
                case ACTION_LIST:
                    list(params);
                    return 0;
                case ACTION_INFO:
                    info(params);
                    return 0;
                case ACTION_CANCEL:
                    cancel(params);
                    return 0;
                case ACTION_STOP:
                    stop(params);
                    return 0;
                case ACTION_SAVEPOINT:
                    savepoint(params);
                    return 0;
                case "-h":
                case "--help":
                    CliFrontendParser.printHelp(customCommandLines);
                    return 0;
                case "-v":
                case "--version":
                    String version = EnvironmentInformation.getVersion();
                    String commitID = EnvironmentInformation.getRevisionInformation().commitId;
                    System.out.print("Version: " + version);
                    System.out.println(
                            commitID.equals(EnvironmentInformation.UNKNOWN)
                                    ? ""
                                    : ", Commit ID: " + commitID);
                    return 0;
                default:
                    System.out.printf("\"%s\" is not a valid action.\n", action);
                    System.out.println();
                    System.out.println(
                            "Valid actions are \"run\", \"run-application\", \"list\", \"info\", \"savepoint\", \"stop\", or \"cancel\".");
                    System.out.println();
                    System.out.println(
                            "Specify the version option (-v or --version) to print Flink version.");
                    System.out.println();
                    System.out.println(
                            "Specify the help option (-h or --help) to get help on the command.");
                    return 1;
            }
        } catch (CliArgsException ce) {
            return handleArgException(ce);
        } catch (ProgramParametrizationException ppe) {
            return handleParametrizationException(ppe);
        } catch (ProgramMissingJobException pmje) {
            return handleMissingJobException();
        } catch (Exception e) {
            return handleError(e);
        }
    }

3、cli.run(params)方法

在这个方法里面首先去解析命令参数，并判断有没有help，有的话直接输出并返回，然后去解析一些运行参数，获取依赖jar包的信息，并根据以上信息去生成一个有效的配置类，最后调用cli.executeProgram(effectiveConfiguration, program)方法，注意这里会生成一个program，后续的类加载器的使用就是在这里设置的;

protected void run(String[] args) throws Exception {
        LOG.info("Running 'run' command.");

        final Options commandOptions = CliFrontendParser.getRunCommandOptions();
        final CommandLine commandLine = getCommandLine(commandOptions, args, true);

        // evaluate help flag
        if (commandLine.hasOption(HELP_OPTION.getOpt())) {
            CliFrontendParser.printHelpForRun(customCommandLines);
            return;
        }

        final CustomCommandLine activeCommandLine =
                validateAndGetActiveCommandLine(checkNotNull(commandLine));

        final ProgramOptions programOptions = ProgramOptions.create(commandLine);

        final List<URL> jobJars = getJobJarAndDependencies(programOptions);

        final Configuration effectiveConfiguration =
                getEffectiveConfiguration(activeCommandLine, commandLine, programOptions, jobJars);

        LOG.debug("Effective executor configuration: {}", effectiveConfiguration);

        try (PackagedProgram program = getPackagedProgram(programOptions, effectiveConfiguration)) {
            executeProgram(effectiveConfiguration, program);
        }
    }

4、cli.executeProgram(effectiveConfiguration, program)方法

这个方法就做了一件事，就是去调用ClientUtils.executeProgram(
new DefaultExecutorServiceLoader(), configuration, program, false, false);

protected void executeProgram(final Configuration configuration, final PackagedProgram program)
            throws ProgramInvocationException {
        ClientUtils.executeProgram(
                new DefaultExecutorServiceLoader(), configuration, program, false, false);
    }

三 ClientUtils工具类分析

1、ClientUtils.executeProgram方法

可以看出分为几个步骤，先是获取用户配置使用的类加载器，然后设置成当前的上下文类加载器，再设置上下文环境，最后通过代理的方式执行用户jar包的main方法；

public static void executeProgram(
            PipelineExecutorServiceLoader executorServiceLoader,
            Configuration configuration,
            PackagedProgram program,
            boolean enforceSingleJobExecution,
            boolean suppressSysout)
            throws ProgramInvocationException {
        checkNotNull(executorServiceLoader);

        /**
         *1、获取用户类加载器（这里的用户类加载其实是配置文件里面有个参数可以进行配置（CoreOptions.CLASSLOADER_RESOLVE_ORDER）
         * 这个参数会决定使用ChildFirstClassLoader还是ParentFirstClassLoader）
         * 详情请看 buildUserCodeClassLoader方法
         */
        final ClassLoader userCodeClassLoader = program.getUserCodeClassLoader();
        //2、获取当前上下文类加载器（这里用于后续finally重新设置会此类加载器）
        final ClassLoader contextClassLoader = Thread.currentThread().getContextClassLoader();
        try {
            //3、重新设置当前上下文
            Thread.currentThread().setContextClassLoader(userCodeClassLoader);

            LOG.info(
                    "Starting program (detached: {})",
                    !configuration.getBoolean(DeploymentOptions.ATTACHED));

            ContextEnvironment.setAsContext(
                    executorServiceLoader,
                    configuration,
                    userCodeClassLoader,
                    enforceSingleJobExecution,
                    suppressSysout);

            //设置流处理任务的环境上下文，也就是我们平常使用的StreamExecutionEnvironment.getExecutionEnvironment()获取到的上下文
            StreamContextEnvironment.setAsContext(
                    executorServiceLoader,
                    configuration,
                    userCodeClassLoader,
                    enforceSingleJobExecution,
                    suppressSysout);

            try {
                //执行用户jar包的main方法
                program.invokeInteractiveModeForExecution();
            } finally {
                ContextEnvironment.unsetAsContext();
                StreamContextEnvironment.unsetAsContext();
            }
        } finally {
            Thread.currentThread().setContextClassLoader(contextClassLoader);
        }
    }
