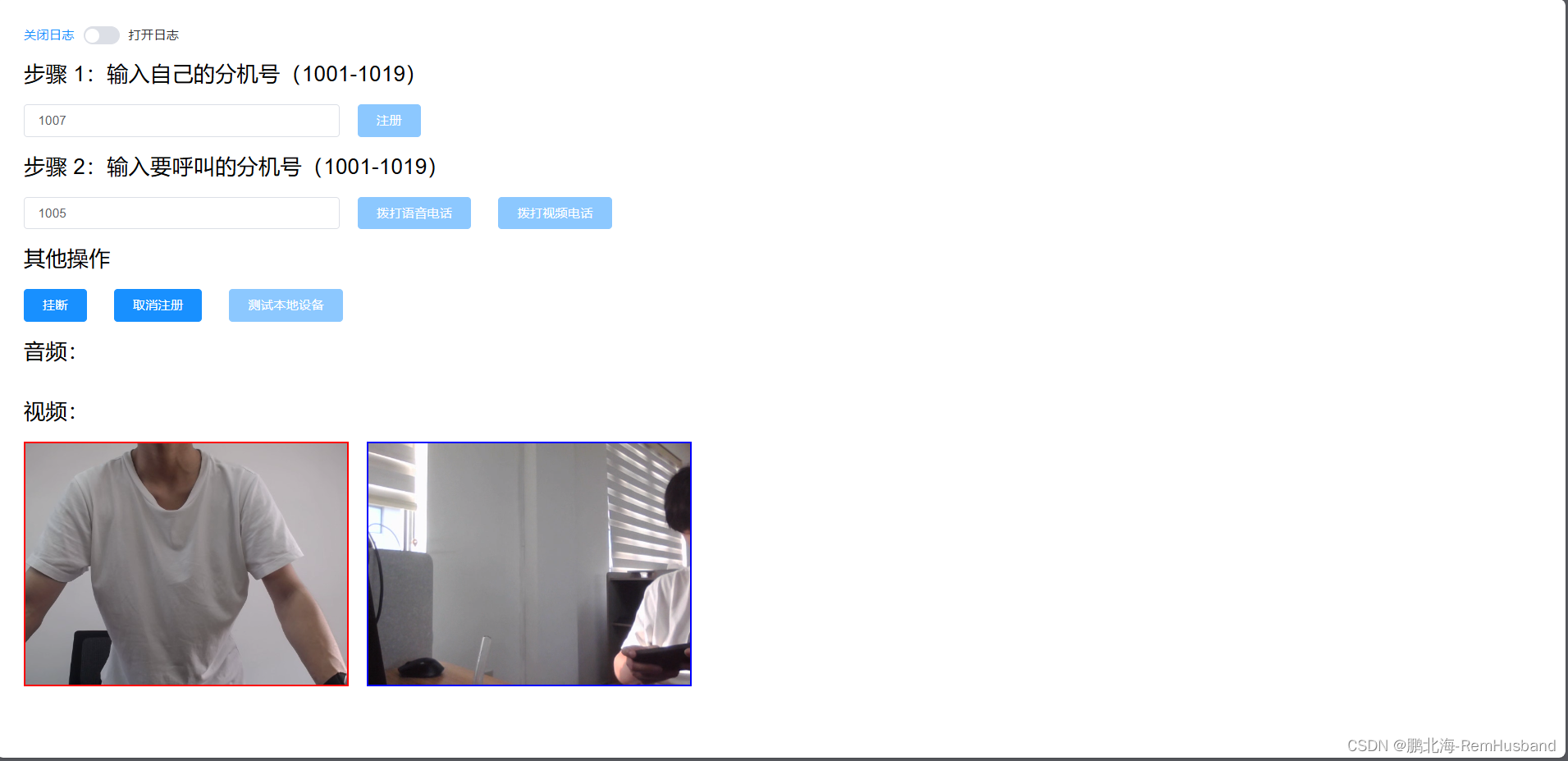

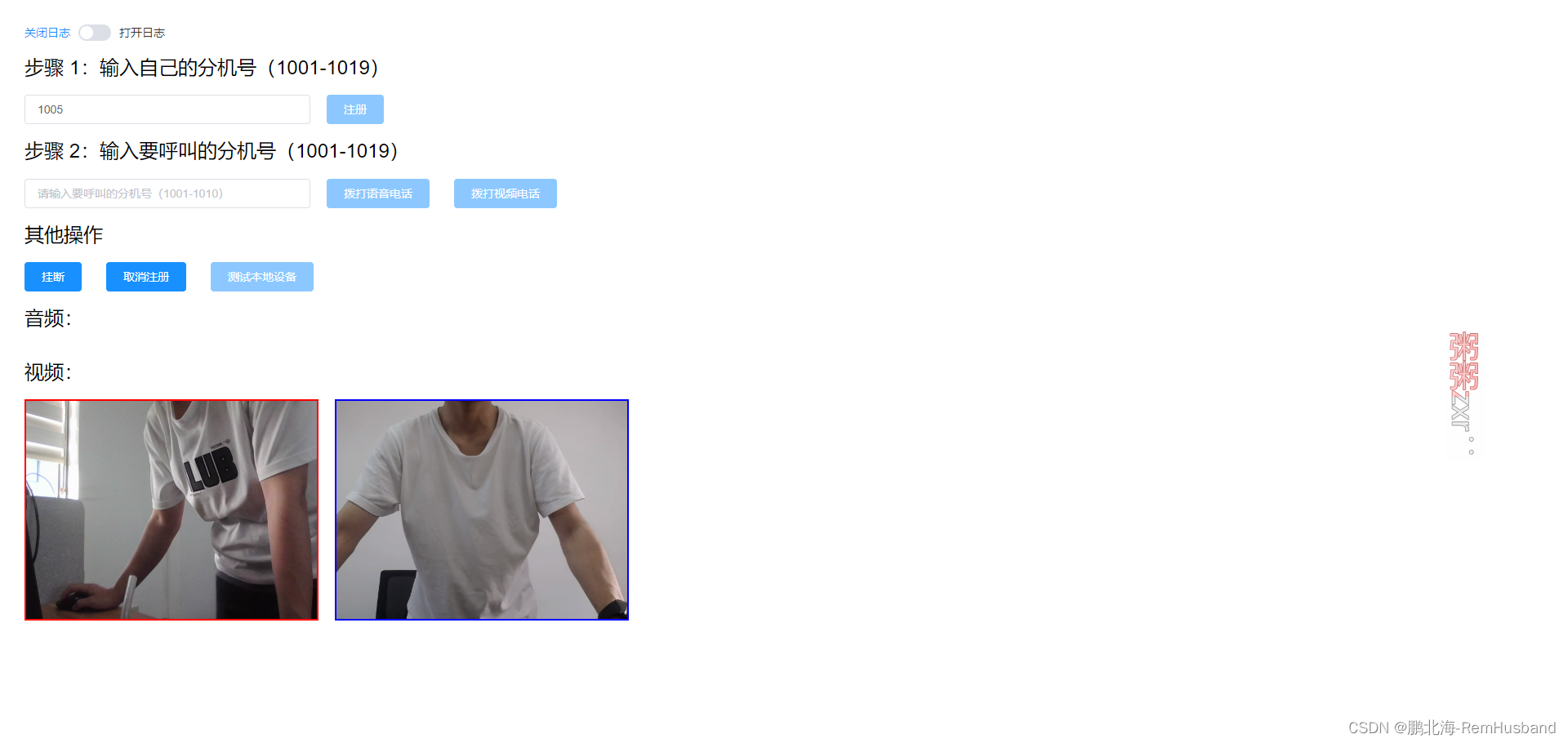

效果
让同事帮我测的,在两个电脑分别打开该页面,一个注册 1007
分机号,另一个注册 1005
,然后拨打视频电话
依赖版本
-
jssip
:3.6.1 -
freeswitch
:1.10.5-release~64bit -
vue
:2.6.12
488错误解决
在 freeswitch
配置文件 sip_profiles/internal.xml
中添加:
<param name="apply-candidate-acl" value="rfc1918.auto"/>
<param name="apply-candidate-acl" value="wan.auto"/>
前端完整代码
<template>
<div class="test-sip">
<el-switch
v-model="logFlag"
active-text="打开日志"
inactive-text="关闭日志"
>
</el-switch>
<div class="step">
<h2>步骤 1:输入自己的分机号(1001-1019)</h2>
<div class="step-box">
<el-input
v-model="userExtension"
placeholder="请输入自己的分机号(1001-1010)"
class="input-box"
:disabled="localStream !== null"
></el-input>
<el-button
type="primary"
@click="registerUser"
class="step-button"
:disabled="!userExtension || isRegisted"
>
注册
</el-button>
</div>
</div>
<div class="step">
<h2>步骤 2:输入要呼叫的分机号(1001-1019)</h2>
<div class="step-box">
<el-input
v-model="targetExtension"
placeholder="请输入要呼叫的分机号(1001-1010)"
class="input-box"
:disabled="!isRegisted"
></el-input>
<el-button
type="primary"
@click="startCall(false)"
class="step-button"
:disabled="!targetExtension || currentSession !== null"
>
拨打语音电话
</el-button>
<el-button
type="primary"
@click="startCall(true)"
class="step-button"
:disabled="!targetExtension || currentSession !== null"
>
拨打视频电话
</el-button>
</div>
</div>
<div class="step">
<h2>其他操作</h2>
<div class="step-box">
<el-button
type="primary"
@click="hangUpCall"
class="step-button"
:disabled="currentSession == null"
>
挂断
</el-button>
<el-button
type="primary"
@click="unregisterUser"
class="step-button"
:disabled="!isRegisted"
>
取消注册
</el-button>
<el-button
v-if="!localStream"
type="primary"
class="step-button"
@click="captureLocalMedia"
:disabled="currentSession !== null"
>
测试本地设备
</el-button>
<el-button
v-else
type="primary"
class="step-button"
@click="stopLocalMedia"
:disabled="currentSession"
>
停止测试本地设备
</el-button>
</div>
</div>
<div class="step">
<h2>音频:</h2>
<div class="step-box">
<audio id="audio" autoplay></audio>
</div>
</div>
<div class="step">
<h2>视频:</h2>
<div class="step-box">
<video id="meVideo" playsinline autoplay></video>
<video id="remoteVideo" playsinline autoplay></video>
</div>
</div>
</div>
</template>
<script>
import JsSIP from "jssip";
export default {
name: "TestSip",
data() {
return {
logFlag: false, // 是否打开日志
userExtension: "", // 当前用户分机号
targetExtension: "", // 目标用户分机号
userAgent: null, // 用户代理实例
password: "xxxx", // 密码
serverIp: "xxxx.xxxx.x", // 服务器ip
isRegisted: false, // 是否已注册
localStream: null, // 本地流
incomingSession: null, // 呼入的会话
outgoingSession: null, // 呼出的会话
currentSession: null, // 当前会话
myHangup: false, // 是否我方挂断
audio: null, // 音频
meVideo: null, // 我方视频
remoteVideo: null, // 对方视频
constraints: {
audio: true,
video: {
width: { max: 1280 },
height: { max: 720 },
},
},
};
},
computed: {
ws_url() {
return `ws://${this.serverIp}:5066`;
},
},
watch: {
logFlag: {
handler(nV, oV) {
nV ? JsSIP.debug.enable("JsSIP:*") : JsSIP.debug.disable("JsSIP:*");
},
immediate: true,
},
},
mounted() {
this.audio = document.getElementById("audio");
this.meVideo = document.getElementById("meVideo");
this.remoteVideo = document.getElementById("remoteVideo");
},
methods: {
// 获取本地媒体设备
captureLocalMedia() {
console.log("获取到本地音频/视频");
navigator.mediaDevices
.getUserMedia(this.constraints)
.then((stream) => {
console.log("获取到本地媒体流");
this.localStream = stream;
// 连接本地麦克风
if ("srcObject" in this.audio) {
this.audio.srcObject = stream;
} else {
this.audio.src = window.URL.createObjectURL(stream);
}
// 如果有视频流,则连接本地摄像头
if (stream.getVideoTracks().length > 0) {
if ("srcObject" in this.meVideo) {
this.meVideo.srcObject = stream;
} else {
this.meVideo.src = window.URL.createObjectURL(stream);
}
}
})
.catch((e) => {
this.$modal.msgError("获取用户媒体设备错误: " + e.name);
});
},
// 停止本地媒体设备
stopLocalMedia() {
if (this.localStream) {
this.localStream.getTracks().forEach((track) => track.stop());
this.localStream = null;
// 清空音频和视频的 srcObject
this.clearMedia("audio");
this.clearMedia("meVideo");
}
},
// 验证分机号,因为 freeswitch 默认会创建这些分机号
isValidExtension(extension) {
const extNumber = parseInt(extension, 10);
return extNumber >= 1001 && extNumber <= 1019;
},
// 注册
registerUser() {
if (!this.isValidExtension(this.userExtension)) {
this.$modal.msgError("分机号无效,请输入1001-1019之间的分机号");
return;
}
const configuration = {
sockets: [new JsSIP.WebSocketInterface(this.ws_url)],
uri: `sip:${this.userExtension}@${this.serverIp};transport=ws`,
password: this.password,
contact_uri: `sip:${this.userExtension}@${this.serverIp};transport=ws`,
display_name: this.userExtension,
register: true, //指示启动时JsSIP用户代理是否应自动注册
session_timers: false, //关闭会话计时器(根据RFC 4028)
};
this.userAgent = new JsSIP.UA(configuration);
this.userAgent.on("connecting", () => console.log("WebSocket 连接中"));
this.userAgent.on("connected", () => console.log("WebSocket 连接成功"));
this.userAgent.on("disconnected", () =>
console.log("WebSocket 断开连接")
);
this.userAgent.on("registered", () => {
this.isRegisted = true;
console.log("用户代理注册成功");
});
this.userAgent.on("unregistered", () => {
this.isRegisted = false;
console.log("用户代理取消注册");
});
this.userAgent.on("registrationFailed", (e) => {
this.$modal.msgError(`用户代理注册失败: ${e.cause}`);
});
// this.userAgent.on("registrationExpiring", (e) => {
// /*
// 在注册到期前几秒钟触发。拦截默认重新注册事件。
// */
// console.warn("registrationExpiring");
// });
this.userAgent.on("newRTCSession", (e) => {
console.log("新会话: ", e);
if (e.originator == "remote") {
console.log("接听到来电");
this.incomingSession = e.session;
this.sipEventBind(e);
} else {
console.log("打电话");
this.outgoingSession = e.session;
this.outgoingSession.on("connecting", (data) => {
console.info("onConnecting - ", data.request);
this.currentSession = this.outgoingSession;
this.outgoingSession = null;
});
this.outgoingSession.connection.addEventListener("track", (event) => {
console.log("接收到远端track:", event.track);
this.trackHandle(event.track, event.streams[0]);
});
}
});
this.userAgent.start();
console.log("用户代理启动");
},
sipEventBind(remotedata, callbacks) {
//接受呼叫时激发
remotedata.session.on("accepted", () => {
console.log("onAccepted - ", remotedata);
if (remotedata.originator == "remote" && this.currentSession == null) {
this.currentSession = this.incomingSession;
this.incomingSession = null;
console.log("setCurrentSession:", this.currentSession);
}
});
remotedata.session.on("sdp", (data) => {
console.log("onSDP, type - ", data.type, " sdp - ", data.sdp);
});
remotedata.session.on("progress", () => {
console.log(remotedata);
console.log("onProgress - ", remotedata.originator);
if (remotedata.originator == "remote") {
console.log("onProgress, response - ", remotedata.response);
const isVideoCall = remotedata.request.body.includes("m=video");
this.$modal
.confirm(
`检测到${remotedata.request.from.display_name}的${
isVideoCall ? "视频" : "语音"
}来电,是否接听?`
)
.then(() => {
//如果同一电脑两个浏览器测试则video改为false,这样被呼叫端可以看到视频,两台电脑测试让双方都看到改为true
remotedata.session.answer({
mediaConstraints: { audio: true, video: isVideoCall },
});
})
.catch(() => {
this.hangUpCall();
return;
});
}
});
remotedata.session.on("peerconnection", () => {
console.log("onPeerconnection - ", remotedata.peerconnection);
if (remotedata.originator == "remote" && this.currentSession == null) {
remotedata.session.connection.addEventListener("track", (event) => {
console.info("接收到远端track:", event.track);
this.trackHandle(event.track, event.streams[0]);
});
}
});
//确认呼叫后激发
remotedata.session.on("confirmed", () => {
console.log("onConfirmed - ", remotedata);
if (remotedata.originator == "remote" && this.currentSession == null) {
this.currentSession = this.incomingSession;
this.incomingSession = null;
console.log("setCurrentSession - ", this.currentSession);
}
});
// 挂断处理
remotedata.session.on("ended", () => {
this.endedHandle();
console.log("call ended:", remotedata);
});
remotedata.session.on("failed", (e) => {
this.$modal.msgError("会话失败");
console.error("会话失败:", e);
});
},
trackHandle(track, stream) {
const showVideo = () => {
navigator.mediaDevices
.getUserMedia({
...this.constraints,
audio: false, // 不播放本地声音
})
.then((stream) => {
this.meVideo.srcObject = stream;
})
.catch((error) => {
that.$modal.msgError(`${error.name}:${error.message}`);
});
};
// 根据轨道类型选择播放元素
if (track.kind === "video") {
// 使用 video 元素播放视频轨道
this.remoteVideo.srcObject = stream;
showVideo();
} else if (track.kind === "audio") {
// 使用 audio 元素播放音频轨道
this.audio.srcObject = stream;
}
},
endedHandle() {
this.clearMedia("meVideo");
this.clearMedia("remoteVideo");
this.clearMedia("audio");
if (this.myHangup) {
this.$modal.msgSuccess("通话结束");
} else {
this.$modal.msgWarning("对方已挂断!");
}
this.myHangup = false;
this.currentSession = null;
},
startCall(isVideo = false) {
if (!this.isValidExtension(this.targetExtension)) {
this.$modal.msgError("分机号无效,请输入1001-1019之间的分机号");
return;
}
if (this.userAgent) {
try {
const eventHandlers = {
progress: (e) => console.log("call is in progress"),
failed: (e) => {
console.error(e);
this.$modal.msgError(`call failed with cause: ${e.cause}`);
},
ended: (e) => {
this.endedHandle();
console.log(`call ended with cause: ${e.cause}`);
},
confirmed: (e) => console.log("call confirmed"),
};
console.log("this.userAgent.call");
this.outgoingSession = this.userAgent.call(
`sip:${this.targetExtension}@${this.serverIp}`, // :5060
{
mediaConstraints: { audio: true, video: isVideo },
eventHandlers,
}
);
} catch (error) { this.$modal.msgError("呼叫失败");
console.error("呼叫失败:", error);
}
} else {
this.$modal.msgError("用户代理未初始化");
}
},
hangUpCall() {
this.myHangup = true;
this.outgoingSession = this.userAgent.terminateSessions();
this.currentSession = null;
},
clearMedia(mediaNameOrStream) {
let mediaSrcObject = this[mediaNameOrStream].srcObject;
if (mediaSrcObject) {
let tracks = mediaSrcObject.getTracks();
for (let i = 0; i < tracks.length; i++) {
tracks[i].stop();
}
}
this[mediaNameOrStream].srcObject = null;
},
unregisterUser() {
console.log("取消注册");
this.userAgent.unregister();
this.resetState();
},
resetState() {
this.userExtension = "";
this.targetExtension = "";
this.isRegisted = false;
}, },};</script><style lang="scss" scoped>
.test-sip {
padding: 30px;
.step {
margin-bottom: 20px;
.step-box {
display: flex;
align-items: flex-start;
gap: 20px;
.input-box {
width: 350px;
}
.step-button {
align-self: flex-start;
}
#meVideo,
#remoteVideo {
width: 360px;
background-color: #333;
}
#meVideo {
border: 2px solid red;
}
#remoteVideo {
border: 2px solid blue;} }}}</style>
