Spring Security 源码分析八：Spring Security 退出

1. 退出原理

1. 清除Cookie
2. 清除当前用户的remember-me记录
3. 使当前session失效
4. 清空当前的SecurityContext
5. 重定向到登录界面

Spring Security的退出请求（默认为/logout）由LogoutFilter过滤器拦截处理。

1.1 退出的实现

• 主页中添加退出链接

<a href="/signOut">退出</a>

• 配置MerryyouSecurityConfig

......
				.and()
                .logout()
                .logoutUrl("/signOut")//自定义退出的地址
                .logoutSuccessUrl("/register")//退出之后跳转到注册页面
                .deleteCookies("JSESSIONID")//删除当前的JSESSIONID
                .and()
......

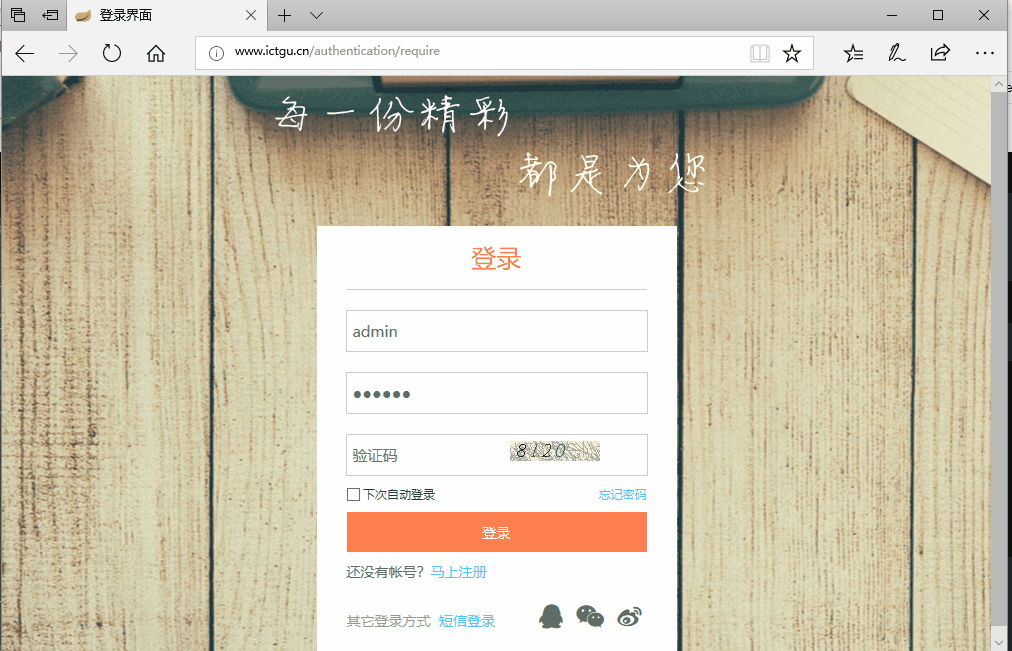

1.2 效果如下

1.3 源码分析

1.3.1 LogoutFilter#doFilter

public void doFilter(ServletRequest req, ServletResponse res, FilterChain chain)
			throws IOException, ServletException {
		HttpServletRequest request = (HttpServletRequest) req;
		HttpServletResponse response = (HttpServletResponse) res;
		//#1.匹配到/logout请求
		if (requiresLogout(request, response)) {
			Authentication auth = SecurityContextHolder.getContext().getAuthentication();

			if (logger.isDebugEnabled()) {
				logger.debug("Logging out user '" + auth
						+ "' and transferring to logout destination");
			}
			//#2.处理1-4步
			this.handler.logout(request, response, auth);
			//#3.重定向到注册界面
			logoutSuccessHandler.onLogoutSuccess(request, response, auth);

			return;
		}

		chain.doFilter(request, response);
	}

1. 匹配当前拦截的请求
2. 处理 清空Cookie、remember-me、session和SecurityContext
3. 重定向到登录界面

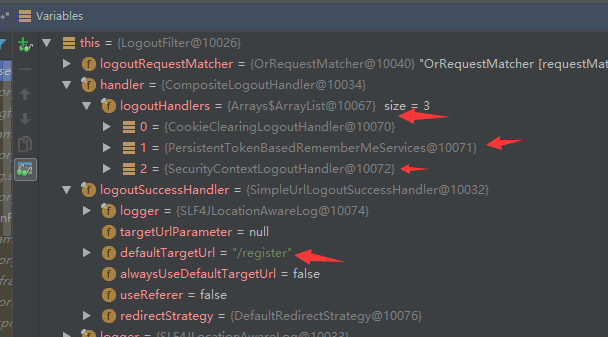

1.3.2 handler

1. CookieClearingLogoutHandler清空Cookie
2. PersistentTokenBasedRememberMeServices清空remember-me
3. SecurityContextLogoutHandler 使当前session无效,清空当前的SecurityContext

1.3.2.1 CookieClearingLogoutHandler#logout

public void logout(HttpServletRequest request, HttpServletResponse response,
			Authentication authentication) {
		for (String cookieName : cookiesToClear) {
			//# 1.Cookie置为null
			Cookie cookie = new Cookie(cookieName, null);
			String cookiePath = request.getContextPath();
			if (!StringUtils.hasLength(cookiePath)) {
				cookiePath = "/";
			}
			cookie.setPath(cookiePath);
			cookie.setMaxAge(0);
			response.addCookie(cookie);
		}
	}

1. Cookie置为null

1.3.3 PersistentTokenBasedRememberMeServices#logout

public void logout(HttpServletRequest request, HttpServletResponse response,
			Authentication authentication) {
		super.logout(request, response, authentication);

		if (authentication != null) {
			//#1.清空persistent_logins表中记录
			tokenRepository.removeUserTokens(authentication.getName());
		}
	}

1. 清空persistent_logins表中记录

1.3.4 SecurityContextLogoutHandler#logout

public void logout(HttpServletRequest request, HttpServletResponse response,
			Authentication authentication) {
		Assert.notNull(request, "HttpServletRequest required");
		if (invalidateHttpSession) {
			HttpSession session = request.getSession(false);
			if (session != null) {
				logger.debug("Invalidating session: " + session.getId());
				//#1.使当前session失效
				session.invalidate();
			}
		}

		if (clearAuthentication) {
			SecurityContext context = SecurityContextHolder.getContext();
			//#2.清空当前的`SecurityContext`
			context.setAuthentication(null);
		}

		SecurityContextHolder.clearContext();
	}

1. 使当前session失效
2. 清空当前的SecurityContext

1.3.5 AbstractAuthenticationTargetUrlRequestHandler#handle

protected void handle(HttpServletRequest request, HttpServletResponse response,
		Authentication authentication) throws IOException, ServletException {
	//#1.获取配置的跳转地址
	String targetUrl = determineTargetUrl(request, response);

	if (response.isCommitted()) {
		logger.debug("Response has already been committed. Unable to redirect to "
				+ targetUrl);
		return;
	}
	//#2.跳转请求
	redirectStrategy.sendRedirect(request, response, targetUrl);
}

1. 获取配置的跳转地址
2. 跳转请求

2. 代码下载

从我的 github 中下载，https://github.com/longfeizheng/logback
