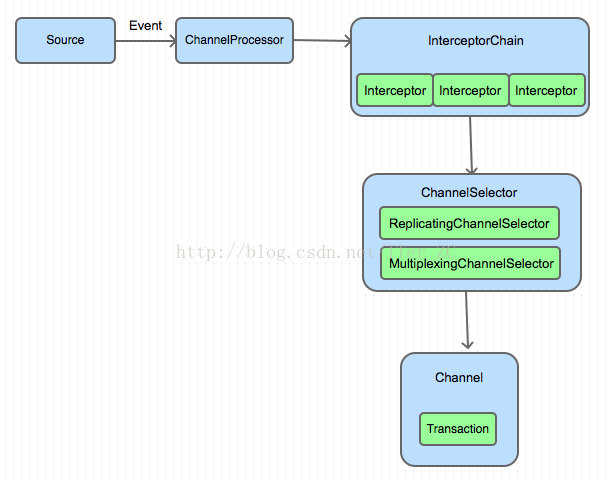

前几篇介绍了Flume NG Source组件的基本情况,接下来看看Channel相关的组件,Channel相关组件有:
1. Channel
2. ChannelSelector
3. Interceptor / InterceptorChain
4. ChannelProcessor
5. Transaction
这篇说说ChannelSelector。ChannelSelector的作用是为Source选择下游的Channel。有两种选择方式,复制和多路复用。所谓复制就是把Source中传递过来的Event复制给所有对应的下游的Channel。多路复用是可以把Source传递过来的Event按照不同的属性传递到不同的下游Channel中去。

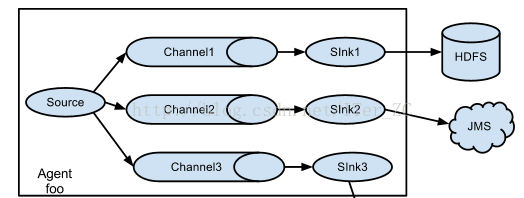

下面这张图展示了ReplicatingChannelSelector的工作方式: Source中传递过来的Event会被复制到Channel1, Channel2, Channel3中去。然后不同的Channel再传递给各自下游的Sink。ChannelSelector提供了灵活的Source事件分发机制。默认的ChannelSelector就是ReplicatingChannelSelector
一个典型的配置如下: <Source1> 中的Event会被复制到下游的<Channel1>和<Channel2>中去
# List the sources, sinks and channels for the agent
<Agent>.sources = <Source1>
<Agent>.sinks = <Sink1> <Sink2>
<Agent>.channels = <Channel1> <Channel2>
# set list of channels for source (separated by space)
<Agent>.sources.<Source1>.channels = <Channel1> <Channel2>
# set channel for sinks
<Agent>.sinks.<Sink1>.channel = <Channel1>
<Agent>.sinks.<Sink2>.channel = <Channel2>
<Agent>.sources.<Source1>.selector.type = replicating
来看看ChannelSelector的接口定义
1. setChannels方法添加和Source相关的所有的Channel进来
2. getAllChannels返回和Source相关的所有Channels
3. getRequiredChannels返回的是必须要传递的Channel,当传递失败时要通知Source
4. getOptionalChannels返回的是不是必须要传递的Channel,当传递失败时可以忽略
public interface ChannelSelector extends NamedComponent, Configurable {
public void setChannels(List<Channel> channels);
public List<Channel> getRequiredChannels(Event event);
public List<Channel> getOptionalChannels(Event event);
public List<Channel> getAllChannels();
}
ChannelSelector的类层次结构如下
AbstractChannelSelector是个抽象类,实现了ChannelSelector接口,它的作用是给ChannelSelector这个类层次结构添加属性。
public abstract class AbstractChannelSelector implements ChannelSelector {
private List<Channel> channels;
private String name;
@Override
public List<Channel> getAllChannels() {
return channels;
}
@Override
public void setChannels(List<Channel> channels) {
this.channels = channels;
}
@Override
public synchronized void setName(String name) {
this.name = name;
}
@Override
public synchronized String getName() {
return name;
}
。。。。。
}
ReplicatingChannelSelector会把Source传递的事件流复制给下游所有的Channel。它维护了一个requiredChannels和optionalChannels列表。在配置的optional里出现的Channel会加入到optionalChannel列表,其他的都进入requiredChannels。
public class ReplicatingChannelSelector extends AbstractChannelSelector {
/**
* Configuration to set a subset of the channels as optional.
*/
public static final String CONFIG_OPTIONAL = "optional";
List<Channel> requiredChannels = null;
List<Channel> optionalChannels = new ArrayList<Channel>();
@Override
public List<Channel> getRequiredChannels(Event event) {
/*
* Seems like there are lot of components within flume that do not call
* configure method. It is conceiveable that custom component tests too
* do that. So in that case, revert to old behavior.
*/
if(requiredChannels == null) {
return getAllChannels();
}
return requiredChannels;
}
@Override
public List<Channel> getOptionalChannels(Event event) {
return optionalChannels;
}
@Override
public void configure(Context context) {
String optionalList = context.getString(CONFIG_OPTIONAL);
requiredChannels = new ArrayList<Channel>(getAllChannels());
Map<String, Channel> channelNameMap = getChannelNameMap();
if(optionalList != null && !optionalList.isEmpty()) {
for(String optional : optionalList.split("\\s+")) {
Channel optionalChannel = channelNameMap.get(optional);
requiredChannels.remove(optionalChannel);
if (!optionalChannels.contains(optionalChannel)) {
optionalChannels.add(optionalChannel);
}
}
}
}
}
MultiplexingChannelSelector可以根据Source传递过来的事件流的属性来选择相应的下游Channel。
MultiplexingChannelSelector的配置例如下面这个例子
1. 根据Event的Header里配置的<State, Value>属性
2. 假如State属性的值是CA,那么这个Event流入mem-channel-1, 如果是AZ,流入file-channel-2,如果是NY, 流入mem-channel-1和file-channel-2。其他的值(包含null)都流入到mem-channel-1
agent_foo.sources.avro-AppSrv-source1.selector.type = multiplexing
agent_foo.sources.avro-AppSrv-source1.selector.header = State
agent_foo.sources.avro-AppSrv-source1.selector.mapping.CA = mem-channel-1
agent_foo.sources.avro-AppSrv-source1.selector.mapping.AZ = file-channel-2
agent_foo.sources.avro-AppSrv-source1.selector.mapping.NY = mem-channel-1 file-channel-2
agent_foo.sources.avro-AppSrv-source1.selector.default = mem-channel-1
MultiplexingChannelSelector维护了几个属性来对应上面的配置
private String headerName;
private Map<String, List<Channel>> channelMapping;
private Map<String, List<Channel>> optionalChannels;
private List<Channel> defaultChannels;
configure()方法中会根据配置,填充channelMapping, optionalChannels和defaultChannels几个数据结构
public void configure(Context context) {
this.headerName = context.getString(CONFIG_MULTIPLEX_HEADER_NAME,
DEFAULT_MULTIPLEX_HEADER);
Map<String, Channel> channelNameMap = getChannelNameMap();
defaultChannels = getChannelListFromNames(
context.getString(CONFIG_DEFAULT_CHANNEL), channelNameMap);
Map<String, String> mapConfig =
context.getSubProperties(CONFIG_PREFIX_MAPPING);
channelMapping = new HashMap<String, List<Channel>>();
for (String headerValue : mapConfig.keySet()) {
List<Channel> configuredChannels = getChannelListFromNames(
mapConfig.get(headerValue),
channelNameMap);
//This should not go to default channel(s)
//because this seems to be a bad way to configure.
if (configuredChannels.size() == 0) {
throw new FlumeException("No channel configured for when "
+ "header value is: " + headerValue);
}
if (channelMapping.put(headerValue, configuredChannels) != null) {
throw new FlumeException("Selector channel configured twice");
}
}
//If no mapping is configured, it is ok.
//All events will go to the default channel(s).
Map<String, String> optionalChannelsMapping =
context.getSubProperties(CONFIG_PREFIX_OPTIONAL + ".");
optionalChannels = new HashMap<String, List<Channel>>();
for (String hdr : optionalChannelsMapping.keySet()) {
List<Channel> confChannels = getChannelListFromNames(
optionalChannelsMapping.get(hdr), channelNameMap);
if (confChannels.isEmpty()) {
confChannels = EMPTY_LIST;
}
//Remove channels from optional channels, which are already
//configured to be required channels.
List<Channel> reqdChannels = channelMapping.get(hdr);
//Check if there are required channels, else defaults to default channels
if(reqdChannels == null || reqdChannels.isEmpty()) {
reqdChannels = defaultChannels;
}
for (Channel c : reqdChannels) {
if (confChannels.contains(c)) {
confChannels.remove(c);
}
}
if (optionalChannels.put(hdr, confChannels) != null) {
throw new FlumeException("Selector channel configured twice");
}
}
}
}
填充了这几个数据结构之后,getRequiredChannels()和getOptionalChannles()的实现就很简单了
public List<Channel> getRequiredChannels(Event event) {
String headerValue = event.getHeaders().get(headerName);
if (headerValue == null || headerValue.trim().length() == 0) {
return defaultChannels;
}
List<Channel> channels = channelMapping.get(headerValue);
//This header value does not point to anything
//Return default channel(s) here.
if (channels == null) {
channels = defaultChannels;
}
return channels;
}
@Override
public List<Channel> getOptionalChannels(Event event) {
String hdr = event.getHeaders().get(headerName);
List<Channel> channels = optionalChannels.get(hdr);
if(channels == null) {
channels = EMPTY_LIST;
}
return channels;
}
