unity中app实现拖拽_在Unity中实现水体交互

1.标记水体碰撞的位置

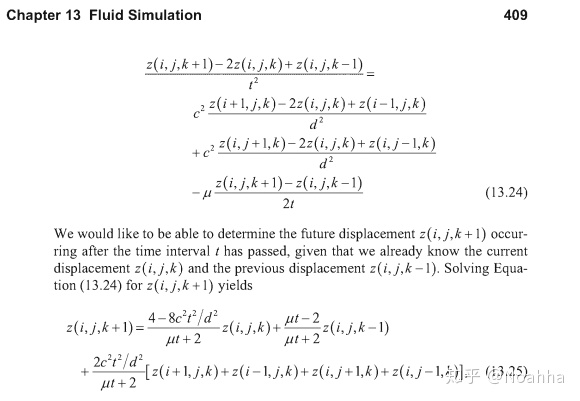

2.计算水波的传递 通过波动公式，3D或者2D 波动公式都行
3.水面顶点采样波动传递结果计算结果做顶点Y轴偏移

https://www.amazon.com/Mathematics-Programming-Computer-Graphics-Third/dp/1435458869 流体 章节

ok~ 我们重头开始

        m_waterWaveMarkTexture = new RenderTexture(WaveTextureResolution, WaveTextureResolution, 0, RenderTextureFormat.Default);
m_waterWaveMarkTexture.name = "m_waterWaveMarkTexture";
m_waveTransmitTexture = new RenderTexture(WaveTextureResolution, WaveTextureResolution, 0, RenderTextureFormat.Default);
m_waveTransmitTexture.name = "m_waveTransmitTexture";
m_prevWaveMarkTexture = new RenderTexture(WaveTextureResolution, WaveTextureResolution, 0, RenderTextureFormat.Default);
m_prevWaveMarkTexture.name = "m_prevWaveMarkTexture";

void WaterPlaneCollider()
{
hasHit = false;
if (Input.GetMouseButton(0))
{
Ray ray = Camera.main.ScreenPointToRay(Input.mousePosition);
RaycastHit hitInfo = new RaycastHit();
bool ret = Physics.Raycast(ray.origin, ray.direction, out hitInfo);
if (ret)
{
Vector3 waterPlaneSpacePos = WaterPlane.transform.worldToLocalMatrix * new Vector4(hitInfo.point.x, hitInfo.point.y, hitInfo.point.z, 1);

float dx = (waterPlaneSpacePos.x / WaterPlaneWidth) + 0.5f;
float dy = (waterPlaneSpacePos.z / WaterPlaneLength) + 0.5f;

hitPos.Set(dx, dy);

hasHit = true;
}
}
}

                float dx = i.uv.x - _WaveMarkParams.x;
float dy = i.uv.y - _WaveMarkParams.y;

float disSqr = dx * dx + dy * dy;

int hasCol = step(0, _WaveMarkParams.z - disSqr);

float waveValue = DecodeHeight(tex2D(_MainTex, i.uv));

if (hasCol == 1) {
waveValue = _WaveMarkParams.w;
}

                static const float2 WAVE_DIR[4] = { float2(1, 0), float2(0, 1), float2(-1, 0), float2(0, -1) };

float dx = _WaveTransmitParams.w;

float avgWaveHeight = 0;
for (int s = 0; s < 4; s++)
{
avgWaveHeight += DecodeHeight(tex2D(_MainTex, i.uv + WAVE_DIR[s] * dx));
}

//(2 * c^2 * t^2 / d ^2) / (u * t + 2)*(z(x + dx, y, t) + z(x - dx, y, t) + z(x, y + dy, t) + z(x, y - dy, t);
float agWave = _WaveTransmitParams.z * avgWaveHeight;

// (4 - 8 * c^2 * t^2 / d^2) / (u * t + 2)
float curWave = _WaveTransmitParams.x *  DecodeHeight(tex2D(_MainTex, i.uv));
// (u * t - 2) / (u * t + 2) * z(x,y,z, t - dt) 上一次波浪值 t - dt
float prevWave = _WaveTransmitParams.y * DecodeHeight(tex2D(_PrevWaveMarkTex, i.uv));

//波衰减
float waveValue = (curWave + prevWave + agWave) * _WaveAtten;

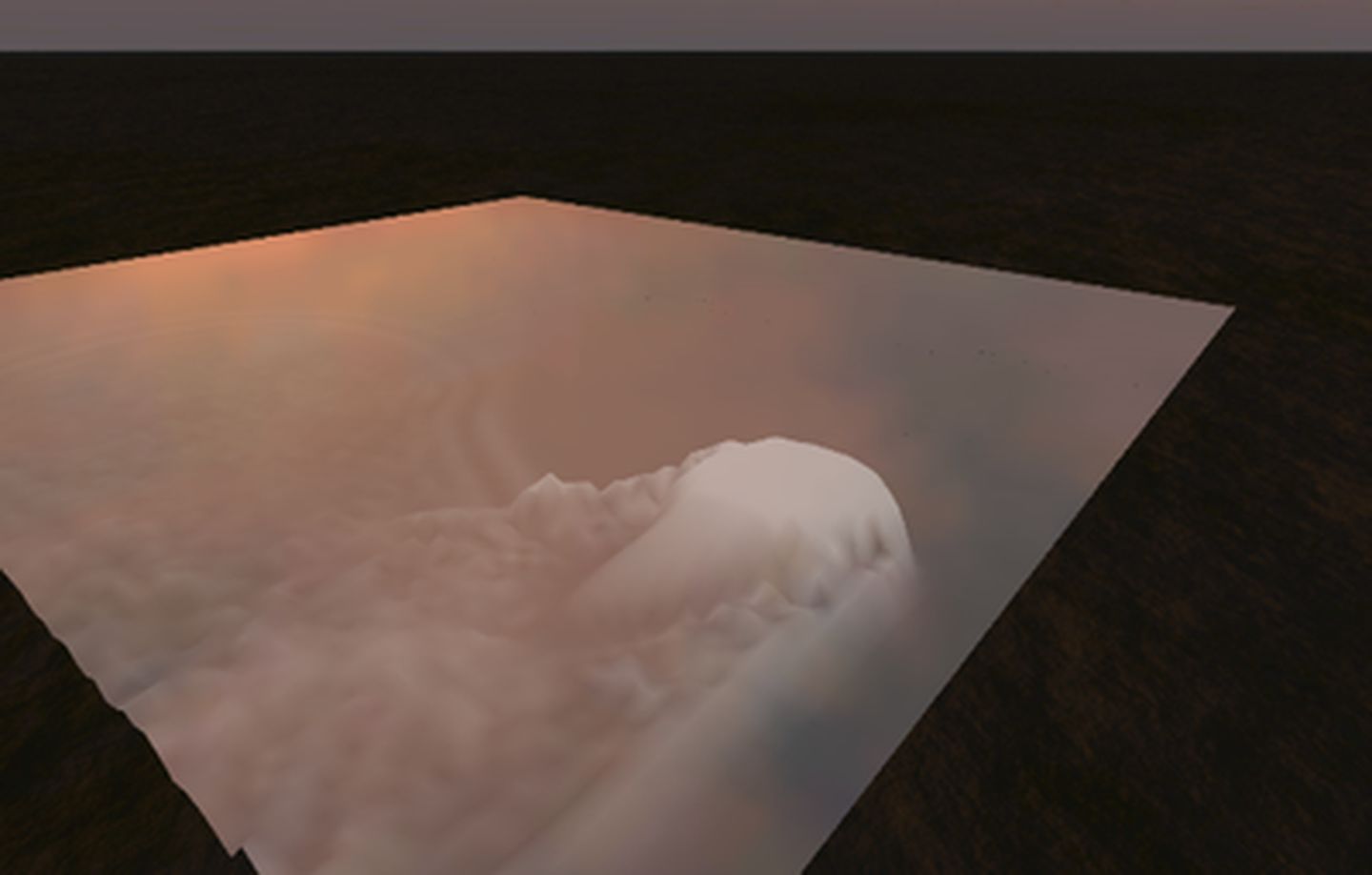

 v2f vert (appdata v)
{
v2f o;

float4 localPos = v.vertex;
float4 waveTransmit = tex2Dlod(_WaveResult, float4(v.uv, 0, 0));
float waveHeight = DecodeFloatRGBA(waveTransmit);

localPos.y += waveHeight * _WaveScale;

float3 worldPos = mul(unity_ObjectToWorld, localPos);
float3 worldSpaceNormal = mul(unity_ObjectToWorld, v.normal);
float3 worldSpaceViewDir = UnityWorldSpaceViewDir(worldPos);

o.vertex = mul(UNITY_MATRIX_VP, float4(worldPos, 1));
o.uv = v.uv;
o.worldSpaceReflect = reflect(-worldSpaceViewDir, worldSpaceNormal);
return o;
}

github地址https://github.com/dreamfairy/interactivity-waterplane

https://connect.unity.com/p/zai-unityzhong-shi-xian-shui-ti-jiao-hu?app=true​connect.unity.com
