图片toast_Android实现带插入图片的EditText功能

效果图:

我们来看看怎么实现，首先我们肯定是在EditText上进行扩展肯定是继承于EditText。我们用到的最主要的两个类是SpannableString和ImageSpan，通过这两个类，我们就能实现图片和文字共存,一般适用的场景是论坛或者帖子的发表或者提交

具体实现:

我们首先要用SpannableString来编辑要插入的图片内容

/**    * 编辑插入的内容    *    * @param picPath    * @return    */   private CharSequence getDrawableStr(String picPath) {       String str = "";       Bitmap bm = createImageThumbnail(picPath);       final SpannableString ss = new SpannableString(str);       // 定义插入图片       Drawable drawable = new BitmapDrawable(bm);       float scenewidth = Util.getScene(Util.SCENE_WIDTH) / 3;       float width = drawable.getIntrinsicWidth();       float height = drawable.getIntrinsicHeight();       if (width > scenewidth) {           width = width - 20;           height = height - 20;       } else {           float scale = (scenewidth) / width;           width *= scale;           height *= scale;       }       //设置图片的宽高       drawable.setBounds(2, 0, (int) width, (int) height);       //ALIGN_BOTTOM 调整图片距离字有一定的间隙       VerticalCenterImageSpan span = new VerticalCenterImageSpan(drawable, 1);       //SPAN_INCLUSIVE_EXCLUSIVE 会导致删除后面的文字消失       ss.setSpan(span, 0, ss.length(), Spannable.SPAN_EXCLUSIVE_EXCLUSIVE);       /*       Spannable.SPAN_EXCLUSIVE_EXCLUSIVE：前后都不包括，即在指定范围的前面和后面插入新字符都不会应用新样式       Spannable.SPAN_EXCLUSIVE_INCLUSIVE：前面不包括，后面包括。即仅在范围字符的后面插入新字符时会应用新样式       Spannable.SPAN_INCLUSIVE_EXCLUSIVE：前面包括，后面不包括。       Spannable.SPAN_INCLUSIVE_INCLUSIVE：前后都包括。        */       return ss;   }

其中需要插入创建的图片，我把创建图片的代码单独拉出来了

/**  * 创建图片  * @param filePath  * @return  */ public static Bitmap createImageThumbnail(String filePath) {     Bitmap bitmap = null;     BitmapFactory.Options opts = new BitmapFactory.Options();     opts.inTempStorage = new byte[100 * 1024];     // 默认是Bitmap.Config.ARGB_8888     opts.inPreferredConfig = Bitmap.Config.RGB_565;     opts.inSampleSize = 2;     try {         bitmap = BitmapFactory.decodeFile(filePath, opts);     } catch (Exception e) {     }     return bitmap; }

然后使用自定义的ImageSpan来调整图片的位置

public class VerticalCenterImageSpan extends ImageSpan {      public VerticalCenterImageSpan(Drawable d, int verticalAlignment) {          super(d, verticalAlignment);      }      @Override      public void draw(Canvas canvas, CharSequence text, int start, int end, float x, int top, int y, int bottom, Paint paint) {          Drawable b = getDrawable();          canvas.save();          int transY = bottom - b.getBounds().bottom;          if (mVerticalAlignment == ALIGN_BASELINE) {              transY -= paint.getFontMetricsInt().descent;          } else if (mVerticalAlignment == ALIGN_BOTTOM) {          } else {              transY += paint.getFontMetricsInt().descent * 2;          }          canvas.translate(x, transY);          b.draw(canvas);          canvas.restore();      }  }

最后通过EditText的Editable的insert方法把编辑好的图片插入到内容当中

Editable editable = getText();CharSequence sequence = getDrawableStr(picPath);editable.insert(getSelectionStart(), sequence);

这样就能把图片插入到内容当中了，实现图片和文字共存

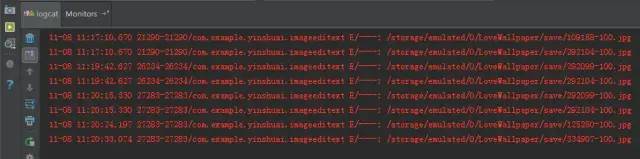

获取插入的图片集合

调用getImage()方法就能获取到插入的图片的集合

具体的实现就是把插入进来的图片存到一个集合当中，然后监听删除和插入的内容是否是图片，然后做对应的操作，具体的实现可以看最下面的全部代码。

全部代码

package com.example.yinshuai.imageeditext.view;import android.content.Context;import android.graphics.Bitmap;import android.graphics.BitmapFactory;import android.graphics.Canvas;import android.graphics.Paint;import android.graphics.drawable.BitmapDrawable;import android.graphics.drawable.Drawable;import android.text.Editable;import android.text.Spannable;import android.text.SpannableString;import android.text.TextUtils;import android.text.TextWatcher;import android.text.style.ImageSpan;import android.util.AttributeSet;import android.view.Gravity;import android.view.MotionEvent;import android.widget.EditText;import android.widget.Toast;import com.example.yinshuai.imageeditext.util.Util;import java.util.ArrayList;import java.util.List;public class EditTextPlus extends EditText {  /**   * 最大输入字符   */  public static final int MAXLENGTH = 2000;  /**   * 一张图片所占的字符长度   */  public static final int IMAGELENGTH = 2;  /**   * 占位符   */  private String placeholder = "&";  /**   * 最大添加图片数量   */  private int maxImage = 8;  private Context mContext;  private String submitCon = "";  private boolean insertImage = false;  private OnInsertionImageListener onInsertionImageListener;  private OnDeleteConteneListener onDeleteConteneListener;  private float startY;  private float startX;  private float selectionStart;  private List image = new ArrayList<>();  public EditTextPlus(Context context) {      super(context);      mContext = context;      init();  }  public EditTextPlus(Context context, AttributeSet attrs) {      super(context, attrs);      mContext = context;      init();  }  public void init() {      setGravity(Gravity.TOP);      addTextChangedListener(watcher);  }  public interface OnInsertionImageListener {      /**       * 插入图片时的监听       */      void insertion();  }  public void setOnInsertionImageListener(OnInsertionImageListener onInsertionImageListener) {      this.onInsertionImageListener = onInsertionImageListener;  }  public interface OnDeleteConteneListener {      /**       * 删除图片的监听       */      void delete();  }  public void setOnDeleteConteneListener(OnDeleteConteneListener onDeleteConteneListener) {      this.onDeleteConteneListener = onDeleteConteneListener;  }  /**   * 添加图片集合   *   * @param list   */  public void addImage(List list) {      if (getTextContent().length() + IMAGELENGTH > MAXLENGTH) {          Toast.makeText(mContext, "输入的内容超过最大限制", Toast.LENGTH_SHORT).show();          return;      }      Editable editable = getText();      for (int i = 0; i < list.size(); i++) {          if (getImage().size() >= maxImage) {              Toast.makeText(mContext, "图片超过最大数量", Toast.LENGTH_SHORT).show();              return;          }          if (list.get(i) != null && !TextUtils.isEmpty(list.get(i))) {              if (!TextUtils.isEmpty(getText().toString()) && !insertImage) {                  //如果第一张就是图片不用换行                  editable.insert(getSelectionStart(), "\n");              } else if (getSelectionStart() < getText().length()) {                  //当从中间插入时                  editable.insert(getSelectionStart(), "\n");              }              CharSequence sequence = getDrawableStr(list.get(i));              if (sequence != null) {                  image.add(list.get(i));                  editable.insert(getSelectionStart(), sequence);                  editable.insert(getSelectionStart(), "\n");                  insertImage = true;              }          } else {              Toast.makeText(mContext, "图片路径为空", Toast.LENGTH_SHORT).show();          }      }      //让光标始终在最后      this.setSelection(getText().toString().length());      if (onInsertionImageListener != null) {          onInsertionImageListener.insertion();      }  }  /**   * 获取插入的图片列表   *   * @return   */  public List getImage() {      List picPaths = new ArrayList<>();      String content = this.getText().toString();      for (int i = 0; i < image.size(); i++) {          if (content.indexOf(image.get(i)) != -1) {              picPaths.add(image.get(i));          }      }      return picPaths;  }  /**   * 判断传进来的字符串是否是一个图片地址   * @param content   * @return   */  public boolean isImage(String content) {      for (int i = 0; i < image.size(); i++) {          if (content.indexOf(image.get(i)) != -1) {              return true;          }      }      return false;  }  /**   * 获取去除image后的文字内容   *   * @return   */  public String getTextContent() {      return submitCon;  }  /**   * 这个TextWatcher用来监听删除和输入的内容如果是图片的话 要相应把list集合中的图片也要移除 不然最后获取到的图片集合是错误的   */  private String tempString;  private TextWatcher watcher = new TextWatcher() {      @Override      public void onTextChanged(CharSequence s, int start, int before, int count) {          insertImage = false;          //如果小于就是删除操作          if (s.length() < tempString.length()) {              String deletString = tempString.substring(start, start + before);              if (image != null && image.size() > 0) {                  for (int i = 0; i < image.size(); i++) {                      //如果删除的内容中包含这张图片 那么就把图片集合中的对应的图片删除                      if (deletString.toString().indexOf(image.get(i)) != -1) {                          image.remove(i);                          if (onDeleteConteneListener != null) {                              onDeleteConteneListener.delete();                          }                      }                  }              }          }      }      @Override      public void beforeTextChanged(CharSequence s, int start, int count, int after) {          tempString = s.toString();      }      @Override      public void afterTextChanged(Editable s) {          invalidate();          requestLayout();          StringBuffer stringBuffer = new StringBuffer(getText().toString());          for (int i = 0; i < image.size(); i++) {              if (stringBuffer.indexOf(image.get(i)) != -1) {                  int index = stringBuffer.indexOf(image.get(i));                  stringBuffer.delete(index - 10, index + image.get(i).length() + 3);                  stringBuffer.insert(index - 10, placeholder);              }          }          if (stringBuffer.toString().indexOf(placeholder) == 0) {              stringBuffer.insert(0, " ");          }          submitCon = stringBuffer.toString();      }  };  /**   * 编辑插入的内容   *   * @param picPath   * @return   */  private CharSequence getDrawableStr(String picPath) {      String str = "";      Bitmap bm = createImageThumbnail(picPath);      final SpannableString ss = new SpannableString(str);      // 定义插入图片      Drawable drawable = new BitmapDrawable(bm);      float scenewidth = Util.getScene(Util.SCENE_WIDTH) / 3;      float width = drawable.getIntrinsicWidth();      float height = drawable.getIntrinsicHeight();      if (width > scenewidth) {          width = width - 20;          height = height - 20;      } else {          float scale = (scenewidth) / width;          width *= scale;          height *= scale;      }      //设置图片的宽高      drawable.setBounds(2, 0, (int) width, (int) height);      //ALIGN_BOTTOM 调整图片距离字有一定的间隙      VerticalCenterImageSpan span = new VerticalCenterImageSpan(drawable, 1);      //SPAN_INCLUSIVE_EXCLUSIVE 会导致删除后面的文字消失      ss.setSpan(span, 0, ss.length(), Spannable.SPAN_EXCLUSIVE_EXCLUSIVE);      /*      Spannable.SPAN_EXCLUSIVE_EXCLUSIVE：前后都不包括，即在指定范围的前面和后面插入新字符都不会应用新样式      Spannable.SPAN_EXCLUSIVE_INCLUSIVE：前面不包括，后面包括。即仅在范围字符的后面插入新字符时会应用新样式      Spannable.SPAN_INCLUSIVE_EXCLUSIVE：前面包括，后面不包括。      Spannable.SPAN_INCLUSIVE_INCLUSIVE：前后都包括。       */      return ss;  }  /**   * 自定义ImageSpan 来调整图片的位置   */  public class VerticalCenterImageSpan extends ImageSpan {      public VerticalCenterImageSpan(Drawable d, int verticalAlignment) {          super(d, verticalAlignment);      }      @Override      public void draw(Canvas canvas, CharSequence text, int start, int end, float x, int top, int y, int bottom, Paint paint) {          Drawable b = getDrawable();          canvas.save();          int transY = bottom - b.getBounds().bottom;          if (mVerticalAlignment == ALIGN_BASELINE) {              transY -= paint.getFontMetricsInt().descent;          } else if (mVerticalAlignment == ALIGN_BOTTOM) {          } else {              transY += paint.getFontMetricsInt().descent * 2;          }          canvas.translate(x, transY);          b.draw(canvas);          canvas.restore();      }  }  /**   * 创建图片   * @param filePath   * @return   */  public static Bitmap createImageThumbnail(String filePath) {      Bitmap bitmap = null;      BitmapFactory.Options opts = new BitmapFactory.Options();      opts.inTempStorage = new byte[100 * 1024];      // 默认是Bitmap.Config.ARGB_8888      opts.inPreferredConfig = Bitmap.Config.RGB_565;      opts.inSampleSize = 2;      try {          bitmap = BitmapFactory.decodeFile(filePath, opts);      } catch (Exception e) {      }      return bitmap;  }  /**   * 重写dispatchTouchEvent是为了解决上下滑动时光标跳跃的问题   *   * @param event   * @return   */  @Override  public boolean dispatchTouchEvent(MotionEvent event) {      switch (event.getAction()) {          case MotionEvent.ACTION_DOWN:              startY = event.getRawY();              startX = event.getRawX();              selectionStart = getSelectionStart();              break;          case MotionEvent.ACTION_MOVE:              break;          case MotionEvent.ACTION_UP:              float endY = event.getRawY();              float endX = event.getRawX();              if (Math.abs(endY - startY) > 10 || Math.abs(endX - startX) > 10) {                  return true;              }              break;          default:              break;      }      return super.dispatchTouchEvent(event);  }}

源码地址：

https://github.com/yinshuai0324/ImageEditext

到这里就结束啦.
