一、Elasticsearch+kibana部署server
注：此文档为傻瓜式安装，以避过所有坑，简单安装方便使用，如遇以外问题请度娘
环境部署&&版本需求
CentOS7
Elasticsearch-7.30
kibana-7.30
logstash-7.30
服务器需求两台

200.200.100.51 node1
200.200.100.52 node2
200.200.100.53 node3
1.关闭防火墙&&selinux

systemctl stop firewalld
systemctl disable firewalld
sed -i 's/enforcing/disabled/g' /etc/sysconfig/selinux

2.内核参数优化

echo '
* hard nofile 65536
* soft nofile 65536
* soft nproc  65536
* hard nproc  65536
'>>/etc/security/limits.conf

echo '
vm.max_map_count = 262144
net.core.somaxconn=65535
net.ipv4.ip_forward = 1
'>>/etc/sysctl.conf

sysctl -p

3.时间同步

yum -y install ntp
systemctl enable ntpd
systemctl start ntpd
ntpdate -u cn.pool.ntp.org
hwclock --systohc
timedatectl set-timezone Asia/Shanghai

4.安装必备软件

yum install wget vim lsof net-tools lrzsz net-tools curl -y

5.配置JDK环境

tar -zxf jdk-11.0.4_linux-x64_bin.tar.gz
mv jdk-11.0.4 /usr/local/jdk
echo '
export JAVA_HOME=/usr/local/jdk
export CLASSPATH=.:$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar
export PATH=$JAVA_HOME/bin:$PATH
'>>/etc/profile

source /etc/profile
java -version

6.安装配置elasticserach

tar zxvf elasticsearch-7.3.0-linux-x86_64.gz
mv elasticsearch-7.3.0 /usr/local/elasticsearch
mkdir -p /data/{es-data,es-logs}

修改elasticsearch配置文件

vim /usr/local/elasticsearch/config/elasticsearch.yml
修改后：
grep -Ev "^$|#" /usr/local/elasticsearch/config/elasticsearch.yml

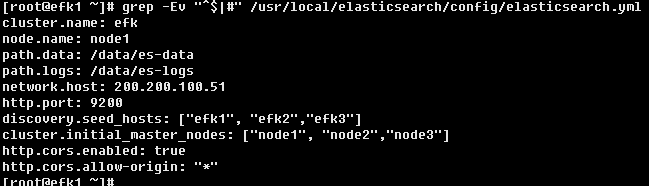

Node1
在这里插入图片描述

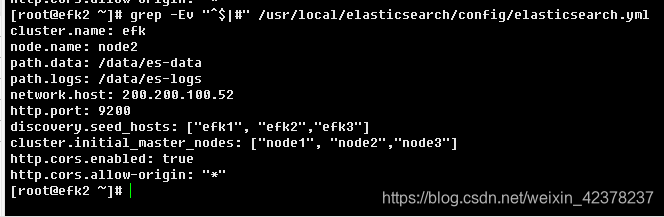

Node2

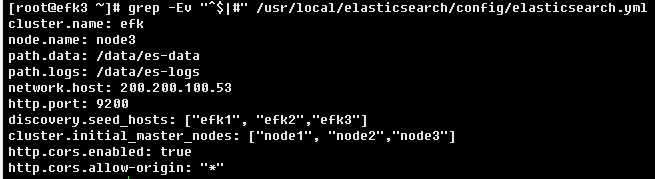

Node3

7.配置权限启动elasticsearch
创建用户

useradd efk
chown -R efk:efk /usr/local/jdk
chown -R efk:efk /usr/local/elasticsearch
chown  -R efk:efk /data
su - efk
/usr/local/elasticsearch/bin/elasticsearch -d

8.配置启动kibana

tar zxf kibana-7.3.0-linux-x86_64.tar.gz
mv kibana-7.3.0-linux-x86_64 /usr/local/kibana
vim /usr/local/kibana/config/kibana.yml
grep -Ev "^$|#" /usr/local/kibana/config/kibana.yml
server.port: 5601
server.host: "200.200.100.51"
elasticsearch.host: ["http:/200.200.100.51:9200"]

chown -R efk:efk /usr/local/kibana
su - efk
/usr/local/kibana/bin/kibana &

访问kibana：http://ip:5601

9.配置elasticsearch-head插件

下载安装包
 wget https://nodejs.org/dist/v12.16.3/node-v12.16.3-linux-x64.tar.xz
xz -d node-v12.16.3-linux-x64.tar.xz
tar xf node-v12.16.3-linux-x64.tar -C /usr/local/
mv /usr/local/node-v12.16.3-linux-x64/ /usr/local/node
echo "export PATH=$PATH:/usr/local/node/bin" >>/etc/profile
.  /etc/profile && source /etc/profile
node -v

yum install git  bzip2 -y
git clone https://github.com/mobz/elasticsearch-head.git
mv elasticsearch-head /usr/local/
cd  /usr/local/elasticsearch-head/

```可不需要```
安装 grunt-cli
npm install -g grunt-cli
安装 grunt
elasticsearch-head 下载完成后，进入 elasticsearch-head 文件夹，执行命令：
npm install grunt --save

安装依赖的 npm 包
npm install

如果出出现错误Error: Command failed: tar jxf /tmp/phantomjs/phantomjs-2.1.1-linux-x86_64.tar.bz2需要安装bzip2软件包
在这里插入图片描述

如果报错为此错误：因为fsevents是Mac系统所需的软件，用下面命令跳过此软件安装
npm install --unsafe-perm 在这里插入图片描述

vim /usr/local/elasticsearch-head/Gruntfile.js

在这里插入图片描述
vim /usr/local/elasticsearch-head/_site/app.js

将localhost 改成elasticsearch cluster的地址

chown -R efk:efk /usr/local/elasticsearch-head/
su - efk
npm run start &   #如果无法启动的话
或者
/usr/local/elasticsearch-head/node_modules/grunt/bin/grunt server &

访问：http://200.200.100.51:9100

二、 logstash部署
logstash安装的Nginx服务器上，并非es服务器
1.解压安装logstash

tar xf logstash-7.3.0.tar.gz -C /usr/local/
mv /usr/local/logstash-7.3.0 /usr/local/logstash

一般情况下，我们可以不配置logstash直接就可以启动，logstash下有一个叫logstash.yml的文件，里面可以对logstash做一些简单的优化

vim /usr/local/logstash/config/logstash.yml
config.reload.automatic: true    #开启配置文件自动加载
config.reload.interval: 10    #定义配置文件重载时间周期

可以添加也可以不添加！

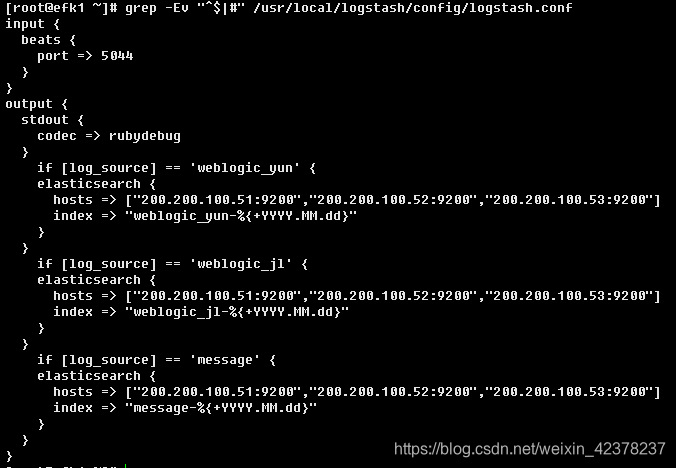

2.创建配置文件

input {
  beats {
    port => 5044
  }
}
output {
  stdout {
    codec => rubydebug
  }
    if [log_source] == 'weblogic_yun' {
    elasticsearch {
      hosts => ["200.200.100.51:9200","200.200.100.52:9200","200.200.100.53:9200"]
      index => "weblogic_yun-%{+YYYY.MM.dd}"
    }
  }
    if [log_source] == 'weblogic_jl' {
    elasticsearch {
      hosts => ["200.200.100.51:9200","200.200.100.52:9200","200.200.100.53:9200"]
      index => "weblogic_jl-%{+YYYY.MM.dd}"
    }
  }
    if [log_source] == 'message' {
    elasticsearch {
      hosts => ["200.200.100.51:9200","200.200.100.52:9200","200.200.100.53:9200"]
      index => "message-%{+YYYY.MM.dd}"
    }
  }
}

在这里插入图片描述

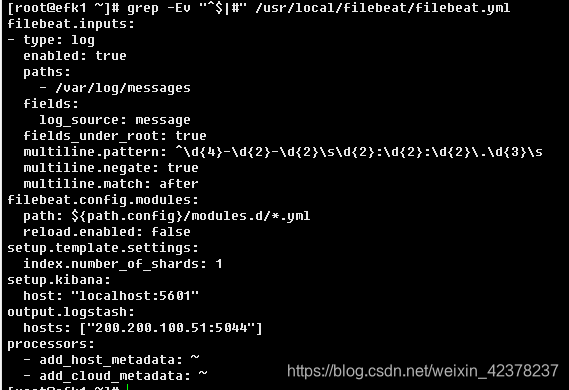

三、filebeat安装
wget https://artifacts.elastic.co/downloads/beats/filebeat/filebeat-7.3.0-linux-x86_64.tar.gz
tar -zvxf filebeat-7.3.0-linux-x86_64.tar.gz -C /usr/local/

#=========================== Filebeat inputs =============================
filebeat.inputs:
- type: log
  enabled: true
  paths:
    - /var/log/message
  fields:
    log_source: message
  fields_under_root: true
#============================= Filebeat modules ===============================
filebeat.config.modules:
  path: ${path.config}/modules.d/*.yml
  reload.enabled: false


#==================== Elasticsearch template setting ==========================
setup.template.settings:
  index.number_of_shards: 1

#============================== Kibana =====================================
setup.kibana:
host: "200.200.100.51:5601"


#----------------------------- Logstash output --------------------------------
output.logstash:
  hosts: ["200.200.100.51:5044"]

#================================ Processors =====================================
processors:
  - add_host_metadata: ~
  - add_cloud_metadata: ~

在这里插入图片描述
五、安装并配置Nginx收集日志
安装Nginx
wget http://nginx.org/download/nginx-1.10.3.tar.gz

yum install -y gcc glibc gcc-c++ prce-devel openssl-devel pcre-devel
useradd -s /sbin/nologin www -M
tar xf nginx-1.10.3.tar.gz && cd nginx-1.10.3

./configure --prefix=/usr/local/nginx-1.10.3 --user=www --group=www --with-http_ssl_module --with-http_stub_status_module
make && make install
ln -s /usr/local/nginx-1.10.3 /usr/local/nginx

手动启动
/usr/local/nginx/sbin/nginx

设置开机启动
echo “/usr/local/nginx/sbin/nginx” >>/etc/rc.local

查看服务器是否启动
netstat -lntp|grep nginx
tcp 0 0 0.0.0.0:80 0.0.0.0:* LISTEN 7058/nginx: master
需要配置在我们要收集的服务器上
vim /usr/local/nginx/conf/nginx.conf
worker_processes 1;

events {
worker_connections 1024;
}

http {
include mime.types;
default_type application/octet-stream;
#log_format main '$remote_addr - $remote_user [$ time_local] “ $KaTeX parse error: Expected 'EOF', got '#' at position 16: request" ' #̲ \dots$ status $body_bytes_sent "$ http_referer” ’
# ‘“ $http_user_agent" "$ http_x_forwarded_for”’;

log_format json '{"@timestamp":"$time_iso8601",'
              '"host":"$server_addr",'
              '"clientip":"$remote_addr",'
              '"remote_user":"$remote_user",'
              '"request":"$request",'
              '"http_user_agent":"$http_user_agent",'
              '"size":$body_bytes_sent,'
              '"responsetime":$request_time,'
              '"upstreamtime":"$upstream_response_time",'
              '"upstreamhost":"$upstream_addr",'
              '"http_host":"$host",'
              '"requesturi":"$request_uri",'
              '"url":"$uri",'
              '"domain":"$host",'
              '"xff":"$http_x_forwarded_for",'
              '"referer":"$http_referer",'
              '"status":"$status"}';
access_log logs/access.log json;


sendfile        on;
keepalive_timeout  65;


server {
    listen       80;
    server_name  localhost;
    location / {
        root   html;
        index  index.html index.htm;
    }

}

}

###########################
实际上就是添加了json格式的日志
log_format json ‘{"@timestamp":“ $KaTeX parse error: Double superscript at position 35: \dots '̲"host":"$ server_addr”,’
‘“clientip”:“ $KaTeX parse error: Double superscript at position 34: \dots '̲"remote_user":"$ remote_user”,’
‘“request”:“ $KaTeX parse error: Double superscript at position 30: \dots '̲"http_user_agen\dots$ http_user_agent”,’
‘“size”: $KaTeX parse error: Double superscript at position 37: \dots '̲"responsetime":$ request_time,’
‘“upstreamtime”:“ $KaTeX parse error: Double superscript at position 45: \dots '̲"upstreamhost":\dots$ upstream_addr”,’
‘“http_host”:“ $KaTeX parse error: Double superscript at position 27: \dots '̲"requesturi":"$ request_uri”,’
‘“url”:“ $KaTeX parse error: Double superscript at position 26: \dots '̲"domain":"$ host”,’
‘“xff”:“ $KaTeX parse error: Double subscript at position 7: http_x_̲forwarded_for",\dots$ http_referer”,’
‘“status”:"$status"}’;
access_log logs/access.log json;
日志保存在/usr/local/nginx/logs/下
配置完成后，访问nginx。查看日志是否修改为json
[root@i4tnginx]# tail -f logs/access.log
{"@timestamp"“host”:“10.4.82.203”,“clientip”:“10.2.52.15”,“remote_user”:"-",“request”:“GET / HTTP/1.1”,“http_user_agent”:“Mozilla/5.0 (Macintosh; Intel Mac OS X 10.13; rv:60.0) Gecko/20100101 Firefox/60.0”,“size”:0,“responsetime”:0.000,“upstreamtime”:"-",“upstreamhost”:"-",“http_host”:“10.4.82.203”,“requesturi”:"/",“url”:"/index.html",“domain”:“10.4.82.203”,“xff”:"-",“referer”:"-",“status”:“304”}
{"@timestamp"“host”:“10.4.82.203”,“clientip”:“10.2.52.15”,“remote_user”:"-",“request”:“GET / HTTP/1.1”,“http_user_agent”:“Mozilla/5.0 (Macintosh; Intel Mac OS X 10.13; rv:60.0) Gecko/20100101 Firefox/60.0”,“size”:0,“responsetime”:0.000,“upstreamtime”:"-",“upstreamhost”:"-",“http_host”:“10.4.82.203”,“requesturi”:"/",“url”:"/index.html",“domain”:“10.4.82.203”,“xff”:"-",“referer”:"-",“status”:“304”}
测试logstash配置文件是否正常
我们尽量都是用efk用户，所以需要提前将logstash设置为efk的属主属组
chown -R efk.efk /usr/local/logstash

/usr/local/logstash/bin/logstash -f /usr/local/logstash/conf/nginx.conf -t
ERROR StatusLogger No log4j2 configuration file found. Using default configuration: logging only errors to the console.
Sending Logstash’s logs to /usr/local/logstash/logs which is now configured via log4j2.properties
Configuration OK
[2019-01-28T11:54:38,481][INFO ][logstash.runner ] Using config.test_and_exit mode. Config Validation Result: OK. Exiting Logstash

在Nginx服务器上启动logstash
[root@abcdocker logstash]# su - efk
[efk@abcdocker ~]$ /usr/local/logstash/bin/logstash -f /usr/local/logstash/conf/nginx.conf

温馨提示，一定要确保logs目录efk有权限写入，建议我们在启动efk之前在执行一次chown -R efk.efk /usr/local/logstash

请确保logstash中的file文件有读取权限，否则无法在ES中创建索引！

我们可以查一下索引
[root@YZSJHL82-203 local]# curl -XGET ‘200.200.100.51:9200/_cat/indices?v&pretty’
health status index uuid pri rep docs.count docs.deleted store.size pri.store.size
yellow open .kibana 9l1XmifhTd2187a9Zpkqsw 1 1 1 0 3.2kb 3.2kb
yellow open pro_nginx_access-2019.02.15 Guze8x5hTymSzqzQKu5PTQ 5 1 1315 0 1.3mb 1.3mb
Kibana 配置
目前logstash已经将收集的日志存储在es里面，我们需要用kibana进行展示

查看索引命令
[root@YZSJHL82-203 local]# curl -XGET ‘200.200.100.51:9200/_cat/indices?v&pretty’
health status index uuid pri rep docs.count docs.deleted store.size pri.store.size
yellow open .kibana 9l1XmifhTd2187a9Zpkqsw 1 1 1 0 3.2kb 3.2kb
yellow open pro_nginx_access-2019.02.15 Guze8x5hTymSzqzQKu5PTQ 5 1 1315 0 1.3mb 1.3mb

Kibana创建索引

创建完毕后查看索引
