特别提醒：所有的Mapper文件均采用逆向工程进行生成，对于后续添加的接口，在此基础上进行增添！

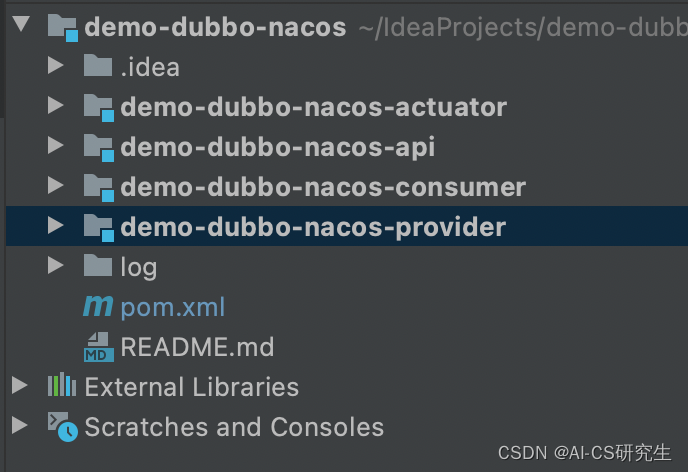

一、整体项目框架：

demo-dubbo-nacos-actuator：服务于SpringCloud Admin进行实例监测和管理；

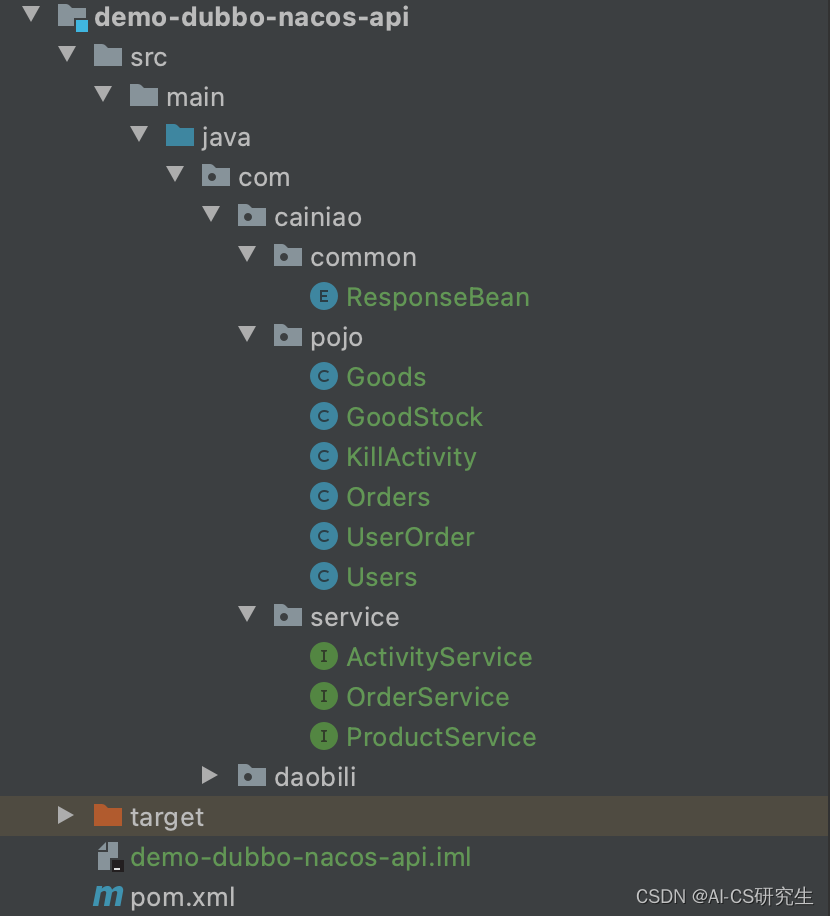

demo-dubbo-nacos-api：抽离出Service层的接口定义；

demo-dubbo-nacos-consumer：Dubbo框架中的消费者端，Controller层（Redis序列化配置部分）；

demo-dubbo-nacos-provider：Dubbo框架中的生产者端，Service的实现类；

二、父pom.xml文件搭建内容

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.daobili</groupId>
    <artifactId>demo-dubbo-nacos</artifactId>
    <version>Beikezhan.M1</version>
    <modules>
        <module>demo-dubbo-nacos-provider</module>
        <module>demo-dubbo-nacos-api</module>
        <module>demo-dubbo-nacos-consumer</module>
        <module>demo-dubbo-nacos-actuator</module>
    </modules>
    <packaging>pom</packaging>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.1.RELEASE</version>
    </parent>

    <dependencies>

        <!--  common-pool2的依赖  -->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-pool2</artifactId>
            <version>2.11.1</version>
        </dependency>

        <!--  Spring Cloud Alibaba的依赖  -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-alibaba-dependencies</artifactId>
            <version>2.1.1.RELEASE</version>
            <type>pom</type>
            <scope>import</scope>
        </dependency>

        <!--   spring cloud 依赖     -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-dependencies</artifactId>
            <version>Greenwich.SR2</version>
            <type>pom</type>
            <scope>import</scope>
        </dependency>

        <!--   fastJson   -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.80</version>
        </dependency>

        <!--   Common共有返回对象工具     -->
        <dependency>
            <groupId>com.github.shalousun</groupId>
            <artifactId>common-util</artifactId>
            <version>1.9.2</version>
        </dependency>

        <!-- swagger -->
        <dependency>
            <groupId>io.swagger</groupId>
            <artifactId>swagger-annotations</artifactId>
            <version>1.6.2</version>
        </dependency>

        <!--  Spring-Web网页组件  -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <!--  Redis 组件   -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>

        <!--    springboot项目启动器    -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>

        <!-- lombok -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.22</version>
            <scope>provided</scope>
        </dependency>

        <!--    mybatis    -->
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.1.4</version>
        </dependency>

        <!--  druid  -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.2.8</version>
        </dependency>

        <!--    junit    -->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
        </dependency>

        <!--    mysql    -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.46</version>
        </dependency>

        <!-- 可选： log4j日志设置 -->
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>1.2.17</version>
        </dependency>
        <dependency>
            <groupId>org.jetbrains</groupId>
            <artifactId>annotations</artifactId>
            <version>RELEASE</version>
            <scope>compile</scope>
        </dependency>
    </dependencies>

</project>

三、微服务监控管理实例模块（actuator）

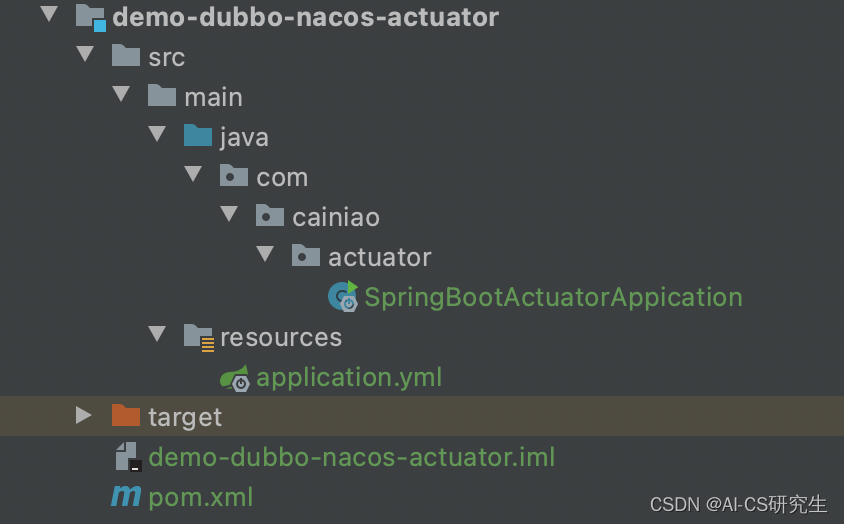

（一）服务架构

（二）子pom.xml文件：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>demo-dubbo-nacos</artifactId>
        <groupId>com.daobili</groupId>
        <version>Beikezhan.M1</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>demo-dubbo-nacos-actuator</artifactId>

    <dependencies>
        <!--   Web依赖     -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <exclusions>
                <exclusion>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-starter-tomcat</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <!--   由于Spring boot的特殊性，这里排除tomcat，引入jetty容器     -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jetty</artifactId>
        </dependency>
        <!--   nacos依赖     -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-alibaba-nacos-discovery</artifactId>
            <version>2.1.1.RELEASE</version>
