【ubuntu opencv qt ++】

---

abstract

demo_path:https://github.com/2012Netsky/pytorch_cnn/blob/main/4_time_series_bikes.ipynb

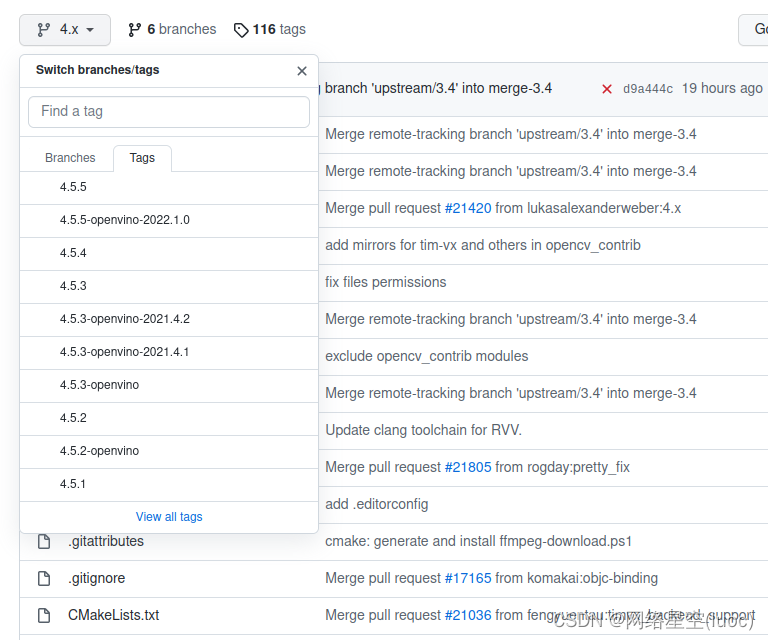

1.download opencv contrib

opencv_path:

1. https://opencv.org/releases/

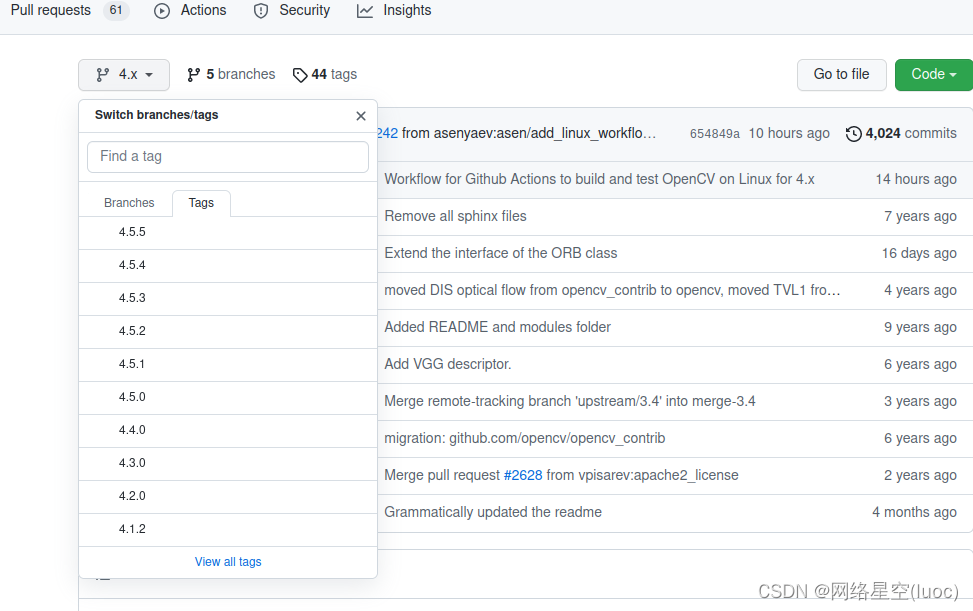

2. https://github.com/opencv/opencv

contrib_path:https://github.com/opencv/opencv_contrib

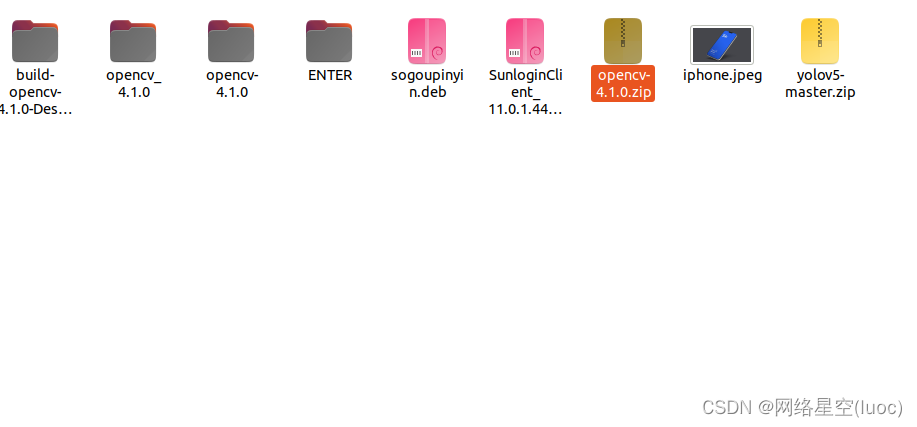

2.exact opencv conrtibute

• exact opencv
• exact contrib
• merge opencv(move contrib folder to opencv folder)

3.install depend libary

• update cmake

 sudo apt-get install cmake

notes：if reminder need apt-get update，fiirst input sudo su,in order to input root，root password is root,second sudo apt-get update

• install depend libary

sudo apt-get install build-essential libgtk2.0-dev libavcodec-dev libavformat-dev libjpeg.dev libtiff5.dev libswscale-dev libjasper-dev

• notes:perform something went wrong

• reason

OpenCV install libjasper-dev liabary error

• method：

sudo add-apt-repository "deb http://security.ubuntu.com/ubuntu xenial-security main"
sudo apt update
sudo apt install libjasper1 libjasper-dev

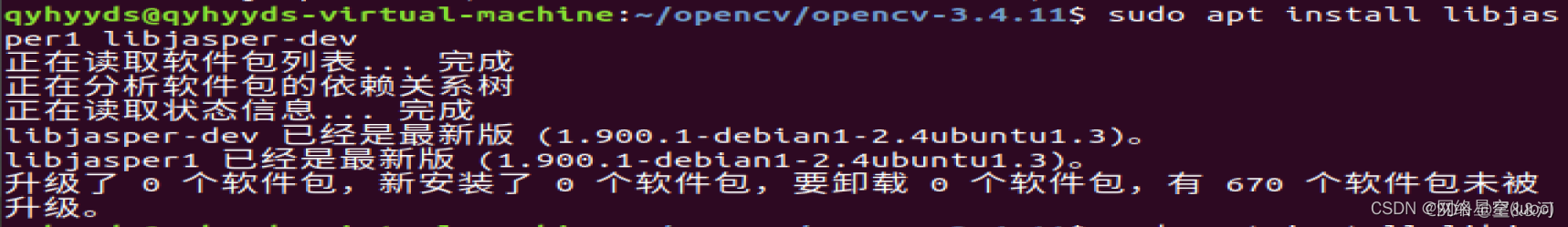

• reinput

sudo apt install libjasper1 libjasper-dev

• visual follow vt ,problem solve

• input

sudo apt-get install build-essential libgtk2.0-dev libavcodec-dev libavformat-dev libjpeg.dev libtiff5.dev libswscale-dev libjasper-dev

• wait minuts

4.install qt creater

1. download qtcreater: https://download.qt.io/archive/qt/5.12/5.12.2/qt-opensource-linux-x64-5.12.2.run
2. install qt creater notes:disconnect the network for skip install login the qt account
3. select qt all and creater

5.use qt open opencv

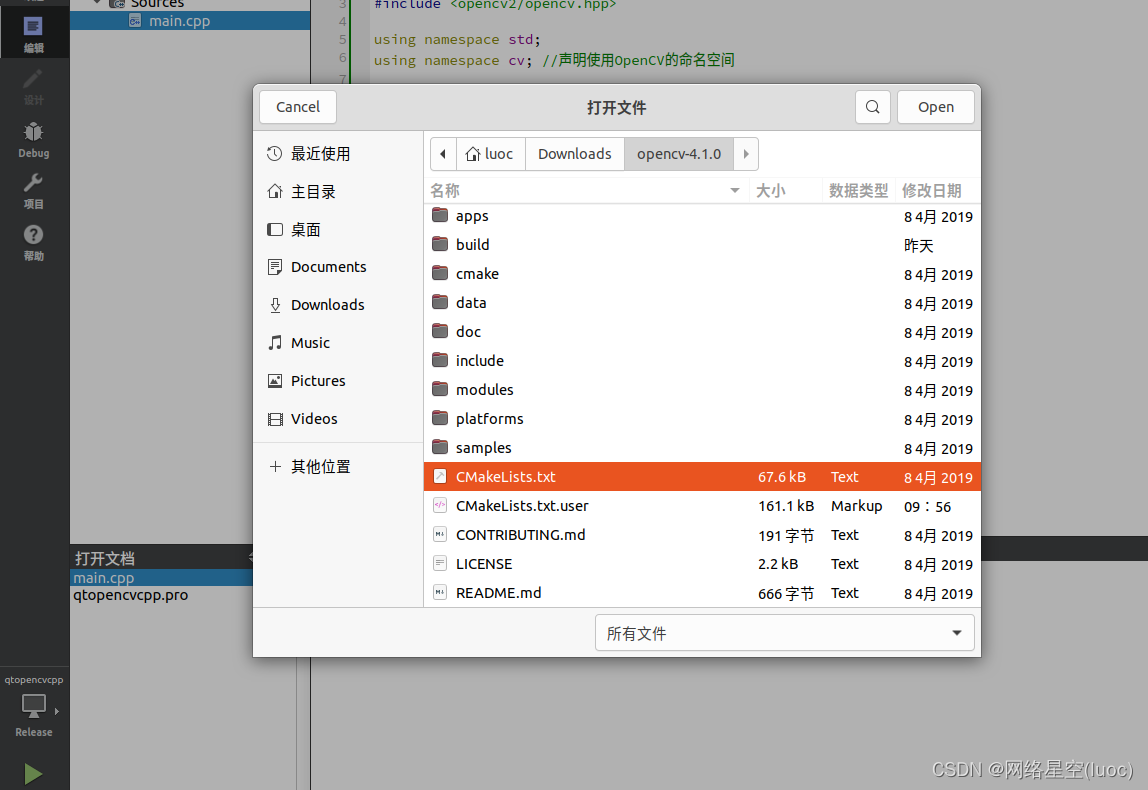

• open cmakelists

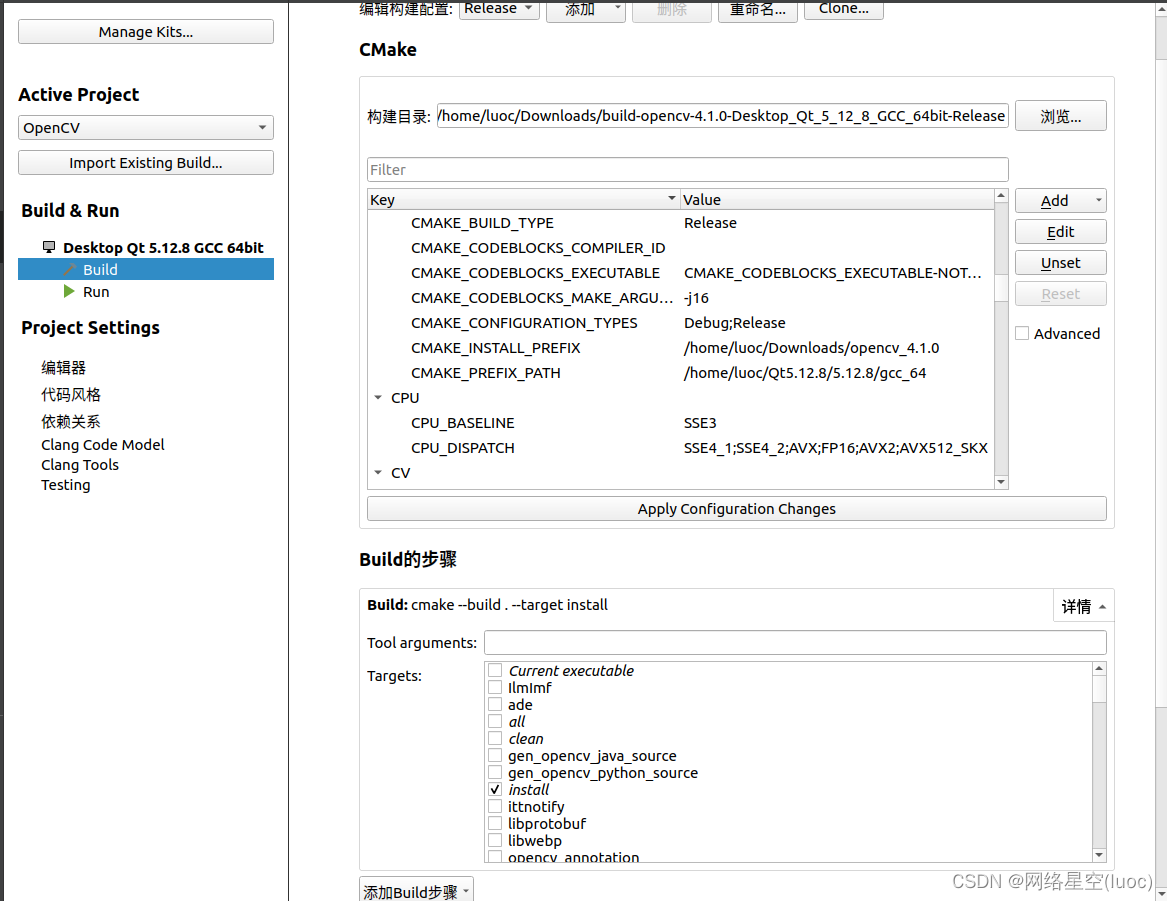

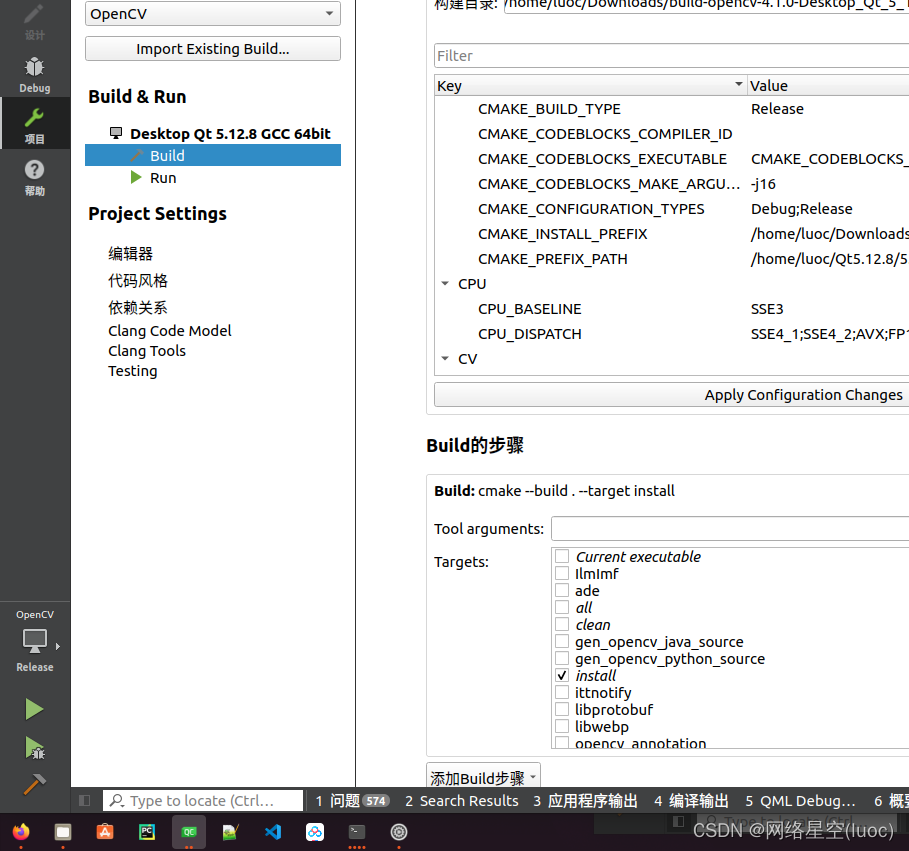

6.configure make envs

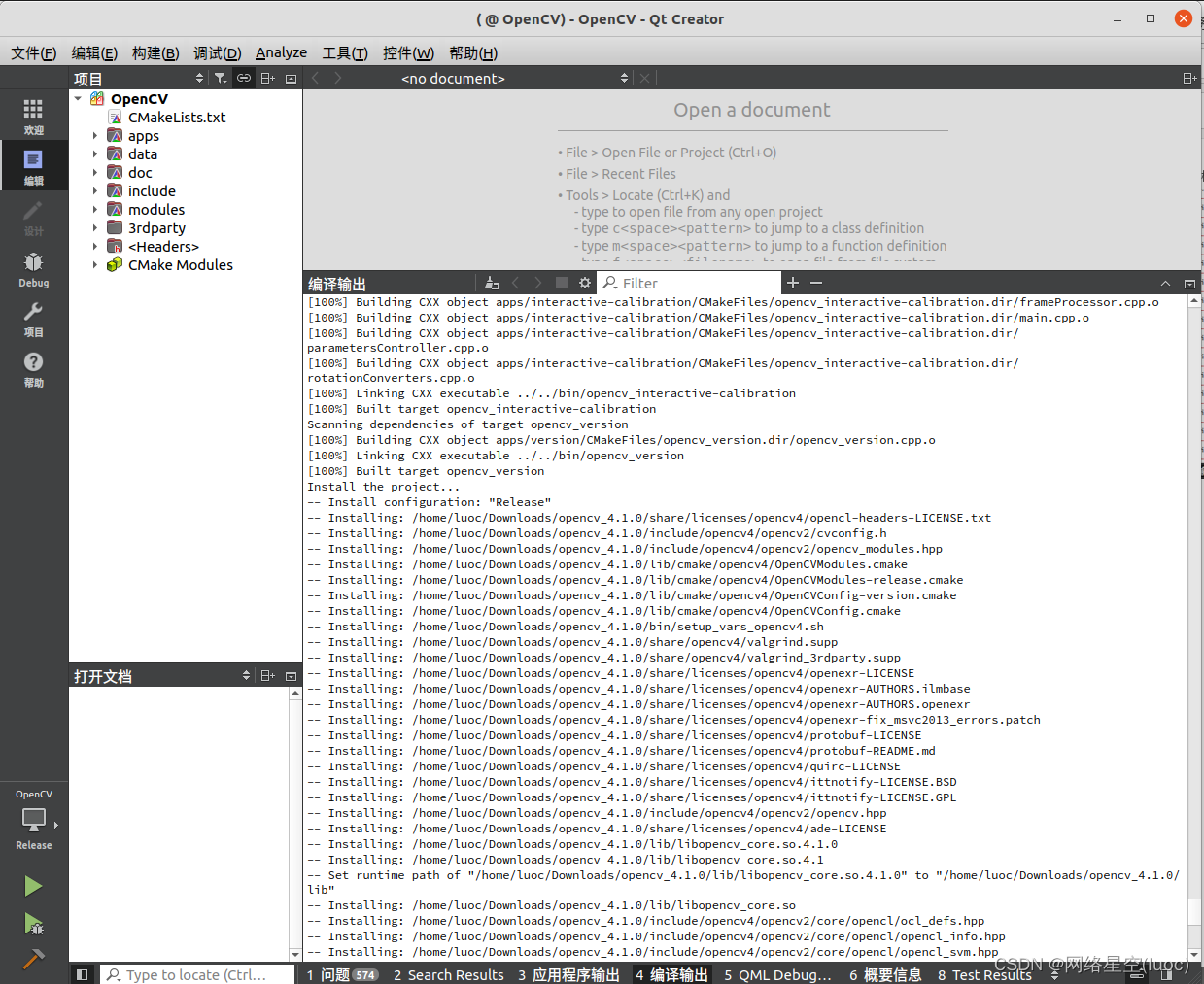

7.make

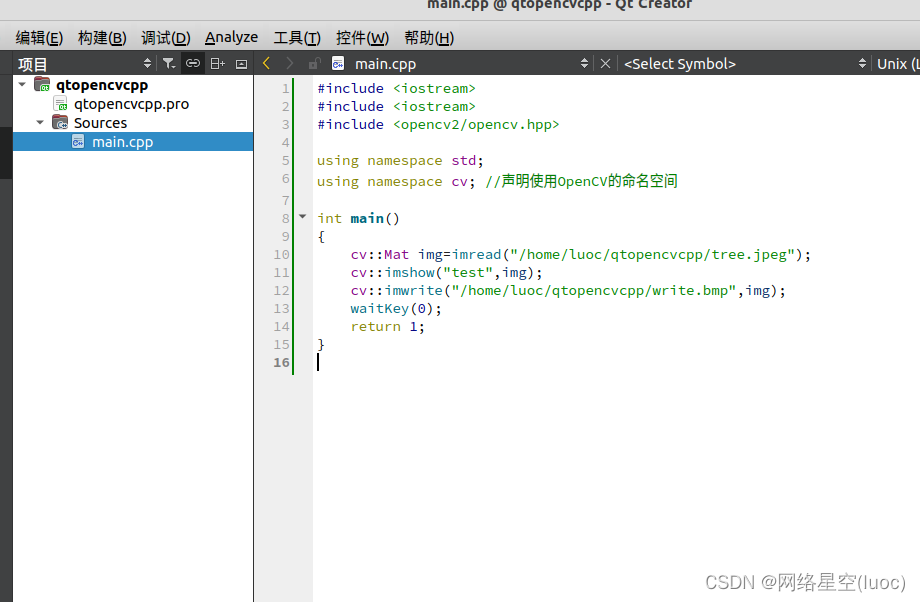

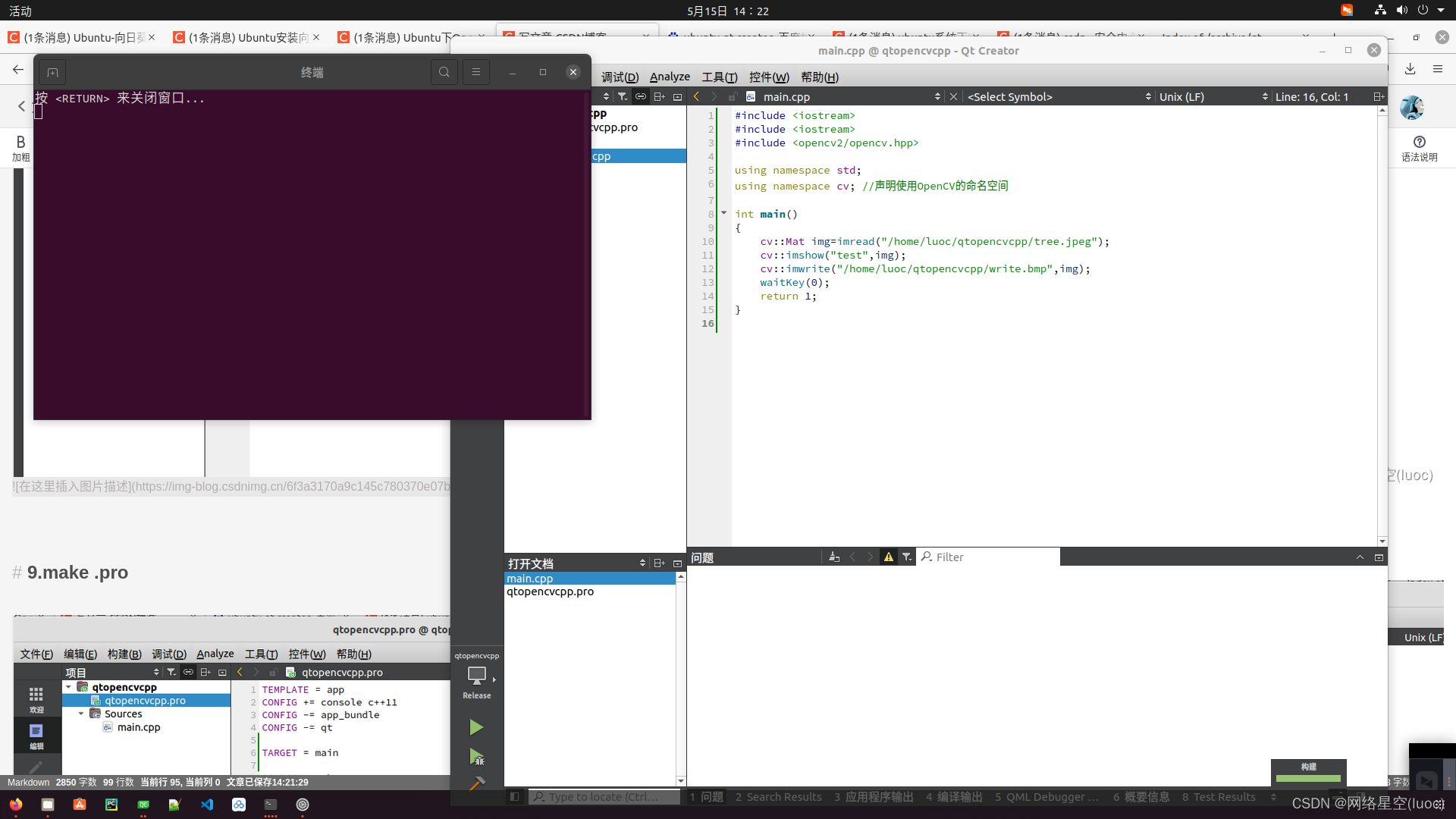

8.use qt develop opencv+c++demo

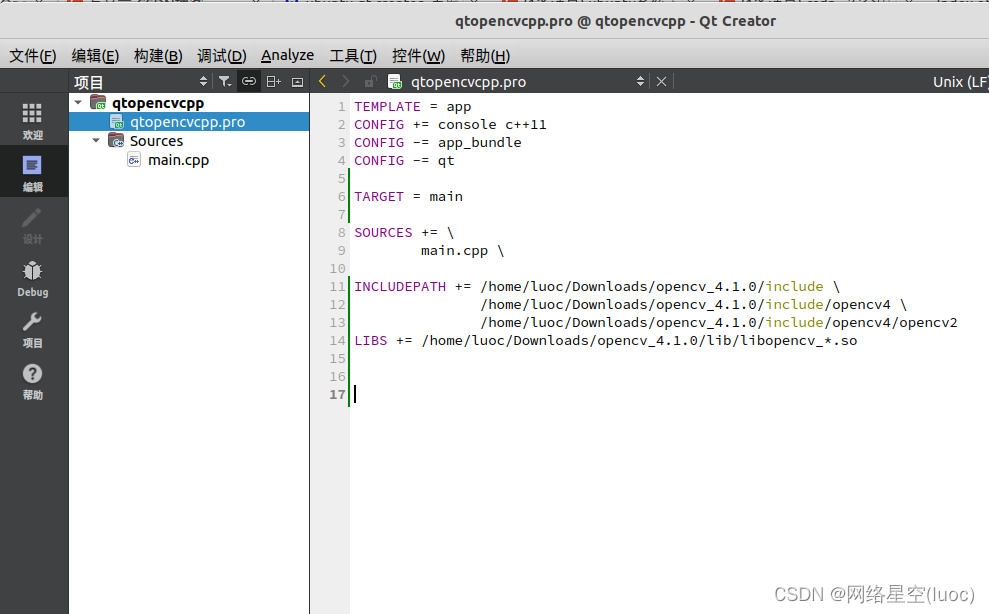

9.make .pro

10.run app
