总结:
1、spring就是一个轻量级的控制反转(IOC)和面相切面(AOP)编程的框架
2、IOC,总结一句话就是对象由spring来创建、管理、装配,其实现方法是依赖注入
3、实现IOC的三种方式:
application.xml配置文件
注解方式:<context:annotation-config/>
java的Configuration(完全舍弃xml文件)
最佳搭配方式:xml负责管理bean,注解负责属性的自动装配
4、@Autowired 是spring的注解 自动装配、@Resource 是java的注解 自动装配
5、AOP切面实现方式:标签<aop>
方式一:Spring内置的AOP接口实现before、after两个接口的类,将类配置在切面中
方式二:自定义类,在类中自定义before、after方法,配置在切面上
方式三:在自定义类上加@Aspect,定义这是一个切面,在类中的方法上加注解@Before、@After定义这些方法是切面里面的方法
6、声明式事务:标签<tx>
配置<tx>事务,声明方法将事务织入切面
定义:spring就是一个轻量级的控制反转(IOC)和面相切面(AOP)编程的框架
IOC(Sping核心)
Inversion of controller 控制反转
控制反转是一种通过描述(xml或注解)并通过第三方去生产或获取特定对象的方式。
在spring中实现控制反转的是IOC容器,其实现方法是依赖注入(Dependency Injection DI)
控制:谁来控制对象的创建,传统应用程序的对象是由程序本身创建的,使用spring后是由spring创建的
反转:程序本身不创建对象,而是被动的接收对象
ApplicationContext context = new ClassPathXmlApplicationContext("beans.xml")
注:当加载了xml文件获取到ioc容器对象context的时候,容器内就已经生成了各个对象
依赖注入:就是利用set方法注入的 (property属性的值由对象的set方法注入)
IOC是一种编程思想,由主动的编程编程被动的接受
所谓的IOC,总结一句话就是对象由spring来创建、管理、装配
实现IOC的三种方式:
- application.xml配置文件
- 注解方式
- java的Configuration(完全舍弃xml文件)
最佳搭配方式:xml负责管理bean,注解负责属性的自动装配
1、xml配置文件实现IOC
使用ClassPathXmlApplicationContext对象加载xml文件获取IOC容器
public class UserController {
public static void main(String[] args) {
//当xml文件被加载之后,所有管理的对象就已经初始化了
ApplicationContext context = new ClassPathXmlApplicationContext("beans.xml");
UserServiceImpl bean = (UserServiceImpl)context.getBean("userServiceImpl");
System.out.println(bean.getUser());
}
}
属性通过set赋值
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
https://www.springframework.org/schema/beans/spring-beans.xsd">
<!--使用spring来创建对象-->
<bean id="hello" class="pojo.Hello">
<property name="str" value="wanghan"/>
</bean>
</beans>
属性通过构造方法赋值
<bean id="hello" class="pojo.Hello">
<constructor-arg name="name" value="wnaghan"/>
</bean>
依赖注入
- 依赖:bean对象的创建依赖于容器
- 注入:bean对象中所有属性,由容器来注入
各种属性配置方式:普通类型、数组、map、list、properties、set等数据类型
<bean id="moreComplexObject" class="example.ComplexObject">
<!-- properties类型数据 -->
<property name="adminEmails">
<props>
<prop key="administrator">administrator@example.org</prop>
<prop key="support">support@example.org</prop>
<prop key="development">development@example.org</prop>
</props>
</property>
<!-- list -->
<property name="someList">
<list>
<value>a list element followed by a reference</value>
<ref bean="myDataSource" />
</list>
</property>
<!-- map -->
<property name="someMap">
<map>
<entry key="an entry" value="just some string"/>
<entry key ="a ref" value-ref="myDataSource"/>
</map>
</property>
<!-- set -->
<property name="someSet">
<set>
<value>just some string</value>
<ref bean="myDataSource" />
</set>
</property>
<!-- 数组 -->
<property name="books">
<array>
<value>三国演义</value>
<value>水浒传</value>
</array>
</property>
</bean>
p命名空间 (set属性注入)
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:p="http://www.springframework.org/schema/p"
xsi:schemaLocation="http://www.springframework.org/schema/beans
https://www.springframework.org/schema/beans/spring-beans.xsd">
<bean name="john-classic" class="com.example.Person">
<property name="name" value="John Doe"/>
<property name="spouse" ref="jane"/>
</bean>
<bean name="john-modern"
class="com.example.Person"
p:name="John Doe"
p:spouse-ref="jane"/>
<bean name="jane" class="com.example.Person">
<property name="name" value="Jane Doe"/>
</bean>
</beans>
c命名空间 (构造器注入)
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:c="http://www.springframework.org/schema/c"
xsi:schemaLocation="http://www.springframework.org/schema/beans
https://www.springframework.org/schema/beans/spring-beans.xsd">
<bean id="beanTwo" class="x.y.ThingTwo"/>
<bean id="beanThree" class="x.y.ThingThree"/>
<!-- traditional declaration with optional argument names -->
<bean id="beanOne" class="x.y.ThingOne">
<constructor-arg name="thingTwo" ref="beanTwo"/>
<constructor-arg name="thingThree" ref="beanThree"/>
<constructor-arg name="email" value="something@somewhere.com"/>
</bean>
<!-- c-namespace declaration with argument names -->
<bean id="beanOne" class="x.y.ThingOne" c:thingTwo-ref="beanTwo"
c:thingThree-ref="beanThree" c:email="something@somewhere.com"/>
</beans>
注意:p命名空间和c命名空间都不能直接使用,需要导入c和p得约束文件
xmlns:c="http://www.springframework.org/schema/p
xmlns:c="http://www.springframework.org/schema/c

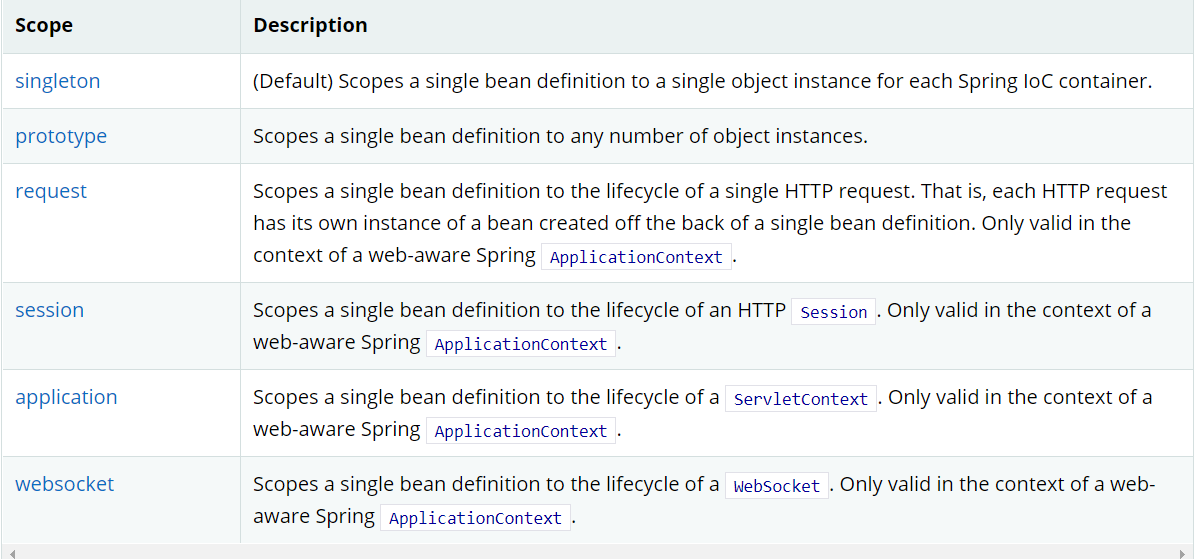

bean作用域
- singleton 单例模式(spring默认机制):只生成一个对象
- prototype 原型模式:生成多个对象
- 其余得request、session、application只有在web开发中才能使用到
bean的自动装配
- 自动装配是Spring满足bean依赖的一种方式
- spring会在上下文中自动寻找,并自动给bean装配属性
byName
byType
2、注解方式实现IOC
使用注解的前提
-
导入AOP的依赖包
-
在application.xml中导入约束文件
-
开启注解和组件包扫描
<--开启注解-->
<context:annotation-config/>
<--使用@Component将类配置到IOC容器中-->
<context:component-scan base-package="com.kayak.pojo"/>
注解说明:
- @Autowired 是spring的注解 自动装配
通过byType方式实现,如果类型不唯一,则需要通过 @Qualifier来指定id名称来实现 - @Resource 是java的注解 自动装配
通过byname方式,如果名字找不到,则通过bytype方式实现 - @Component:组件,放在类上,说明这个类被spring管理了,就是bean!需要在xml中配置组件扫描包的路径
<context:component-scan base-package="pojo"/>
- @Scop:作用域@Scop(“singleton”)或者prototype
@Autowired
@Qualifier(value = "dog") //可以配置不同的id名称
private Dog dog;
@Resource(name = "cat") //可以配置不同的id名称
private Cat cat;
@Component
public class Dog {
public void shout(){
System.out.println("汪");
}
}
3、使用java配置spring实现IOC
使用AnnotationConfigApplicationContext对象加载xml文件获取IOC容器
我们现在 要完全不使用xml配置了,全权交给java来配置
@Configuration
@Import(MyConfiguration2.class) //合并另一个配置类
public class MyConfiguration {
@Bean
public StringStore stringStore() {
return new StringStore();
}
@Bean
public IntegerStore integerStore() {
return new IntegerStore();
}
}
public class MyTest {
public static void main(String[] args) {
//使用AnnotationConfigApplicationContext对象加载xml文件获取IOC容器
ApplicationContext context = new AnnotationConfigApplicationContext(MyConfig.class);
People people = context.getBean("people", People.class);
people.getCat().shout();
people.getDog().shout();
}
}
代理模式
springAOP的底层就是代理模式
代理模式的分类:
1、静态代理
代理模式的好处:
- 可以使真实角色的操作更加纯粹,不用去关注一些公共业务
- 公共业务交给代理角色
- 公共业务发生拓展时,方便集中管理(可以在不改变原有代码的基础上,增加新的业务)
静态代理模式的缺点:
一种真实角色就会产生一种代理角色,代码量会翻倍,静态代理只能代理一个接口
(例如房屋中介,只代理房东租房,不做婚介)
代码步骤:
接口(租房)
//租房接口
public interface Rent {
void rent();
}
真实角色(房东)
public class Host implements Rent {
public void rent() {
System.out.println("我是房东,我要出租房子");
}
}
代理角色(中介)
public class Proxy implements Rent {
//房东Host实现租房的接口
//租房的接口
private Rent rent;
public Proxy() {
}
public Proxy(Rent rent) {
this.rent = rent;
}
public void rent() {
rent.rent();
}
//属于公共事务,交由代理对象办理,公共事务变更时,代码更易于管理
public void payServicefee(){
System.out.println("交物业费");
}
}
客户访问(客户)
//客户租房
public class Client {
public static void main(String[] args) {
//host房东
Host host = new Host();
//找代理对象,代理对象有参构造传入房东,房东出租房子
Proxy proxy = new Proxy(host);
proxy.rent();
//执行代理对象中的公共事务方法
proxy.payServicefee();
}
}
代理模式的理解
2、动态代理(反射实现)
- 动态代理和静态代理角色一样
- 动态代理的代理类是动态生成的
- 动态代理分为两大类:
1、基于接口的动态代理—JDK的动态代理
2、基于类的动态代理—cglib
3、java字节码实现 : javasist
需要了解两个类:Proxy代理、InvocationHandler调用处理
动态代理理解:
1、动态代理实现InvocationHandler接口
2、利用Proxy里面的静态方法 Proxy.newProxyInstance()得到代理实例
3、实现InvocationHandler接口中的方法,method.invoke(),执行代理接口中的方法
//自定义动态代理
public class ProxyInvocationHandler implements InvocationHandler {
//定义接口
private Object target;
public void setTarget(Object target) {
this.target = target;
}
//通过反射获取代理对象
public Object getProxy() {
return Proxy.newProxyInstance(this.getClass().getClassLoader(), target.getClass().getInterfaces(), this);
}
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
//method指代理接口的方法
Object result = method.invoke(target, args);//执行调用代理接口的方法
payServicefee();//执行拓展的公共事务
return result;
}
//拓展的公共事务
public void payServicefee() {
System.out.println("交物业费");
}
}
public class Client {
public static void main(String[] args) {
//获取动态代理工具
ProxyInvocationHandler pih = new ProxyInvocationHandler();
//target属性注入要代理的对象
pih.setTarget(new Host());
//获取代理对象
Rent proxy = (Rent) pih.getProxy();
//代理对象执行方法
proxy.rent();
}
}
AOP
方式一:spring的API接口
@Component
public class Log implements MethodBeforeAdvice {
// method:要执行的目标对象的方法
//args:参数
//target:目标对象
public void before(Method method, Object[] args, Object target) throws Throwable {
System.out.println(target.getClass().getName()+"的"+method.getName()+"被执行了");
}
}
@Component
public class AfterLog implements AfterReturningAdvice {
//oreturnValue:返回值
public void afterReturning(Object turnValue, Method method, Object[] args, Object target) throws Throwable {
System.out.println("执行了"+method.getName()+"返回结果为:"+turnValue);
}
}
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:aop="http://www.springframework.org/schema/aop"
xmlns:tx="http://www.springframework.org/schema/tx"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-2.0.xsd
http://www.springframework.org/schema/aop
http://www.springframework.org/schema/aop/spring-aop-2.0.xsd
http://www.springframework.org/schema/tx
http://www.springframework.org/schema/tx/spring-tx-2.0.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd">
<context:component-scan base-package="com.kuang"/>
<context:annotation-config/>
<!--配置AOP:需要导入aop约束-->
<aop:config>
<!--切入点;expression-->
<aop:pointcut id="myPointCut" expression="execution(* com.kuang.service.*.*(..))"/>
<!--执行环绕-->
<aop:advisor advice-ref="log" pointcut-ref="myPointCut"/>
<aop:advisor advice-ref="afterLog" pointcut-ref="myPointCut"/>
</aop:config>
</beans>
方式二:自定义类实现aop(切面定义)
@Component
public class MyAspect {
public void before(){
System.out.println("方法执行前");
}
public void after() {
System.out.println("方法执行后");
}
}
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:aop="http://www.springframework.org/schema/aop"
xmlns:tx="http://www.springframework.org/schema/tx"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-2.0.xsd
http://www.springframework.org/schema/aop
http://www.springframework.org/schema/aop/spring-aop-2.0.xsd
http://www.springframework.org/schema/tx
http://www.springframework.org/schema/tx/spring-tx-2.0.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd">
<context:component-scan base-package="com.kuang"/>
<context:annotation-config/>
<aop:config>
<aop:aspect ref="myAspect">
<aop:pointcut id="diy" expression="execution(* com.kuang.service.*.*(..))"/>
<aop:before method="before" pointcut-ref="diy"/>
<aop:after method="after" pointcut-ref="diy"/>
</aop:aspect>
</aop:config>
</beans>
方式三:注解实现aop
@Component
@Aspect
public class AnnotationPointCut {
@Before("execution(* com.kuang.service.*.*(..))")
public void before(){
System.out.println("方法执行前");
}
@After("execution(* com.kuang.service.*.*(..))")
public void after(){
System.out.println("方法执行后");
}
}
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:aop="http://www.springframework.org/schema/aop"
xmlns:tx="http://www.springframework.org/schema/tx"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-2.0.xsd
http://www.springframework.org/schema/aop
http://www.springframework.org/schema/aop/spring-aop-2.0.xsd
http://www.springframework.org/schema/tx
http://www.springframework.org/schema/tx/spring-tx-2.0.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd">
<context:component-scan base-package="com.kuang"/>
<context:annotation-config/>
<!--开启aop注解-->
<aop:aspectj-autoproxy/>
</beans>
整合Mybatis
导spring-jdbc包
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>5.2.9.RELEASE</version>
</dependency>
spring整合mybatis,就是将数据源、sqlSessionFactory、sqlSession交由IOC容器管理,再由mapper接口的实现类装配sqlsession
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd">
<!--将数据源交给IOC-->
<bean id="dataSource" class="org.springframework.jdbc.datasource.DriverManagerDataSource">
<property name="driverClassName" value="com.mysql.jdbc.Driver"/>
<property name="url" value="jdbc:mysql://192.168.168.132:3306/test"/>
<property name="username" value="root"/>
<property name="password" value="root"/>
</bean>
<!--将sqlSessionFactory交给IOC,并将数据源装配给sqlSessionFactory-->
<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
<property name="dataSource" ref="dataSource"/>
<!--可以引入mybatis-config原始的配置文件,其他的配置属性可以生效-->
<property name="configLocation" value="classpath:mybatis-config.xml"/>
<!--设置mapper的引入路径,也可以在mybatis-config.xml中配置,然后由configLocation引入-->
<property name="mapperLocations" value="classpath:mapper/*.xml"/>
</bean>
<!--将sqlsession交给IOC容器,Spring框架中由sqlSessionTemplate代替sqlSession-->
<bean id="sqlSession" class="org.mybatis.spring.SqlSessionTemplate">
<constructor-arg name="sqlSessionFactory" ref="sqlSessionFactory"/>
</bean>
<!--mapper接口的实现类,并用set方法,将sqlSessionTemplate装配到实现类中-->
<bean id="userMapper" class="mapper.UserMapperImpl">
<property name="sqlSession" ref="sqlSession"/>
</bean>
</beans>
public class UserMapperImpl implements UserMapper {
private SqlSessionTemplate sqlSession;
public void setSqlSession(SqlSessionTemplate sqlSession) {
this.sqlSession = sqlSession;
}
public List<User> query() {
UserMapper mapper = sqlSession.getMapper(UserMapper.class);
return mapper.query();
}
}
public class MybatisTest {
public static void main(String[] args) {
ApplicationContext context = new ClassPathXmlApplicationContext("application.xml");
UserMapper mapper = context.getBean("userMapper", UserMapper.class);
for (User user : mapper.query()) {
System.out.println(user);
}
}
}
声明式事务
- 要么都成功,要么都失败
- 事务在开发中十分重要,涉及到数据的一致性,不能马虎!
- 确保完整性和一致性
事务的ACID原则
- 原子性 :是指事务的所有操作在数据库中要么全部正确反映出来,要么全部不反映
- 一致性:必须是使数据库从一个一致性状态变到另一个一致性状态
- 隔离性:一个事务内部的操作及使用的数据对并发的其他事务是隔离的
- 持久性:事务一旦提交,对数据库的修改就是永远的
sring中事务管理:
- 声明式事务
- 编程式事务
<!--结合AOP实现事务的织入-->
<!--配置声明式事务-->
<bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
<property name="dataSource" ref="dataSource"/>
</bean>
<tx:advice id="txAdvice" transaction-manager="transactionManager">
<tx:attributes>
<!--给哪些方法配置事务-->
<!--配置事务的传播性:new propagation-->
<tx:method name="*" propagation="REQUIRED"/>
<tx:method name="query" read-only="false"/>
</tx:attributes>
</tx:advice>
<!--配置事务切入-->
<aop:config>
<aop:pointcut id="myPoint" expression="execution(* mapper.UserMapperImpl.*(..))"/>
<aop:advisor advice-ref="txAdvice" pointcut-ref="myPoint"/>
</aop:config>
