nginx配置ws

前言

nginx支持ws协议的配置

配置

map $http_upgrade $connection_upgrade {
    default upgrade;
    '' close;
}

upstream BackendIotWs {
    server 10.0.0.110:7004 weight=1;
}

server {

	listen          80;
    server_name     ws.iot.com;

	location / {
		try_files $uri $uri/  /index.html last;
		root   "/usr/local/openresty/nginx/std/manage/";
        index  index.html index.htm;
	}

	location /ws/iot {
        proxy_pass http://BackendIotWs
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection $connection_upgrade;
        proxy_read_timeout 3600s;
        proxy_connect_timeout 86400;
        proxy_ignore_client_abort on;
	}

}

测试

• 访问地址：ws://ws.iot.com/ws/iot

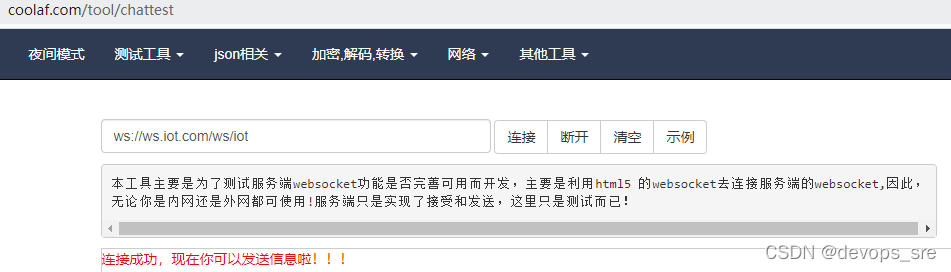

• 测试地址：http://coolaf.com/tool/chattest，测试正常结果，如下所示

结语

测试ws访问的地址
