Flink on k8s 入门实战

背景

最近一直在学习flink on k8s，踩了不少坑，折腾了好几天，终于是达到了自己想要的效果。

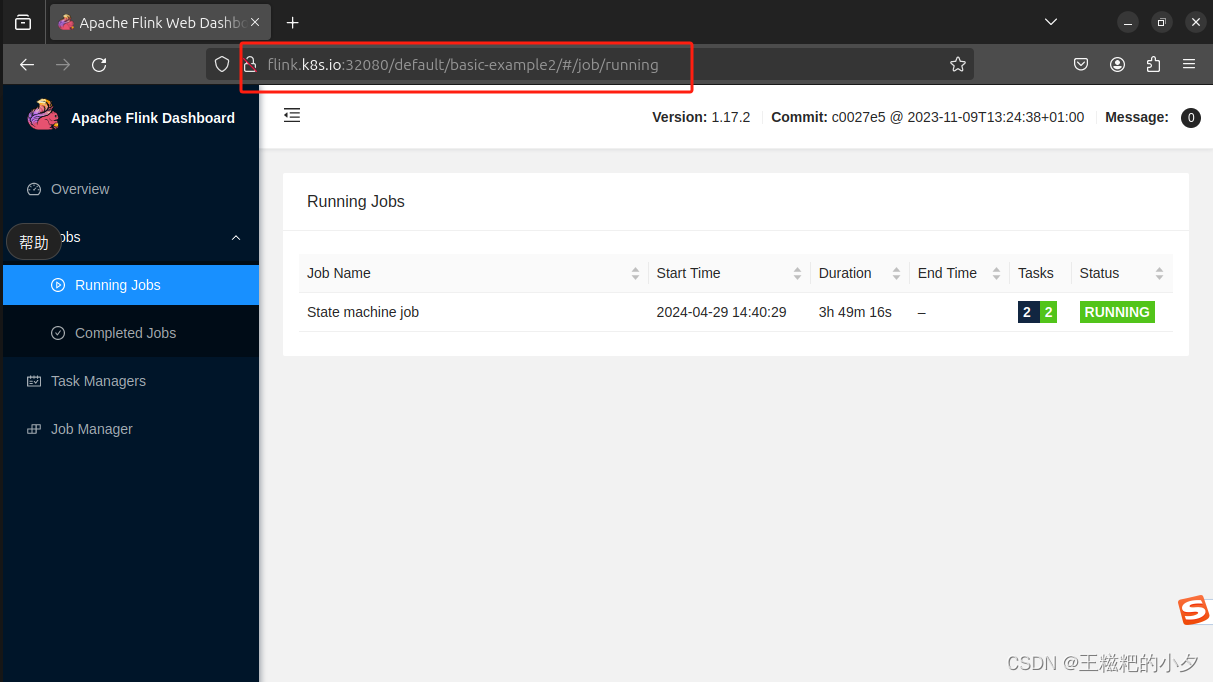

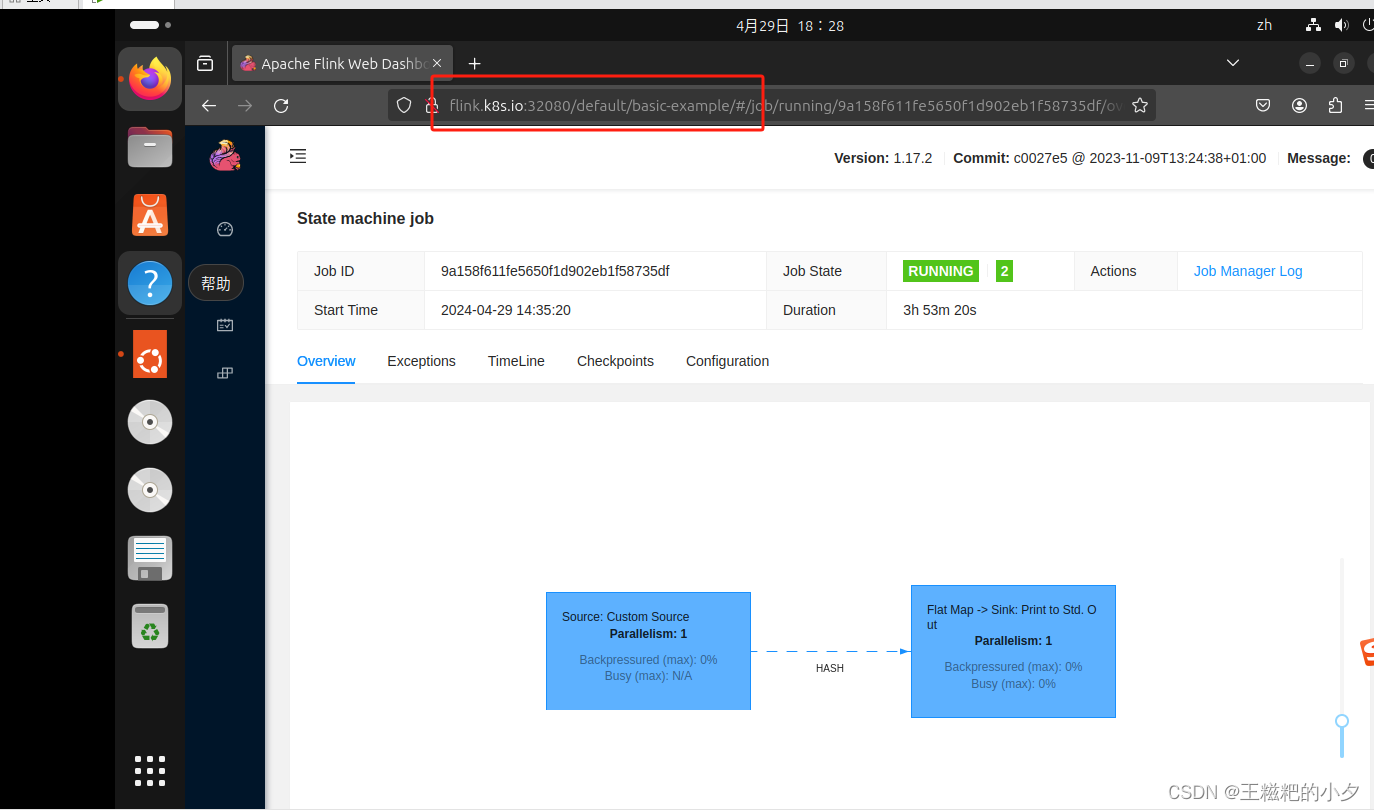

首先说一下，我要实现的效果是什么？Application模式下，ip和端口保持不变，根据不同的路径访问不同的任务。

环境部署

这一步也是我遇到问题最多的一步，最开始尝试用我的mac本用minicube来部署k8s集群，但是后来有docker对mac做了网络上的限制，导致无法通过容器ip直接访问，所以后来就放弃，具体原因可以查看 https://blog.csdn.net/b5wang/article/details/119082508

然后我就用windows系统，装了一个linux带图形化的虚拟机，经过一系列折腾后，终于是实现了。下面是具体的步骤

minicube安装

curl -LO https://storage.googleapis.com/minikube/releases/latest/minikube-linux-amd64
sudo install minikube-linux-amd64 /usr/local/bin/minikube && rm minikube-linux-amd64

k8s安装

加上这个配置 --image-mirror-country=‘cn’ ，可以使用国内的镜像

minikube start --kubernetes-version=v1.25.3 --image-mirror-country='cn'

curl -LO "https://dl.k8s.io/release/$(curl -L -s https://dl.k8s.io/release/stable.txt)/bin/linux/amd64/kubectl"
chmod +x kubectl
mv kubectl /usr/local/bin/

helm安装

curl -fsSL -o get_helm.sh https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-3
chmod 700 get_helm.sh
./get_helm.sh

k8s 中的 ingress 安装

这一步很重要
deploy.yaml

apiVersion: v1
kind: Namespace
metadata:
  labels:
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx
---
apiVersion: v1
automountServiceAccountToken: true
kind: ServiceAccount
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.7.0
  name: ingress-nginx
  namespace: ingress-nginx
---
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.7.0
  name: ingress-nginx-admission
  namespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.7.0
  name: ingress-nginx
  namespace: ingress-nginx
rules:
- apiGroups:
  - ""
  resources:
  - namespaces
  verbs:
  - get
- apiGroups:
  - ""
  resources:
  - configmaps
  - pods
  - secrets
  - endpoints
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - services
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - networking.k8s.io
  resources:
  - ingresses
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - networking.k8s.io
  resources:
  - ingresses/status
  verbs:
  - update
- apiGroups:
  - networking.k8s.io
  resources:
  - ingressclasses
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - coordination.k8s.io
  resourceNames:
  - ingress-nginx-leader
  resources:
  - leases
  verbs:
  - get
  - update
- apiGroups:
  - coordination.k8s.io
  resources:
  - leases
  verbs:
  - create
- apiGroups:
  - ""
  resources:
  - events
  verbs:
  - create
  - patch
- apiGroups:
  - discovery.k8s.io
  resources:
  - endpointslices
  verbs:
  - list
  - watch
  - get
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.7.0
  name: ingress-nginx-admission
  namespace: ingress-nginx
rules:
- apiGroups:
  - ""
  resources:
  - secrets
  verbs:
  - get
  - create
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.7.0
  name: ingress-nginx
rules:
- apiGroups:
  - ""
  resources:
  - configmaps
  - endpoints
  - nodes
  - pods
  - secrets
  - namespaces
  verbs:
  - list
  - watch
- apiGroups:
  - coordination.k8s.io
  resources:
  - leases
  verbs:
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - nodes
  verbs:
  - get
- apiGroups:
  - ""
  resources:
  - services
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - networking.k8s.io
  resources:
  - ingresses
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - events
  verbs:
  - create
  - patch
- apiGroups:
  - networking.k8s.io
  resources:
  - ingresses/status
  verbs:
  - update
- apiGroups:
  - networking.k8s.io
  resources:
  - ingressclasses
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - discovery.k8s.io
  resources:
  - endpointslices
  verbs:
  - list
  - watch
  - get
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.7.0
  name: ingress-nginx-admission
rules:
- apiGroups:
  - admissionregistration.k8s.io
  resources:
  - validatingwebhookconfigurations
  verbs:
  - get
  - update
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.7.0
  name: ingress-nginx
  namespace: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: ingress-nginx
subjects:
- kind: ServiceAccount
  name: ingress-nginx
  namespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.7.0
  name: ingress-nginx-admission
  namespace: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: ingress-nginx-admission
subjects:
- kind: ServiceAccount
  name: ingress-nginx-admission
  namespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.7.0
  name: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: ingress-nginx
subjects:
- kind: ServiceAccount
  name: ingress-nginx
  namespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.7.0
  name: ingress-nginx-admission
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: ingress-nginx-admission
subjects:
- kind: ServiceAccount
  name: ingress-nginx-admission
  namespace: ingress-nginx
---
apiVersion: v1
data:
  allow-snippet-annotations: "true"
kind: ConfigMap
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.7.0
  name: ingress-nginx-controller
  namespace: ingress-nginx
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.7.0
  name: ingress-nginx-controller
  namespace: ingress-nginx
spec:
  externalTrafficPolicy: Local
  ipFamilies:
  - IPv4
  ipFamilyPolicy: SingleStack
  ports:
  - appProtocol: http
    name: http
    port: 80
    protocol: TCP
    targetPort: http
    nodePort: 32080
  - appProtocol: https
    name: https
    port: 443
    protocol: TCP
    targetPort: https
    nodePort: 32443
  selector:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  type: NodePort
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.7.0
  name: ingress-nginx-controller-admission
  namespace: ingress-nginx
spec:
  ports:
  - appProtocol: https
    name: https-webhook
    port: 443
    targetPort: webhook
  selector:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  type: ClusterIP
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.7.0
  name: ingress-nginx-controller
  namespace: ingress-nginx
spec:
  minReadySeconds: 0
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      app.kubernetes.io/component: controller
      app.kubernetes.io/instance: ingress-nginx
      app.kubernetes.io/name: ingress-nginx
  template:
    metadata:
      labels:
        app.kubernetes.io/component: controller
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/version: 1.7.0
    spec:
      containers:
      - args:
        - /nginx-ingress-controller
        - --publish-service=$(POD_NAMESPACE)/ingress-nginx-controller
        - --election-id=ingress-nginx-leader
        - --controller-class=k8s.io/ingress-nginx
        - --ingress-class=nginx
        - --configmap=$(POD_NAMESPACE)/ingress-nginx-controller
        - --validating-webhook=:8443
        - --validating-webhook-certificate=/usr/local/certificates/cert
        - --validating-webhook-key=/usr/local/certificates/key
        env:
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        - name: LD_PRELOAD
          value: /usr/local/lib/libmimalloc.so
        image: k8s.dockerproxy.com/ingress-nginx/controller:v1.7.0@sha256:7612338342a1e7b8090bef78f2a04fffcadd548ccaabe8a47bf7758ff549a5f7
        imagePullPolicy: IfNotPresent
        lifecycle:
          preStop:
            exec:
              command:
              - /wait-shutdown
        livenessProbe:
          failureThreshold: 5
          httpGet:
            path: /healthz
            port: 10254
            scheme: HTTP
          initialDelaySeconds: 10
          periodSeconds: 10
          successThreshold: 1
          timeoutSeconds: 1
        name: controller
        ports:
        - containerPort: 80
          name: http
          protocol: TCP
        - containerPort: 443
          name: https
          protocol: TCP
        - containerPort: 8443
          name: webhook
          protocol: TCP
        readinessProbe:
          failureThreshold: 3
          httpGet:
            path: /healthz
            port: 10254
            scheme: HTTP
          initialDelaySeconds: 10
          periodSeconds: 10
          successThreshold: 1
          timeoutSeconds: 1
        resources:
          requests:
            cpu: 100m
            memory: 90Mi
        securityContext:
          allowPrivilegeEscalation: true
          capabilities:
            add:
            - NET_BIND_SERVICE
            drop:
            - ALL
          runAsUser: 101
        volumeMounts:
        - mountPath: /usr/local/certificates/
          name: webhook-cert
          readOnly: true
      dnsPolicy: ClusterFirst
      nodeSelector:
        kubernetes.io/os: linux
      serviceAccountName: ingress-nginx
      terminationGracePeriodSeconds: 300
      volumes:
      - name: webhook-cert
        secret:
          secretName: ingress-nginx-admission
---
apiVersion: batch/v1
kind: Job
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.7.0
  name: ingress-nginx-admission-create
  namespace: ingress-nginx
spec:
  template:
    metadata:
      labels:
        app.kubernetes.io/component: admission-webhook
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/version: 1.7.0
      name: ingress-nginx-admission-create
    spec:
      containers:
      - args:
        - create
        - --host=ingress-nginx-controller-admission,ingress-nginx-controller-admission.$(POD_NAMESPACE).svc
        - --namespace=$(POD_NAMESPACE)
        - --secret-name=ingress-nginx-admission
        env:
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        image: k8s.dockerproxy.com/ingress-nginx/kube-webhook-certgen:v20230312-helm-chart-4.5.2-28-g66a760794@sha256:01d181618f270f2a96c04006f33b2699ad3ccb02da48d0f89b22abce084b292f
        imagePullPolicy: IfNotPresent
        name: create
        securityContext:
          allowPrivilegeEscalation: false
      nodeSelector:
        kubernetes.io/os: linux
      restartPolicy: OnFailure
      securityContext:
        fsGroup: 2000
        runAsNonRoot: true
        runAsUser: 2000
      serviceAccountName: ingress-nginx-admission
---
apiVersion: batch/v1
kind: Job
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.7.0
  name: ingress-nginx-admission-patch
  namespace: ingress-nginx
spec:
  template:
    metadata:
      labels:
        app.kubernetes.io/component: admission-webhook
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/version: 1.7.0
      name: ingress-nginx-admission-patch
    spec:
      containers:
      - args:
        - patch
        - --webhook-name=ingress-nginx-admission
        - --namespace=$(POD_NAMESPACE)
        - --patch-mutating=false
        - --secret-name=ingress-nginx-admission
        - --patch-failure-policy=Fail
        env:
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        image: k8s.dockerproxy.com/ingress-nginx/kube-webhook-certgen:v20230312-helm-chart-4.5.2-28-g66a760794@sha256:01d181618f270f2a96c04006f33b2699ad3ccb02da48d0f89b22abce084b292f
        imagePullPolicy: IfNotPresent
        name: patch
        securityContext:
          allowPrivilegeEscalation: false
      nodeSelector:
        kubernetes.io/os: linux
      restartPolicy: OnFailure
      securityContext:
        fsGroup: 2000
        runAsNonRoot: true
        runAsUser: 2000
      serviceAccountName: ingress-nginx-admission
---
apiVersion: networking.k8s.io/v1
kind: IngressClass
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.7.0
  name: nginx
spec:
  controller: k8s.io/ingress-nginx
---
apiVersion: admissionregistration.k8s.io/v1
kind: ValidatingWebhookConfiguration
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.7.0
  name: ingress-nginx-admission
webhooks:
- admissionReviewVersions:
  - v1
  clientConfig:
    service:
      name: ingress-nginx-controller-admission
      namespace: ingress-nginx
      path: /networking/v1/ingresses
  failurePolicy: Fail
  matchPolicy: Equivalent
  name: validate.nginx.ingress.kubernetes.io
  rules:
  - apiGroups:
    - networking.k8s.io
    apiVersions:
    - v1
    operations:
    - CREATE
    - UPDATE
    resources:
    - ingresses
  sideEffects: None

然后执行

kubectl apply -f deploy.yaml

此时需要等一会，执行命令 kubectl get all -n ingress-nginx 就可以看到下面这样

在这里插入图片描述

Deploying the operator

kubectl create -f https://github.com/jetstack/cert-manager/releases/download/v1.8.2/cert-manager.yaml
helm repo add flink-operator-repo https://downloads.apache.org/flink/flink-kubernetes-operator-1.8.0/
helm install flink-kubernetes-operator flink-operator-repo/flink-kubernetes-operator --set image.repository=apache/flink-kubernetes-operator

运行flink任务

注意这两个除了任务名不一样外，其它都是一样的

FlinkApplicaiton.yaml

apiVersion: flink.apache.org/v1beta1
kind: FlinkDeployment
metadata:
  name: basic-example
spec:
  image: flink:1.17
  flinkVersion: v1_17
  ingress:   # ingress配置，用于访问flink web页面
    template: "flink.k8s.io/{{namespace}}/{{name}}(/|$)(.*)"
    className: "nginx"
    annotations:
      nginx.ingress.kubernetes.io/rewrite-target: "/$2"
  flinkConfiguration:
    taskmanager.numberOfTaskSlots: "1"
  serviceAccount: flink
  jobManager:
    resource:
      memory: "1048m"
      cpu: 1
  taskManager:
    resource:
      memory: "1048m"
      cpu: 1
  job:
    jarURI: local:///opt/flink/examples/streaming/StateMachineExample.jar
    parallelism: 1
    upgradeMode: stateless

FlinkApplicaiton2.yaml

apiVersion: flink.apache.org/v1beta1
kind: FlinkDeployment
metadata:
  name: basic-example2
spec:
  image: flink:1.17
  flinkVersion: v1_17
  ingress:   # ingress配置，用于访问flink web页面
    template: "flink.k8s.io/{{namespace}}/{{name}}(/|$)(.*)"
    className: "nginx"
    annotations:
      nginx.ingress.kubernetes.io/rewrite-target: "/$2"
  flinkConfiguration:
    taskmanager.numberOfTaskSlots: "1"
  serviceAccount: flink
  jobManager:
    resource:
      memory: "1048m"
      cpu: 1
  taskManager:
    resource:
      memory: "1048m"
      cpu: 1
  job:
    jarURI: local:///opt/flink/examples/streaming/StateMachineExample.jar
    parallelism: 1
    upgradeMode: stateless

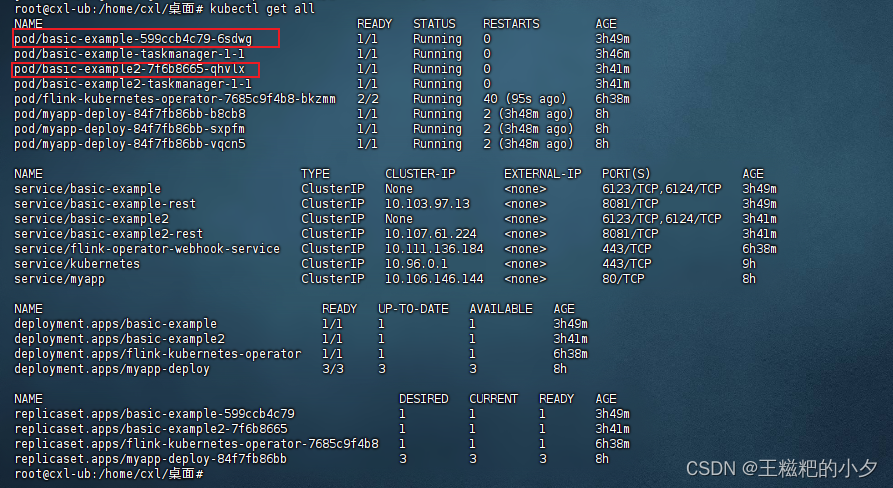

分别执行命令

kubectl apply -f FlinkApplication.yaml
kubectl apply -f FlinkApplication2.yaml

在这里插入图片描述
在这里插入图片描述
因为我这里使用minicube部署的k8s，所有上图中的adress地址是不能访问的，要用docker中的minicube容器的ip地址才可以。
查看minicube 的ip
在这里插入图片描述
配置host信息

vim /etc/hosts

192.168.49.2 flink.k8s.io

然后打开浏览器，注意这里要用虚拟机里面的浏览器
注意两个任务的url是不一样的
在这里插入图片描述

在这里插入图片描述

至此我们就完成了我们最初的目的。当然这里面部署过程中遇到了很多问题。每一个坑都要自己亲身经历才知道，这就是升级打怪吧。

【Flink on k8s】- 0 - Flink kubernetes operator 快速入门与实战
欢迎来到我的博客，一起探索代码里的世界！
11-30 564
1、课程目录2、课程链接。
【Flink on k8s】- 0 - flink kubernetes operator 入门与实践
欢迎来到我的博客，一起探索代码里的世界！
11-02 702
课程链接：https://edu.csdn.net/course/detail/38831
flink on k8s
JavaCoder_juejue的博客
09-15 1626
echo "示例: $0 'k8s01 k8s02 k8s03 k8s04 k8s05' /path/to/file /remote/directory"echo "示例: $0 'k8s01 k8s02 k8s03 k8s04 k8s05' 'cd /aaa/bbb;echo "正在将文件 $SOURCE_FILE 传输到 $SERVER:$REMOTE_DIR..."echo "用法: $0 '服务器列表' '要传输的文件路径' '远程目标目录'"echo "用法: $0 '主机列表' '命令列表'"
Flink在唯品会的实践
Hadoop技术博文
08-14 2986
本文来自于王新春在2018年7月29日 Flink China社区线下 Meetup·上海站的分享。王新春目前在唯品会负责实时平台相关内容，主要包括实时计算框架和提供实时...
Airbnb 的 Flink 平台演进：终点是k8s？
最新发布
jsjbrdzhh的博客
11-19 922
本文将对Airbnb （全球民宿平台）的 Flink 平台演进进行更深入的详解，拆解每个阶段的关键技术选择和背后的考量，以及 Kubernetes 架构的各个组件如何协同工作。
Flink on K8s 企业生产化实践
xiuqingzhouyang的博客
06-26 429
背景为了解决公司模型&特征迭代的系统性问题，提升算法开发与迭代效率，部门立项了特征平台项目。特征平台旨在解决数据存储分散、口径重复、提取复杂、链路过长等问题，在大数据与算法间架起科学桥梁，提供强有力的样本及特征数据支撑。
Flink On k8s
地球人是我哈的博客
03-06 1787
flink-1.15.1 on k8s
Flink On K8s
weixin_37714509的博客
09-03 4145
Flink 原生支持 Kubernetes # 本页面介绍了如何在Kubernetes 上本地部署 Flink 。 开始 # 本入门部分将指导您在 Kubernetes 上设置功能齐全的 Flink 集群。 介绍 # Kubernetes 是一种流行的容器编排系统，用于自动化计算机应用程序的部署、扩展和管理。Flink 的原生 Kubernetes 集成允许您直接在正在运行的 Kubernetes 集群上部署 Flink。此外，Flink 能够根据所需资源动态分配和取消分配 TaskManager，因为它可
1-Flink kubernetes operator 入门与实战-课程介绍
11-15
1-Flink kubernetes operator 入门与实战-课程介绍
flink零基础入门.pdf
06-09
Apache Flink 进阶（四）：Flink on Yarn/K8s 原理剖析及实践 41 Apache Flink 进阶（五）：数据类型和序列化 60 Apache Flink 进阶（六）：Flink 作业执行深度解析 71 Apache Flink 进阶（七）：网络流控及反压剖析...
flink-on-k8s-operator:Kubernetes运算符，用于管理Apache Flink和Beam应用程序的生命周期
04-29
适用于Apache Flink的Kubernetes运算符 这不是官方支持的Google产品。 用于Apache Flink的Kubernetes Operator是用于在上运行的控制平面。 社区 提出问题，报告错误或提出功能或加入我们的频道。 查看 。 项目状态 贝塔 操作员正在积极开发中，对于Beta版本，不能保证API的向后兼容性。 先决条件 Kubernetes的版本> = 1.15 版本> = 1.15的kubectl（带有kustomize） Apache Flink的版本> = 1.7 概述 Apache Flink的Kubernetes运算符使用自定义资源定义了Kubernetes语言的词汇表（例如Pod，Service等），并运行Pod来监视自定义资源。 一旦FlinkCluster自定义资源被控制器创建并检测到，控制器便会基于该自定义资源的规范创建基础的Kube
30分钟掌握沧湖一体化：flink+hudi（干货，建议收藏）_flink hudi sink
m0_54903333的博客
04-28 622
最近遍览了各种网络安全类的文章，内容参差不齐，其中不伐有大佬倾力教学，也有各种不良机构浑水摸鱼，在收到几条私信，发现大家对一套完整的系统的网络安全从学习路线到学习资料，甚至是工具有着不小的需求。最后，我将这部分内容融会贯通成了一套282G的网络安全资料包，所有类目条理清晰，知识点层层递进，需要的小伙伴可以点击下方小卡片领取哦！当然，当你入门之后，仅仅是视频教程已经不能满足你的需求了，你肯定需要学习各种工具的使用以及大量的实战项目，这里也分享一份。将创建的mysql表，插入到hudi里。
Flink On K8S
github_31020161的博客
08-04 329
动力 K8S基础能力有保障。 Flink 版本已升级至最新版。 Flink On Yarn的不足。 整体架构 实时平台 CICD(镜像构建) Flink On K8s(Ingress创建 Podtemplate) K8S Logger Metrics Alerts 网络模型 Kong nodePort Ingress (ingress-controller+ingress) Pod 状态存储 HDFS OSS 容量规划 网络带宽 任务热点 DNS解析 ...
flink on k8s (flink-1.13.0 最新版本 application 部署方式)
weixin_36058946的博客
05-10 4050
flink on k8s (flink-1.13.0 最新版本 application 部署方式) run-application模式 （此方式一劳永逸，节省资源+数据隔离，集群之间不会相互影响） ①，将自己的项目jar包 和 flink镜像 打在一起生成新的镜像 （默认jdk是1.8，如果有jdk版本要求可将jdk的home目录一起打进镜像，然后通过配置文件内添加参数 env.java.home: /opt/flink/jdk-11.0.10+0 来指定jdk ） Dockerfile： FROM
flink on k8s(Flink1.15.0 on Native Kubernetes)
博客
05-29 1462
实验环境 macOS x86-64 minikube 准备工作 安装minikube 下载安装 curl -LO https://storage.googleapis.com/minikube/releases/latest/minikube-darwin-amd64 sudo install minikube-darwin-amd64 /usr/local/bin/minikube minikube start --driver=hyperkit 或 minikube start mini
flink实战--flink on k8s (Kubernetes)
阿华田的博客
10-19 4781
Flink on Kubernetes 的发展历史 在 Flink 的早期发行版 1.2 中，已经引入了 Flink Session 集群模式，用户得以将 Flink 集群部署在 Kubernetes 集群之上。随着 Flink 的逐渐普及，越来越多的 Flink 任务被提交在用户的集群中，用户发现在 session 模式下，任务之间会互相影响，隔离性比较差，因此在 Flink 1.6 版本中，推出了 Per Job 模式，单个任务独占一个 Flink 集群，很大的程度上...
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
