RMAN Recovery Catalog 简介


RMAN Recovery Catalog的作用

RMAN Recovery catalog 是一个用于存放 RMAN 元数据的 schema。有以下作用:

  • 作为control file保存rman元数据的一个冗余副本;
  • 集中管理rman元数据;
  • 保存周期比control file长;
  • 一些特性,如:rman脚本只能保存在recovery catalog 中;

创建Recovery Catalog

在catalog服务器上创建schema

SQL> create tablespace tools datafile '/u01/app/oracle/oradata/orcl/tools.dbf' size 10m autoextend on maxsize unlimited;
Tablespace created.
SQL> CREATE USER rco IDENTIFIED BY dingjia  TEMPORARY TABLESPACE temp   DEFAULT TABLESPACE tools   QUOTA UNLIMITED ON tools;
User created.
SQL> GRANT RECOVERY_CATALOG_OWNER TO rco;
Grant succeeded.

使用rman登录,创建catalog

$ rman catalog rco/dingjia
RMAN> create catalog;
recovery catalog created
RMAN>

DataGuard 注册到 Recovery Catalog

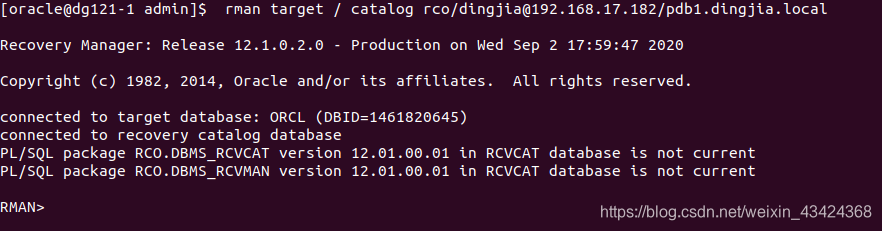

连接到RMAN Recovery Catalog进行注册,注意:Recovery Catalog所在的数据库的版本要比被注册的数据库版本高。
在这里插入图片描述
这两个版本差0.0.1也不行,而下面这个Recovery Catalog的Oracle版本比比被注册的数据库版本高则可以。

[oracle@dg121-1 ~]$ rman target / catalog rco/dingjia@192.168.17.201/test1

Recovery Manager: Release 12.1.0.2.0 - Production on Wed Sep 2 19:36:02 2020

Copyright (c) 1982, 2014, Oracle and/or its affiliates.  All rights reserved.

connected to target database: ORCL (DBID=1461820645)
connected to recovery catalog database
recovery catalog schema release 12.02.00.01. is newer than RMAN release

RMAN> register database;

database registered in recovery catalog
starting full resync of recovery catalog
full resync complete

RMAN> report schema;

Report of database schema for database with db_unique_name ORCL

List of Permanent Datafiles
===========================
File Size(MB) Tablespace           RB segs Datafile Name
---- -------- -------------------- ------- ------------------------
1    810      SYSTEM               YES     /u01/app/oracle/oradata/orcl/system01.dbf
3    990      SYSAUX               NO      /u01/app/oracle/oradata/orcl/sysaux01.dbf
4    165      UNDOTBS1             YES     /u01/app/oracle/oradata/orcl/undotbs01.dbf
5    250      PDB$SEED:SYSTEM      NO      /u01/app/oracle/oradata/orcl/pdbseed/system01.dbf
6    5        USERS                NO      /u01/app/oracle/oradata/orcl/users01.dbf
7    490      PDB$SEED:SYSAUX      NO      /u01/app/oracle/oradata/orcl/pdbseed/sysaux01.dbf
8    260      PDBORCL:SYSTEM       NO      /u01/app/oracle/oradata/orcl/pdborcl/system01.dbf
9    530      PDBORCL:SYSAUX       NO      /u01/app/oracle/oradata/orcl/pdborcl/sysaux01.dbf
10   5        PDBORCL:USERS        NO      /u01/app/oracle/oradata/orcl/pdborcl/SAMPLE_SCHEMA_users01.dbf
11   1243     PDBORCL:EXAMPLE      NO      /u01/app/oracle/oradata/orcl/pdborcl/example01.dbf
12   6195     PDBORCL:SOE          NO      /u01/app/oracle/oradata/orcl/pdborcl/soe01
13   1        EX1                  NO      /u01/app/oracle/oradata/orcl/ex1.dbf
14   100      SOE                  NO      /u01/app/oracle/oradata/orcl/soe.dbf

List of Temporary Files
=======================
File Size(MB) Tablespace           Maxsize(MB) Tempfile Name
---- -------- -------------------- ----------- --------------------
1    60       TEMP                 32767       /u01/app/oracle/oradata/orcl/temp01.dbf
2    20       PDB$SEED:TEMP        32767       /u01/app/oracle/oradata/orcl/pdbseed/pdbseed_temp012017-01-23_03-32-32-PM.dbf
3    159      PDBORCL:TEMP         32767       /u01/app/oracle/oradata/orcl/pdborcl/pdborcl_temp012017-01-23_03-36-43-PM.dbf

RMAN> list backup;

specification does not match any backup in the repository

RMAN> resync catalog;

starting full resync of recovery catalog
full resync complete

RMAN>

然后用report schema检查一下,显示正常。
也可以手工执行一下resync catalog,虽然这通常是不必要的,通常会自动resync。
连接上recovery catalog后发现执行命令通常会慢一点,这是因为要到recovery catalog进行同步。

VPC(virtual private catalogs.)

通常在一个企业里面有同一个DBA来负责所有数据库的备份,这样就不存在需要将recovery catalog的权限进一步细分,但如果有这样的需求,Oracle从11G后提供了VPC(virtual private catalogs)来进行实现,实际上是采用 Virtual Private Database (VPD) 来实现 virtual private catalogs,具体可以查阅Oracle的文档。
