【MindSpore学习打卡】应用实践-计算机视觉-ResNet50图像分类-基于MindSpore实现ResNet50的模型图像分类

图像分类是计算机视觉中的一个核心任务，它的目标是将输入图像分类到预定义的类别中。近年来，深度学习技术的快速发展使得图像分类任务取得了显著的进步。其中，ResNet（Residual Network）是一个具有里程碑意义的网络架构，它通过引入残差连接解决了深层神经网络中的退化问题，使得构建更深的网络成为可能。在本教程中，我们将详细介绍如何使用ResNet50网络对CIFAR-10数据集进行图像分类。我们将从数据集的准备与加载开始，逐步讲解如何构建ResNet50网络，进行模型训练与评估，最后进行模型预测结果的可视化。

ResNet网络简介

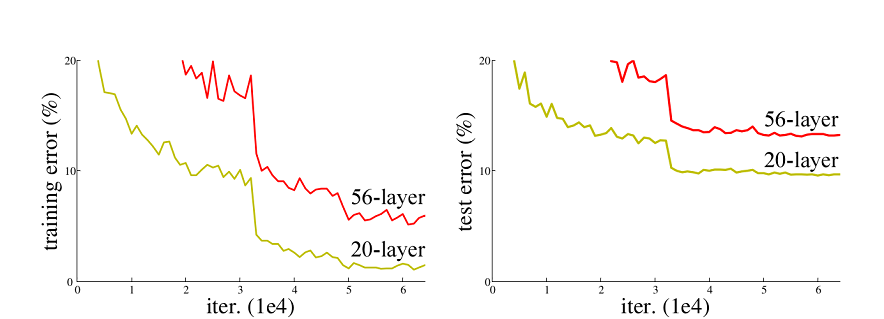

ResNet50网络是由微软研究院的何恺明等人在2015年提出的，并在ILSVRC2015图像分类竞赛中获得了第一名。在ResNet提出之前，传统的卷积神经网络依赖于层层堆叠的卷积层和池化层，但当网络深度增加时，会出现退化问题。如下图所示，在CIFAR-10数据集上，56层网络的训练误差和测试误差比20层网络更大，说明网络深度增加并未带来预期的性能提升。

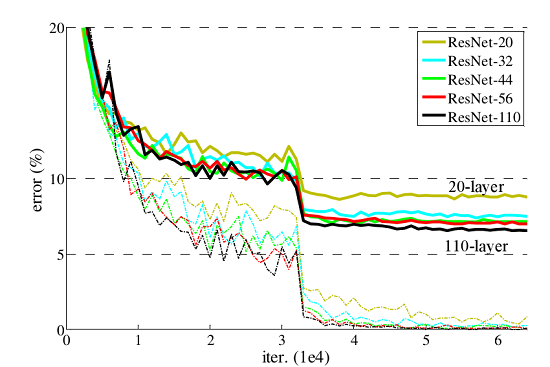

ResNet通过引入残差网络结构（Residual Network）有效地减轻了退化问题，使得网络深度可以突破1000层。如下图所示，使用ResNet网络的训练误差和测试误差随着网络层数的增加而减小。

数据集准备与加载

CIFAR-10数据集包含60000张32x32的彩色图像，分为10个类别，每类有6000张图像。数据集分为50000张训练图片和10000张评估图片。我们首先下载并解压数据集，然后使用mindspore.dataset.Cifar10Dataset接口加载数据集，并进行相关图像增强操作。

图像增强操作（如随机裁剪和水平翻转）有助于提高模型的泛化能力，避免过拟合。具体来说，随机裁剪可以模拟不同的拍摄角度和距离，水平翻转可以增加数据的多样性，这些操作可以使模型在训练过程中看到更多的图像变体，从而提高其在未知数据上的表现能力。

from download import download

url = "https://mindspore-website.obs.cn-north-4.myhuaweicloud.com/notebook/datasets/cifar-10-binary.tar.gz"
download(url, "./datasets-cifar10-bin", kind="tar.gz", replace=True)

下载后的数据集目录结构如下：

datasets-cifar10-bin/cifar-10-batches-bin
├── batches.meta.text
├── data_batch_1.bin
├── data_batch_2.bin
├── data_batch_3.bin
├── data_batch_4.bin
├── data_batch_5.bin
├── readme.html
└── test_batch.bin

接下来，加载数据集并进行图像增强：

import mindspore as ms
import mindspore.dataset as ds
import mindspore.dataset.vision as vision
import mindspore.dataset.transforms as transforms
from mindspore import dtype as mstype

data_dir = "./datasets-cifar10-bin/cifar-10-batches-bin"
batch_size = 256
image_size = 32
workers = 4
num_classes = 10

def create_dataset_cifar10(dataset_dir, usage, resize, batch_size, workers):
    data_set = ds.Cifar10Dataset(dataset_dir=dataset_dir, usage=usage, num_parallel_workers=workers, shuffle=True)
    trans = []
    if usage == "train":
        trans += [vision.RandomCrop((32, 32), (4, 4, 4, 4)), vision.RandomHorizontalFlip(prob=0.5)]
    trans += [vision.Resize(resize), vision.Rescale(1.0 / 255.0, 0.0), vision.Normalize([0.4914, 0.4822, 0.4465], [0.2023, 0.1994, 0.2010]), vision.HWC2CHW()]
    target_trans = transforms.TypeCast(mstype.int32)
    data_set = data_set.map(operations=trans, input_columns='image', num_parallel_workers=workers)
    data_set = data_set.map(operations=target_trans, input_columns='label', num_parallel_workers=workers)
    data_set = data_set.batch(batch_size)
    return data_set

dataset_train = create_dataset_cifar10(dataset_dir=data_dir, usage="train", resize=image_size, batch_size=batch_size, workers=workers)
step_size_train = dataset_train.get_dataset_size()
dataset_val = create_dataset_cifar10(dataset_dir=data_dir, usage="test", resize=image_size, batch_size=batch_size, workers=workers)
step_size_val = dataset_val.get_dataset_size()

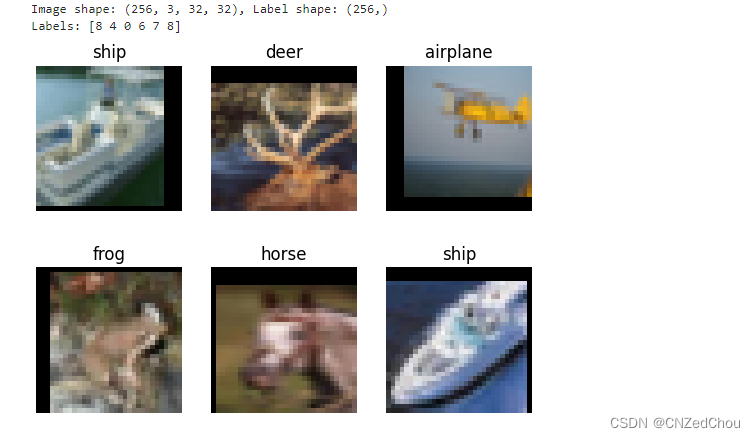

对CIFAR-10训练数据集进行可视化：

import matplotlib.pyplot as plt
import numpy as np

data_iter = next(dataset_train.create_dict_iterator())
images = data_iter["image"].asnumpy()
labels = data_iter["label"].asnumpy()
print(f"Image shape: {images.shape}, Label shape: {labels.shape}")

classes = []
with open(data_dir + "/batches.meta.txt", "r") as f:
    for line in f:
        line = line.rstrip()
        if line:
            classes.append(line)

plt.figure()
for i in range(6):
    plt.subplot(2, 3, i + 1)
    image_trans = np.transpose(images[i], (1, 2, 0))
    mean = np.array([0.4914, 0.4822, 0.4465])
    std = np.array([0.2023, 0.1994, 0.2010])
    image_trans = std * image_trans + mean
    image_trans = np.clip(image_trans, 0, 1)
    plt.title(f"{classes[labels[i]]}")
    plt.imshow(image_trans)
    plt.axis("off")
plt.show()

构建ResNet50网络

残差网络结构（Residual Network）是ResNet网络的核心。ResNet使用残差网络结构有效地减轻了退化问题，实现了更深的网络结构设计，提高了网络的训练精度。

构建残差网络结构

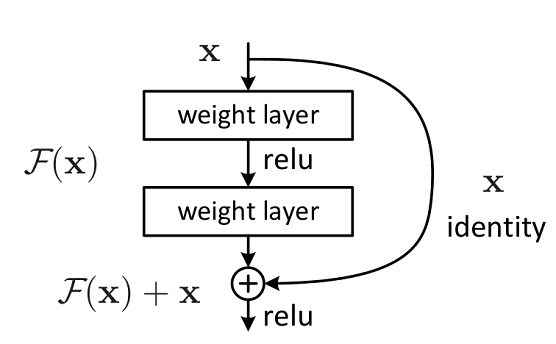

残差网络结构由两个分支构成：一个主分支，一个shortcuts（图中弧线表示）。主分支通过堆叠一系列的卷积操作得到，shortcuts从输入直接到输出，主分支输出的特征矩阵$F(x)$加上shortcuts输出的特征矩阵$x$得到$F(x)+x$，通过Relu激活函数后即为残差网络最后的输出。

残差网络结构主要有两种：Building Block和Bottleneck。

Building Block

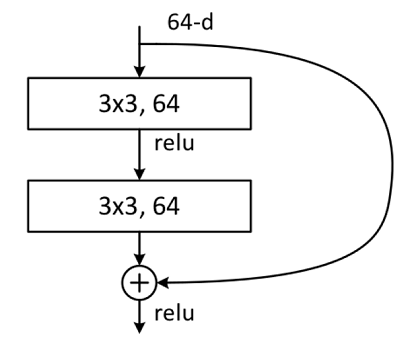

Building Block结构图如下图所示，主分支有两层卷积网络结构：

代码实现如下：

from typing import Type, Union, List, Optional
import mindspore.nn as nn
from mindspore.common.initializer import Normal

weight_init = Normal(mean=0, sigma=0.02)
gamma_init = Normal(mean=1, sigma=0.02)

class ResidualBlockBase(nn.Cell):
    expansion: int = 1

    def __init__(self, in_channel: int, out_channel: int, stride: int = 1, norm: Optional[nn.Cell] = None, down_sample: Optional[nn.Cell] = None) -> None:
        super(ResidualBlockBase, self).__init__()
        if not norm:
            self.norm = nn.BatchNorm2d(out_channel)
        else:
            self.norm = norm

        self.conv1 = nn.Conv2d(in_channel, out_channel, kernel_size=3, stride=stride, weight_init=weight_init)
        self.conv2 = nn.Conv2d(in_channel, out_channel, kernel_size=3, weight_init=weight_init)
        self.relu = nn.ReLU()
        self.down_sample = down_sample

    def construct(self, x):
        identity = x
        out = self.conv1(x)
        out = self.norm(out)
        out = self.relu(out)
        out = self.conv2(out)
        out = self.norm(out)
        if self.down_sample is not None:
            identity = self.down_sample(x)
        out += identity
        out = self.relu(out)
        return out

Bottleneck

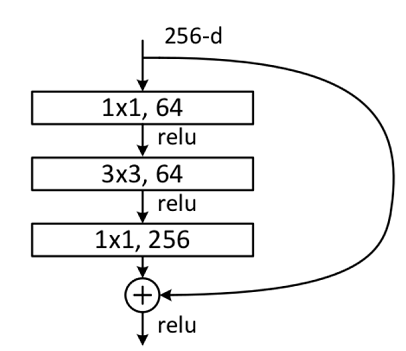

Bottleneck结构图如下图所示：

代码实现如下：

class ResidualBlock(nn.Cell):
    expansion = 4

    def __init__(self, in_channel: int, out_channel: int, stride: int = 1, down_sample: Optional[nn.Cell] = None) -> None:
        super(ResidualBlock, self).__init__()

        self.conv1 = nn.Conv2d(in_channel, out_channel, kernel_size=1, weight_init=weight_init)
        self.norm1 = nn.BatchNorm2d(out_channel)
        self.conv2 = nn.Conv2d(out_channel, out_channel, kernel_size=3, stride=stride, weight_init=weight_init)
        self.norm2 = nn.BatchNorm2d(out_channel)
        self.conv3 = nn.Conv2d(out_channel, out_channel * self.expansion, kernel_size=1, weight_init=weight_init)
        self.norm3 = nn.BatchNorm2d(out_channel * self.expansion)

        self.relu = nn.ReLU()
        self.down_sample = down_sample

    def construct(self, x):
        identity = x
        out = self.conv1(x)
        out = self.norm1(out)
        out = self.relu(out)
        out = self.conv2(out)
        out = self.norm2(out)
        out = self.relu(out)
        out = self.conv3(out)
        out = self.norm3(out)
        if self.down_sample is not None:
            identity = self.down_sample(x)
        out += identity
        out = self.relu(out)
        return out

构建ResNet50网络

ResNet50网络通过引入残差网络结构（Residual Block和Bottleneck）有效地减轻了深层网络中的退化问题。我们通过定义这些残差块，逐层构建ResNet50网络。残差块的核心思想是通过引入快捷连接（shortcut connection），使得网络能够学习到输入和输出之间的残差（residual），而不是直接学习复杂的映射函数。这种设计使得梯度更容易在深层网络中传播，从而缓解了梯度消失问题，使得更深的网络能够被成功训练。

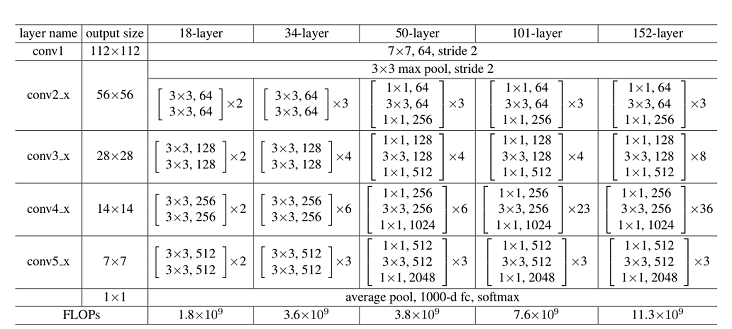

ResNet50网络的层结构如下图所示：

代码实现如下：

def make_layer(last_out_channel, block: Type[Union[ResidualBlockBase, ResidualBlock]], channel: int, block_nums: int, stride: int = 1):
    down_sample = None
    if stride != 1 or last_out_channel != channel * block.expansion:
        down_sample = nn.SequentialCell([
            nn.Conv2d(last_out_channel, channel * block.expansion, kernel_size=1, stride=stride, weight_init=weight_init),
            nn.BatchNorm2d(channel * block.expansion, gamma_init=gamma_init)
        ])

    layers = []
    layers.append(block(last_out_channel, channel, stride=stride, down_sample=down_sample))
    in_channel = channel * block.expansion
    for _ in range(1, block_nums):
        layers.append(block(in_channel, channel))

    return nn.SequentialCell(layers)

from mindspore import load_checkpoint, load_param_into_net

class ResNet(nn.Cell):
    def __init__(self, block: Type[Union[ResidualBlockBase, ResidualBlock]], layer_nums: List[int], num_classes: int, input_channel: int) -> None:
        super(ResNet, self).__init__()

        self.relu = nn.ReLU()
        self.conv1 = nn.Conv2d(3, 64, kernel_size=7, stride=2, weight_init=weight_init)
        self.norm = nn.BatchNorm2d(64)
        self.max_pool = nn.MaxPool2d(kernel_size=3, stride=2, pad_mode='same')
        self.layer1 = make_layer(64, block, 64, layer_nums[0])
        self.layer2 = make_layer(64 * block.expansion, block, 128, layer_nums[1], stride=2)
        self.layer3 = make_layer(128 * block.expansion, block, 256, layer_nums[2], stride=2)
        self.layer4 = make_layer(256 * block.expansion, block, 512, layer_nums[3], stride=2)
        self.avg_pool = nn.AvgPool2d()
        self.flatten = nn.Flatten()
        self.fc = nn.Dense(in_channels=input_channel, out_channels=num_classes)

    def construct(self, x):
        x = self.conv1(x)
        x = self.norm(x)
        x = self.relu(x)
        x = self.max_pool(x)
        x = self.layer1(x)
        x = self.layer2(x)
        x = self.layer3(x)
        x = self.layer4(x)
        x = self.avg_pool(x)
        x = self.flatten(x)
        x = self.fc(x)
        return x

def _resnet(model_url: str, block: Type[Union[ResidualBlockBase, ResidualBlock]], layers: List[int], num_classes: int, pretrained: bool, pretrained_ckpt: str, input_channel: int):
    model = ResNet(block, layers, num_classes, input_channel)
    if pretrained:
        download(url=model_url, path=pretrained_ckpt, replace=True)
        param_dict = load_checkpoint(pretrained_ckpt)
        load_param_into_net(model, param_dict)
    return model

def resnet50(num_classes: int = 1000, pretrained: bool = False):
    resnet50_url = "https://mindspore-website.obs.cn-north-4.myhuaweicloud.com/notebook/models/application/resnet50_224_new.ckpt"
    resnet50_ckpt = "./LoadPretrainedModel/resnet50_224_new.ckpt"
    return _resnet(resnet50_url, ResidualBlock, [3, 4, 6, 3], num_classes, pretrained, resnet50_ckpt, 2048)

模型训练与评估

使用预训练的ResNet50模型进行微调可以加速训练过程并提高模型性能。预训练模型是在大规模数据集（如ImageNet）上训练得到的，这意味着它已经学习到了很多有用的特征。通过在CIFAR-10数据集上进行微调，我们可以在保留这些预训练特征的基础上，进一步优化模型以适应新的数据。我们定义了优化器和损失函数，通过逐个epoch打印训练的损失值和评估精度，监控模型的训练过程，并保存评估精度最高的模型。学习率的选择和调整（如使用余弦退火学习率）也是训练过程中的关键因素，它可以帮助模型逐步收敛到一个更优的解。

我们将使用预训练的ResNet50模型进行微调。调用resnet50构造ResNet50模型，并设置pretrained参数为True，将会自动下载ResNet50预训练模型，并加载预训练模型中的参数到网络中。然后定义优化器和损失函数，逐个epoch打印训练的损失值和评估精度，并保存评估精度最高的ckpt文件到当前路径的./BestCheckPoint下。

network = resnet50(pretrained=True)
in_channel = network.fc.in_channels
fc = nn.Dense(in_channels=in_channel, out_channels=10)
network.fc = fc
num_epochs = 5
lr = nn.cosine_decay_lr(min_lr=0.00001, max_lr=0.001, total_step=step_size_train * num_epochs, step_per_epoch=step_size_train, decay_epoch=num_epochs)
opt = nn.Momentum(params=network.trainable_params(), learning_rate=lr, momentum=0.9)
loss_fn = nn.SoftmaxCrossEntropyWithLogits(sparse=True, reduction='mean')

def forward_fn(inputs, targets):
    logits = network(inputs)
    loss = loss_fn(logits, targets)
    return loss

grad_fn = ms.value_and_grad(forward_fn, None, opt.parameters)

def train_step(inputs, targets):
    loss, grads = grad_fn(inputs, targets)
    opt(grads)
    return loss

import os

data_loader_train = dataset_train.create_tuple_iterator(num_epochs=num_epochs)
data_loader_val = dataset_val.create_tuple_iterator(num_epochs=num_epochs)

best_acc = 0
best_ckpt_dir = "./BestCheckpoint"
best_ckpt_path = "./BestCheckpoint/resnet50-best.ckpt"

if not os.path.exists(best_ckpt_dir):
    os.mkdir(best_ckpt_dir)

import mindspore.ops as ops

def train(data_loader, epoch):
    losses = []
    network.set_train(True)
    for i, (images, labels) in enumerate(data_loader):
        loss = train_step(images, labels)
        if i % 100 == 0 or i == step_size_train - 1:
            print('Epoch: [%3d/%3d], Steps: [%3d/%3d], Train Loss: [%5.3f]' % (epoch + 1, num_epochs, i + 1, step_size_train, loss))
        losses.append(loss)
    return sum(losses) / len(losses)

def evaluate(data_loader):
    network.set_train(False)
    correct_num = 0.0
    total_num = 0.0
    for images, labels in data_loader:
        logits = network(images)
        pred = logits.argmax(axis=1)
        correct = ops.equal(pred, labels).reshape((-1, ))
        correct_num += correct.sum().asnumpy()
        total_num += correct.shape[0]
    acc = correct_num / total_num
    return acc

print("Start Training Loop ...")
for epoch in range(num_epochs):
    curr_loss = train(data_loader_train, epoch)
    curr_acc = evaluate(data_loader_val)
    print("-" * 50)
    print("Epoch: [%3d/%3d], Average Train Loss: [%5.3f], Accuracy: [%5.3f]" % (epoch+1, num_epochs, curr_loss, curr_acc))
    print("-" * 50)
    if curr_acc > best_acc:
        best_acc = curr_acc
        ms.save_checkpoint(network, best_ckpt_path)
print("=" * 80)
print(f"End of validation the best Accuracy is: {best_acc: 5.3f}, save the best ckpt file in {best_ckpt_path}", flush=True)

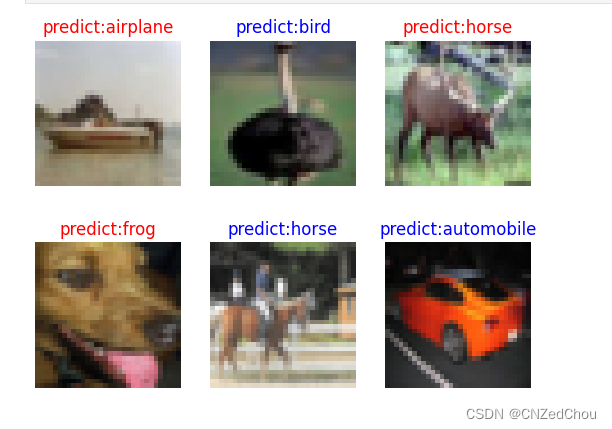

可视化模型预测

通过可视化模型对测试数据集的预测结果，我们可以直观地了解模型的分类效果。预测正确的标签以蓝色显示，预测错误的标签以红色显示，有助于发现模型的不足之处。这种可视化方法不仅可以帮助我们评估模型的性能，还可以用于诊断模型的错误。例如，如果模型在某些特定类别上表现不佳，我们可以进一步分析这些类别的特征，并采取相应的措施（如增加这些类别的训练数据或进行更有针对性的图像增强）来改进模型。

import matplotlib.pyplot as plt

def visualize_model(best_ckpt_path, dataset_val):
    num_class = 10
    net = resnet50(num_class)
    param_dict = ms.load_checkpoint(best_ckpt_path)
    ms.load_param_into_net(net, param_dict)
    data = next(dataset_val.create_dict_iterator())
    images = data["image"]
    labels = data["label"]
    outputs = net(images)
    preds = outputs.argmax(axis=1)

    classes = []
    with open(data_dir + "/batches.meta.txt", "r") as f:
        for line in f:
            line = line.rstrip()
            if line:
                classes.append(line)

    plt.figure(figsize=(15, 10))
    for i in range(6):
        plt.subplot(2, 3, i + 1)
        image_trans = np.transpose(images[i].asnumpy(), (1, 2, 0))
        mean = np.array([0.4914, 0.4822, 0.4465])
        std = np.array([0.2023, 0.1994, 0.2010])
        image_trans = std * image_trans + mean
        image_trans = np.clip(image_trans, 0, 1)
        plt.imshow(image_trans)
        plt.axis("off")
        color = "blue" if preds[i] == labels[i] else "red"
        plt.title(f"Pred: {classes[preds[i]]}\nTrue: {classes[labels[i]]}", color=color)
    plt.show()

visualize_model(best_ckpt_path, dataset_val)

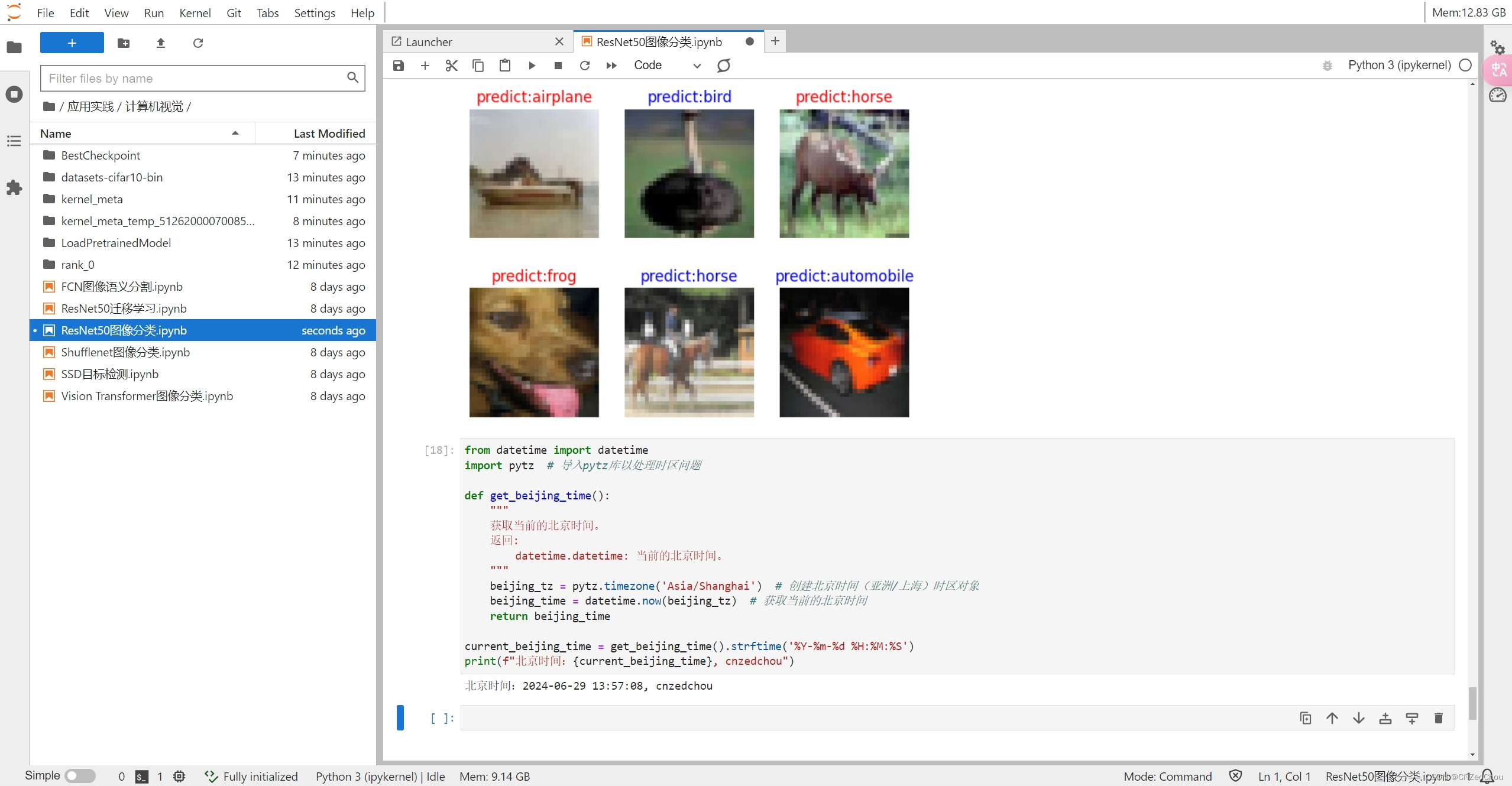

通过上述代码，我们可以可视化模型对CIFAR-10测试数据集的预测结果。预测正确的标签会以蓝色显示，预测错误的标签会以红色显示。
