1. Motivation

Despite its practical and scientific importance, line segment detection remains an unsolved problem in computer vision.
Deep learning techniques still consist of heuristics-guided modules such as edge/junction/region detection, line grouping, and post-processing, limiting the scope of their performance enhancement and further development.
Can we directly model all the vectorized line segments with a neural network? We are motivated by the fol- lowing observations for the Transformer frameworks.
LETR is built on top of a seminal work, DEtection TRansformer (DETR).

2. Contribution

实现了E2E的line segment detection，去除了许多启发式处理操作，再2个benchmark上实现SOTA。

We cast the line segment detection problem in a joint end-to-end fashion without explicit edge/junction/region detection and heuristics-guided perceptual grouping processes, which is in distinction to the existing literature in this domain. We achieve state-of-the-art results on the Wireframe [15] and YorkUrban benchmarks [5].
We perform line segment detection using Transformers, based specifically on DETR [4], to realize tokenized entity modeling, perceptual grouping, and joint detection via an integrated encoder-decoder, a self-attention mechanism, and joint query inference within Transformers.

2个创新点，多尺度encoder-deocder以及专门用于检测线段的direct endpoint distance loss。

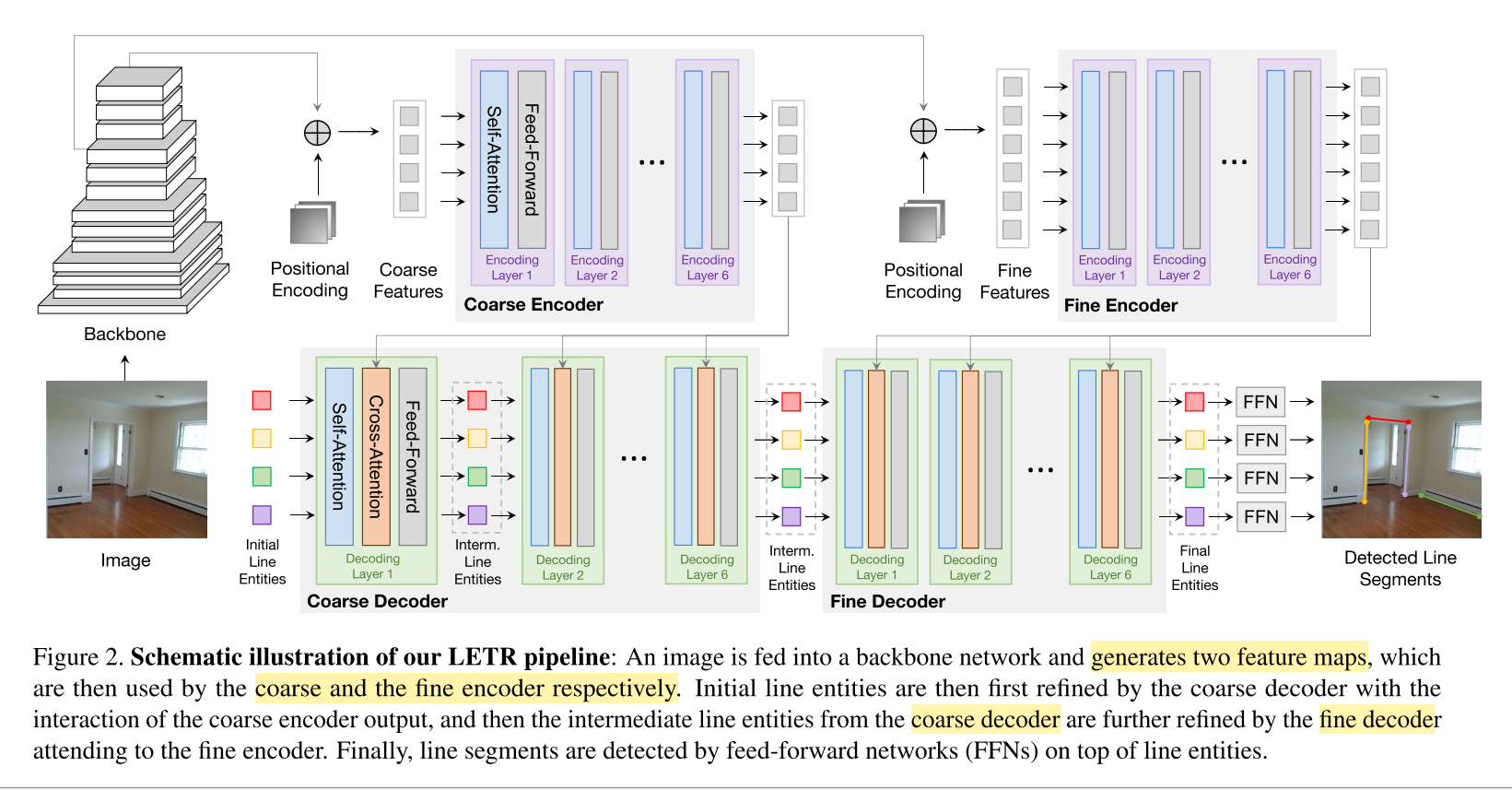

We introduce two new algorithmic aspects to DETR [4]: first, a multi-scale encoder/decoder strategy as shown in Figure 2; second, a direct endpoint distance loss term in training, allowing geometric structures like line segments to be directly learned and detected — something not feasible in the standard DETR bounding box representations.

3. Method

3.1 OverView

However, the vanilla DETR still focuses on bounding box representation with a GIoU loss
We further convert the box predictor in DETR into a vectorized line segment predictor by adapting the losses and enhancing the use of multi-scale features in our designed model.

LETR整个过程包括以下4个阶段：

Image Feature Extraction
Image Feature Encoding
Line Segment Detection
- $\in R^{N \times C}$
Line Segment Prediction
- 分为2个prediction head，其中一个是line coordinate分支，预测位置；另一个是prediction confidence分支。
