Python 3维曲线图形 - 3坐标轴投影、多视角展示

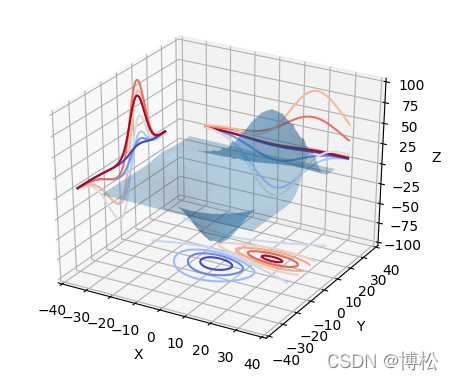

默认视角如图所示。

代码及解析如下所示。



import pandas as pd
import numpy as np
from mpl_toolkits.mplot3d import axes3d
from mpl_toolkits.mplot3d import axes3d
import matplotlib.pyplot as plt
from matplotlib import cm
# 在图片中显示中文、负号、固定文字大小等
plt.rcParams["font.family"]=['serif']
plt.rcParams['font.serif']=['SimSun']
plt.rcParams["mathtext.fontset"]='stix'
plt.rcParams['axes.unicode_minus']=False
plt.rcParams['font.size']=14

# data
df1 = pd.read_csv('XX.csv', encoding='gbk')
df5 = pd.read_csv('XXX.csv', encoding='gbk')

row = df1.shape[0]
T = df1['时间']
H1 = df1[
