Mybatis-Plus接入多个数据源

1. 导入依赖

<!-- mybatis-plus -->
<dependency>
    <groupId>com.baomidou</groupId>
    <artifactId>mybatis-plus-boot-starter</artifactId>
    <version>3.2.0</version>
</dependency>

2. 编辑properties

#db1
spring.datasource.db1.url=xxx
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
spring.datasource.db1.username=xxx
spring.datasource.db1.password=xxx

#db2
spring.datasource.db2.url=xxx
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
spring.datasource.db2.username=xxx
spring.datasource.db2.password=xxx

3. 编写db1config、db2congfig。两个数据库需要分为不同的文件

@Configuration
@MapperScan(basePackages = Db1DataConfig.PACKAGE, sqlSessionFactoryRef = "db1SqlSessionFactory")
public class Db1DataConfig {

    static final String PACKAGE = "com.xxx.xxx.db.dao.db1";
    static final String MAPPER = "classpath:/mapper/db1/*.xml";

    @Value("${spring.datasource.db1.url}")
    private String url;
    @Value("${spring.datasource.username}")
    private String username;
    @Value("${spring.datasource.password}")
    private String password;
    @Value("${spring.datasource.driver-class-name}")
    private String driverClassName;

    @Bean(name = "db1DataSource")
    @Primary
    public DataSource dbDataSource() {
        return DataSourceBuilder.create()
                .driverClassName(driverClassName)
                .username(username)
                .password(password)
                .url(url)
                .build();
    }

    @Bean("db1SqlSessionFactory")
    @Primary
    public SqlSessionFactory dbSqlSessionFactory(@Qualifier("db1DataSource") DataSource dataSource) throws Exception {
        MybatisSqlSessionFactoryBean sessionFactoryBean = new MybatisSqlSessionFactoryBean();
        // 添加数据源
        sessionFactoryBean.setDataSource(dataSource);
        // 添加分页配置
        MybatisConfiguration configuration = new MybatisConfiguration();
        configuration.addInterceptor(new PaginationInterceptor());
        sessionFactoryBean.setConfiguration(configuration);
        // 添加mapper目录
        sessionFactoryBean.setMapperLocations(new PathMatchingResourcePatternResolver().getResources(MAPPER));
        return sessionFactoryBean.getObject();
    }

    @Bean(name = "db1TransactionManager")
    @Primary
    public DataSourceTransactionManager dbTransactionManager(@Qualifier("db1DataSource") DataSource dataSource) {
        return new DataSourceTransactionManager(dataSource);
    }
}

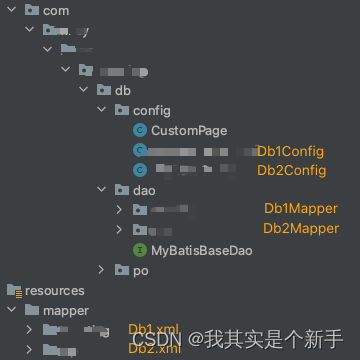

4. 目录结构

5. 遇到的问题

• @Primary主键注解只能存在一个，当有多个配置文件时需要注意
• 运行报错：org.apache.ibatis.binding.BindingException: Invalid bound statement (not found): xxx。问题原因：SalSessionFactory不要使用原生的，请使用MybatisSalSessionFactory

MybatisSqlSessionFactoryBean sessionFactoryBean = new MybatisSqlSessionFactoryBean();

• 需要添加分页插件，否则分页会失效

MybatisConfiguration configuration = new MybatisConfiguration();
        configuration.addInterceptor(new PaginationInterceptor());
        sessionFactoryBean.setConfiguration(configuration);

• 运行报错：No qualifying bean of type 'org.springframework.transaction.TransactionManager。问题原因：需增加指定事务的配置

/**
 * 事务枚举方便引用
 *
 * @author wangmin
 */
public class TransactionConstant {

    /**
     * db1事务
     */
    public static final String DB1_TRAN_MANAGER = "db1TranManager";

    /**
     * db2事务
     */
    public static final String DB2_TRAN_MANAGER = "db2TranManager";

    /**
     * 链式事务
     */
    public static final String CHAINED_TRAN_MANAGER = "chainedTranManager";

    public TransactionConstant() {

    }
}

@Configuration
public class TransactionManagerConfig {

    /**
     * db1事务
     *
     * @param dataSource 数据源
     * @return PlatformTransactionManager
     */
    @Primary
    @Bean(TransactionConstant.DB1_TRAN_MANAGER)
    public PlatformTransactionManager db1TranManage(@Qualifier("db1DataSource") DataSource dataSource) {
        return new DataSourceTransactionManager(dataSource);
    }

    /**
     * db2事务
     *
     * @param dataSource 数据源
     * @return PlatformTransactionManager
     */
    @Bean(TransactionConstant.DB2_TRAN_MANAGER)
    public PlatformTransactionManager db2TranManage(@Qualifier("db2DataSource") DataSource dataSource) {
        return new DataSourceTransactionManager(dataSource);
    }

    /**
     * 链式事务
     *
     * @param db1DataSource 数据源
     * @param db2DataSource 数据源
     * @return PlatformTransactionManager
     */
    @Bean(TransactionConstant.CHAINED_TRAN_MANAGER)
    public PlatformTransactionManager chainedTranManage(@Qualifier("db1DataSource") DataSource db1DataSource,
                                                        @Qualifier("db2DataSource") DataSource db2DataSource) {
        DataSourceTransactionManager dataSource1 = new DataSourceTransactionManager(db1DataSource);
        DataSourceTransactionManager dataSource2 = new DataSourceTransactionManager(db2DataSource);
        return new ChainedTransactionManager(dataSource1, dataSource2);
    }
}

在使用处增加@Transactional(transactionManager = TransactionConstant.DB1_TRAN_MANAGER, rollbackFor = Exception.class)来指定使用哪个事务

@Slf4j
@Service
@Transactional(transactionManager = TransactionConstant.DB1_TRAN_MANAGER, rollbackFor = Exception.class)
public class ExecuteServiceImpl implements IExecuteService {

    @Resource
    private ImageDisposeService imageDisposeService;
    @Resource
    private H5DataMapper h5DataMapper;

    @Value("${oss.base.folder}")
    private String ossBaseFolder;
    @Value("${oss.target.folder}")
    private String ossTargetFolder;
}
