概述

Flink是构建在数据流之上地有状态计算地流计算框架 通常被人们理解为是第三代大数据分析方案

• 第一代-Hadoop的MapReduce(计算) Storm流计算(2014.9) 两套独立计算引擎 使用难度大
• 第二代-Spark RDD静态批处理(2014.2) DStream|Structured Streaming流计算 统一计算引擎 难度系数小
• 第三代-Flink DataStream(2014.12)流计算框架 Flink Dataset批处理 统一计算引擎 难度系数中级

可以看出Spark和Flink几乎同时诞生 但是Flink之所以发展慢 是因为早期人们对大数据的分析认知不够深刻 或者当时业务场景大都局限在批处理领域 从而导致Flink的发展相比较于Spark较为缓慢 直到2016年人们才开始慢慢意识流计算的重要性

流计算领域:系统监控 舆情监控 交通预测 国家电网 疾病预测 银行/金融风控等

参考:https://blog.csdn.net/weixin_38231448/article/details/100062961

Spark vs Flink战略

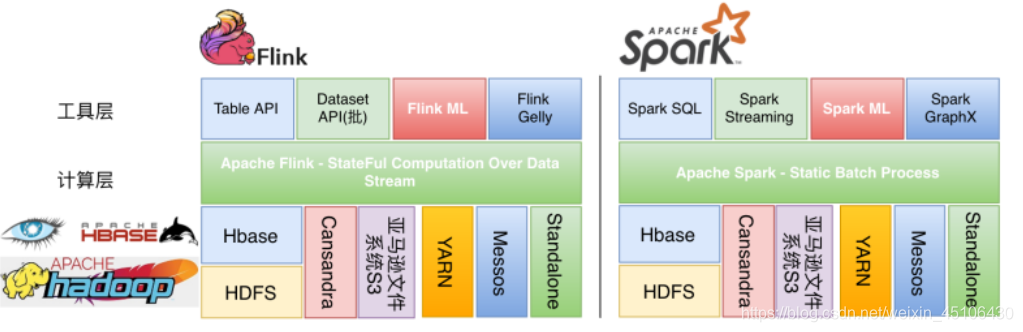

	计算层	工具层
Spark	采用静态批处理	Spark SQL SparkStreaming Spark ML Spark GraphX
Flink	有状态计算的数据流	Table API Dataset API(批处理) Fink ML Flink Gelly

运行架构

概念

Task和Operator Chain

Flink是一个分布式流计算引擎 该引擎将一个计算job拆分成若干个Task(等价于Spark中的Stage) 每个Task都有自己的并行度 每个并行度都由一个Thread表示 因为一个Task是并行执行的 因此一个Task底层对应一系列的Thread Flink称为这些Thread为该Task的subtask 与Spark不同的地方在于Spark是通过RDD的依赖关系实现Stage的划分而Flink是通过OperatorChain的概念实现Task的拆分 所谓的OperatorChain指的是Flink在做job编织的时候 尝试将多个操作符算子进行串联到一个Task中 以减少数据的Thread到Thread的传输开销

目前Flink创建的OperatorChain 的方式有两种: forwark hash|rebalance

-Task: 等价Spark中的stage 每个Task都有若干个sbuTask

-SubTask: 等价一个线程 是Task中的一个子任务

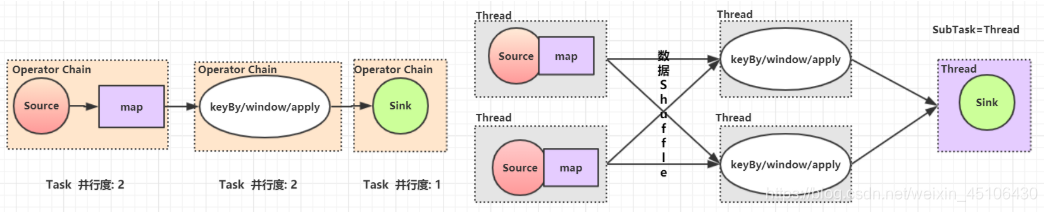

-OperatorChain: 将多个算子归并到一个Task的一种机制 归并原则类似SparkRDD的宽窄依赖

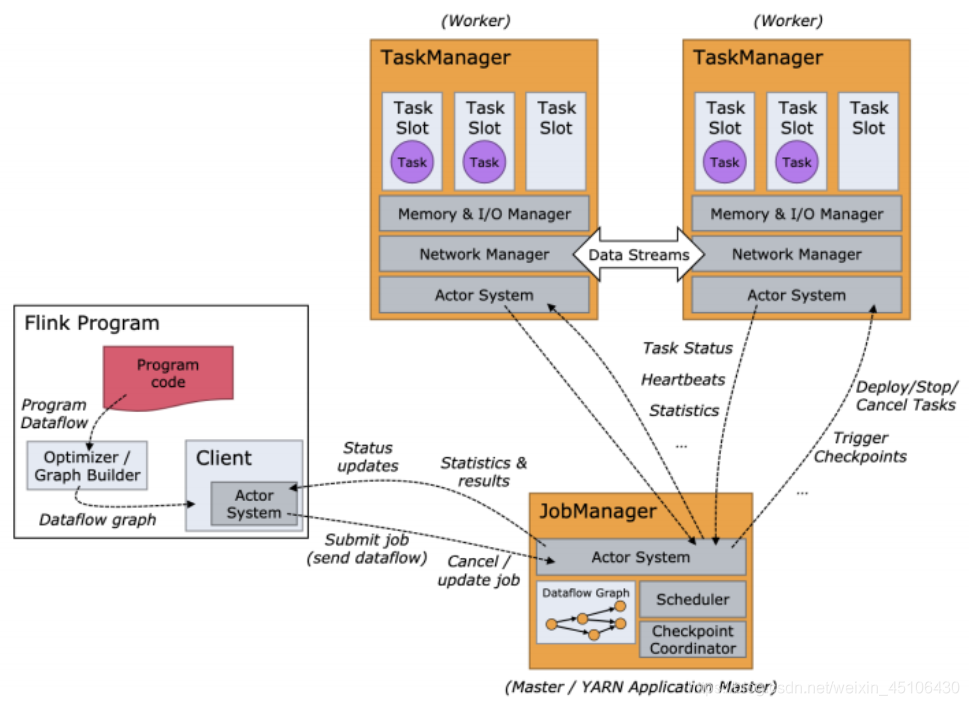

JobManagers TaskManagers Clients

• jobManagers- (也称master) 负责协调分布式执行 负责任务调度 协调检查点 协调故障恢复等 等价于Spark中的Master+Driver的功能 通常一个集群中至少1个Active的JobManager 如果在HA模式下其他出于StandBy状态

(also called masters ) coordinate the distributed execution. They schedule tasks, coordinate

checkpoints, coordinate recovery on failures, etc. There is always at least one Job Manager. A high-availability setup will have multiple JobManagers, one of which one is always the leader , and the others are standby .

• TaskManagers-(称为Worker) 真正负责Task执行计算节点 同时需要向JobManager汇报自身状态信息和工作负荷 通常一个集群中有若干个TaskManager

(also called workers ) execute the tasks (or more specifically, the subtasks) of a dataflow, and bu!er

and exchange the data streams .There must always be at least one TaskManager

• Clients- 与Spark不同 Flink中的Client并不是集群计算的一部分 Client仅仅负责提交任务的Dataflow Graph给JobManager 提交完成之后可以直接退出 Client不负责任务执行过程中调度

The client is not part of the runtime and program execution, but is used to prepare and send a

dataflow to the JobManager. A"er that, the client can disconnect, or stay connected to receive

progress reports

Task Slots和 Resources

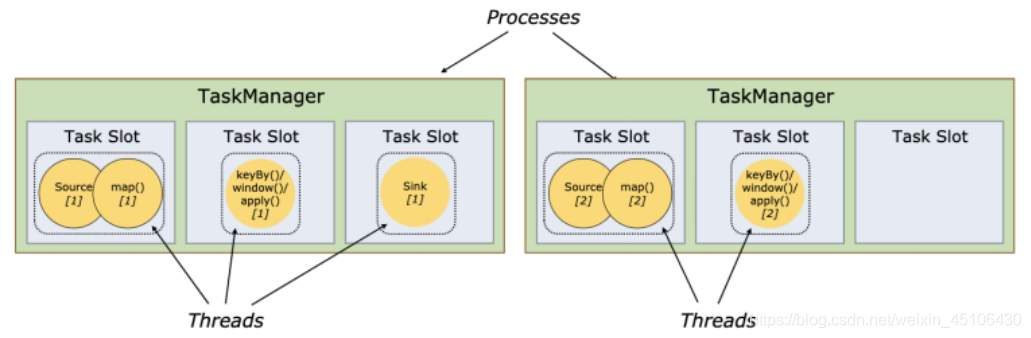

每一个Worker(TaskManager) 是一个JVM进程 可以执行一个或者多个子任务(Thread/SubTask) 为了控制Worker节点能够接受多个Task Worker提出Task slot用于表达一个计算节点的计算能力(每个计算节点至少有一个Task slot)

每个TaskSlot表示的是TaskManager计算资源的固定子集 例如:如果一个TaskManager拥有3个TaskSlot 每个Task Slot表示占用当前TaskManager的进程的1/3内存资源 每个job(计算)启动的时候都拥有子集的固定的Task Slot 也就意味着避免了不同job间的在运行时产生内存资源抢占 这些被分配的TaskSlot资源只能被当前job的所有Task所使用 不同Job的Task之间不存在资源共享和抢占问题

但是⼀个Job会被拆分成若⼲个Task，每个Task由若⼲个SubTask构成(取决于Task并⾏度)。默认Task Slot

所对应的内存资源只能在同⼀个Job下的不同Task的subtask间进⾏共享，也就意味着同⼀个Task的不同

subtask不能运⾏在同⼀个Taskslot中，但是如果是相同的job的不同Task的SubTask却可以如果同⼀个Job的不同Task的subtask不共⽤slot，会导致资源浪费。例如下图中 source、map操作定位 为资源稀疏性操作，因为该操作占⽤内存量⼩，⽽keyBy/windows()/apply()涉及Shuffle会占⽤⼤量的内存资源，定位为资源密集型操作，⽐较吃内存。

因此Flink底层默认做的时不同Task的子任务共享TaskSlot资源 因此用户可以将source/map和keyBy/windows()/apply()所对应的任务的并行读进行调整 将并行度由上图中2调整6 这样Flink底层就会做如下资源分配

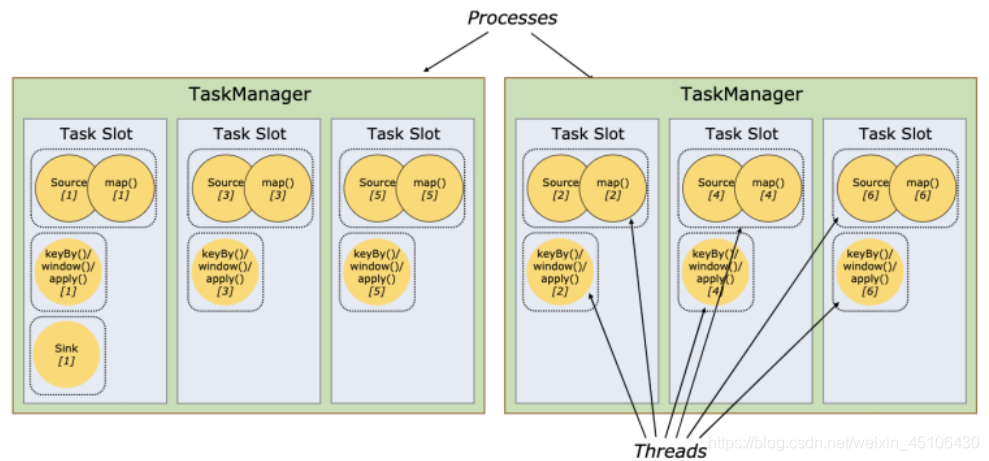

因此可以看出Flink默认⾏为是尝试将同⼀个job的下的不同Task的SubTask进⾏Task slot共享。也就意味着

⼀个Job的运⾏所需要的Task Slot的个数应该等于该Job中Task并⾏度的最⼤值。当然⽤户也可以通过 程

序⼲预Flink Task间Task Slot共享策略

结论:Flink的job运行所需要的资源数时自动计算出来的 无需用户指定 用户只需指定计算并行度即可

State Backends

Flink是⼀个基于状态计算流计算引擎，存储的key/value状态索引的确切数据结构取决于所选的State

Backend。例如：使⽤Memory State Backend将数据存储在内存中的HashMap中，或者使⽤RocksDB（内

嵌NoSQL数据，和Derby数据库类似）作为State Backend 存储状态。除了定义保存状态的数据结构之

外，State Backend还实现逻辑以获key/value状态的时间点快照并将该快照存储为Checkpoint的⼀部分

Savepoints

⽤Data Stream API编写的程序可以从Savepoint恢复执⾏。Savepoint允许更新程序和Flink群集，⽽不会丢

失任何状态

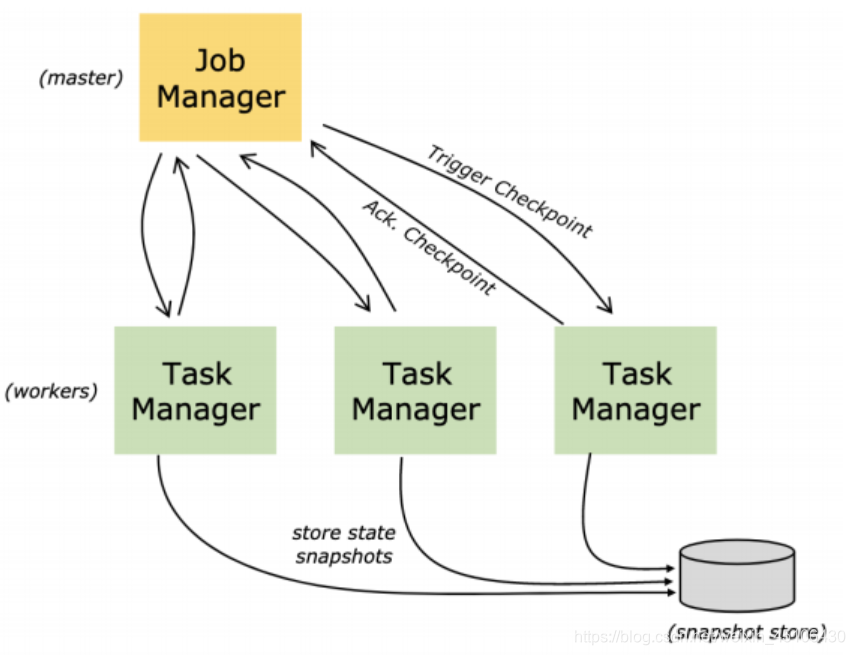

Savepoint是⼿动触发的Checkpoint，Savepoint为程序创建快照并将其写到State Backend。Savepoint依

靠常规的Checkpoint机制。所谓的Checkpoint指的是程序在执⾏期间，程序会定期在⼯作节点上快照并

产⽣Checkpoint。为了进⾏恢复，仅需要获取最后⼀次完成的Checkpoint即可，并且可以在新的

Checkpoint完成后⽴即安全地丢弃较旧的Checkpoint。

Savepoint与这些定期Checkpoint类似，Savepoint由⽤户触发并且更新的Checkpoint完成时不会⾃动过

期。⽤户可以使⽤命令⾏或通过REST API取消作业时创建Savepoint

参考：https://ci.apache.org/projects/flink/flink-docs-release-1.10/concepts/runtime.html

环境安装

下载地址:https://www.apache.org/dyn/closer.lua/flink/flink-1.10.0/flink-1.10.0-bin-scala_2.11.tgz

前提条件

• jdk必须是1.8+ 完成JAVA_HOME配置
• 安装Hadoop 并保证正常运行-SSH免密 HADOOP_HOME

Flink安装(Standalone)

• 上传并解压

[root@hbase ~]# tar -zxvf flink-1.10.0-bin-scala_2.11.tgz -C /usr/soft flink-1.10.0

[root@hbase flink-1.10.0]# tree -L 1 ./
./
!"" bin #执⾏脚本⽬录
!"" conf #配置⽬录
!"" examples #案例jar
!"" lib # 依赖的jars
!"" LICENSE
!"" licenses
!"" log # 运⾏⽇志
!"" NOTICE
!"" opt # 第三⽅备⽤插件包
!"" plugins
#"" README.txt
8 directories, 3 files

• 配置flink-conf.yaml

[root@hbase conf]# vim flink-conf.yaml

#==============================================================================
# Common
#==============================================================================
jobmanager.rpc.address: hbase
taskmanager.numberOfTaskSlots: 4
parallelism.default: 3

• 配置salves

[root@hbase conf]# vim slaves

hbase

• 启动Flink

[root@hbase flink-1.10.0]# ./bin/start-cluster.sh

[root@hbase ~]# jps
3444 NameNode
4804 StandaloneSessionClusterEntrypoint
5191 Jps
3544 DataNode
5145 TaskManagerRunner
3722 SecondaryNameNode

• 检查是否启动成功

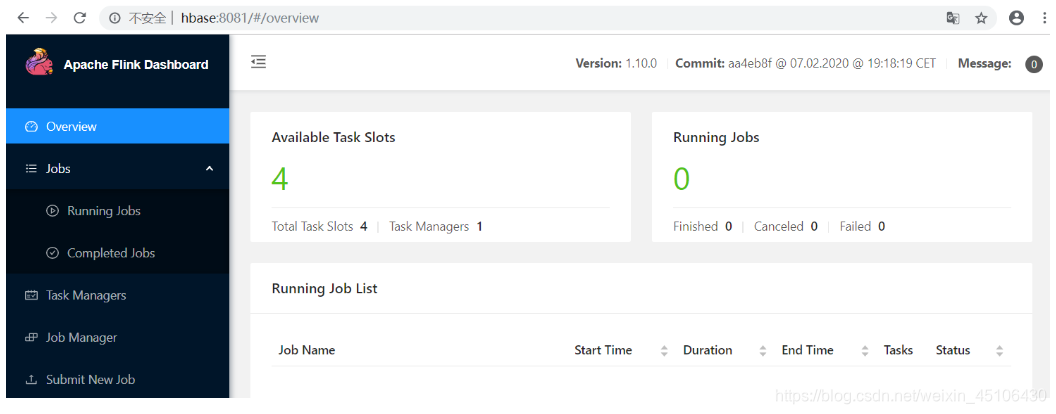

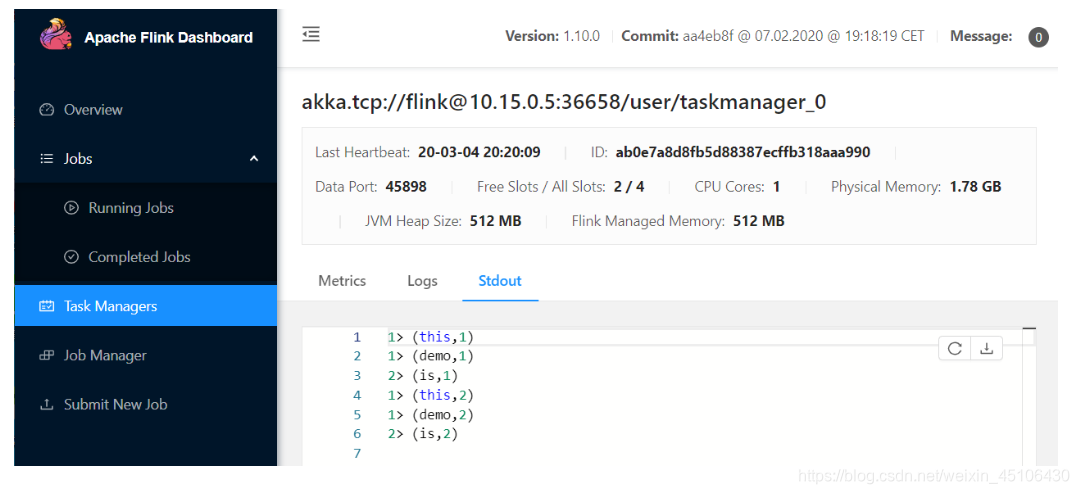

可以访问flink地WEB UI地址:http://hbase:8081

QuitckStart

• 引依赖

<dependency>
 <groupId>org.apache.hadoop</groupId>
 <artifactId>hadoop-client</artifactId>
 <version>2.9.2</version>
</dependency> <dependency>
 <groupId>org.apache.flink</groupId>
 <artifactId>flink-streaming-scala_2.11</artifactId>
 <version>1.10.0</version>
</dependency>

• Client程序

import org.apache.flink.streaming.api.scala._

object FlinkWordCountQiuckStart {
  def main(args: Array[String]): Unit = {
    //1.创建流计算执行环境
    val env = StreamExecutionEnvironment.getExecutionEnvironment

    //2.创建DataStream-细化
    val text = env.socketTextStream("hbase",9999)

    //3.执行DataStream的转换算子
    val counts = text.flatMap(line=>line.split("\\s+"))
      .map(word=>(word,1))
      .keyBy(0)
      .sum(1)

    //4.将计算的结果在控制打印
    counts.print()

    //5.执行流计算任务
    env.execute("Window Stream WordCount")
  }

}

• 引入maven打包插件

<build>
    <plugins>
        <!--scala编译插件-->
        <plugin>
            <groupId>net.alchim31.maven</groupId>
            <artifactId>scala-maven-plugin</artifactId>
            <version>4.0.1</version>
            <executions>
                <execution>
                    <id>scala-compile-first</id>
                    <phase>process-resources</phase>
                    <goals>
                        <goal>add-source</goal>
                        <goal>compile</goal>
                    </goals>
                </execution>
            </executions>
        </plugin>
        <!--创建fatjar插件-->
        <plugin>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-shade-plugin</artifactId>
            <version>2.4.3</version>
            <executions>
                <execution>
                    <phase>package</phase>
                    <goals>
                        <goal>shade</goal>
                    </goals>
                    <configuration>
                        <filters>
                            <filter>
                                <artifact>*:*</artifact>
                                <excludes>
                                    <exclude>META-INF/*.SF</exclude>
                                    <exclude>META-INF/*.DSA</exclude>
                                    <exclude>META-INF/*.RSA</exclude>
                                </excludes>
                            </filter>
                        </filters>
                    </configuration>
                </execution>
            </executions>
        </plugin>
        <!--编译插件-->
        <plugin>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-compiler-plugin</artifactId>
            <version>3.2</version>
            <configuration>
                <source>1.8</source>
                <target>1.8</target>
                <encoding>UTF-8</encoding>
            </configuration>
            <executions>
                <execution>
                    <phase>compile</phase>
                    <goals>
                        <goal>compile</goal>
                    </goals>
                </execution>
            </executions>
        </plugin>
    </plugins>
</build>

• 使用mvn package打包

注意:在提交任务之前先启动nc服务 否则任务执行不成功

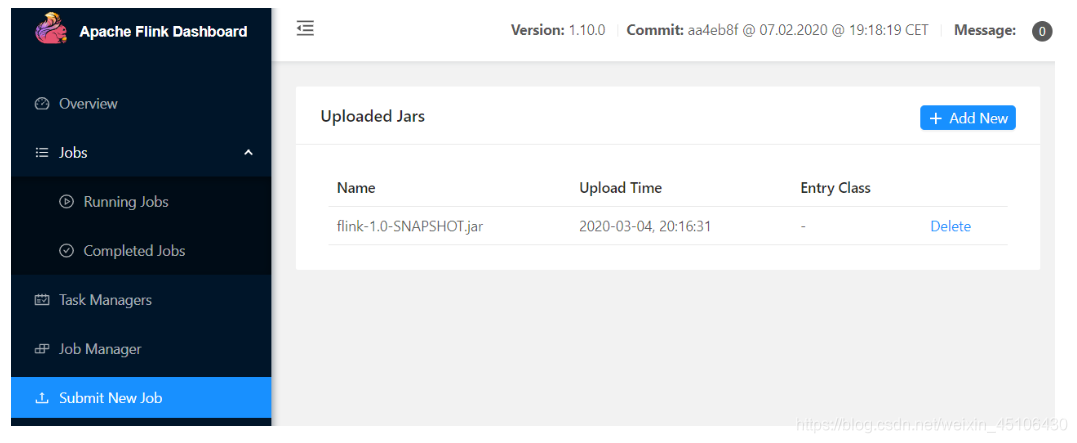

• 使用WEB UI提交任务

• 查看运行结果

程序部署

本地执行

//1.创建流计算执行环境
val env = StreamExecutionEnvironment.createLocalEnvironment(3)

//2.创建DataStream-细化
val text = env.socketTextStream("hbase",9999)

//3.执行DataStream的转换算子
val counts = text.flatMap(line=>line.split("\\s+"))
  .map(word=>(word,1))
  .keyBy(0)
  .sum(1)

//4.将计算结果在控制台打印
counts.print()

//5.执行流计算任务
env.execute("Window Stream WordCount")

[root@hbase ~]# nc -lk 9999
this is demo

1> (this,1)
1> (demo,1)
3> (is,1)

远程部署

//1.创建流计算执行环境
val env = StreamExecutionEnvironment.getExecutionEnvironment

//2.创建DataStream-细化
val text = env.socketTextStream("hbase",9999)

//3.执行DataStream的转换算子
val counts = text.flatMap(line=>line.split("\\s+"))
  .map(word=>(word,1))
  .keyBy(0)
  .sum(1)

//4.将计算结果在控制台打印
counts.print()

//5.执行流计算任务
env.execute("Window Stream WordCount")

[root@hbase ~]# nc -lk 9999
hello flink

4> (flink,1)
2> (hello,1)

StreamExecutionEnvironment.getExecutionEnvironment会自动识别运行环境 如果运行环境是idea系统会自动切换本地模式 默认系统的并行度使用系统最大线程数 等价于spark中设置的local[*]如果是生产环境 需要用户在提交任务的时候指定并行度parallelism

• 部署方式
  • WEB UI部署(略)
  • 通过脚本部署

[root@hbase flink-1.10.0]# ./bin/flink run
                --class qiuck_start.FlinkWordCountQuickStart
                --detached #后台提交
                --parallelism 4 #指定程序默认并行度
                --jobmanager hbase:8081 #提交目标主机
                /root/  #jar包存放路径
Job has been submitted with JobID b84b11c64018ffd303e5370bb5a9bf44

查看现有任务

[root@hbase flink-1.10.0]# ./bin/flink list --running --jobmanager hbase:8081
Waiting for response...
------------------ Running/Restarting Jobs -------------------
05.03.2020 12:50:47 : b84b11c64018ffd303e5370bb5a9bf44 : Window Stream WordCount (RUNNING)
--------------------------------------------------------------

取消指定任务

[root@hbase flink-1.10.0]# ./bin/flink cancel --jobmanager hbase:8081 b84b11c64018ffd303e5370bb5a9bf44
Cancelling job b84b11c64018ffd303e5370bb5a9bf44.
Cancelled job b84b11c64018ffd303e5370bb5a9bf44.

查看程序执行计划

[root@hbase flink-1.10.0]# ./bin/flink info --class qiuck_start.FlinkWordCountQuickStart --parallelism 4 /root/flink-1.0-SNAPSHOT.jar
----------------------- Execution Plan -----------------------
{
   "nodes":[{
   "id":1,"type":"Source: Socket Stream","pact":"Data Source","contents":"Source: Socket Stream","parallelism":1},{
   "id":2,"type":"Flat Map","pact":"Operator","contents":"Flat Map","parallelism":4,"predecessors":[{
   "id":1,"ship_strategy":"REBALANCE","side":"second"}]},{
   "id":3,"type":"Map","pact":"Operator","contents":"Map","parallelism":4,"predecessors":[{
   "id":2,"ship_strategy":"FORWARD","side":"second"}]},{
   "id":5,"type":"aggregation","pact":"Operator","contents":"aggregation","parallelism":4,"predecessors":[{
   "id":3,"ship_strategy":"HASH","side":"second"}]},{
   "id":6,"type":"Sink: Print to Std. Out","pact":"Data Sink","contents":"Sink: Print to Std. Out","parallelism":4,"predecessors":[{
   "id":5,"ship_strategy":"FORWARD","side":"second"}]}]}
--------------------------------------------------------------

No description provided.

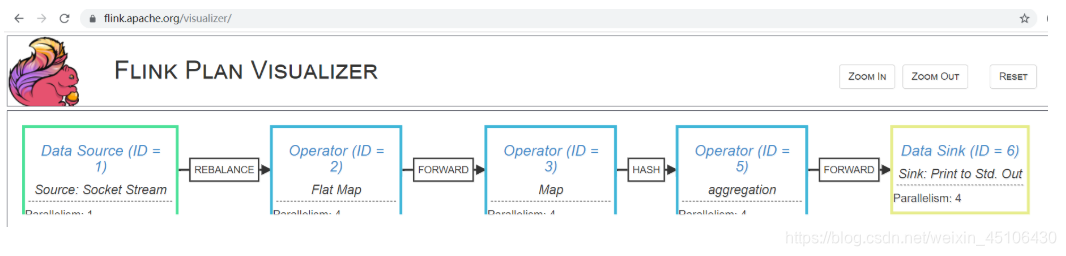

用户可以访问：https://flink.apache.org/visualizer/将json数据粘贴过去 查看Flink执行计划图

跨平台发布

//1.创建流计算执行环境
var jars="D:\\ideaProject\\bigdataCodes\\Flink\\target\\flink-1.0-SNAPSHOT.jar"
val env = StreamExecutionEnvironment.createRemoteEnvironment("hbase",9999,jars)
//设置默认并行度
env.setParallelism(4)

//2.创建DataStream-细化
val text = env.socketTextStream("hbase",9999)

//3.执行DataStream的转换算子
val counts = text.flatMap(line=>line.split("\\s+"))
  .map(word=>(word,1))
  .keyBy(0)
  .sum(1)

//4.将计算结果在控制台打印
counts.print()

//5.执行流计算任务
env.execute("Window Stream WordCount")

在运行之前需要使用mvn重新打包程序 直接运行main函数即可

Streaming(DataStream API)

DataSource

数据源是程序读取数据的来源 用户可以通过env.addSource(SourceFunction) 将SourceFunction添加到程序中 Flink内置许多已知实现的SourceFunction 但是用户可以自定义实现SourceFunction(非并行化)接口或者实现ParallelSourceFunction(并行化)接口 如果需要有状态管理还可以继承RichParallelSourceFunction

File-based

• readTextFile(path)

Reads(once) text files, i.e. files that respect the TextInputFormat specification, line-by-line and returns them as Strings.

//1.创建流计算执行环境
val env = StreamExecutionEnvironment.getExecutionEnvironment

//2.创建DataStream -细化
val text:DataStream[String]=env.readTextFile("hdfs://hbase:9000/demo/word/words")

//3.执行DataStream的转换算子
val counts = text.flatMap(line=>line.split("\\s+"))
  .map(word=>(word,1))
  .keyBy(0)
  .sum(1)

//4.将计算的结果在控制台打印
counts.print()

//5.执⾏流计算任务
env.execute("Window Stream WordCount")

4> (is,1)
3> (good,1)
4> (day,1)
1> (this,1)
2> (demo,1)
4> (day,2)
3> (good,2)
3> (study,1)
2> (up,1)

• readFile(fileInputFormat,path)

Reads (once) files as dictated by the specified file input format.

//1.创建流计算执行环境
val env = StreamExecutionEnvironment.getExecutionEnvironment

//2.创建DataStream -细化
var inputFormat:FileInputFormat[String]=new TextInputFormat(null)
val text:DataStream[String]=env.readFile(inputFormat,"hdfs://hbase:9000/demo/word/words")

//3.执行DataStream的转换算子
val counts = text.flatMap(line=>line.split(","))
  .map(word=>(word,1))
  .keyBy(0)
  .sum(1)

//4.将计算的结果在控制台打印
counts.print()

//5.执⾏流计算任务
env.execute("Window Stream WordCount")

4> (is,1)
3> (good,1)
4> (day,1)
1> (this,1)
2> (demo,1)
4> (day,2)
3> (good,2)
3> (study,1)
2> (up,1)

• readFile(fileInputFormat,path,watchType,interval,pathFilter,typeInfo)

This is the method called internally by the two previous ones. It reads files in the path based on the

given fileInputFormat . Depending on the provided watchType , this source may periodically

monitor (every interval ms) the path for new data

( FileProcessingMode.PROCESS_CONTINUOUSLY ), or process once the data currently in the path

and exit ( FileProcessingMode.PROCESS_ONCE ). Using the pathFilter , the user can further

exclude files from being processed

//1.创建流计算执行环境
val env = StreamExecutionEnvironment.getExecutionEnvironment

//2.创建DataStream -细化
var inputFormat:FileInputFormat[String]=new TextInputFormat(null)
val text:DataStream[String]=env.readFile(inputFormat,"hdfs://hbase:9000/demo/word/words"
,FileProcessingMode.PROCESS_CONTINUOUSLY,1000)// PROCESS_ONCE

//3.执行DataStream的转换算子
val counts = text.flatMap(line=>line.split(","))
  .map(word=>(word,1))
  .keyBy(0)
  .sum(1)

//4.将计算的结果在控制台打印
counts.print()

//5.执⾏流计算任务
env.execute("Window Stream WordCount")

2> (demo,1)
4> (is,1)
2> (up,1)
4> (day,1)
1> (this,1)
3> (good,1)
4> (day,2)
3> (good,2)
3> (study,1)

该方法会检查采集目录下的文件 如果文件发生变换系统会重新采集 此时可能会导致文件的重复计算 一般来说不建议修改文件内容 直接上传文件即可

Socket Based

• socketTextStream

从socket读取 元素可以用分割符分割

Reads from a socket. Elements can be separated by a delimiter

//1.创建流计算执行环境
val env = StreamExecutionEnvironment.getExecutionEnvironment

//2.创建DataStream -细化
val text = env.socketTextStream("hbase",9999,'\n',3)
//3.执行DataStream的转换算子
val counts = text.flatMap(line=>line.split("\\s+"))
  .map(word=>(word,1))
  .keyBy(0)
  .sum(1)

//4.将计算的结果在控制台打印
counts.print()

//5.执⾏流计算任务
env.execute("Window Stream WordCount")

2> (hello,1)
4> (flink,1)
3> (,1)
1> (spark,1)

Collection-based

//1.创建流计算执行环境
val env = StreamExecutionEnvironment.getExecutionEnvironment

//2.创建DataStream -细化
val text = env.fromCollection(List("this is demo","hello flink"))

//3.执行DataStream的转换算子
val counts = text.flatMap(line=>line.split("\\s+"))
  .map(word=>(word,1))
  .keyBy(0)
  .sum(1)

//4.将计算的结果在控制台打印
counts.print()

//5.执⾏流计算任务
env.execute("Window Stream WordCount")

4> (flink,1)
4> (is,1)
1> (this,1)
2> (hello,1)
2> (demo,1)

UserDefinedSource

• SourceFunction-非并行化接口

    class UserDefinedonParallelSourceFunction extends SourceFunction[String]{
    @volatile  //防止线程拷贝变量
    var isRunning:Boolean=true
    val lines:Array[String]=Array("this is demo","hello flink","spark kafka")

    //在该方法中启动线程 通过sourceContext的collect方法发送数据
    override def run(sourceContext: SourceFunction.SourceContext[String]): Unit = {
    while (isRunning){
      Thread.sleep(1000)
      //输送数据给下游
      sourceContext.collect(lines(new Random().nextInt(lines.size)))
    }
}

    //释放资源
    override def cancel(): Unit = {
    isRunning=false
    }
}

• ParallelSourceFunction

    class UserDefinedonParallelSourceFunction extends ParallelSourceFunction[String]{
    @volatile  //防止线程拷贝变量
    var isRunning:Boolean=true
    val lines:Array[String]=Array("this is demo","hello flink","spark kafka")

    //在该方法中启动线程 通过sourceContext的collect方法发送数据
    override def run(sourceContext: SourceFunction.SourceContext[String]): Unit = {
    while (isRunning){
      Thread.sleep(1000)
      //输送数据给下游
      sourceContext.collect(lines(new Random().nextInt(lines.size)))
    }
}

    //释放资源
    override def cancel(): Unit = {
    isRunning=false
    }
}

ParallelSourceFunction-并行化接口

//1.创建流计算执行环境
val env = StreamExecutionEnvironment.getExecutionEnvironment

//2.创建DataStream -细化
val text = env.addSource[String](new UserDefinedonParallelSourceFunction) //⽤户定义的SourceFunction

//3.执行DataStream的转换算子
val counts = text.flatMap(line=>line.split("\\s+"))
  .map(word=>(word,1))
  .keyBy(0)
  .sum(1)

//4.将计算的结果在控制台打印
counts.print()

//5.执⾏流计算任务
env.execute("Wind
