RabbitMQ整合SpringCloud和交换机

本章目标

交换机

RabbitMQ整合 SpringCloud实战

交换机

交换机属性：

Name：交换机名称
Type：交换机类型 direct、topic、fanout、headers
Durability：是否需要持久化，true为持久化
Auto Delete：当最后一个绑定到Exchange上的队列删除后，自动删除该Exchange
Internal：当前Exchange是否用于RabbitMQ内部使用，默认为False
Arguments：扩展参数，用于扩展AMQP协议，定制化使用

直流交换机

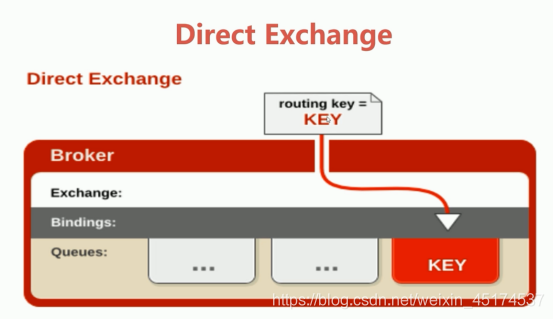

直连交换机Direct Exchange（完全匹配路由key）

所有发送到Direct Exchange的消息会被转发到RouteKey中指定的Queue

【注意】Direct模式可以使用RabbitMQ自带的Exchange：default Exchange，所以不需要将Exchange进行任何绑定（binding）操作，消息传递时，RouteKey必须完全匹配才会被队列接收，否则该消息会被抛弃；

消费端代码

package com.cgl.rabbitmqapi.exchange.direct;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.QueueingConsumer;

/**
 * @author caoguangli
 * @company
 * @create  2019-12-21 9:16
 */
public class Consumer4DirectExchange {

    public static void main(String[] args) throws Exception {



        ConnectionFactory connectionFactory = new ConnectionFactory() ;

        connectionFactory.setHost("192.168.125.128");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");

        connectionFactory.setAutomaticRecoveryEnabled(true);
        connectionFactory.setNetworkRecoveryInterval(3000);
        Connection connection = connectionFactory.newConnection();

        Channel channel = connection.createChannel();
        //4 声明
        String exchangeName = "test_direct_exchange";
        String exchangeType = "direct";
        String queueName = "test_direct_queue";
        String routingKey = "test.direct";

        //表示声明了一个交换机
        channel.exchangeDeclare(exchangeName, exchangeType, true, false, false, null);
        //表示声明了一个队列
        channel.queueDeclare(queueName, false, false, false, null);
        //建立一个绑定关系:
        channel.queueBind(queueName, exchangeName, routingKey);

        //durable 是否持久化消息
        QueueingConsumer consumer = new QueueingConsumer(channel);
        //参数：队列名称、是否自动ACK、Consumer
        channel.basicConsume(queueName, true, consumer);
        //循环获取消息
        while(true){

            //获取消息，如果没有消息，这一步将会一直阻塞
            QueueingConsumer.Delivery delivery = consumer.nextDelivery();
            String msg = new String(delivery.getBody());
            System.out.println("收到消息：" + msg);
        }
    }
}

生产端代码

package com.cgl.rabbitmqapi.exchange.direct;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

/**
 * @author caoguangli
 * @company
 * @create  2019-12-21 9:17
 */
public class Producer4DirectExchange {

    public static void main(String[] args) throws Exception {


        //1 创建ConnectionFactory
        ConnectionFactory connectionFactory = new ConnectionFactory();
        connectionFactory.setHost("192.168.125.128");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");

        //2 创建Connection
        Connection connection = connectionFactory.newConnection();
        //3 创建Channel
        Channel channel = connection.createChannel();
        //4 声明
        String exchangeName = "test_direct_exchange";
        String routingKey = "test.direct";
//        String routingKey = "test.direct111"; //收不到
        //5 发送

        String msg = "Hello World RabbitMQ 4  Direct Exchange Message 111 ... ";
        channel.basicPublish(exchangeName, routingKey , null , msg.getBytes());

    }
}

主题交换机

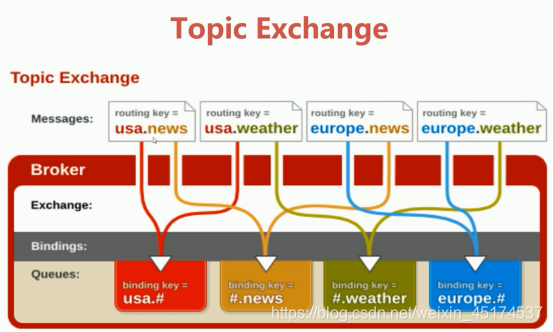

主题交换机Topic Exchange（匹配路由规则的交换机）

所有发送到Topic Exchange的消息被转发到所有关系RouteKey中指定Topic的Queue上；

Exchange将RouteKey和某Topic进行模糊匹配，此时队列需要绑定一个Topic；

【注意】可以使用通配符进行模糊匹配

符号：“#” 匹配一个或者多个词
符号：“”匹配不多不少一个词
列如：
“log.#” 能够匹配到 “log.info.oa”
“log.” 能够匹配到 “log.err”

消费端代码

package com.cgl.rabbitmqapi.exchange.topic;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.QueueingConsumer;

/**
 * @author caoguangli
 * @company
 * @create  2019-12-21 10:06
 */
public class Consumer4TopicExchange {

    public static void main(String[] args) throws Exception {



        ConnectionFactory connectionFactory = new ConnectionFactory() ;

        connectionFactory.setHost("192.168.125.128");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("/");

        connectionFactory.setAutomaticRecoveryEnabled(true);
        connectionFactory.setNetworkRecoveryInterval(3000);
        Connection connection = connectionFactory.newConnection();

        Channel channel = connection.createChannel();
        //4 声明
        String exchangeName = "test_topic_exchange";
        String exchangeType = "topic";
        String queueName = "test_topic_queue";
        String routingKey = "user.#";
//        String routingKey = "user.*";
        // 1 声明交换机
        channel.exchangeDeclare(exchangeName, exchangeType, true, false, false, null);
        // 2 声明队列
        channel.queueDeclare(queueName, false, false, false, null);
        // 3 建立交换机和队列的绑定关系:
        channel.queueBind(queueName, exchangeName, routingKey);

        //durable 是否持久化消息
        QueueingConsumer consumer = new QueueingConsumer(channel);
        //参数：队列名称、是否自动ACK、Consumer
        channel.basicConsume(queueName, true, consumer);
        //循环获取消息
        while(true){

            //获取消息，如果没有消息，这一步将会一直阻塞
            QueueingConsumer.Delivery delivery = consumer.nextDelivery();
            String msg = new String(delivery.ge
