半圆分割线使用场景
- 卡券
- 车票
- 机票
- 超市小票
- 等等
这些使用场景近几年在移动端非常常见,显而易见效果是不错的,最近做移动端时,遇到了这种场景,就学了一下,发现so easy,在学之前是带有恐惧的, 看着就高级,而且还麻烦,就下意识地逃避,说的好听点称“知难而退”,明事理,但并不推荐,知难而退的确可以舒服一时,但逃得了和尚,逃不了庙,以后还是会遇见的,记得有个人说过,
你越担心什么,它就越会发生
.
更不要说技术上的阻挠了,技多不压身嘛,各位都清楚,谁不想拥有非常NB的技术,我天天都在想,甚至做白日梦的想,但终究输给了现实,现实就是,
千万个想法,不如一个行动
action!
action!
action!
动起来,才能有所突破,才能掌握NB的技术,才能。。。(后面的事情可以说是为所欲为了),ok,上效果图和代码:
图一:

图二:

react代码–>
/*
* @Autor: lingchen.liu
* @Date: 2022-03-18 20:50:04
* @LastEditors: lingchen.liu
* @LastEditTime: 2022-03-18 22:02:05
*/
import React, { FC } from "react";
import { View } from '@tarojs/components';
import './index.scss'
const CardLine: FC = () => {
// 卡片之间的虚线半圆分割线
return (
<View className="card">
<View className="top">
</View>
</View>
)
}
export default CardLine
样式代码:
.card {
background: #F8F8F8FF;
border-radius: 40px;
box-sizing: border-box;
padding: 0 56px;
margin: 0 0 -12px 0;
}
.top {
box-sizing: border-box;
padding-top: 0px;
border-bottom: 3px dashed #cccacaf8;
position: relative;
}
.top::before {
content: '';
position: absolute;
width: 22px;
height: 44px;
background: #F8F8F8FF;
left: -24px;
bottom: -24px;
border-radius: 0 22px 22px 0;
}
.top::after {
content: '';
position: absolute;
width: 22px;
height: 44px;
background: #F8F8F8FF;
right: -24px;
bottom: -24px;
border-radius: 22px 0 0 22px;
}

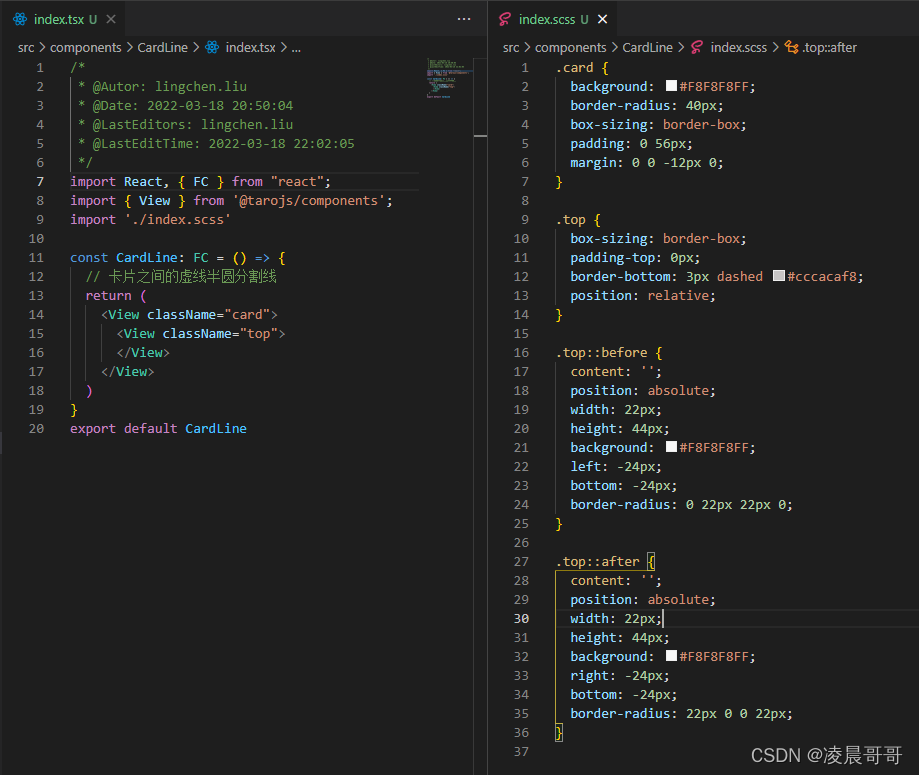

再来一张 代码截图:

完事。
