一、环境准备
centos7两台机器搭建一个master一个worker集群
master-ip:192.168.200.30
node-ip:192.168.200.31
二、关闭selinux
setenforce 0
永久关闭:
sed -i 's/SELINUX=enforcing/SELINUX=disabled/g' /etc/selinux/config
三、关闭防火墙
systemctl stop firewalld
四、设置hostname
hostnamectl set-hostname master
hostnamectl set-hostname node
reboot #重启生效

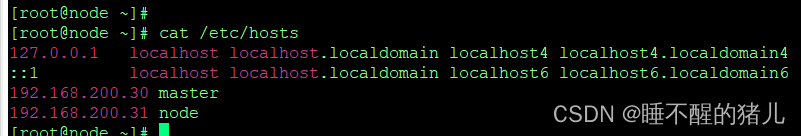

将master&node写入hosts文件中
五、关闭交换分区
swapoff -a
永久生效:
sed -ri 's/.*swap.*/#&/' /etc/fstab
六、允许 iptables 检查桥接流量
cat <<EOF | sudo tee /etc/modules-load.d/k8s.conf
br_netfilter
EOF
br_netfilter
cat <<EOF | sudo tee /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
EOF
生效方式:
sysctl --system
七、安装docker
yum remove docker*
yum install -y yum-utils
yum install docker-ce
配置镜像加速器(自行注册一个阿里账号,在镜像服务中找到对应得加速文件)
sudo mkdir -p /etc/docker
sudo tee /etc/docker/daemon.json <<-'EOF'
{
"registry-mirrors": ["https://xxx.mirror.aliyuncs.com"]
}
EOF

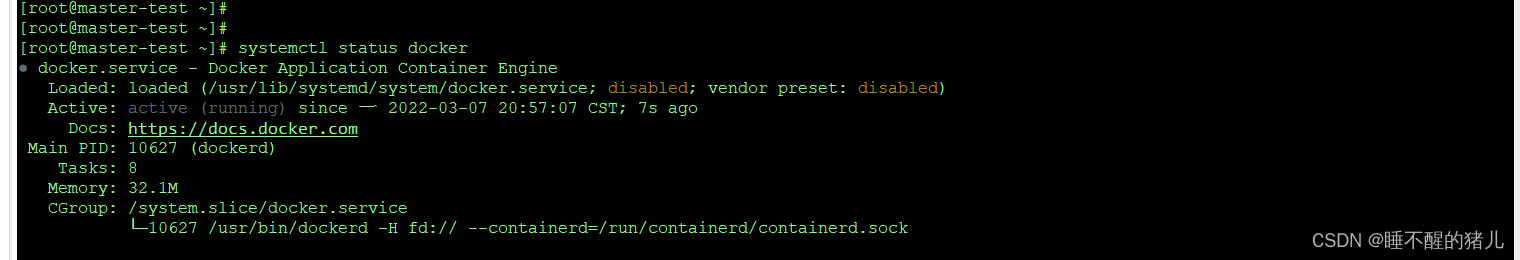

sudo systemctl daemon-reload
sudo systemctl restart docker
sudo systemctl enable docker
八、配置k8s源
cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=1
repo_gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF
九、安装kubelet、kubeadm、kubectl
yum install -y kubelet kubeadm kubectl #最好不要指定版本,默认更新为最新
#指定版本 yum install -y --nogpgcheck kubelet-1.20.0 kubeadm-1.20.0 kubectl-1.20.0
systemctl enable --now kubelet
systemctl start kubelet
出现以下问题解决:
解决方法:下载yum源,安装依赖包
cd /etc/yum.repos.d/
wget http://mirrors.aliyun.com/repo/epel-7.repo
wget http://mirrors.aliyun.com/repo/Centos-7.repo
yum install epel-release
yum install conntrack-tools
再次执行安装命令即可
检查安装:
kubelet --version
十、kubeadm安装集群
kubeadm初始化集群 #在master上执行
需要修改为master的IP地址, --apiserver-advertise-address 192.168.200.30
#apiserver-advertise-address 192.168.200.100为master节点IP,根据个人master IP修改
kubeadm init --apiserver-advertise-address 192.168.200.30 \
--image-repository registry.aliyuncs.com/google_containers \
--pod-network-cidr 10.244.0.0/16 \
--service-cidr 10.96.0.0/12
#--kubernetes-version v1.23.4 \ #本行,可以不添加,默认使用最新的版本
#pod、service的网段为官网默认
以上为初始化成功
#根据提示写入环境变量
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
#查看node
kubectl get no
状态为notready,需要安装网络插件
#master上下载网络插件
wget https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml
vim kube-flannel.yml
---
apiVersion: policy/v1beta1
kind: PodSecurityPolicy
metadata:
name: psp.flannel.unprivileged
annotations:
seccomp.security.alpha.kubernetes.io/allowedProfileNames: docker/default
seccomp.security.alpha.kubernetes.io/defaultProfileName: docker/default
apparmor.security.beta.kubernetes.io/allowedProfileNames: runtime/default
apparmor.security.beta.kubernetes.io/defaultProfileName: runtime/default
spec:
privileged: false
volumes:
- configMap
- secret
- emptyDir
- hostPath
allowedHostPaths:
- pathPrefix: "/etc/cni/net.d"
- pathPrefix: "/etc/kube-flannel"
- pathPrefix: "/run/flannel"
readOnlyRootFilesystem: false
# Users and groups
runAsUser:
rule: RunAsAny
supplementalGroups:
rule: RunAsAny
fsGroup:
rule: RunAsAny
# Privilege Escalation
allowPrivilegeEscalation: false
defaultAllowPrivilegeEscalation: false
# Capabilities
allowedCapabilities: ['NET_ADMIN', 'NET_RAW']
defaultAddCapabilities: []
requiredDropCapabilities: []
# Host namespaces
hostPID: false
hostIPC: false
hostNetwork: true
hostPorts:
- min: 0
max: 65535
# SELinux
seLinux:
# SELinux is unused in CaaSP
rule: 'RunAsAny'
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: flannel
rules:
- apiGroups: ['extensions']
resources: ['podsecuritypolicies']
verbs: ['use']
resourceNames: ['psp.flannel.unprivileged']
- apiGroups:
- ""
resources:
- pods
verbs:
- get
- apiGroups:
- ""
resources:
- nodes
verbs:
- list
- watch
- apiGroups:
- ""
resources:
- nodes/status
verbs:
- patch
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: flannel
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: flannel
subjects:
- kind: ServiceAccount
name: flannel
namespace: kube-system
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: flannel
namespace: kube-system
---
kind: ConfigMap
apiVersion: v1
metadata:
name: kube-flannel-cfg
namespace: kube-system
labels:
tier: node
app: flannel
data:
cni-conf.json: |
{
"name": "cbr0",
"cniVersion": "0.3.1",
"plugins": [
{
"type": "flannel",
"delegate": {
"hairpinMode": true,
"isDefaultGateway": true
}
},
{
"type": "portmap",
"capabilities": {
"portMappings": true
}
}
]
}
net-conf.json: |
{
"Network": "10.244.0.0/16",
"Backend": {
"Type": "vxlan"
}
}
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: kube-flannel-ds
namespace: kube-system
labels:
tier: node
app: flannel
spec:
selector:
matchLabels:
app: flannel
template:
metadata:
labels:
tier: node
app: flannel
spec:
affinity:
nodeAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
nodeSelectorTerms:
- matchExpressions:
- key: kubernetes.io/os
operator: In
values:
- linux
hostNetwork: true
priorityClassName: system-node-critical
tolerations:
- operator: Exists
effect: NoSchedule
serviceAccountName: flannel
initContainers:
- name: install-cni-plugin
#image: flannelcni/flannel-cni-plugin:v1.0.1 for ppc64le and mips64le (dockerhub limitations may apply)
image: rancher/mirrored-flannelcni-flannel-cni-plugin:v1.0.1
command:
- cp
args:
- -f
- /flannel
- /opt/cni/bin/flannel
volumeMounts:
- name: cni-plugin
mountPath: /opt/cni/bin
- name: install-cni
#image: flannelcni/flannel:v0.16.3 for ppc64le and mips64le (dockerhub limitations may apply)
image: rancher/mirrored-flannelcni-flannel:v0.16.3
command:
- cp
args:
- -f
- /etc/kube-flannel/cni-conf.json
- /etc/cni/net.d/10-flannel.conflist
volumeMounts:
- name: cni
mountPath: /etc/cni/net.d
- name: flannel-cfg
mountPath: /etc/kube-flannel/
containers:
- name: kube-flannel
#image: flannelcni/flannel:v0.16.3 for ppc64le and mips64le (dockerhub limitations may apply)
image: rancher/mirrored-flannelcni-flannel:v0.16.3
command:
- /opt/bin/flanneld
args:
- --ip-masq
- --kube-subnet-mgr
resources:
requests:
cpu: "100m"
memory: "50Mi"
limits:
cpu: "100m"
memory: "50Mi"
securityContext:
privileged: false
capabilities:
add: ["NET_ADMIN", "NET_RAW"]
env:
- name: POD_NAME
valueFrom:
fieldRef:
fieldPath: metadata.name
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
volumeMounts:
- name: run
mountPath: /run/flannel
- name: flannel-cfg
mountPath: /etc/kube-flannel/
- name: xtables-lock
mountPath: /run/xtables.lock
volumes:
- name: run
hostPath:
path: /run/flannel
- name: cni-plugin
hostPath:
path: /opt/cni/bin
- name: cni
hostPath:
path: /etc/cni/net.d
- name: flannel-cfg
configMap:
name: kube-flannel-cfg
- name: xtables-lock
hostPath:
path: /run/xtables.lock
type: FileOrCreate
kubectl apply -f ./kube-flannel.yml #此处应用后node状态由NotReady --> Ready
将node节点加入master:
kubeadm join 192.168.200.30:6443 --token 574e7g.uo9ko4bn8cr3figa
–discovery-token-ca-cert-hash sha256:49f0a014dd1d5f6e3f0830d169bd7a37df4e9da14468cfd2e4a2741b9b6a866b
加入成功
#工作负载worker节点node查看集群
scp -r /etc/kubernetes/admin.conf node:/etc/kubernetes/
node上执行
echo "export KUBECONFIG=/etc/kubernetes/admin.conf" >> ~/.bash_profile
source ~/.bash_profile
#初始化报错:
The HTTP call equal to 'curl -sSL http://localhost:10248/healthz' failed with error: Get "http://localhost:10248/healthz": dial tcp [::1]:10248: connect: connection refused.
解决方式:
# 添加以下内容
vim /etc/docker/daemon.json
{
"exec-opts": ["native.cgroupdriver=systemd"]
}
# 重启docker
systemctl restart docker
# 重新初始化
kubeadm reset # 先重置,再次初始化
#查看k8s所需镜像
kubeadm config images list
#token生成
kubeadm token create
#查看列表
kubeadm token list
#获取ca证书sha256编码hash值
openssl x509 -pubkey -in /etc/kubernetes/pki/ca.crt | openssl rsa -pubin -outform der 2>/dev/null | openssl dgst -sha256 -hex | sed 's/^.* //'
node上加入
kubeadm join 192.168.10.39:6443 --token vyaztf.snjf2za5636nekcv \
--discovery-token-ca-cert-hash sha256:21c1254f9da1bf4c46a6841b603ca1c21193eb32c27639ebf775f6fab8ba39de
#允许master进行调度
kubectl taint node master node-role.kubernetes.io/master-
#所有节点不允许调度
kubectl taint nodes --all node-role.kubernetes.io/master-
#重新设置master不允许调度
kubectl taint node master node-role.kubernetes.io/master=:NoSchedule
