1.SpringCloud入门

Spring cloud是一个基于Spring Boot实现的服务治理工具包，用于微服务架构中管理和协调服务的。
Spring Cloud是一系列框架的有序集合。
服务发现——Netflix Eureka
客服端负载均衡——Netflix Ribbon\Feign
断路器——Netflix Hystrix
服务网关——Netflix Zuul
分布式配置——Spring Cloud Config

1.1 搭建注册中心

1.创建多模块工程

springcloud-parent
  springcloud-eureka-server //注册中心EurekaServer
  springcloud-order-server  //订单服务EurekaClient ,消费者
  springcloud-user-server   //用户服务EurekaClient ,提供者

2.springcloud-parent管理依赖

<parent>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-parent</artifactId>
      <version>2.0.5.RELEASE</version>
  </parent>

  <groupId>cn.itsource.springcloud</groupId>
  <artifactId>springcloud-parent</artifactId>
  <version>1.0-SNAPSHOT</version>

  <properties>
      <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
      <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
      <java.version>1.8</java.version>
      <spring-cloud.version>Finchley.SR1</spring-cloud.version>
  </properties>
  <dependencyManagement>
      <dependencies>
          <dependency>
              <groupId>org.springframework.cloud</groupId>
              <artifactId>spring-cloud-dependencies</artifactId>
              <version>${spring-cloud.version}</version>
              <type>pom</type>
              <scope>import</scope>
          </dependency>
      </dependencies>
  </dependencyManagement>

3.springcloud-eureka-server导入依赖

<dependencies>
      <dependency>
          <groupId>org.springframework.cloud</groupId>
          <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
      </dependency>
      <dependency>
          <groupId>org.springframework.boot</groupId>
          <artifactId>spring-boot-starter-web</artifactId>
      </dependency>
  </dependencies>

4.主配置类

/**
* @EnableEurekaServer :开启注册中心
*/
@SpringBootApplication
@EnableEurekaServer
public class EurekaServerApplication1000 {
 public static void main(String[] args) {
     SpringApplication.run(EurekaServerApplication1000.class);
 }
}

5.配置文件application.yml

server:
  port: 1000
eureka:
  instance:
    hostname: localhost
  client:
    registerWithEureka: false #禁用注册中心向自己注册
    fetchRegistry: false  #不让注册中心获取服务的注册列表
    serviceUrl:
      defaultZone: http://localhost:1000/eureka/
      #注册中心的注册地址 ，其他微服务需要向这个地址注册

1.2 搭建提供者服务

修改 springcloud-user-server
1.导入依赖

 <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
    </dependencies>

2.创建配置类

//@EnableDiscoveryClient:开启注册中心客户端 EurekaClient
@SpringBootApplication
@EnableDiscoveryClient
public class UserServerApplication {
    public static void main(String[] args) {
        SpringApplication.run(UserServerApplication2000.class);
    }
}

3.配置文件

eureka:
  client:
    serviceUrl:
      defaultZone: http://localhost:1000/eureka/ #注册中心地址
server:
  port: 2000
spring:
  application:
    name: user-server

1.3 搭建消费者服务

修改 springcloud-order-server ，步骤同上(搭建提供者服务)

1.4 使用ip注册

eureka:
  client:
    serviceUrl:
      defaultZone: http://localhost:1000/eureka/ #注册中心地址
  instance:
    prefer-ip-address: true #使用ip地址注册
    instance-id: order-server  #指定服务的id

2.服务完成通信

1.编写aomain : user

public class User {

    private Long id;
    private String name;
    private String password;

    public User() {
    }

    public User(Long id, String name, String password) {
        this.id = id;
        this.name = name;
        this.password = password;
    }

    public Long getId() {
        return id;
    }

2.编写 AjaxResult

public class AjaxResult {

    private Boolean success = true;
    private String message;
    private User data;

2.1 user-server提供者服务编写接口

1.依赖公共模块

<dependency>
    <groupId>cn.itsource.springcloud</groupId>
    <artifactId>springcloud-common-user</artifactId>
    <version>...</version>
</dependency>

2.创建controller

//用户提供者服务
@RestController
public class UserProviderController {
    @GetMapping("/user/{id}")
    public User getUserById(@PathVariable("id")Long id){
        return new User(id,"张三" , "123");
    }
}

2.2 order-server消费者服务

1.依赖公共模块

<dependency>
    <groupId>cn.itsource.springcloud</groupId>
    <artifactId>springcloud-common-user</artifactId>
    <version>...</version>
</dependency>

2.定义RestTemplate的bean

    @Bean
    public RestTemplate restTemplate(){
        return new RestTemplate();
    }

3.定义消费者的Controller

@RestController
public class OrderConsumerController {

    @Autowired
    private RestTemplate restTemplate ;

    @GetMapping("/order/user/{id}")
    public User getUserById(@PathVariable("id") Long id){
  	    //拼接url路径
        String url = "http://localhost:2000/user/"+id;
        User user = restTemplate.getForObject(url, User.class);
        return user;
    }
}

3.EurekaServer高可用集群

3.1 单节点故障

如果只有一个EurekaSever，如果EurekaSever挂了那么整个微服务都不可用 EurekaServer高可用集群

3.2 搭建EurekaServer集群

1.创建两个本地域名 C:\Windows\System32\drivers\etc\hosts
127.0.0.1 peer1
127.0.0.1 peer2

2.修改注册中心springcould-eureka-server

spring:
  profiles:
    active: peer1
---
server:
  port: 1000
eureka:
  instance:
    hostname: peer1 #主机
  client:
    registerWithEureka: false #禁止注册中心向自己注册
    fetchRegistry: false #禁止注册中心拉取注册地址清单
    serviceUrl: #微服务向注册中心注册的地址
      defaultZone: http://peer2:1001/eureka/
spring:
  profiles: peer1
---
server:
  port: 1001
eureka:
  instance:
    hostname: peer2 #主机
  client:
    registerWithEureka: false #禁止注册中心向自己注册
    fetchRegistry: false #禁止注册中心拉取注册地址清单
    serviceUrl: #微服务向注册中心注册的地址
      defaultZone: http://peer1:1000/eureka/
spring:
  profiles: peer2

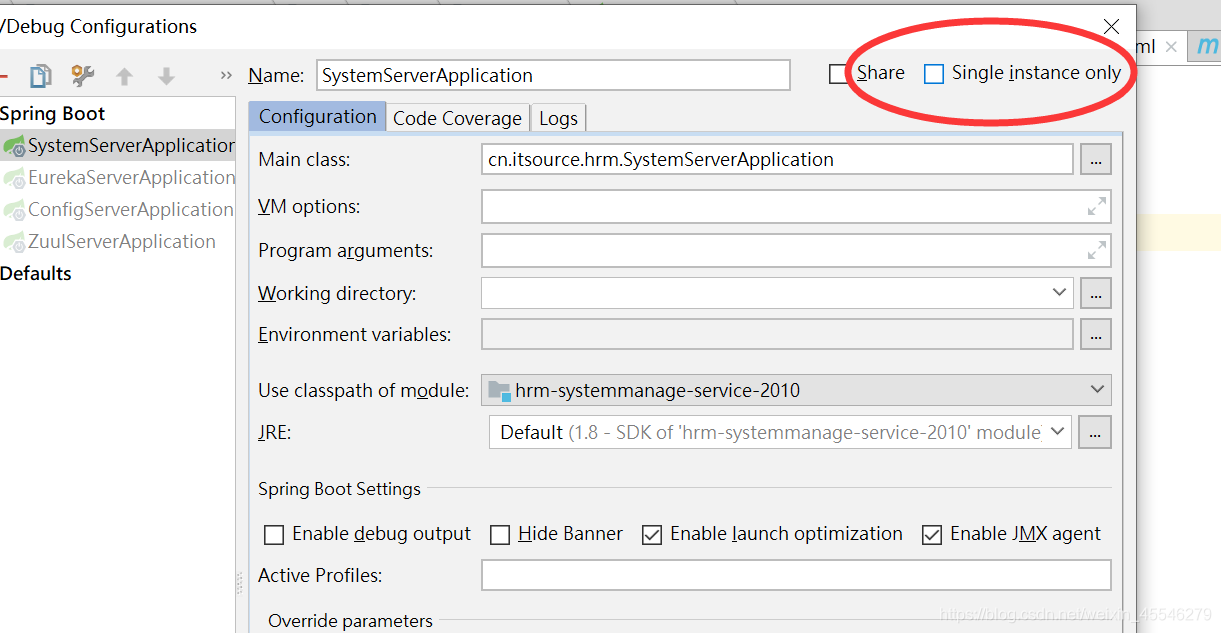

注意:这里使用的SpringBoot多环境配置的方式来实现多个Eureka的配置,启动的时候需要修改 spring.profiles.active=peer1来指定启动使用哪个配置 , 然后IDEA的启动器需要取消勾选:
在这里插入图片描述 3.修改EurekaClient

eureka:
  client:
    serviceUrl:
      defaultZone: http://peer1:1000/eureka/,http://peer2:1001/eureka/ #注册中心地址

4 Ribbon

ribbon是负载均衡器，是基于RestTemplate ,它赋予了RestTemplate 负载均衡的能力

提供者user-server集群,修改配置

eureka:
  client:
    serviceUrl:
      defaultZone: http://peer1:1000/eureka/,http://peer2:1001/eureka/ #注册中心地址
  instance:
    prefer-ip-address: true #使用ip地址注册
    instance-id: user-server1  #指定服务的id
server:
  port: 2000
spring:
  application:
    name: user-server

注意：instance-id需要修改，而 spring.application.name 不需要修改，端口需要修改

4.1 order-server集成Ribbon

1.导入依赖

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-netflix-ribbon</artifactId>
</dependency>

2…修改RestTemplate的Bean的定义

    @Bean
    @LoadBalanced
    public RestTemplate restTemplate(){
        return new RestTemplate();
    }

@LoadBalanced ：ribbon的负载均衡标签，赋予RestTemplate有负债均衡的能力

3.修改Controller调用方式

 @GetMapping("/order/user/{id}")
   public User getUserById(@PathVariable("id") Long id){
       System.out.println("OrderConsumerController.getUserById被调用了......");
       String url = "http://user-server/user/"+id;
       User user = restTemplate.getForObject(url, User.class);
       return user;
   }

ribbon默认使用的轮询策略

5.Feign

基于Ribbon封装的客户端负载均衡器

5.1 Feign的集成

1.导入依赖

<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-openfeign</artifactId>
</dependency>

2.配置类开启Feign

@EnableFeignClients

3.编写Feign的接口

@FeignClient(value="user-server")
public interface UserFeignClient {
    @GetMapping("/user/{id}")
    User getUserById(@PathVariable("id")Long id);
}

4.调用

@RestController
public class DeptConsumerController {

    @Autowired
    private UserFeignClient userFeignClient ;

    @GetMapping("/dept/user/{id}")
    public User getUserById(@PathVariable("id") Long id){
        User user = userFeignClient.getUserById(id); //使用Feign的接口调用
        return user;
    }
}

6.Hystrix

解决服务器故障(雪崩)的一个组件，它可以实现：隔离，熔断，降级，缓存

隔离：包括线程池隔离和信号量隔离，限制调用分布式服务的资源使用，某一个调用的服务出现问题不会影响其他服务调用。
熔断 :当请求次数达到规定的阀值都出现服务故障(超时),Hystrix就把服务标记为短路状态.
降级：高并发情况下，为了保证一些主要的服务有足够的资源不出问题，会认为的关掉一些无关紧要的服务，然后返回一些托底的数据，给用户一个友好的提示。
缓存：Hystrix内部会把请求做缓存

6.1 Ribbon集成Hystrix

1.导入依赖

<dependency>
   <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-netflix-hystrix</artifactId>
</dependency>

2.controller方法贴注解

@RestController
@RequestMapping("/order")
public class OrederController {

    @Autowired
    private RestTemplate restTemplate;

    @GetMapping("/user/{id}")
    @HystrixCommand(fallbackMethod = "getUserByIdFallback")
    public AjaxResult getUserById(@PathVariable("id")Long id){
        String url = "http://localhost:3000/user/"+id;
        User user = restTemplate.getForObject(url, User.class);
        AjaxResult ajaxResult = new AjaxResult();
        ajaxResult.setData(user);
        return ajaxResult;
    }
	//托底方法
    public AjaxResult getUserByIdFallback(@PathVariable("id")Long id){
        AjaxResult ajaxResult = new AjaxResult();
        ajaxResult.setSuccess(false);
        ajaxResult.setMessage("抱歉，服务器很忙，稍后再来哦");
        return ajaxResult;
    }
}

6.2 Feign集成Hystrix

1.开启Hystrix
application.yml

feign:
  hystrix:
    enabled: true #开启熔断支持

2.controller调用

@RestController
@RequestMapping("/order")
public class OrederController {

    @Autowired
    private UserFrignClient userFrignClient;

    @GetMapping("/user/{id}")
    public User getUserById(@PathVariable("id")Long id){
        User user = userFrignClient.getUserById(id);
        return user;
    }

}

3.修改Fiegn客户端接口


@FeignClient(value = "user-server",fallback = UserFeignClientFallback.class)
public interface UserFrignClient {

    @GetMapping("/user/{id}")
    User getUserById(@PathVariable("id")Long id);
}

4.托底实现

@Component
public class UserFeignClientFallback implements UserFrignClient {

    @Override
    public User getUserById(Long id) {
        System.out.println("这是托底数据方法哦。。。。。");
        return new User(-1L,"拖低数据","null");
    }
}

7.SpirngCloud ZUUL

Zuul是一个SpringCloud的网关组件，它是微服务的入口，网络关卡，通过Zuul我们可以实现请求的分发(负载均衡)，鉴权，限流等等操作。

7.1 zuul的基本使用

1.导入依赖

<dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>fastjson</artifactId>
</dependency>
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-config-client</artifactId>
</dependency>

2.配置开开启Zuul

@SpringBootApplication
//开启代理网管
@EnableZuulProxy
public class SpringCould_Zuul_Server {
    public static void main(String[] args) {
        SpringApplication.run(SpringCould_Zuul_Server.class, args);
    }
}

3.配置文件配置zuul

zuul:
  ignored-services: "*"
  prefix: "/servers"
  routes:
    order-server: "/order/**"
    order-server1: "/order1/**"
    user-server: "/user/**"

4四.自定义Filter实现登录检查

@Component
public class LoginCheckFilter extends ZuulFilter {

    public static final int LOGIN_CHECK_FILTER_ORDER = 1;

    @Override
    public String filterType() {
        return PRE_TYPE;
    }

    @Override
    public int filterOrder() {
        return LOGIN_CHECK_FILTER_ORDER;
    }

    //返回true执行run方法 ，否则不执行
    @Override
    public boolean shouldFilter() {
        //login路径放行，其他全部拦截
        //获得请求对象
        RequestContext context = RequestContext.getCurrentContext();
        //获取对象路径
        HttpServletRequest request = context.getRequest();
        String url = request.getRequestURI();
        //判断路径是否为login
        if(url.toUpperCase().contains("login")){
            return false;
        }
        return true;
    }

    @Override
    public Object run() throws ZuulException {
        //获取请求对象
        RequestContext currentContext = RequestContext.getCurrentContext();
        HttpServletRequest request = currentContext.getRequest();
        //获取响应对象
        HttpServletResponse response = currentContext.getResponse();
        //设置响应编码
        response.setContentType("application/json;charset=utf-8");
        //根据请求对象获取响应头
        String token = request.getHeader("x-token");
        //判断是否有x-token，没有给出提示
        if (StringUtils.isBlank(token)){
            try {
                HashMap<String, String> map = new HashMap<>();
                map.put("success", "false");
                map.put("message", "请你先登录");
                response.getWriter().print(JSON.toJSONString(map));
            } catch (IOException e) {
                e.printStackTrace();
            }
            //阻止放行
            currentContext.setSendZuulResponse(false);
        }
        return null;
    }
}

8.配置中心config

集中管理微服务的配置： SpringCloud-config 是分布式配置中心组件

8.1 集成配置中心

1.使用码云创建远程仓库
https://blog.csdn.net/weixin_41950971/article/details/83894949
2.导入依赖

<dependency>
     <groupId>org.springframework.cloud</groupId>
     <artifactId>spring-cloud-config-client</artifactId>
 </dependency>

3.配置类开启配置中心

@EnableConfigServer:开启配置中心

4.配置文件

eureka:
  instance:
    prefer-ip-address: true
    instance-id: config-server:5000
  client:
    serviceUrl:
      defaultZone: http://peer1:1000/eureka/,http://peer2:1001/eureka/
server:
  port: 5000
spring:
  application:
    name: config-server
  cloud:
      config:
        server:
          git:
            uri: 码云地址
            username: 码云账号
            password: 码云密码

5.测试
http://localhost:6001/application-dept-test.yml

8.2 修改springcould-zuul-server微服务

1.导入依赖

<dependency>
     <groupId>org.springframework.cloud</groupId>
     <artifactId>spring-cloud-config-client</artifactId>
 </dependency>

2.创建bootstrap.yml配置文件 - 删除原来的

spring:
  cloud:
    config:
      uri: http://localhost:5000
      name: application-zuul
      profile: dev

3.测试
http://localhost:6001/application-zuul-test.yml
