DHCP配置DHCP中继

实验环境

主机名称	操作系统	IP地址	网络连接方式
DHCP-Server	CentOS 7.5	ens33：192.168.200.10	vnet8
DHCP-Relay	CentOS 7.5	ens33：192.168.200.100 ens37：192.168.100.100	vnet8 vnet1
Client	CentOS 7.5	DHCP分配（动态获取）	vnet1

###建议：
###测试前，先关闭防火墙和selinux
[root@localhost ~]# systemctl stop firewalld
[root@localhost ~]# systemctl disable firewalld
[root@localhost ~]# sed -i 's/SELINUX=enforcing/SELINUX=disabled/g' /etc/selinux/config
[root@localhost ~]# setenforce 0

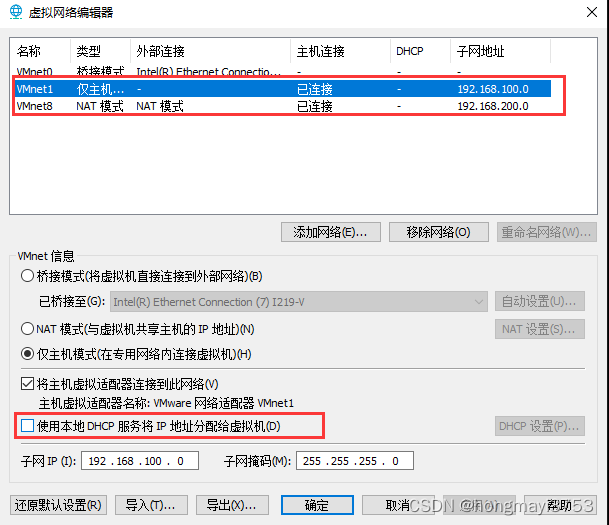

一、【物理机】关闭Vnet1和Vnet8的DHCP功能

二、【DHCP-Server】配置静态IP地址

2.1 配置静态IP地址

• 配置ens33网卡

[root@dhcp-server ~]# cd /etc/sysconfig/network-scripts/
[root@server network-scripts]# vim ifcfg-ens33

配置内容如下

TYPE=Ethernet
BOOTPROTO=static
NAME=ens33
DEVICE=ens33
ONBOOT=yes
IPADDR=192.168.200.10
PREFIX=24
GATEWAY=192.168.200.2
DNS1=114.114.114.114

2.2 测试网络

192.168.200.2为VM NAT网关地址。

[root@dhcp-server ~]# ping 192.168.200.2 -c2
PING 192.168.200.2 (192.168.200.2) 56(84) bytes of data.
64 bytes from 192.168.200.2: icmp_seq=1 ttl=128 time=0.131 ms
64 bytes from 192.168.200.2: icmp_seq=2 ttl=128 time=0.232 ms
​
--- 192.168.200.2 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1000ms
rtt min/avg/max/mdev = 0.131/0.181/0.232/0.052 ms

三、【DHCP-Relay】配置静态IP地址

3.1 配置静态IP地址

• 配置ens33网卡

[root@dhcp-relay ~]# cd /etc/sysconfig/network-scripts/
[root@dhcp-relay network-scripts]# vim ifcfg-ens33

配置内容如下

TYPE=Ethernet
PROXY_METHOD=none
BROWSER_ONLY=no
BOOTPROTO=static
DEFROUTE=yes
IPV4_FAILURE_FATAL=no
NAME=ens33
DEVICE=ens33
ONBOOT=yes
AUTOCONNECT_PRIORITY=-999
IPADDR=192.168.200.100
NETMASK=255.255.255.0
GATEWAY=192.168.200.2
DNS1=114.114.114.114

• 配置ens37网卡

[root@dhcp-relay network-scripts]# vim ifcfg-ens37

配置内容如下

TYPE=Ethernet
PROXY_METHOD=none
BROWSER_ONLY=no
BOOTPROTO=static
DEFROUTE=yes
IPV4_FAILURE_FATAL=no
NAME=ens37
DEVICE=ens37
ONBOOT=yes
AUTOCONNECT_PRIORITY=-999
IPADDR=192.168.100.100
NETMASK=255.255.255.0

说明：网卡配置修改后，记得使用systemctl restart network重新启动下网卡服务

3.2 测试网络

192.168.200.2为VM NAT网关地址。

[root@dhcp-realy ~]# ping 192.168.200.2 -c2
PING 192.168.200.2 (192.168.200.2) 56(84) bytes of data.
64 bytes from 192.168.200.2: icmp_seq=1 ttl=128 time=0.222 ms
64 bytes from 192.168.200.2: icmp_seq=2 ttl=128 time=0.375 ms
​
--- 192.168.200.2 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1003ms
rtt min/avg/max/mdev = 0.222/0.298/0.375/0.078 ms

四、【DHCP-Server】安装DHCP服务器

[root@dhcp-server ~]# yum install -y dhcp

五、【DHCP-Server】编辑配置文件/etc/dhcp/dhcpd.conf

[root@dhcp-server ~]# vim /etc/dhcp/dhcpd.conf

5.1 DHCP配置

ddns-update-style none;
default-lease-time 21600;
max-lease-time 43200;
​
subnet 192.168.200.0 netmask 255.255.255.0{
        option routers 192.168.200.2;
        option subnet-mask 255.255.255.0;
        option domain-name-servers 192.168.200.2;
        range dynamic-bootp 192.168.200.11 192.168.200.99;
}
​
subnet 192.168.100.0 netmask 255.255.255.0{
        option routers 192.168.100.1;
        option subnet-mask 255.255.255.0;
        option domain-name-servers 114.114.114.114;
        range dynamic-bootp 192.168.100.11 192.168.100.99;
}

5.2 重启dhcp服务

[root@dhcp-server ~]# systemctl restart dhcpd
[root@dhcp-server ~]# systemctl enable  dhcpd

• 说明：在配置dhcp时，一定要小心，如若出现语法错误、输入错误，DHCP将无法启动。

5.3 添加DHCP服务器到中继服务器的路由

[root@dhcp-server ~]# ip route add 192.168.100.0/24 via 192.168.200.10

[root@dhcp-server ~]# ip route list
default via 192.168.200.2 dev ens33 proto static metric 100
192.168.100.0/24 via 192.168.200.10 dev ens33
192.168.122.0/24 dev virbr0 proto kernel scope link src 192.168.122.1
192.168.200.0/24 dev ens33 proto kernel scope link src 192.168.200.10 metric 100

六、【DHCP-Relay】配置DHCP中继服务器

6.1 启用IPv4的转发功能

[root@dhcp-relay ~]# vim /etc/sysctl.conf

添加一行

net.ipv4.ip_forward = 1

[root@dhcp-relay ~]# sysctl -p
net.ipv4.ip_forward = 1
[root@dhcp-relay ~]# cat /proc/sys/net/ipv4/ip_forward
1

6.2 安装DHCP服务

[root@dhcp-relay ~]# yum install dhcp -y

6.3 配置中继代理

指定DHCP服务器的位置

[root@dhcp-relay ~]# cp /lib/systemd/system/dhcrelay.service /etc/systemd/system
[root@dhcp-relay ~]# cd /etc/systemd/system
[root@dhcp-relay system]# vim dhcrelay.service

修改如下

[Unit]
Description=DHCP Relay Agent Daemon
Documentation=man:dhcrelay(8)
Wants=network-online.target
After=network-online.target

[Service]
Type=notify
ExecStart=/usr/sbin/dhcrelay -d --no-pid 192.168.200.10   #只修改了这一行

[Install]
WantedBy=multi-user.target

重新配置信息

[root@dhcp-relay system]# systemctl --system daemon-reload

6.4 重新启动DHCP中继服务

[root@dhcp-relay ~]# systemctl restart dhcrelay.service
[root@dhcp-relay ~]# systemctl enable dhcrelay.service

七、客户端测试

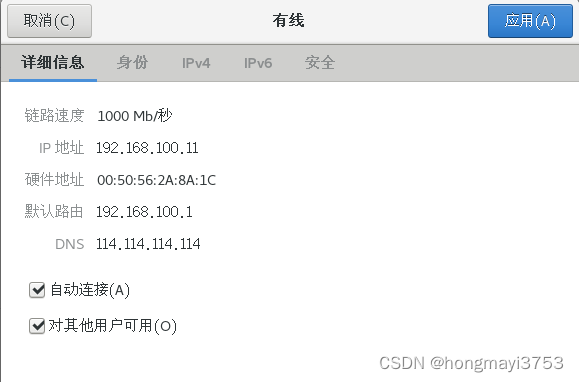

7.1 【Client】上测试

7.2 查看日志

[root@dhcp-server ~]# tail -n 10 /var/log/messages
Feb  7 20:22:30 centos-teach dhcpd: DHCPOFFER on 192.168.100.11 to 00:50:56:2a:8a:1c (centos-teach) via 192.168.100.100
Feb  7 20:22:45 centos-teach dhcpd: DHCPDISCOVER from 00:50:56:2a:8a:1c (centos-teach) via 192.168.100.100
Feb  7 20:22:45 centos-teach dhcpd: DHCPOFFER on 192.168.100.11 to 00:50:56:2a:8a:1c (centos-teach) via 192.168.100.100
Feb  7 20:26:08 centos-teach journal: secret_service_search_sync: must specify at least one attribute to match
Feb  7 20:26:13 centos-teach dhcpd: DHCPDISCOVER from 00:50:56:2a:8a:1c (centos-teach) via 192.168.100.100
Feb  7 20:26:14 centos-teach dhcpd: DHCPOFFER on 192.168.100.11 to 00:50:56:2a:8a:1c (centos-teach) via 192.168.100.100
Feb  7 20:26:14 centos-teach dhcpd: DHCPREQUEST for 192.168.100.11 (192.168.200.10) from 00:50:56:2a:8a:1c (centos-teach) via 192.168.100.100
Feb  7 20:26:14 centos-teach dhcpd: DHCPACK on 192.168.100.11 to 00:50:56:2a:8a:1c (centos-teach) via 192.168.100.100
Feb  7 20:28:00 centos-teach dhcpd: DHCPREQUEST for 192.168.100.11 from 00:50:56:2a:8a:1c (centos-teach) via 192.168.100.100
Feb  7 20:28:00 centos-teach dhcpd: DHCPACK on 192.168.100.11 to 00:50:56:2a:8a:1c (centos-teach) via 192.168.100.100
