使用JS制作了一款拼图游戏供大家参考。

原理分析：
1.鼠标的点击和松开事件
2.显示原图作为参考
3.方块的移动替换
4.是否完成拼图的判断
5.完成之后会弹窗提示

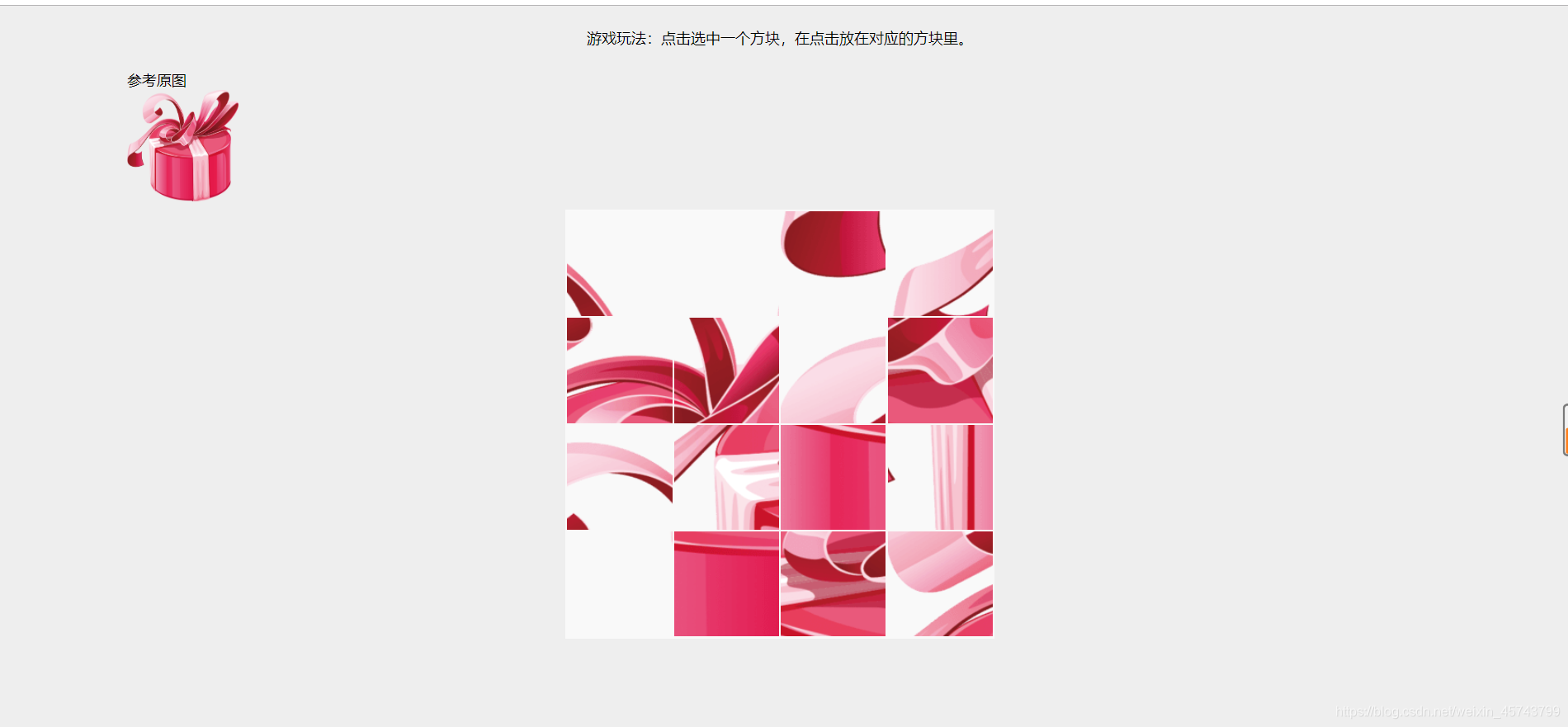

效果演示

在这里插入图片描述

代码展示

<!DOCTYPE html>
<html>
	<head>
		<meta charset="UTF-8">
		<title>拼图游戏</title>
	</head>

	<style>
		body,
		html {
			padding: 0px;
			margin: 0px;
			background: #eee;
		}

		#fangkuai {
			width: 460px;
			height: 460px;
			margin: 20px auto;
			background: #F9F9F9;
			padding: 1px 1px;
			position: relative;
		}

		#maskBox {
			opacity: 0.5;
			display: block;
		}

		#tu img {
			width: 120px;
			height: 120px;
		}

		#tu {
			width: 130px;
			height: 130px;
			margin-left: 150px;
		}
	</style>

	<body>

		<div style="width:460px;margin:20px auto;text-align:center;line-height:30px;">游戏玩法：点击选中一个方块，在点击放在对应的方块里。</div>

		<div id="tu">
			<font>参考原图</font>
			<img src="true.png" />
		</div>

		<div id="fangkuai"></div>


	</body>
	<script>
		window.onload = function() {
			//生成函数
			gameInfo.init();
		}
	</script>
	<script>
		(function($g) {
			//游戏配置
			setting = {
				gameConfig: {
					url: "true.png",
					id: "fangkuai",
					//生成规格横4 纵4
					size: "4*4",
					//每个元素的间隔
					margin: 1,
					//拖动时候块透明度
					opacity: 0.8
				},
				setElement: {
					type: "div",
					id: "",
					float: "",
					display: "",
					margin: "",
					background: "",
					width: "",
					height: "",
					left: "",
					top: "",
					position: "",
					opacity: 0.4,
					animate: 0.8
				}
			};
			//元素生成参数
			var sg = setting.gameConfig;
			var st = setting.setElement;
			var gameInfo = function() {};
			gameInfo.prototype = {
				init: function() {
					this.creatObj();
					this.eventHand();
				},
				sortObj: {
					rightlist: [], //正确的排序
					romdlist: [] //打乱后的排序
				},
				creatObj: function() {
					sg.boxObj = document.getElementById(sg.id) || "";
					//尺寸自动获取
					var size = sg.size.split('*') || [0, 0];
					//计算单个div的高宽
					var w = Math.floor(sg.boxObj.offsetWidth / size[0]);
					var h = Math.floor(sg.boxObj.offsetHeight / size[1]);
					//图片生成div
					var size = sg.size.split('*') || [0, 0];
					var wt = size[0],
						hg = size[1];

					var sortList = [];
					for (var a = 0; a < wt * hg; a++) {
						sortList.push(a);
					}
					sortList.sort(randomsort);
					this.sortObj.rightlist = sortList;

					var _i = 0,
						sid = 0;
					for (; _i < wt; _i++) {
						var _s = 0;
						for (; _s < hg; _s++) {
							//赋值随机打散后的id
							st.id = sortList[sid++];
							st.display = "block";
							st.float = "left";

							st.margin = sg.margin + "px";
							st.background = "url('" + sg.url + "') " + (-w * _s) + "px " + (-h * _i) + "px";
							st.width = w - sg.margin * (wt / 2) + "px";
							st.height = h - sg.margin * (hg / 2) + "px";
							this.sortObj.romdlist.push(this.addElement());

						}
					}

					this.boxSort();
				},
				boxSort: function() {
					var _arrySort = this.sortObj.romdlist;
					var _tmp = [],
						_n = 0;
					eachBox(_arrySort, function(d) {
						_tmp.push(parseInt(_arrySort[d].id));
					});

					_tmp.sort(function(a, b) {
						return a > b ? 1 : -1;
					});

					for (; _n < _tmp.length; _n++) {
						var _s = 0;
						for (; _s < _arrySort.length; _s++) {
							if (_arrySort[_s].id == _tmp[_n]) {
								sg.boxObj.appendChild(_arrySort[_s]);
							}
						}
					}
					return _tmp;
				},

				addElement: function() {
					var obj = document.createElement(st.type);
					obj.id = st.id;
					obj.style.display = st.display;
					obj.style.float = st.float;
					obj.style.margin = st.margin;
					obj.style.background = st.background;
					obj.style.width = st.width;
					obj.style.position = st.position;
					obj.style.top = st.top;
					obj.style.left = st.left;
					obj.style.height = st.height;
					return obj;
				},
				mouseEvent: {
					mousedown: function(ev) {
						ev = ev || ev.event;
						ev.preventDefault();

						st.type = "span";
						st.id = "maskBox";
						st.width = this.offsetWidth + "px";
						st.height = this.offsetHeight + "px";
						st.position = "absolute";
						st.background = "";

						st.left = this.offsetLeft + "px";
						st.top = this.offsetTop + "px";
					},
					mouseup: function(ev) {
						ev = ev || ev.event;

						ev.preventDefault();
						var obj = document.getElementById(this.id);
						if (obj) {
							sg.boxObj.removeChild(obj);
						}
					},
					mousemove: function(ev) {
						ev = ev || ev.event;
						this.style.left = getX_Y.call(this, "x", ev) + "px";
						this.style.top = getX_Y.call(this, "y", ev) + "px";
					}

				},

				gameCheck: function() {
					var s = 0,
						bols = true;
					var _arry = this.sortObj.rightlist;
					var _arryRom = this.sortObj.romdlist;
					console.log(_arry);
					console.log(_arryRom);
					for (; s < _arry.length; s++) {
						if (_arry[s] != _arryRom[s].id) {
							bols = false;
							break;
						}
					}
					return bols;
				},
				eventHand: function() {
					var obj = sg.boxObj.getElementsByTagName("div");
					var i = 0,
						olen = obj.length;
					var that = this;
					var m = that.mouseEvent;
					var box_index = 0;
					for (; i < olen;) {
						(function(n) {
							//按下鼠标
							obj[n].addEventListener("mousedown", function(e) {
								var _this = this;
								m.mousedown.call(_this, e);
								st.background = _this.style.background;
								_this.style.background = "#FFF";

								var _newObj = that.addElement();
								sg.boxObj.appendChild(_newObj);
								_newObj.style.opacity = sg.opacity;
								//移动位置
								_newObj.onmousemove = function(e) {
									m.mousemove.call(_newObj, e);

									var _i = 0;

									for (; _i < olen; _i++) {
										var _w = parseInt(obj[_i].style.width) / 1.5;
										var _h = parseInt(obj[_i].style.height) / 1.5;
										var _left = obj[_i].offsetLeft;
										var _top = obj[_i].offsetTop;
										var _boxX = parseInt(this.style.left);
										var _boxY = parseInt(this.style.top);

										eachBox(obj, function(d) {
											obj[d].style.opacity = 1.0;
										});

										if (_left + _w > _boxX || _left > _boxX + _w) {
											if (_top + _h > _boxY || _top > _boxY + _h) {
												box_index = _i;
												obj[_i].style.opacity = st.opacity;
												break;
											}

										}
									}
								};
								//鼠标松开
								_newObj.addEventListener("mouseup", function(e) {
									_newObj.onmousemove = function(e) {};
									//获取当前停留元素的坐标
									var tagObj = {
										id1: obj[box_index].id,
										id2: _this.id,
										bg1: obj[box_index].style.background,
										bg2: this.style.background
									};
									//交换位置
									_this.id = tagObj.id1;
									_this.style.background = tagObj.bg1;
									obj[box_index].id = tagObj.id2;
									obj[box_index].style.background = tagObj.bg2;

									that.sortObj.romdlist = obj;
									//还原样式
									eachBox(obj, function(d) {
										obj[d].style.opacity = 1.0;
									});
									m.mouseup.call(_newObj, e);
									//判断是否完成拼图
									if (that.gameCheck()) {
										alert("好棒呀！！！");
									}
								}, false);

							}, false);

						})(i++);

					}

				}
			}
			//随机数
			function randomsort(a, b) {
				return Math.random() > .5 ? -1 : 1;
			}

			function eachBox(obj, fn) {
				var _s = 0;
				for (; _s < obj.length; _s++) {
					fn(_s);
				}
			}

			function getX_Y(s, ev) {
				var _b = (ev.clientX - this.parentNode.offsetLeft) - (this.offsetWidth / 2);
				if (s === "y") {
					_b = (ev.clientY - this.parentNode.offsetTop) - (this.offsetHeight / 2);
				}
				return _b;
			}
			$g.gameInfo = new gameInfo();
		})(window)
	</script>
</html>
