1、salt-api

SaltStack 官方提供有REST API格式的 salt-api 项目，将使Salt与第三方系统集成变得尤为简单。

[root@server1 ~]# yum install -y salt-api  ##安装salt-api
[root@server1 certs]# cd /etc/pki/tls/
[root@server1 tls]# cd private/
[root@server1 private]# ls
[root@server1 private]# openssl genrsa 1024
[root@server1 private]# openssl genrsa 1024 > localhost.key
[root@server1 private]# cd ..
[root@server1 tls]# cd  certs/
[root@server1 certs]# ls
ca-bundle.crt  ca-bundle.trust.crt  localhost.key  make-dummy-cert  Makefile  renew-dummy-cert
[root@server1 certs]# make testcert   ##生成证书
[root@server1 certs]# ll localhost.crt   ##生成证书
-rw------- 1 root root 1038 Jan 25 07:05 localhost.crt
[root@server1 certs]# ls
ca-bundle.crt        localhost.crt  make-dummy-cert  renew-dummy-cert
ca-bundle.trust.crt  localhost.key  Makefile
[root@server1 certs]# cd /etc/salt/master.d/
[root@server1 master.d]# ls

激活rest_cherrypy模块：
[root@server1 master.d]# vim api.conf
rest_cherrypy:
  port: 8000
  ssl_crt: /etc/pki/tls/certs/localhost.crt
  ssl_key: /etc/pki/tls/private/localhost.key
创建用户认证文件：
[root@server1 master.d]# vim auth.conf

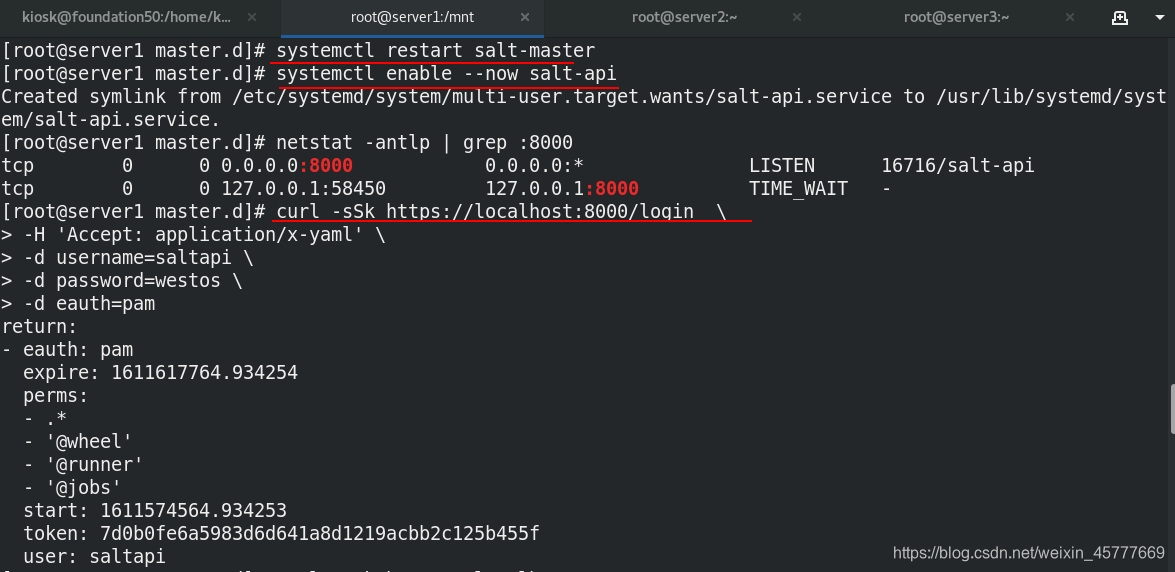

重启服务：
[root@server1 master.d]# systemctl restart salt-master
[root@server1 master.d]# systemctl enable --now salt-api
获取认证token：
[root@server1 master.d]# curl -sSk https://localhost:8000/login  \

推送任务： token值是上面命令获取的toekn值。
[root@server1 master.d]# curl -sSk https://localhost:8000 \

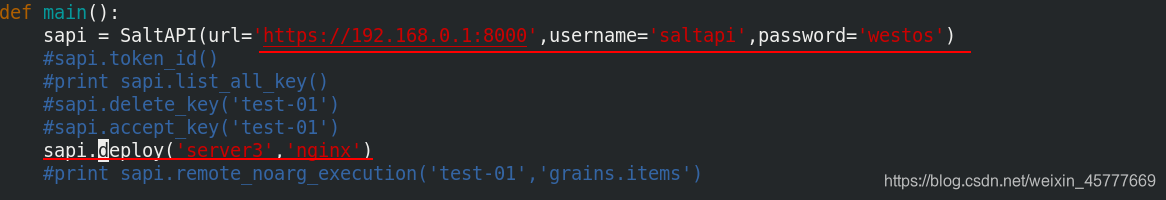

[root@server1 ~]# vim saltapi.py
[root@server1 ~]# python saltapi.py
[root@server2 ~]# systemctl stop httpd
[root@server2 ~]# netstat -antlp | grep :80
tcp6       0      0 :::80                   :::*                    LISTEN      4360/httpd

2、docker

安装 开启 配置

[root@server1 yum.repos.d]# vim docker.repo
[root@server1 yum.repos.d]# yum install -y docker-ce
[docker]
name=docker-ce
baseurl=https://mirrors.aliyun.com/docker-ce/linux/centos/7/x86_64/stable/
gpgcheck=0
[root@server1 yum.repos.d]# curl -o /etc/yum.repos.d/CentOS-Base.repo https://mirrors.aliyun.com/repo/Centos-7.repo ##下载CentOS源
[root@server1 yum.repos.d]# sed -i -e '/mirrors.cloud.aliyuncs.com/d' -e '/mirrors.aliyuncs.com/d' /etc/yum.repos.d/CentOS-Base.repo
[root@server1 yum.repos.d]# vim CentOS-Base.repo
:%s/$releasever/7/g
[root@server1 yum.repos.d]# yum repolist
[root@server1 yum.repos.d]# yum install -y docker-ce
[root@server1 ~]# systemctl start docker
[root@server1 ~]# systemctl enable docker
[root@server1 ~]# docker info
[root@server1 ~]# sysctl -a | grep bridge-nf-call-iptables
[root@server1 ~]# vim /etc/sysctl.d/docker.conf
net.bridge.bridge-nf-call-iptables = 1
net.bridge.bridge-nf-call-ip6tables = 1
[root@server1 ~]# sysctl  --system
[root@server1 ~]# docker info
Registry: https://index.docker.io/v1/

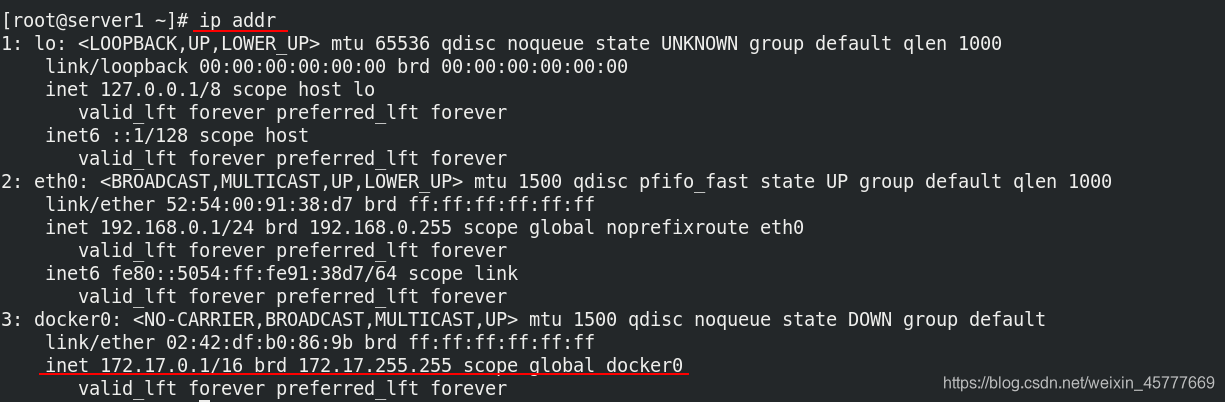

[root@server1 ~]# ip addr

game2048

[root@server1 ~]# docker search yakexi007
[root@server1 ~]# docker pull yakexi007/game2048
[root@server1 ~]# yum install -y bash-*
[root@server1 ~]# docker image
[root@server1 ~]# docker run -d --name demo -p 80:80 yakexi007/game2048
879a270b347afa2cd7ca3e27e3b28d564563a607582528d77d9df3cf0d3093d8
[root@server1 ~]# docker ps
[root@server1 ~]# docker ps -a
[root@server1 ~]# docker rm -f demo
[root&
